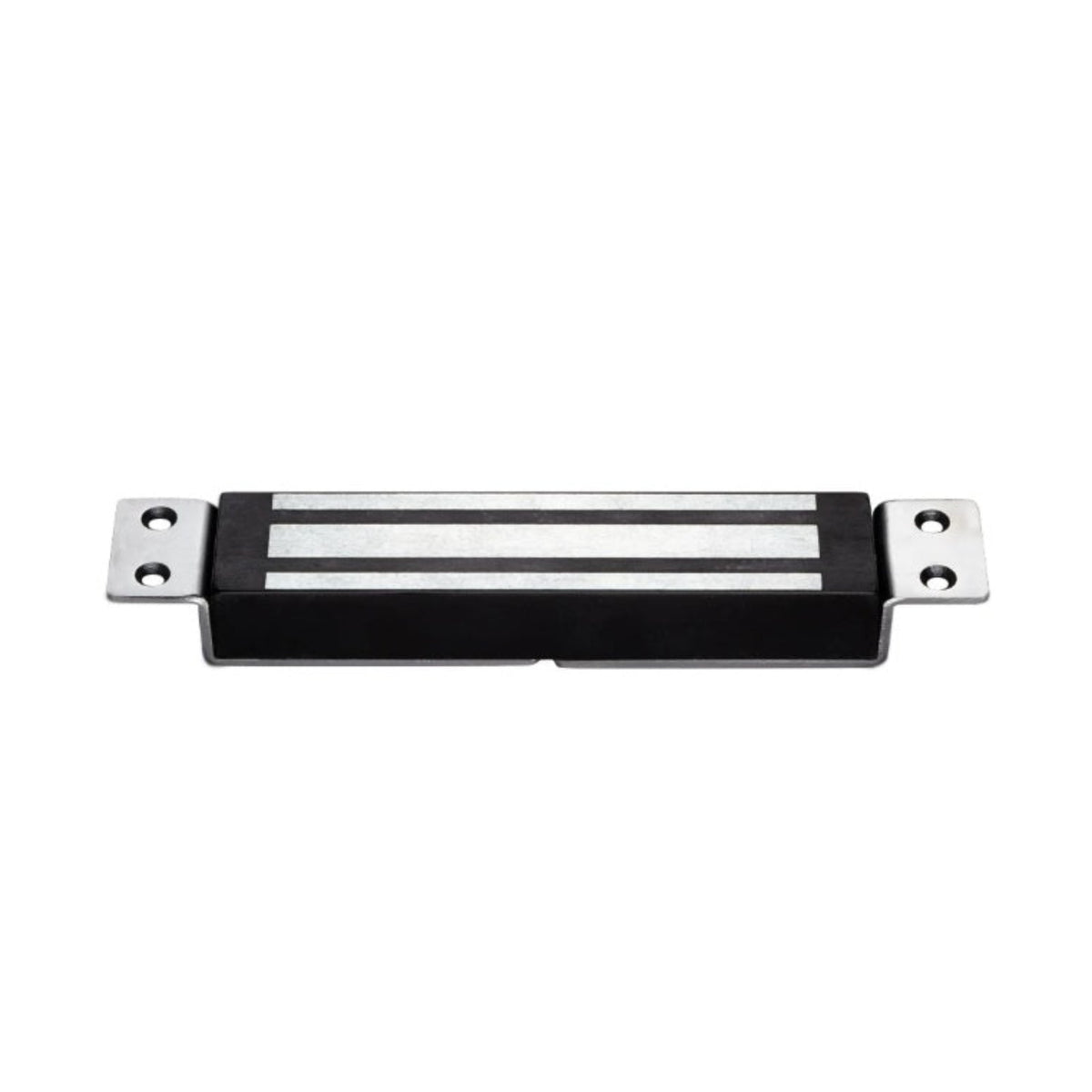

YLI YM-180M Mortise Mount Electromagnetic Lock (180kg / 350lbs)
YLI YM-180M Mortise Mount Electromagnetic Lock (180kg / 350lbs)
Couldn't load pickup availability
Short Product Description
Short Product Description
The YLI YM-180M is a mortise-mount electromagnetic lock designed for discreet access control. Delivering 180kg (350lbs) of holding force, it is ideal for wooden, metal, glass, and fireproof doors where maintaining a clean aesthetic is essential. It features dual voltage support (12V/24V DC) and an IP68-rated, flame-retardant body for reliable security in both indoor and demanding environments.
Key Features
Key Features
- Mortise Installation: Concealed design maintains door aesthetics without bulky surface-mounted hardware.
- 180kg Holding Force: Provides 350lbs of direct pull resistance for reliable access control.
- Dual Voltage Input: Adjustable for 12V DC (300mA) or 24V DC (150mA) systems via jumper settings.
- IP68 & Flame Retardant: Fully waterproof and potted with V-0 grade resin for extreme durability and fire safety.
- Anti-Residual Magnetism: Engineered to demagnetize and unlock within 0.5 seconds for immediate exit.
Full Product Description
Full Product Description
Concealed Security for Professional Access Control
The YLI YM-180M provides robust security while remaining completely hidden within the door frame. Unlike standard surface-mount magnetic locks, this mortise design ensures that the lock body does not protrude, preserving the architectural aesthetics of your office, commercial space, or home. It delivers a reliable 180kg (350lbs) of holding force, making it highly effective for standard interior doors and controlled entryways.
Durable and Weather-Resistant Construction
Built with an IP68 rating and flame-retardant resin, this lock withstands harsh conditions and ensures long-term reliability. The lock housing undergoes a 500-hour salt spray test and features anodized hard plating, offering exceptional corrosion resistance. Furthermore, the internal components are potted with V-0 grade flame-retardant resin, ensuring compliance with strict fire safety standards.
Technician Tip
Always verify your access control system's output voltage before installation to prevent damage. The YM-180M supports both 12V and 24V DC, but it defaults to 12V out of the box; you must adjust the internal jumper pins if your system runs on 24V. If your access control panel requires a door status feedback signal, ensure you specifically source the YM-180M-S variant.
Technical Specifications
Technical Specifications
- Brand: YLI Electronic
- Model: YM-180M
- Installation Type: Mortise Mount (Concealed)
- Holding Force: 180kg (350Lbs) ±10% direct pull
- Input Voltage: DC 12V (Default) / DC 24V (Adjustable)
- Current Draw: 300mA at 12V / 150mA at 24V (±10%)
- Lock Dimensions: 190 x 32 x 22.5 mm (L x W x H)
- Armature Plate Dimensions: 130 x 32 x 10 mm (L x W x H)
- Operating Temperature: -30°C to +66°C
- Suitable Door Types: Wooden, Glass, Metal, Fireproof doors
- Certifications: CE-EMC, CE-LVD, FCC, RoHS, REACH, WEEE, IP68
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Can this lock be installed on a frameless glass door?Yes, but you will need to purchase and install a compatible U-bracket specifically designed for frameless glass doors to hold the armature plate.
- How do I switch the power input from 12V to 24V?The voltage is adjustable via the internal jumper pins on the lock's circuit board; it is set to 12V DC by default from the factory.
- Does this magnetic lock provide a door status signal?The standard YM-180M model does not provide a signal, but the YM-180M-S variant includes a door status signal output for monitoring.
- Is this lock suitable for outdoor gates?Yes, the IP68 waterproof rating and anodized hard plating make it highly resistant to water and corrosion in outdoor environments.
- Can I get wiring advice for my access control system at your Sham Shui Po store?Yes, our technical team at Sun Cheong Computer Co. Ltd. can provide practical wiring and integration advice when you purchase your access control hardware from us.
Target Users / Applications
Target Users / Applications
- Corporate offices requiring concealed access control to maintain interior design aesthetics.
- Outdoor metal gates requiring an IP68 waterproof locking mechanism.
- Fireproof doors in commercial buildings needing V-0 grade flame-retardant hardware.
- High-end residential properties looking for hidden security locks.
