Name: Waveshare 1.28" Round LCD Display | 240x240 SPI Module
Brand: Waveshare
SKU: 21MR000107
Price: 530.0 TWD
Availability: InStock

Short Product Description

Looking to build a custom smartwatch or a digital dashboard gauge? The Waveshare 1.28-inch Round LCD Display Module delivers stunning, edge-to-edge visuals in a compact circular form factor. Featuring a sharp 240x240 resolution, vibrant 65K RGB colors, and wide IPS viewing angles, your data comes to life instantly. Its efficient 4-wire SPI interface minimizes wiring complexity, making it the perfect upgrade for Raspberry Pi, Arduino, and STM32 projects.

Key Features

1.28-inch Circular IPS Panel: Delivers exceptionally wide viewing angles and deep contrast, ensuring your UI remains readable from any direction.
240x240 High Resolution (65K RGB): Provides a sharp, colorful displaying effect, perfect for rendering intricate gauge dials or smooth text.
4-Wire SPI Interface: Minimizes required I/O wiring, freeing up your board's GPIO pins for other essential components.

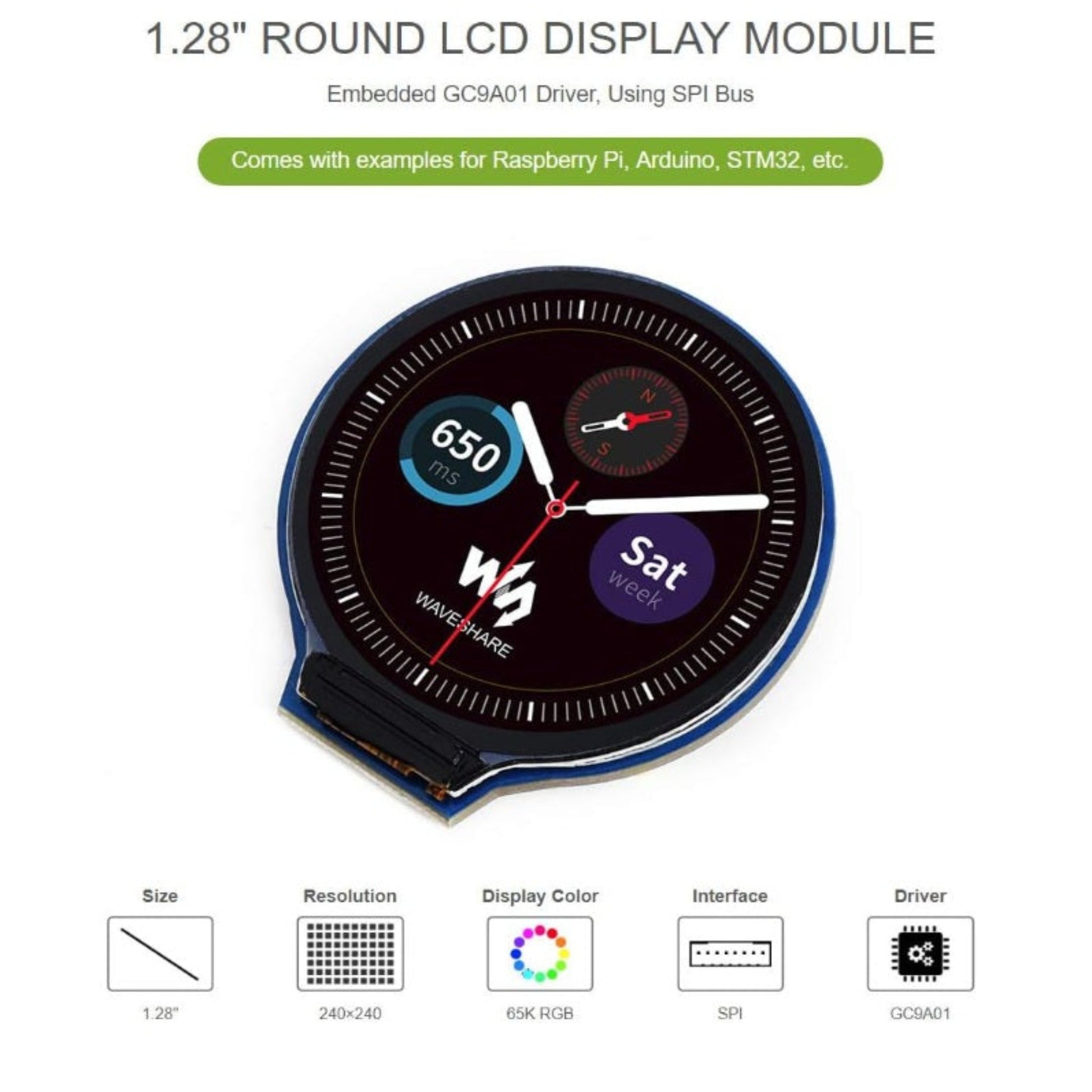

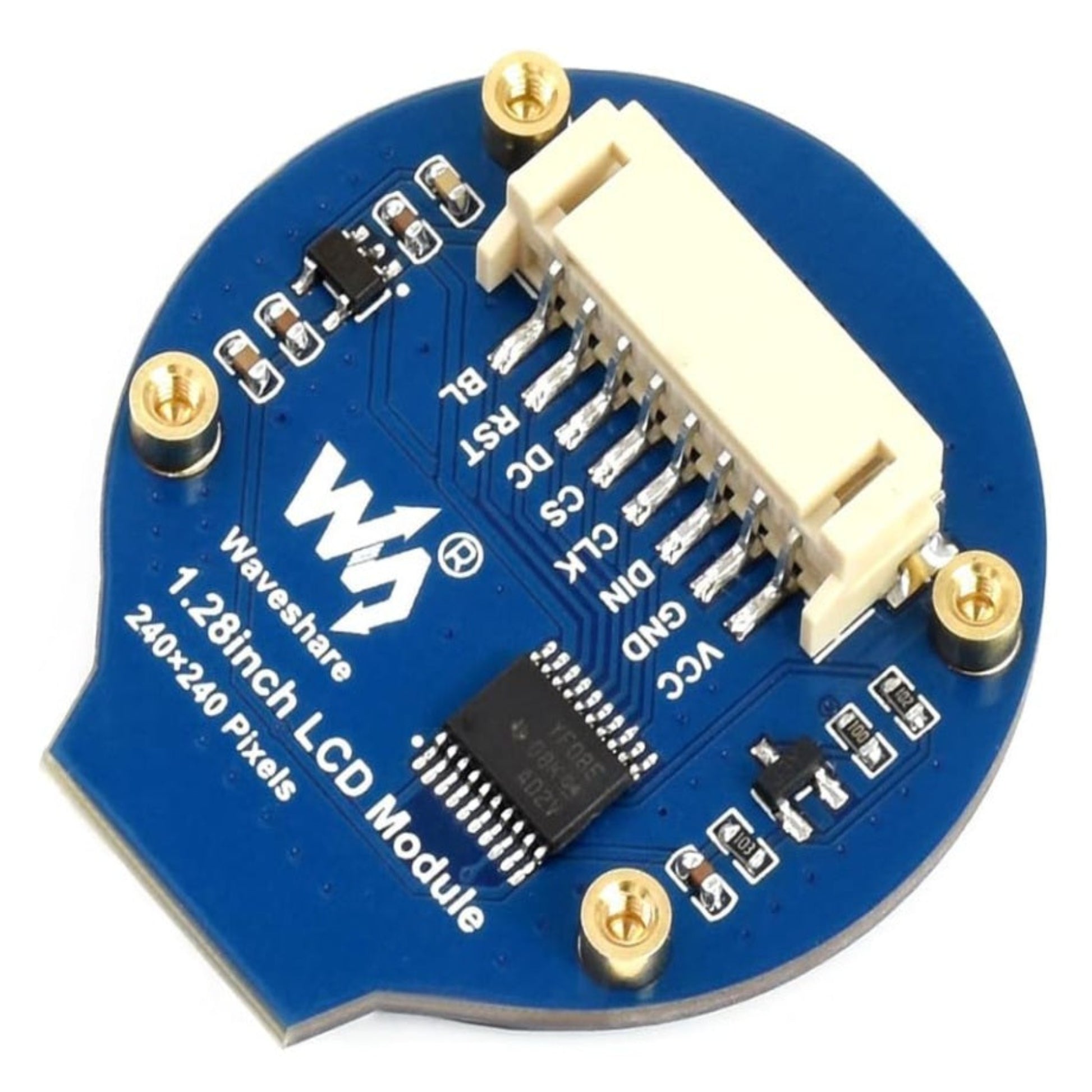

Embedded GC9A01 Driver: Ensures fast, reliable graphics rendering and comes with extensive manufacturer-provided code examples.
Wide Voltage Compatibility (3.3V/5V): Offers plug-and-play flexibility with various logic levels without the need for fragile, external level shifters.
Complete Package: Includes a pre-crimped PH2.0 8PIN 20cm cable for immediate, hassle-free hardware connection.

Full Product Description

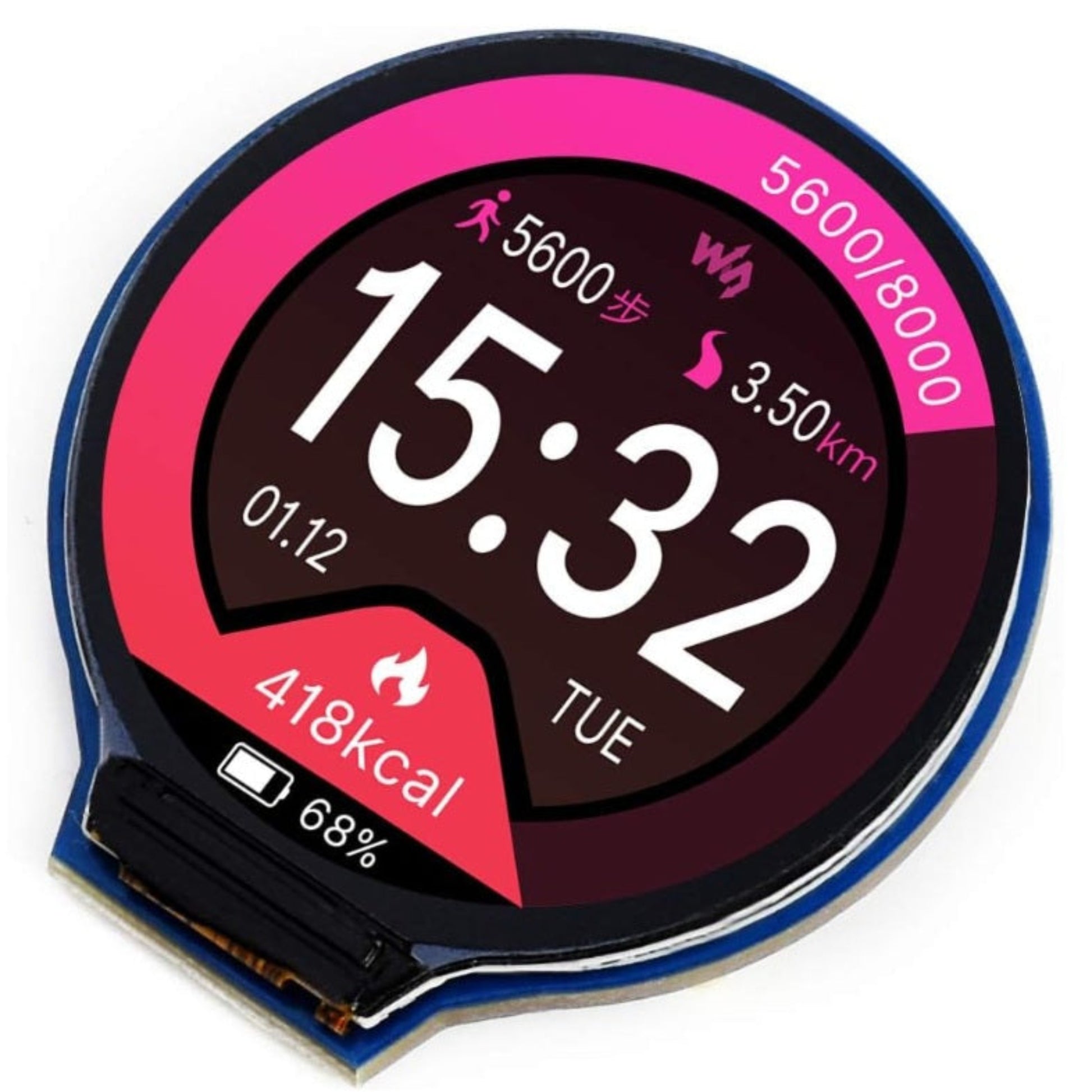

Bring Your Circular UI Ideas to Life

Stop constraining your IoT and wearable projects to traditional rectangular screens. The Waveshare 1.28-inch Round LCD Display Module is engineered specifically for developers and hobbyists who want to create sleek, modern interfaces like smartwatches, circular gauges, and dynamic status indicators. Powered by the reliable GC9A01 driver and featuring an IPS display panel, it guarantees crystal-clear visuals and vibrant color reproduction from virtually any viewing angle.

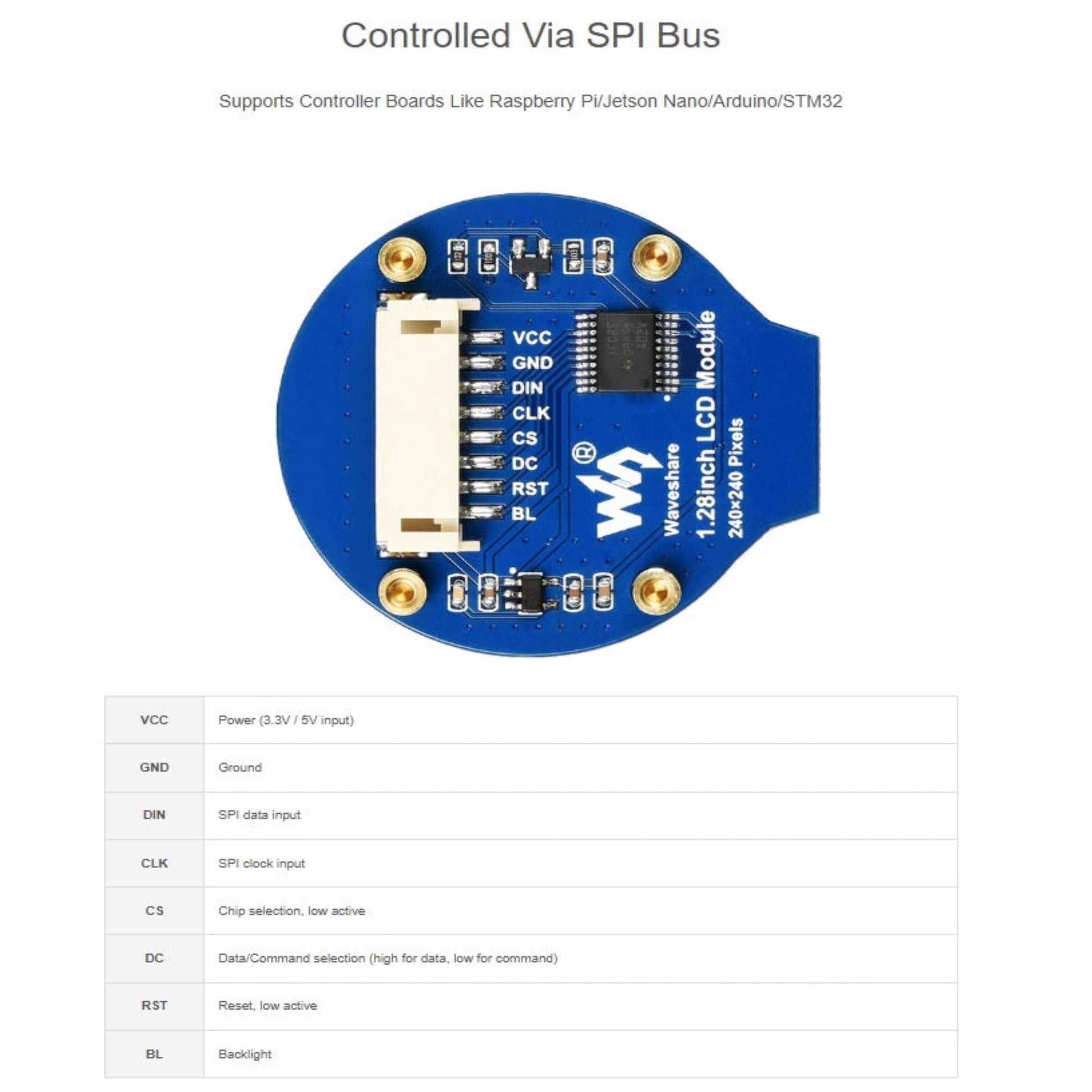

Efficient 4-Wire SPI Communication

Working with microcontrollers often means battling for available I/O pins. This module utilizes a highly efficient 4-wire SPI interface, which dramatically reduces the number of pins required for high-speed display communication. This leaves your controller's remaining GPIO pins free for integrating additional sensors, buttons, or wireless modules without compromising on display refresh rates.

Broad Microcontroller Compatibility

Whether you are a student exploring STEM concepts, a maker prototyping a wearable, or a corporate engineer developing custom diagnostic tools, this display adapts to your workflow. With a flexible 3.3V / 5V operating voltage, it seamlessly connects to a massive ecosystem of boards, including Raspberry Pi, Jetson Nano, Arduino, and STM32. Plus, comprehensive development resources and ready-to-use code examples ensure you spend less time troubleshooting and more time creating.

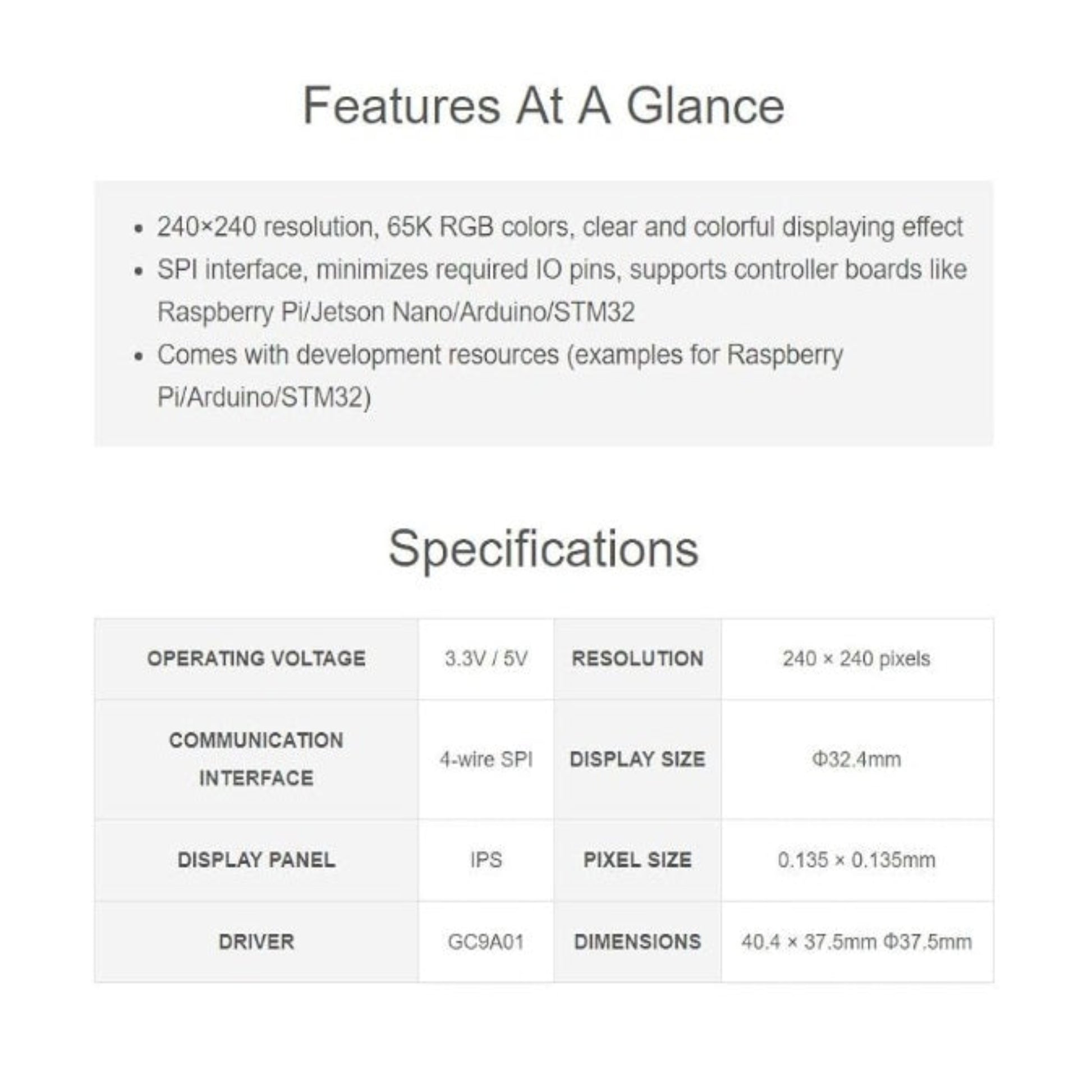

Technical Specifications

Operating Voltage: 3.3V / 5V
Communication Interface: 4-wire SPI
Display Panel: IPS
Driver IC: GC9A01
Resolution: 240 × 240 pixels
Display Size: Φ32.4 mm
Pixel Size: 0.135 × 0.135 mm
Module Dimensions: 40.4 × 37.5 mm (Φ37.5 mm)

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Q: Which development boards are compatible with this screen?

A: This module is widely compatible and comes with development resources and examples for Raspberry Pi, Jetson Nano, Arduino, and STM32. Its 3.3V/5V tolerance makes it extremely versatile.

Q: Does it come with the necessary connecting cables?

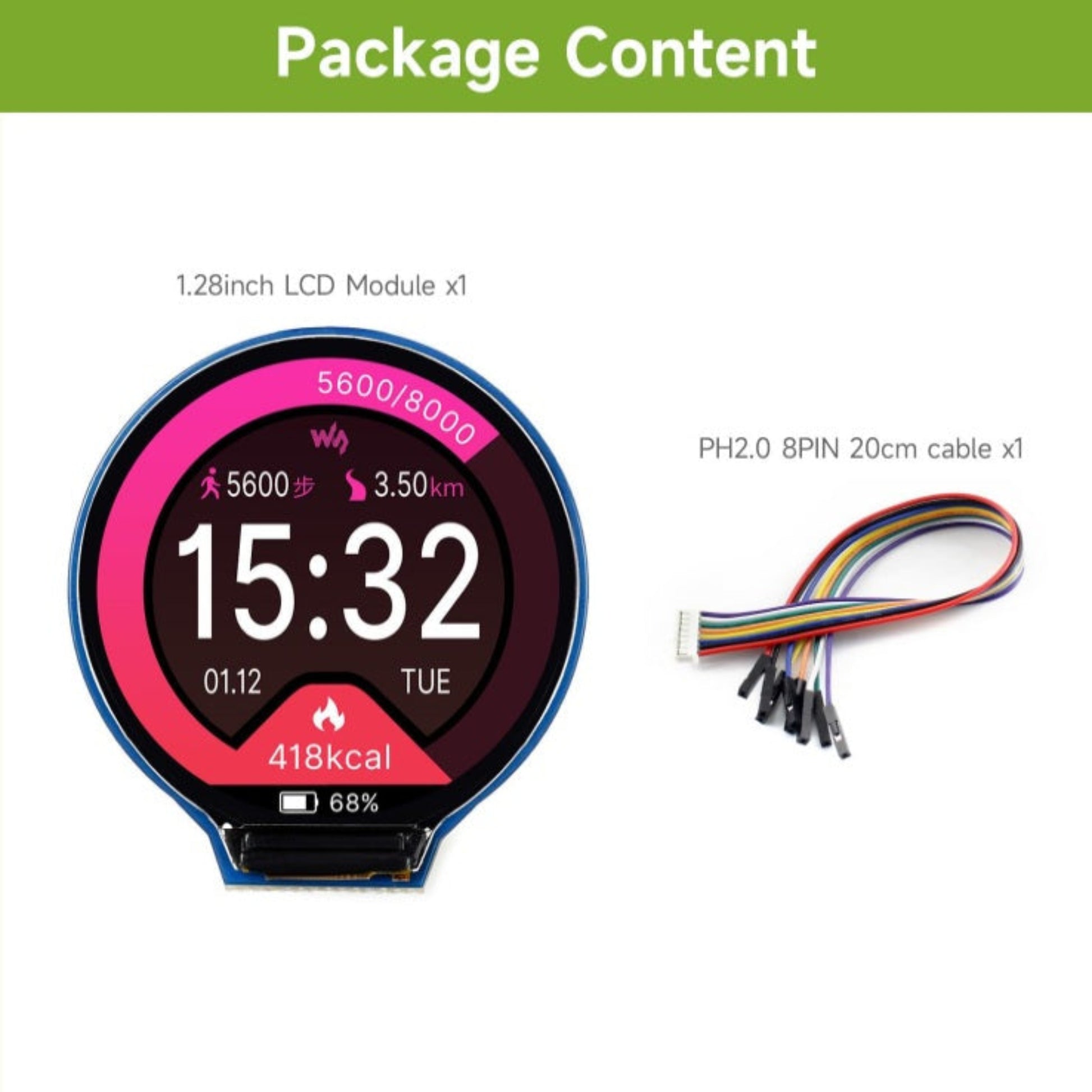

A: Yes! The package includes the 1.28-inch LCD Module and a dedicated PH2.0 8PIN 20cm connecting cable, so you can wire it up to your breadboard or controller right out of the box.

Q: Can I use this for building a DIY smartwatch?

A: Absolutely. Its compact 37.5mm outer diameter, circular display area, and vibrant IPS panel make it the ideal hardware foundation for wearable prototypes and custom smartwatch interfaces.
