USB-C 24-Pin Cable Tester Board | Type-C Continuity Checker with LED
USB-C 24-Pin Cable Tester Board | Type-C Continuity Checker with LED
Couldn't load pickup availability
Short Product Description
Short Product Description
Stop guessing why your devices won't fast charge or display video. This compact 24-Pin USB-C Cable Tester instantly diagnoses hidden faults inside your Type-C cables. Featuring 12 sets of precise LED indicators and a standalone battery-powered design, it’s the ultimate diagnostic tool to quickly weed out broken, low-quality, or power-only cables. Perfect for your toolkit, workbench, or daily tech carry.
Key Features
Key Features
- Full-Featured Pin Detection: Tests all 24 pins to accurately verify charging, data, and video transmission capabilities.
- Instant Visual Feedback: 12 independent LED light sets clearly map out broken circuits or missing connections in seconds.
- True Portability: Completely standalone operation powered by a single CR2032 coin battery—no external power cables required.
- Pocket-Sized Design: Measuring just 50x30mm, it’s the perfect everyday carry (EDC) tool for technicians and DIY enthusiasts.
- Durable PCB Construction: High-quality soldering and a robust blue circuit board built for repeated, daily insertions.
Full Product Description
Full Product Description
Stop Guessing, Start Testing Your USB-C Cables
We’ve all been there: a drawer full of identical USB-C cables, but only half of them actually support fast charging or high-speed data transfer. Broken internal pins are a leading cause of device connection failures. Instead of frustrating trial and error, the USB-C 24-Pin Cable Tester Board allows you to instantly verify the integrity and exact specifications of any dual-head Type-C cable.
Comprehensive 24-Pin Detection
Not all USB-C cables are created equal. This diagnostic board supports full 24-pin conductivity testing. By plugging in both ends of your cable, the module routes the connection through its precisely engineered circuit. It accurately tests every single pin, helping you identify whether a cable is fully featured (for video and heavy data) or just a basic charging cord.
Visual LED Diagnostics

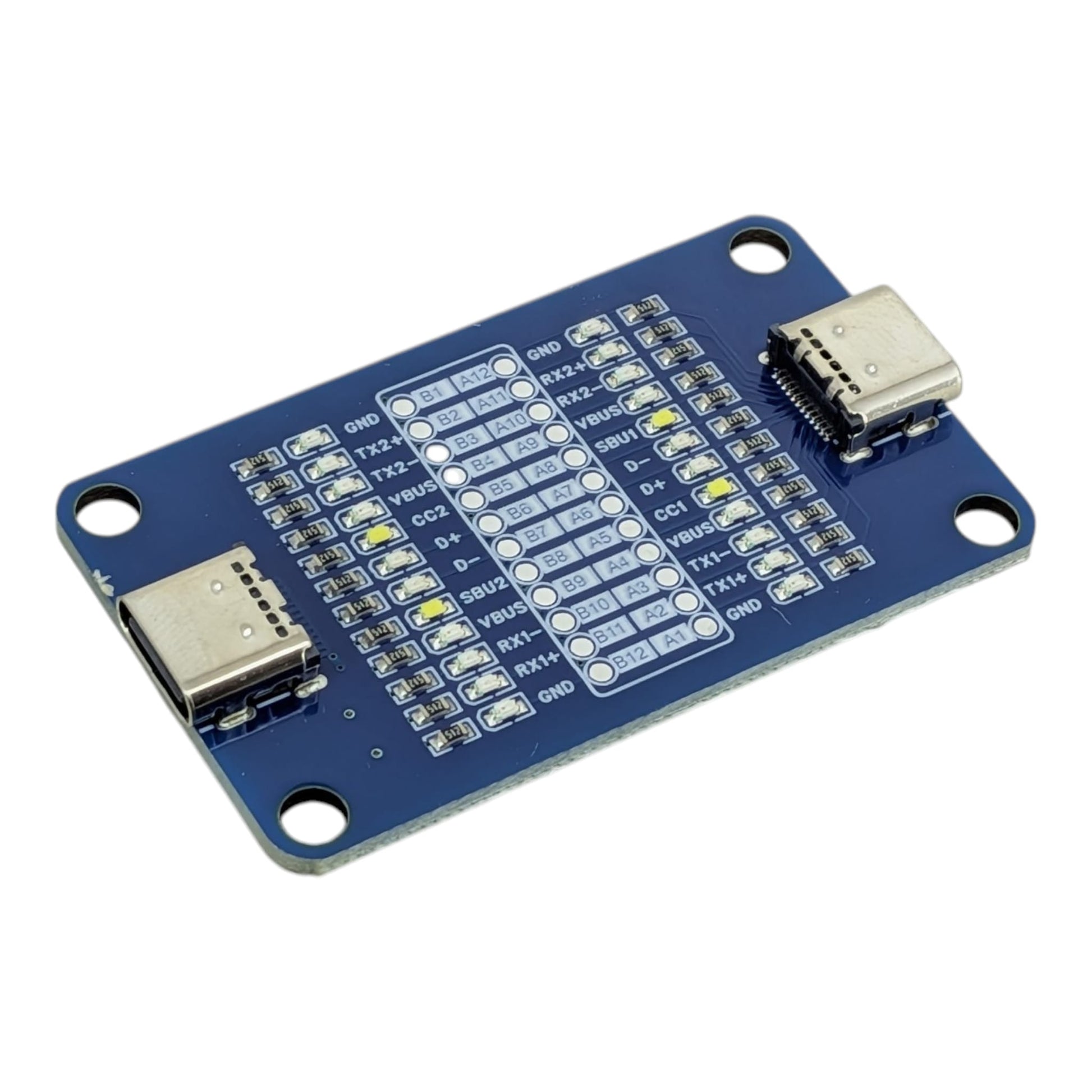

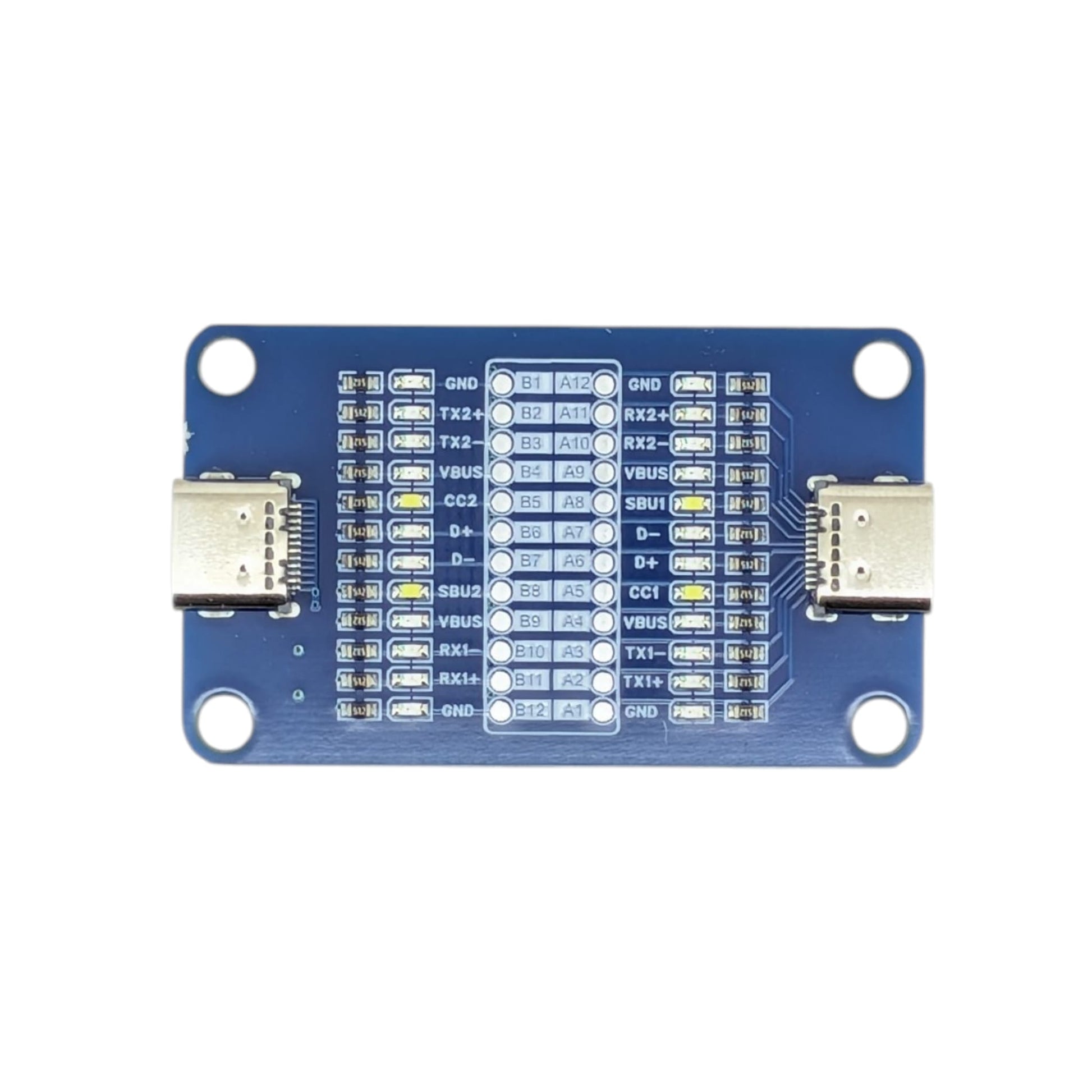

Troubleshooting should be visual and immediate. The board is equipped with 12 sets of bright LED indicators mapped to specific pins (GND, TX/RX, VBUS, CC, D+/D-, SBU). If a light fails to illuminate, you immediately know exactly which internal wire is severed. Note: On standard full-featured cables, 22 indicator lights will illuminate (one side's D+ and D- lights remain intentionally unlit by design).
Portable & Battery Powered

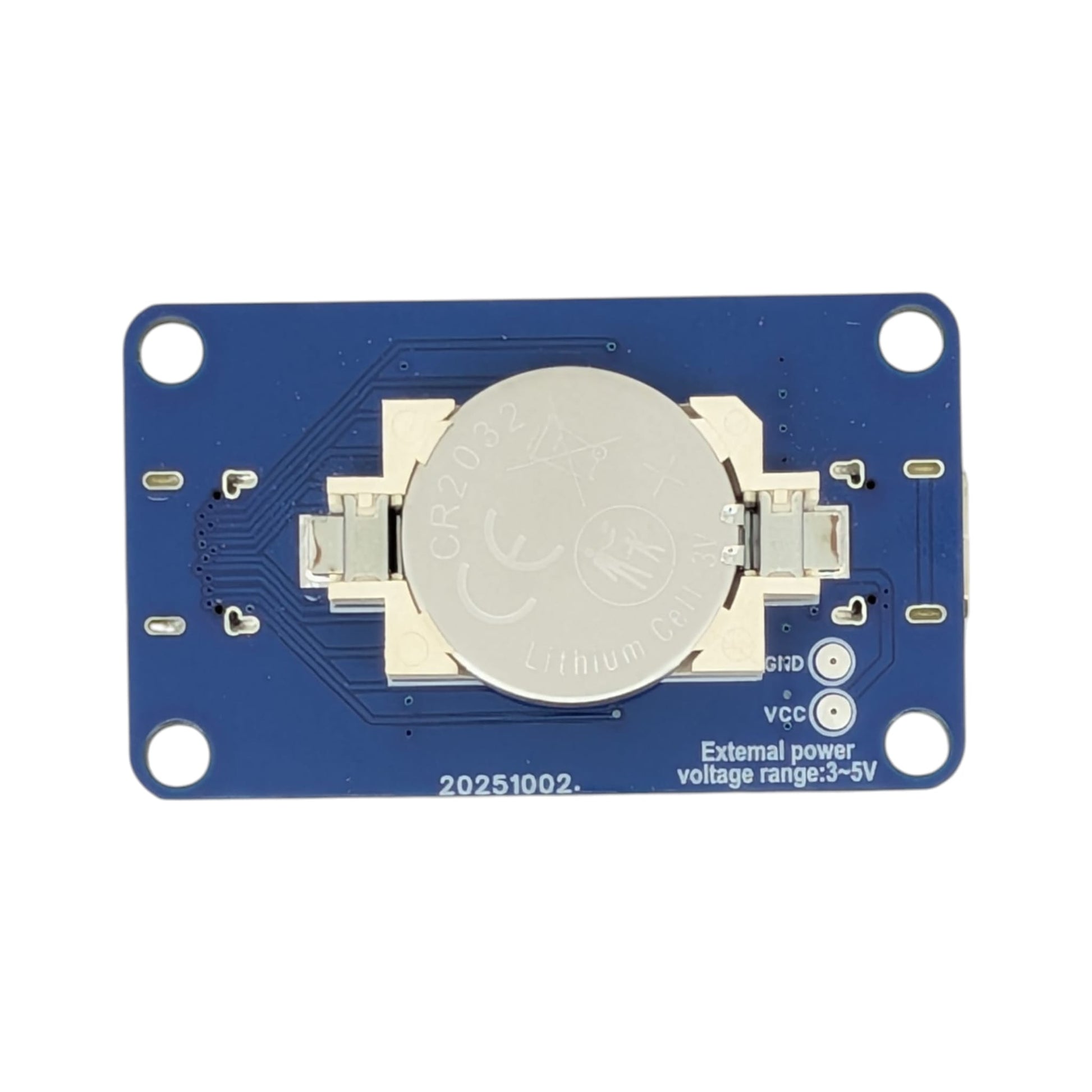

Leave the bulky power supplies behind. Powered by a single, widely available CR2032 button battery (located on the back), this lightweight PCB module is entirely self-sufficient. Its compact footprint means you can easily slip it into a pocket, laptop bag, or toolkit, making it ideal for on-site IT support, tech retail screening, or home DIY projects.
Technical Specifications
Technical Specifications
- Interface: Dual Type-C (USB-C to USB-C)
- Detection Scope: 24-Pin Full Conductivity (12 sets of LEDs)
- Power Supply: 1x CR2032 Button Battery (External voltage 3-5V)
- Dimensions: 50mm x 30mm
- Board Color: Professional Blue
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section

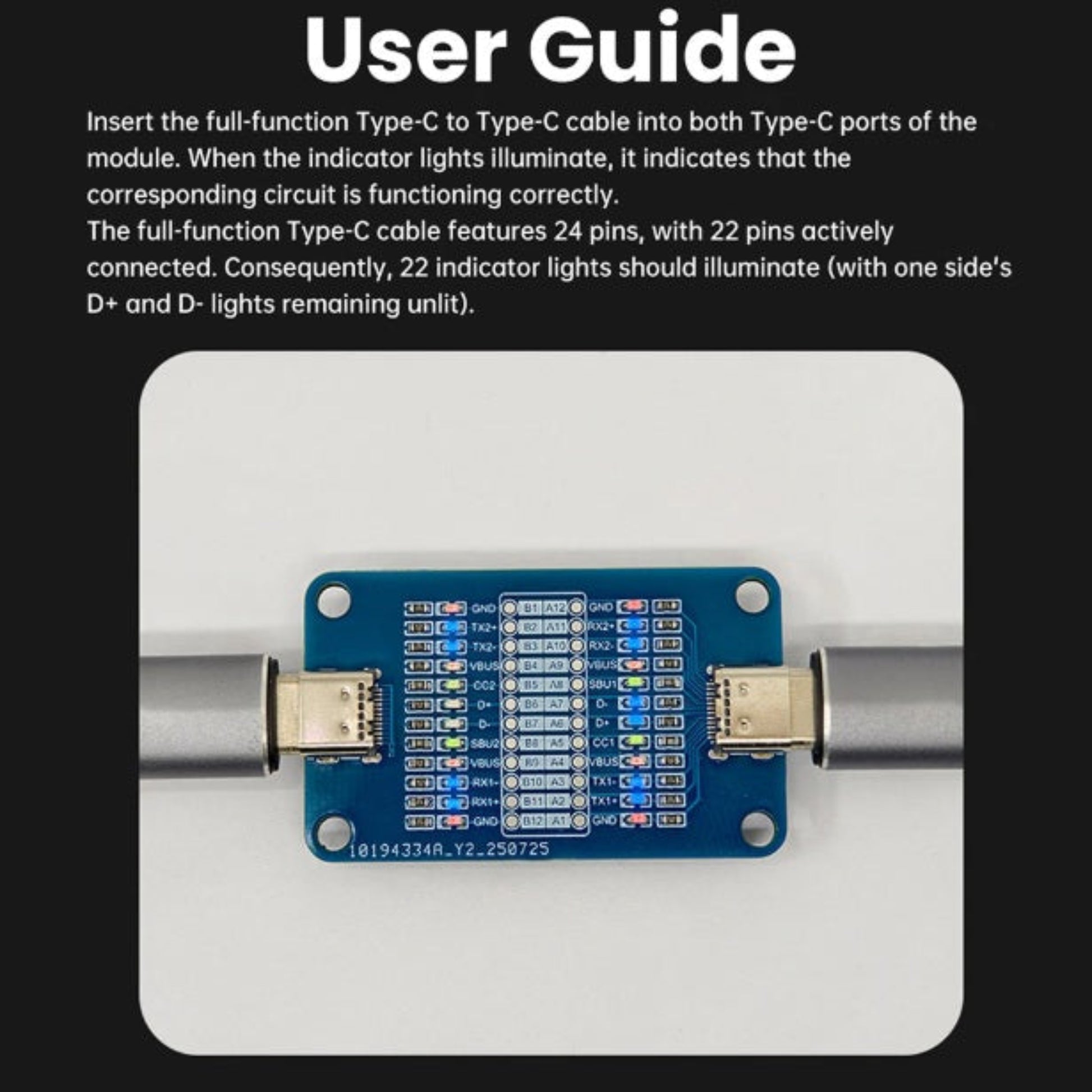

Q. Why are two lights (D+ and D-) on one side unlit when testing my cable?
A. This is completely normal. A standard full-featured Type-C cable has 24 pins, but only 22 are actively connected end-to-end to prevent signal interference. Therefore, exactly 22 indicator lights should illuminate.
Q. Can I use this to test USB-A to USB-C cables?
A. No, this module is specifically engineered to test dual-head Type-C to Type-C cables due to the complex 24-pin architecture of the USB-C standard.
Q. Does the board require an external power adapter?
A. No! The board features an integrated CR2032 battery slot on the back, allowing for completely wireless, portable testing anywhere.
Target Users / Applications
Target Users / Applications
- IT Support & Network Engineers: Quickly auditing cable inventory in server rooms or offices.
- Electronics Repair Shops: Diagnosing customer connectivity issues before disassembling devices.
- DIY Tech Enthusiasts & Gamers: Ensuring cables support high-wattage power delivery and DisplayPort Alt Mode.
- General Consumers: Decluttering tech drawers by identifying and discarding broken or "charge-only" cables.
