TCRT5000 Infrared Reflective Sensor Module | Line Tracking for MCU
TCRT5000 Infrared Reflective Sensor Module | Line Tracking for MCU
Couldn't load pickup availability
Short Product Description
Short Product Description
Build smarter, more responsive robotics with theTCRT5000 Infrared Reflective Sensor Module. Designed for precision line tracking and obstacle avoidance, this photoelectric sensor integrates a high-quality IR emitter and receiver to detect surfaces within a 1mm to 25mm range. Featuring an onboardLM393 comparatorfor clean, stable signals and dual output modes (Digital/Analog), it’s the ultimate plug-and-play solution for Arduino, Raspberry Pi, and custom MCU projects.
Key Features
Key Features

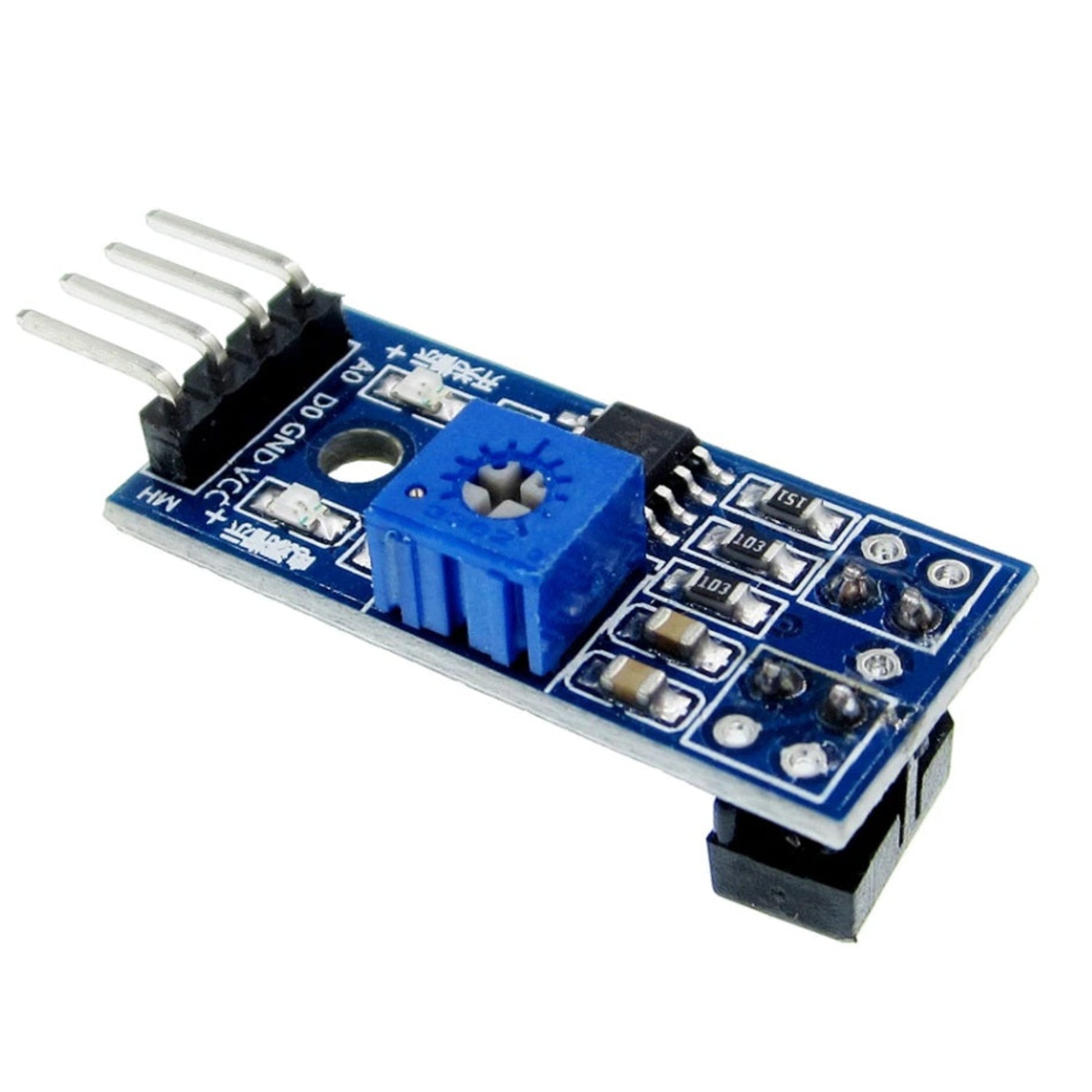

- Integrated TCRT5000 Sensor: Combines an IR light-emitting diode and NPN photoelectric triode for highly accurate reflection detection.
- Optimized 1-25mm Range: Perfect detection distance for low-clearance robot chassis and close-proximity object counting.
- LM393 Comparator Chip: Delivers a stable, clean digital signal with >15mA driving capability, preventing logic errors.
- Dual Outputs (DO & AO): Offers both simple threshold-based digital signals and raw analog voltage data for advanced programming.
- Built-in LED Indicators: Features dedicated Power and Detection LEDs for immediate visual feedback during testing.
- Universal 3.3V-5V Compatibility: Seamlessly integrates with 3.3V logic boards (Raspberry Pi/ARM) and 5V boards (Arduino/51 series).

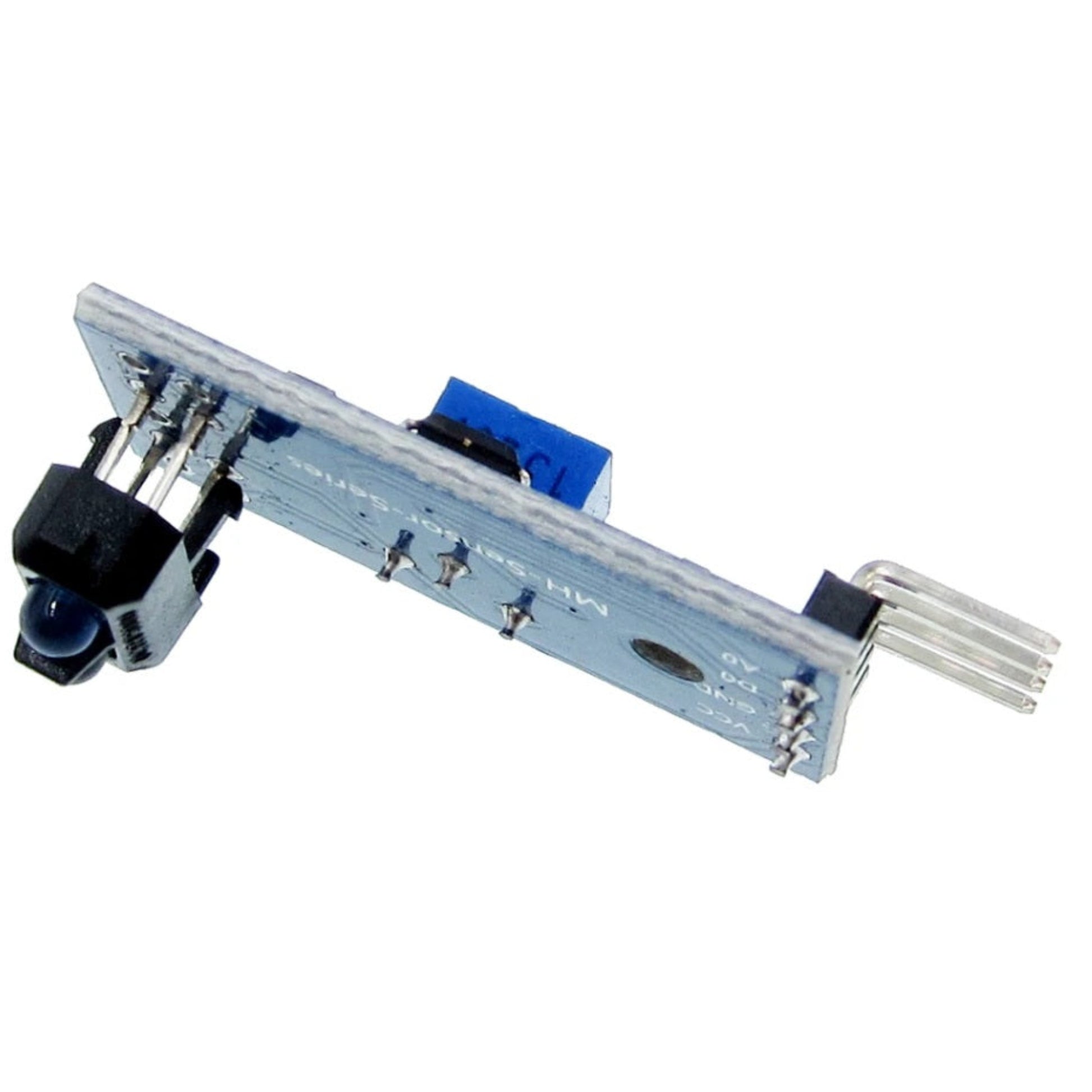

- Secure M3 Mounting: Pre-drilled M3 hole allows for rigid, vibration-resistant installation on any robotic frame.
Full Product Description
Full Product Description
Precision Line Tracking & Obstacle Avoidance
Whether you are building a competitive line-following robot or an automated guided vehicle (AGV), reliable surface detection is critical. The TCRT5000 Infrared Sensor Module utilizes advanced photoelectric technology to detect contrasts seamlessly. It effortlessly distinguishes black lines on a white background (or vice versa), making it the industry standard for robotics navigation, pipeline piece counting, and edge detection.
Dual Output Flexibility (Digital & Analog)
Adapt to any project requirement with versatile dual-output capabilities.
- Digital Output (DO): Connects directly to your microcontroller's IO port (ideal for external interrupts). It outputs a simple High/Low signal when a threshold is met, triggering instant action.
- Analog Output (AO): Provides real-time voltage changes based on the reflection intensity, distance, and surface color. Perfect for advanced users utilizing ADC conversion to map exact distances or grayscale gradients.

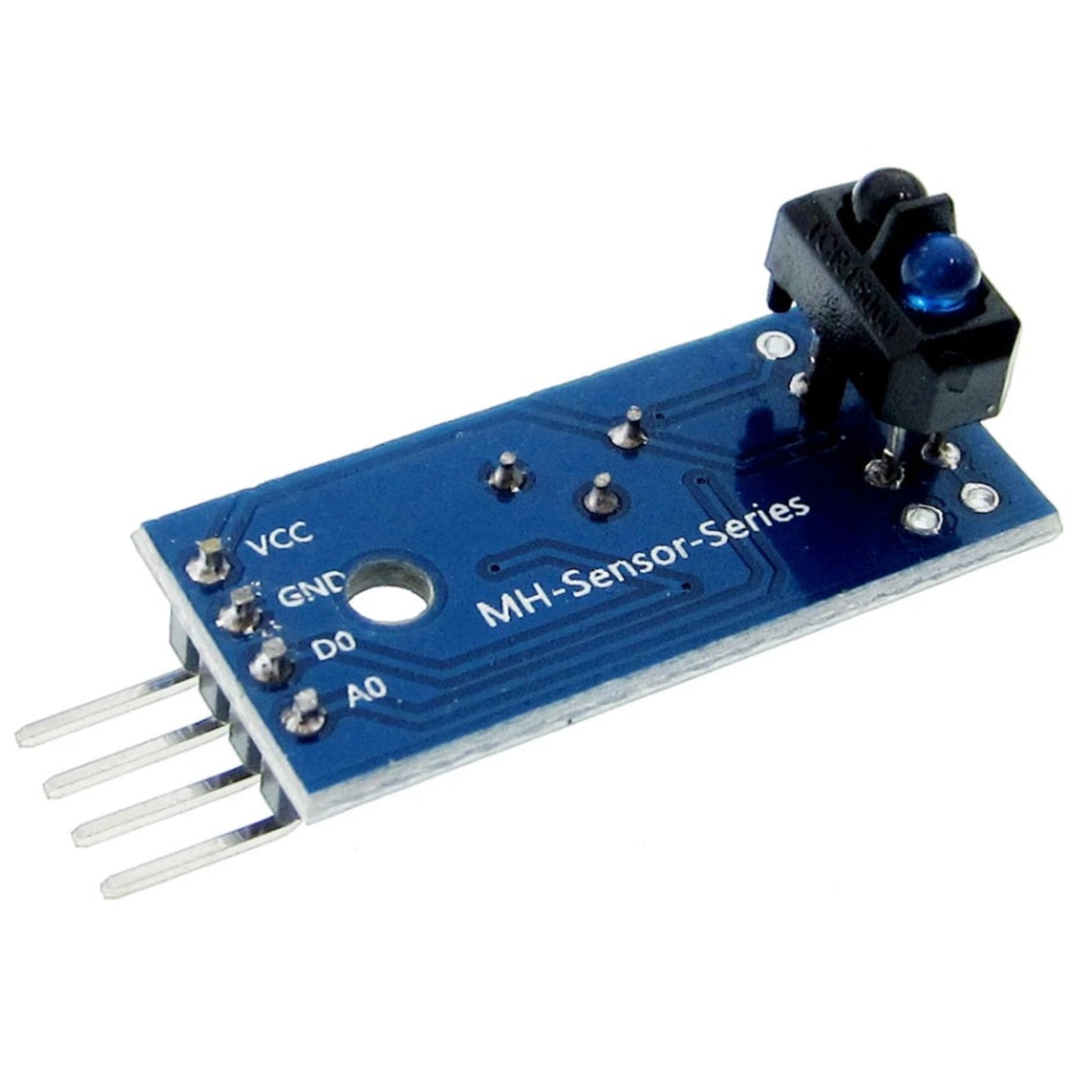

Clean Signals with LM393 Comparator
Say goodbye to jittery, unreliable sensor readings. This module is equipped with a wide-voltage LM393 comparator chip. It ensures the output signal is exceptionally clean with an excellent waveform, providing a strong driving ability that exceeds 15mA. Your microcontroller receives definitive data, eliminating false triggers.
Easy Integration & Safe Prototyping
Designed with makers in mind, this module operates on a flexible 3.3V to 5V power supply, making it universally compatible with 51 series, ARM, Arduino, and Raspberry Pi boards. The built-in power and status indicator LEDs allow for instant visual troubleshooting, while the M3 mounting hole ensures secure chassis installation in seconds.
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Sensor Model | TCRT5000 (Infrared Emitter + NPN Receiver) |
| Comparator Chip | LM393 (Wide Voltage) |
| Operating Voltage (VCC) | 3.3V - 5.0V DC |
| Detection Distance | 1 mm - 25 mm |
| Output Types | Digital Output (DO) - High/Low Level Analog Output (AO) - Variable Voltage |
| Driving Ability | > 15 mA |
| Mounting | 1x M3 Fixed Mounting Hole |
| Indicators | Power LED (Red) Detection/Switch LED (Green/Blue) |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- How do I configure my Raspberry Pi or ARM board to work with this sensor?For advanced control boards like Raspberry Pi or ARM, you must set the specific GPIO/IO port connected to the module's DO pin to Input Mode (Receiving Mode) in your code. If left in output mode, the sensor will not function correctly. (Note: Standard 51 series microcontrollers do not require this setup).
- What is the difference between the DO and AO pins?The DO (Digital Output) provides a simple binary signal (High/Low) based on a set threshold, perfect for basic line tracking or obstacle detection via interrupts. The AO (Analog Output) provides a fluctuating voltage based on the strength of the reflected infrared light, which is useful for calculating specific distances or detecting different shades of color using an ADC.
- Why is my module getting hot or failing to turn on?Warning: Ensure your wiring is 100% correct before powering on. Reversing the VCC (Positive) and GND (Negative) connections will instantly burn out the electronic components on the board. Always double-check your jumper wire polarity.
Target Users / Applications
Target Users / Applications
- Target Users: STEM Educators, Robotics Hobbyists, Prototyping Engineers, University Students.
- Applications: Line-following robots (black/white lines), obstacle avoidance smart cars, pipeline piece counting, watt-hour meter pulse sampling, fax machine/shredder paper detection.
