Can I use this 2-way switch for a standard 1-way lighting circuit?

Yes, you can easily use this 2-way switch for a standard 1-way lighting circuit. To do this, you simply connect your live wire to the "COM" (Common) terminal and your switched live wire to the "L1" terminal, leaving the "L2" terminal completely empty.

What is the difference between the 2-gang and 3-gang options?

The difference lies in the number of individual switches on the panel. The 2-gang option features two rocker switches to control two separate light fixtures, while the 3-gang option features three rocker switches to control three separate light fixtures from the same wall plate.

Will this switch fit into my existing square wall box?

Yes, this switch will fit perfectly into any standard UK or Hong Kong square wall box. It measures exactly 86mm x 86mm, which is the universal industry standard for 1-gang wall plates in these regions.

How do I install the decorative screw covers?

You install the decorative screw covers after you have securely screwed the switch panel into your wall box. Simply align the loose plastic strips with the top and bottom edges of the faceplate and push them in until they snap firmly into place, hiding the metal screws.

SONLEX 2-Gang / 3-Gang Light Switch

Name: SONLEX 2-Gang / 3-Gang Light Switch | 86x86mm 2-Way Panel
Brand: Sun Cheong Computer Company Limited
SKU: 21TS000745
Price: 34.0 TWD
Availability: InStock

Short Product Description

The SONLEX Light Switch Panel is a standard 86x86mm wall switch designed for residential and commercial lighting systems, available in both 2-Gang and 3-Gang configurations. Featuring 2-way switching capabilities, a clean white finish, and snap-on decorative strips to hide mounting screws, it provides a sleek and modern aesthetic for any room renovation. Available for instant pickup at Sun Cheong Computer Co. Ltd.(新昌電腦有限公司) in Sham Shui Po, our hardware specialists can help you match this switch with the correct mounting back boxes for your electrical upgrade.

Key Features

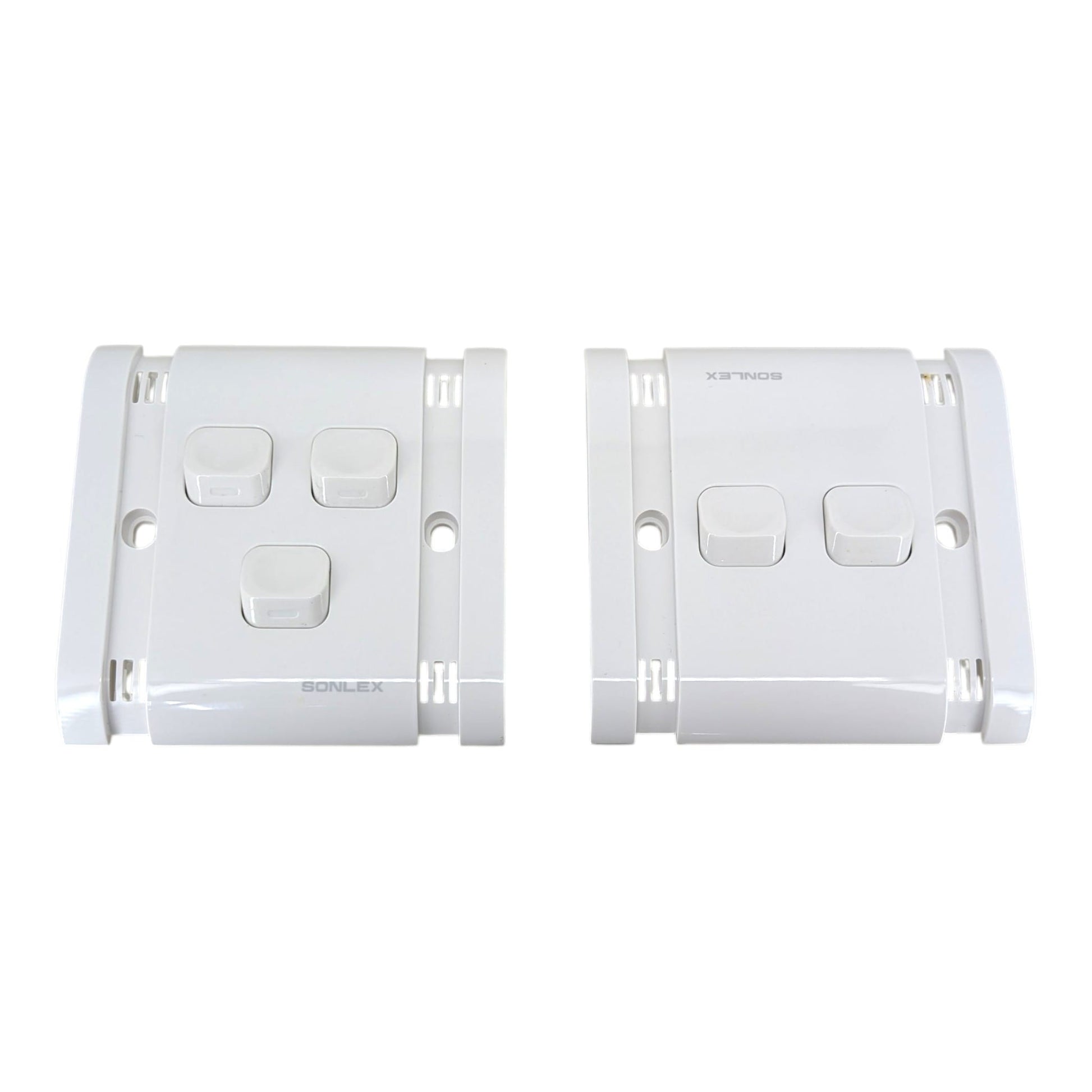

Variant Options: Available in 2-Gang (controls 2 lights) and 3-Gang (controls 3 lights) configurations to suit your specific room layout.
2-Way Functionality: Features three terminals per switch, supporting both standard 1-way and multi-location 2-way lighting circuits.
Standard 86mm Size: Measures exactly 86mm x 86mm, ensuring universal compatibility with standard UK and Hong Kong square wall back boxes.
Hidden Screw Covers: Includes snap-on decorative strips that conceal the mounting screws for a premium, screwless appearance.
Durable Casing: Constructed from high-quality, flame-retardant white plastic that resists yellowing and daily physical wear.

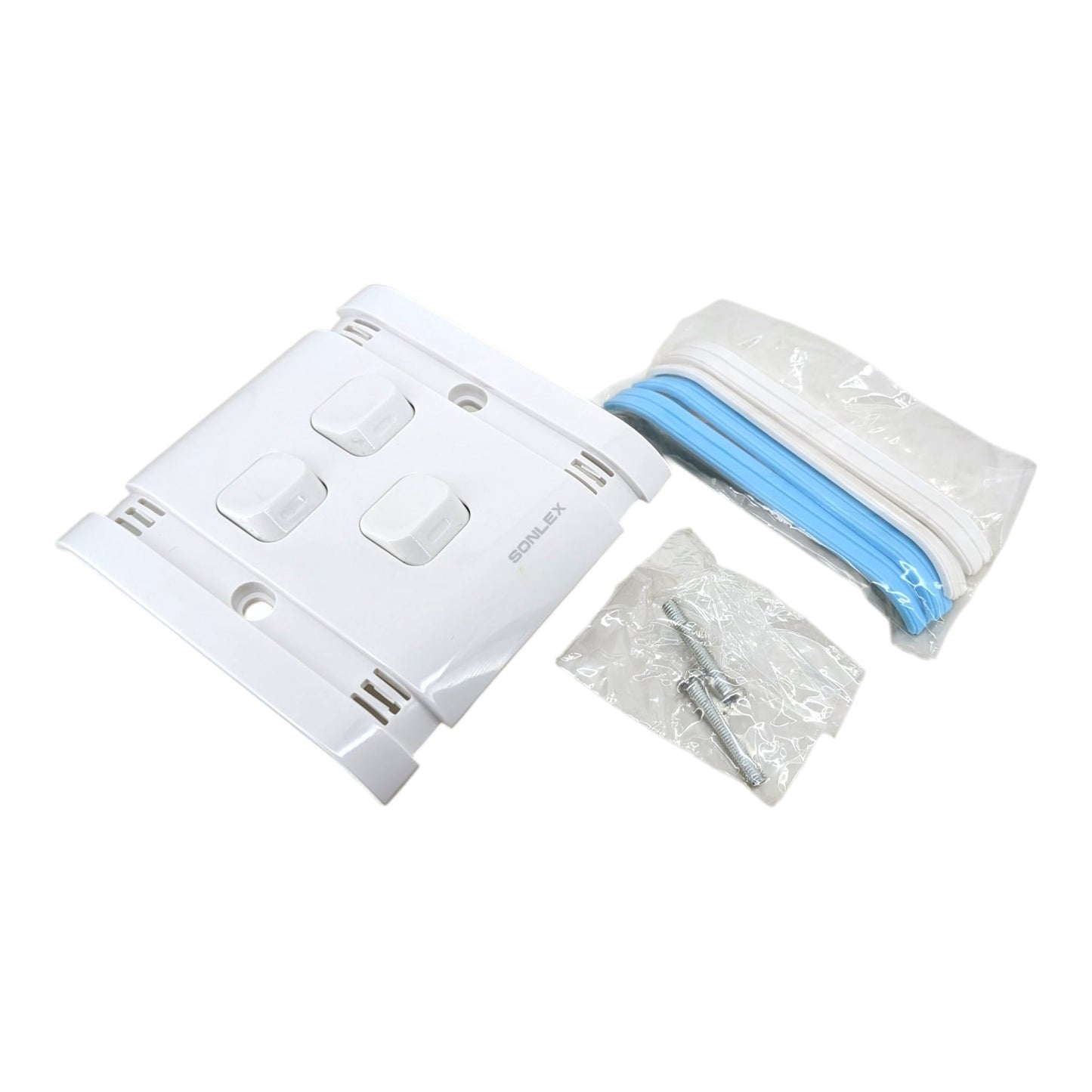

Complete Installation Kit: Comes ready to install with the faceplate, decorative strips, and two standard mounting screws included in the package.

Full Product Description

Modern Lighting Control for Home Renovations

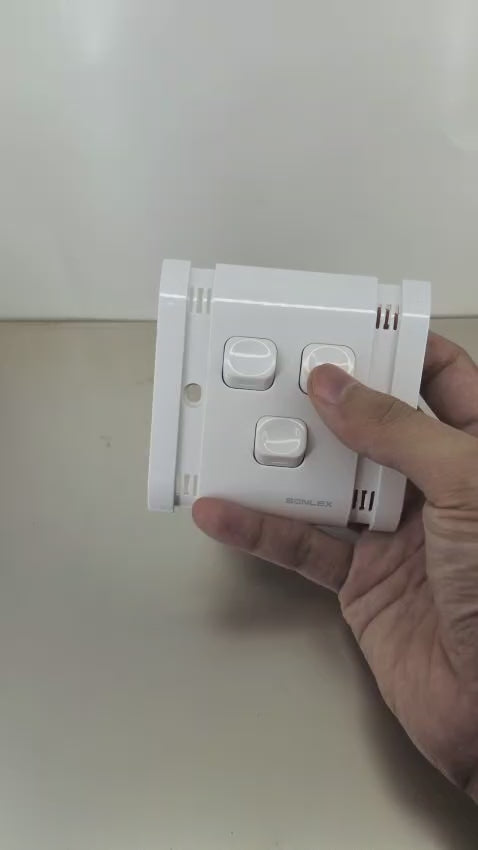

The SONLEX Light Switch Panel provides reliable, tactile control for your everyday lighting fixtures and ceiling fans. By offering both 2-Gang and 3-Gang variant options, this wall panel allows you to consolidate the control of multiple lighting zones (such as living room spotlights, main ceiling lights, and dining pendants) into one centralized location. The robust rocker mechanism ensures a satisfying click with every press, guaranteeing long-term durability for high-traffic households and busy office environments.

2-Way Switching Capability

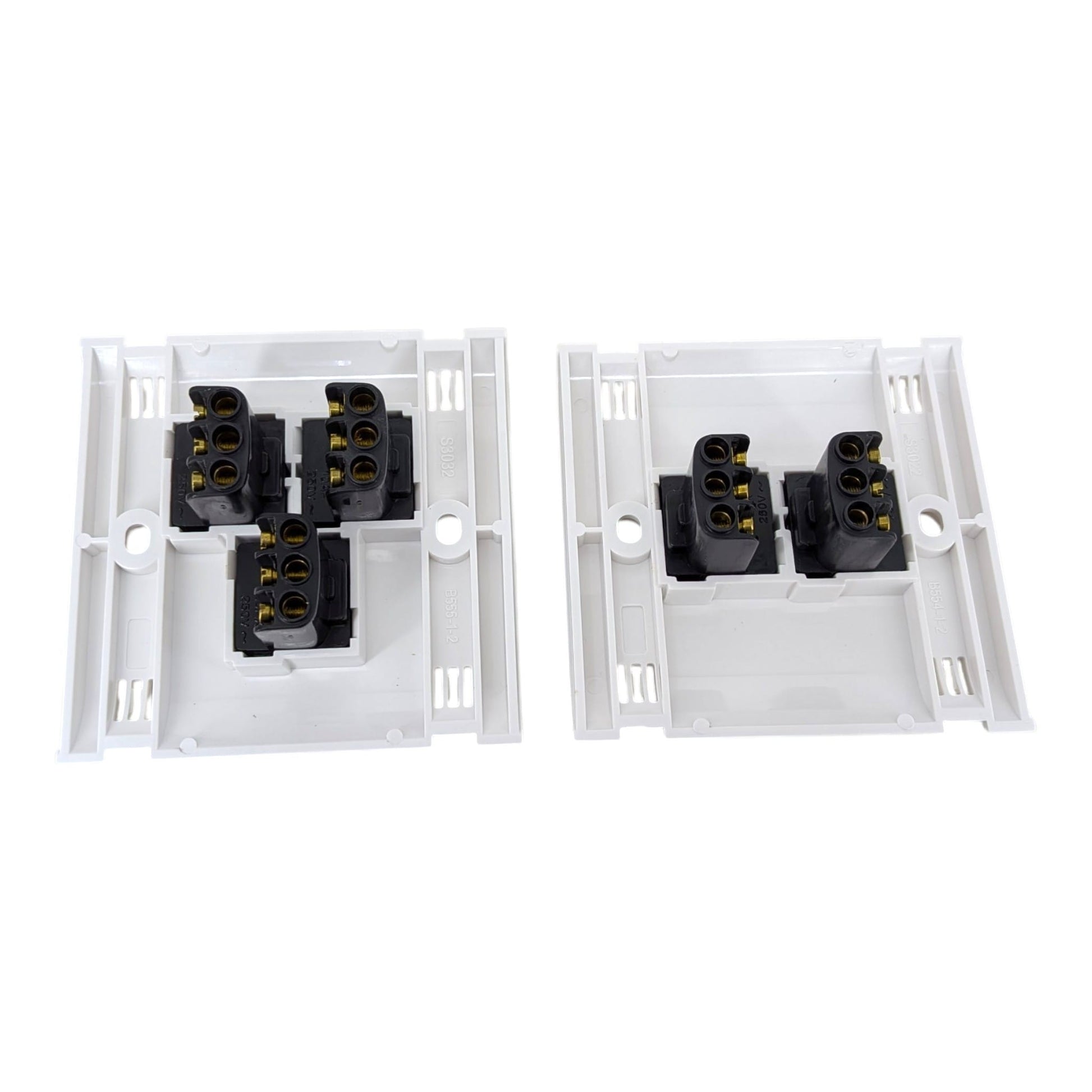

Each individual rocker on this 86x86mm Wall Switch is equipped with three rear terminals, allowing it to function seamlessly as either a standard 1-way or an advanced 2-way switch. This 2-way functionality is essential for modern hallway and staircase lighting designs, as it allows you to control a single light fixture from two different switch locations. Whether you are wiring a simple bedroom light or a complex multi-point corridor system, this panel provides the exact electrical routing flexibility you need.

Clean Aesthetic with Hidden Screws

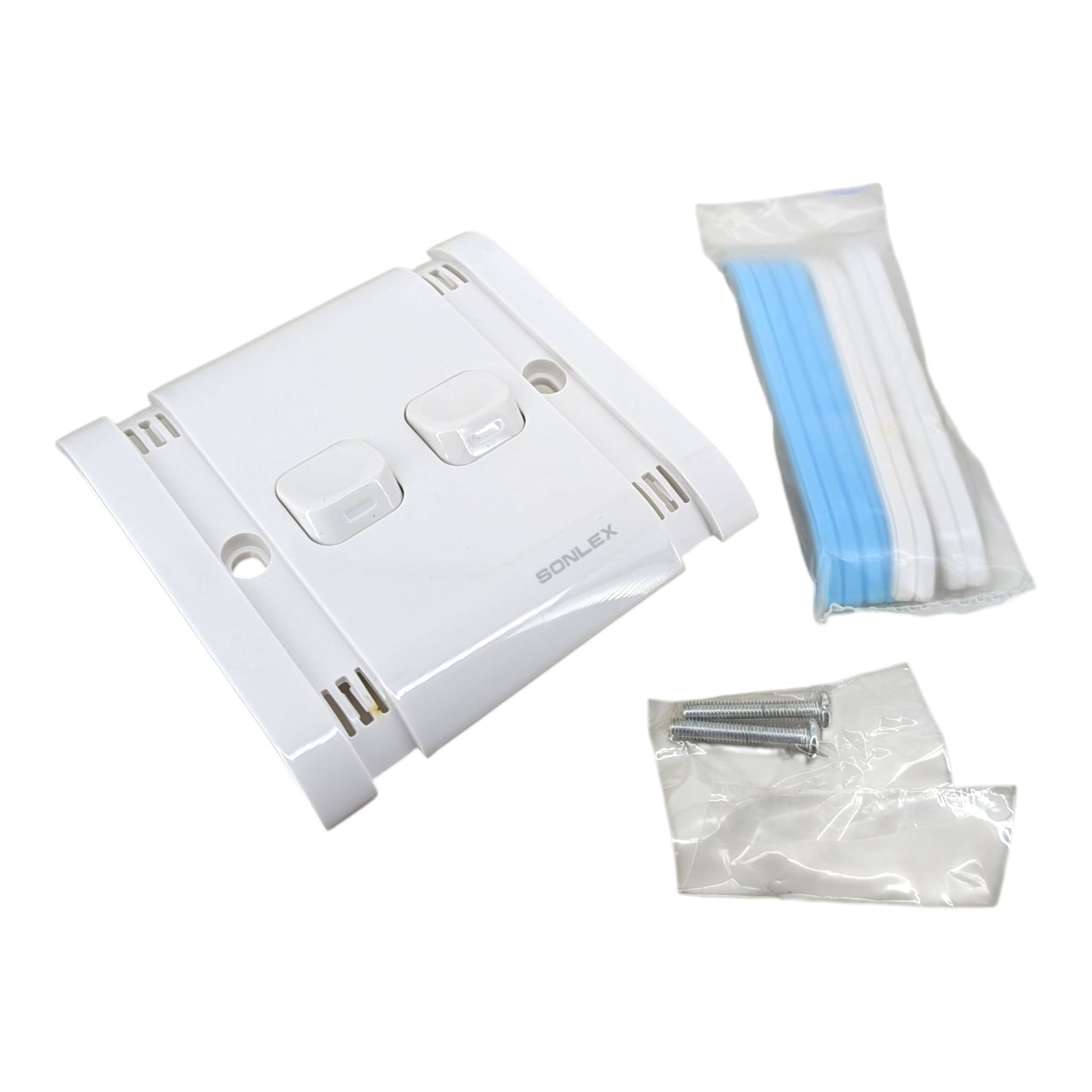

The SONLEX Switch Faceplate includes custom-fit decorative plastic strips designed to completely conceal the metal mounting screws after installation. Once you have secured the panel to your wall box, you simply snap these strips onto the top and bottom edges to create a smooth, uninterrupted white surface. This screwless appearance elevates the overall look of your interior design, blending perfectly with freshly painted walls and modern minimalist decor.

Pro Tip from Our Technicians

Always turn off the main mains power at your breaker box before attempting to replace or install this SONLEX Light Switch Panel. Our Sham Shui Po technical team advises that because the rear terminal block has a depth of 30mm, you must ensure your wall's back box (pattress box) has a minimum depth of 25mm to 35mm to comfortably accommodate the wiring without crushing the copper cores. If you are unsure how to wire a 2-way lighting circuit, we highly recommend consulting a licensed electrician to ensure your home remains safe and compliant with local regulations.

Technical Specifications

Brand: SONLEX
Product Type: Wall Light Switch Panel
Gang Options: 2-Gang OR 3-Gang (Selectable variant)
Switch Mechanism: Rocker Switch (Maintained)
Switching Type: 1-Way / 2-Way Compatible (SPDT)
Dimensions: 86mm x 86mm x 30mm
Faceplate Color: White
Mounting Style: Flush mount (Requires standard 86x86mm back box)
Package Contents: 1x Switch Panel, 2x Mounting Screws, 2x Decorative Screw Covers

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Can I use this 2-way switch for a standard 1-way lighting circuit?Yes, you can easily use this 2-way switch for a standard 1-way lighting circuit. To do this, you simply connect your live wire to the "COM" (Common) terminal and your switched live wire to the "L1" terminal, leaving the "L2" terminal completely empty.
What is the difference between the 2-gang and 3-gang options?The difference lies in the number of individual switches on the panel. The 2-gang option features two rocker switches to control two separate light fixtures, while the 3-gang option features three rocker switches to control three separate light fixtures from the same wall plate.
Will this switch fit into my existing square wall box?Yes, this switch will fit perfectly into any standard UK or Hong Kong square wall box. It measures exactly 86mm x 86mm, which is the universal industry standard for 1-gang wall plates in these regions.
How do I install the decorative screw covers?You install the decorative screw covers after you have securely screwed the switch panel into your wall box. Simply align the loose plastic strips with the top and bottom edges of the faceplate and push them in until they snap firmly into place, hiding the metal screws.
Can I purchase matching wall back boxes at your Hong Kong store?Yes, you can purchase the matching concealed or surface-mount back boxes at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po. Our hardware staff can help you select the correct depth (e.g., 25mm or 35mm) based on your wall type.

Target Users / Applications

Home Renovation DIYers: Replacing old, yellowed light switches in the living room with a clean, modern white panel during a DIY apartment makeover.
Professional Electricians: Sourcing standard 86x86mm 2-way switches in bulk for new residential apartment building installations and staircase lighting.
Office Fit-out Contractors: Installing 3-gang switch panels in meeting rooms to independently control projector lights, main room lights, and ambient wall washers.
