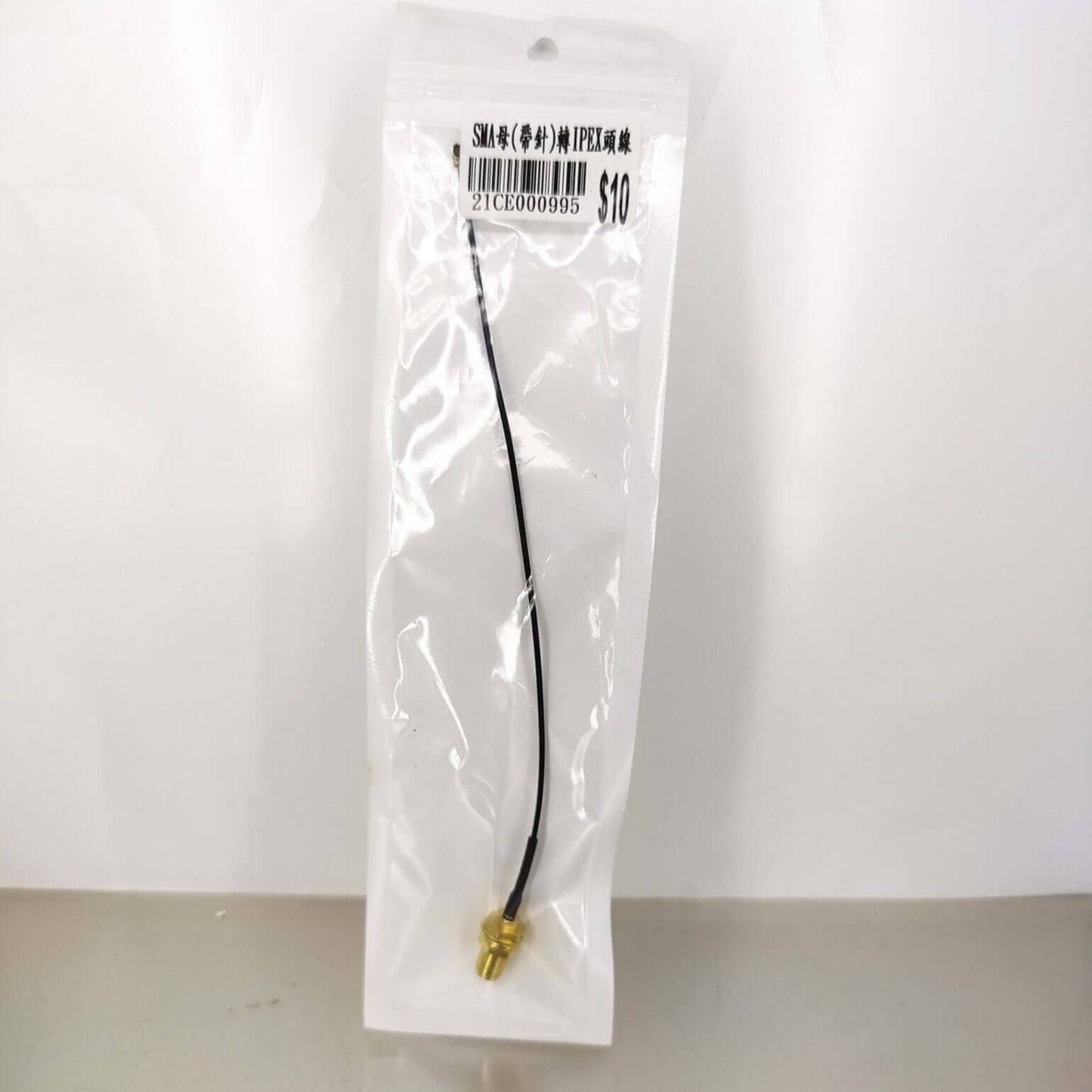

IPEX to RP-SMA Female Pigtail Cable (0.81mm) | WiFi Antenna Extension
IPEX to RP-SMA Female Pigtail Cable (0.81mm) | WiFi Antenna Extension
Couldn't load pickup availability
Short Product Description
Short Product Description
Upgrade your network range and stability with our premium MHF4 IPEX to RP-SMA Female RF jumper cable. Designed for minimal signal loss, this ultra-thin 0.81mm pigtail is the perfect bridge for connecting PCI/PCIe WiFi cards, routers, and custom IoT builds to external antennas. Enjoy uninterrupted, high-speed 0-6GHz wireless connectivity for all your mission-critical devices.
Key Features
Key Features
- Gold-Plated Connectors: Maximizes electrical conductivity and prevents corrosion for long-lasting, stable connections.
- Ultra-Slim 0.81mm OD Cable: Provides exceptional flexibility for easy cable management in tight spaces like laptops or mini-ITX cases.
- Broad Frequency Support (0-6GHz): Fully compatible with modern dual-band (2.4GHz & 5GHz) WiFi and Bluetooth protocols.
- Standardized 50Ω Impedance: Perfectly matched for standard RF communications to eliminate signal reflection and data loss.
- Secure Threaded Mounting: The RP-SMA female bulkhead includes a locking nut and washer for a rigid, secure mount on chassis panels.
Full Product Description
Full Product Description
Maximize Your Wireless Performance
Struggling with weak WiFi signals or dead zones? Upgrading your hardware's internal antennas is one of the most effective ways to boost connectivity. Our IPEX to RP-SMA Female pigtail cable seamlessly connects your internal wireless modules to powerful external antennas, instantly expanding your network coverage and ensuring a rock-solid connection.
Precision Engineering for Low Signal Loss
When it comes to Radio Frequency (RF) components, build quality dictates performance. This RF jumper cable features a pure copper core and high-quality gold-plated connectors. This ensures maximum conductivity and prevents oxidation, drastically reducing signal attenuation across the 0 to 6GHz frequency range. Whether you are running a standard 2.4GHz network or a high-bandwidth 5GHz setup, your signal remains pure and strong.
Seamless Integration for PC Builds & IoT
Space management is critical in modern electronics. With an ultra-slim cable outer diameter (OD) of just 0.81mm, this pigtail offers exceptional flexibility. It routes effortlessly through tight laptop chassis, compact mini-PCs, or densely packed IoT microcontroller enclosures without kinking or stressing the delicate IPEX (U.FL) board connectors.
Technical Specifications
Technical Specifications
- Connector A: ARP-SMA Female (Outer Threads, Male Pin)
- Connector B: BMHF4 / IPEX (U.FL Compatible)
- Cable Type: RG0.81 RF Coaxial
- Cable Outer Diameter (OD): 0.81 mm
- Impedance: 50 Ω (Ohm)
- Frequency Range: 0 - 6 GHz
- Available Lengths: 15 cm
- Color: Black
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q. What is the difference between SMA and RP-SMA?
A. Standard SMA female connectors have a central receptacle (hole), while RP-SMA (Reverse Polarity) female connectors feature a central male pin. Most consumer WiFi routers and PC antennas use RP-SMA. Please verify your antenna's connector before purchasing.
Q. Is this cable compatible with my laptop's PCIe WiFi card?
A. Yes, if your network card utilizes MHF4 or IPEX (U.FL) micro connectors (common in Intel, Broadcom, and Killer cards), this cable will perfectly adapt it to a standard external RP-SMA antenna.
Q. How do I safely connect the IPEX end to my motherboard?
A. Align the IPEX connector directly over the male terminal on your network card and press down gently but firmly until you feel a "snap." Avoid applying angled pressure to prevent bending the fragile micro-connector.
Target Users / Applications
Target Users / Applications
- PC Builders & Modders: Upgrading desktop motherboard WiFi or adding antennas to custom SFF (Small Form Factor) builds.
- Network Engineers: Modifying consumer routers for extended range.
- IoT Hobbyists: Connecting external antennas to Arduino, Raspberry Pi, or ESP32 communication modules.
- Drone Enthusiasts: Extending FPV video transmitter (VTX) or receiver ranges.
