RJ45 Female to 8-Pin Screw Terminal Breakout Board | 2.54mm Pitch
RJ45 Female to 8-Pin Screw Terminal Breakout Board | 2.54mm Pitch
Couldn't load pickup availability
Short Product Description
Short Product Description
The RJ45 Female to 8-Pin Screw Terminal Breakout Board is a solderless network adapter designed for quick Ethernet cable repairs and custom IoT wiring. Featuring a horizontal RJ45 port and corrosion-resistant screw terminals, it allows you to securely connect bare wires without needing a soldering iron. In stock at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po, this compact 24.49x33mm module is the perfect instant-pickup solution for CCTV installers and DIY smart home enthusiasts needing reliable field terminations.
Key Features
Key Features

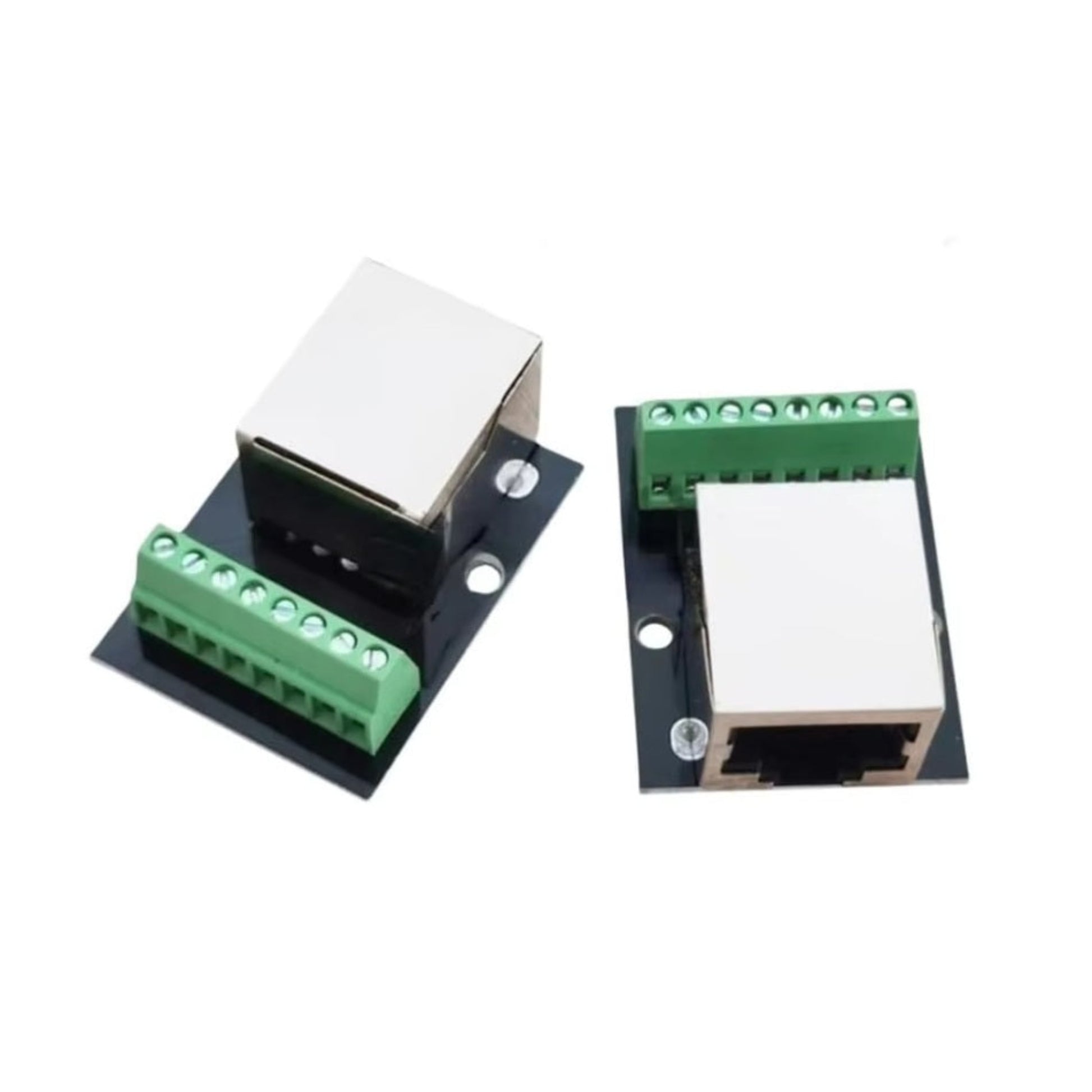

- Solderless Termination: Features an 8-pin screw terminal block that allows for quick, tool-friendly wire connections without a soldering iron.
- Universal RJ45 Port: Equipped with a standard horizontal RJ45 female receptacle, compatible with all standard Cat5e and Cat6 Ethernet cables.
- Standard 2.54mm Pitch: The terminal holes are spaced at a standard 2.54mm pitch, making the board highly adaptable for custom PCB integration.

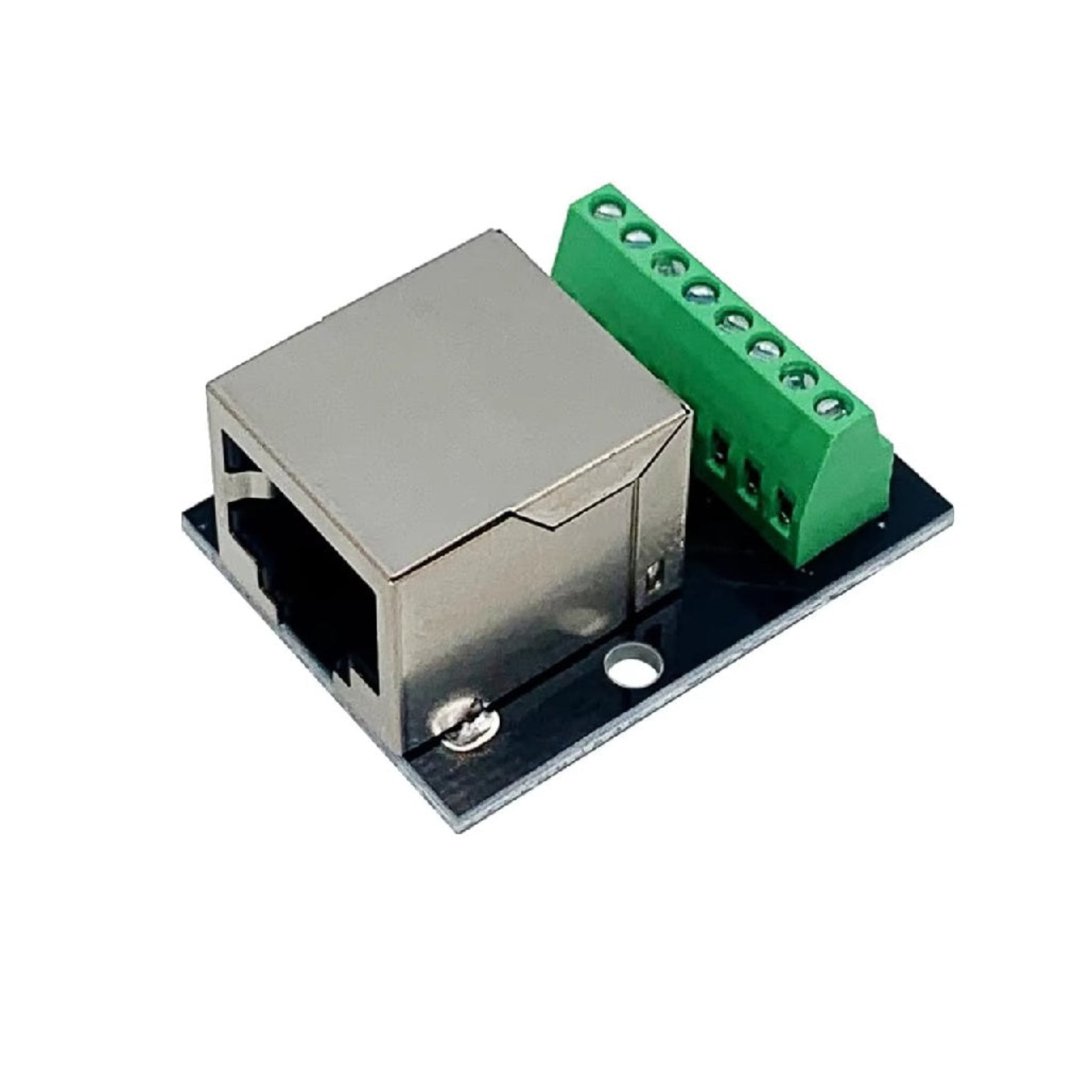

- Corrosion-Resistant Terminals: Built with sealed, rust-resistant screw terminals to ensure long-lasting performance in enclosed outdoor projects.
- Durable 1.6mm PCB: Constructed on a rigid 1.6mm thick printed circuit board to withstand mechanical stress during installation and wiring.
Full Product Description
Full Product Description
Solderless Ethernet Cable Repair

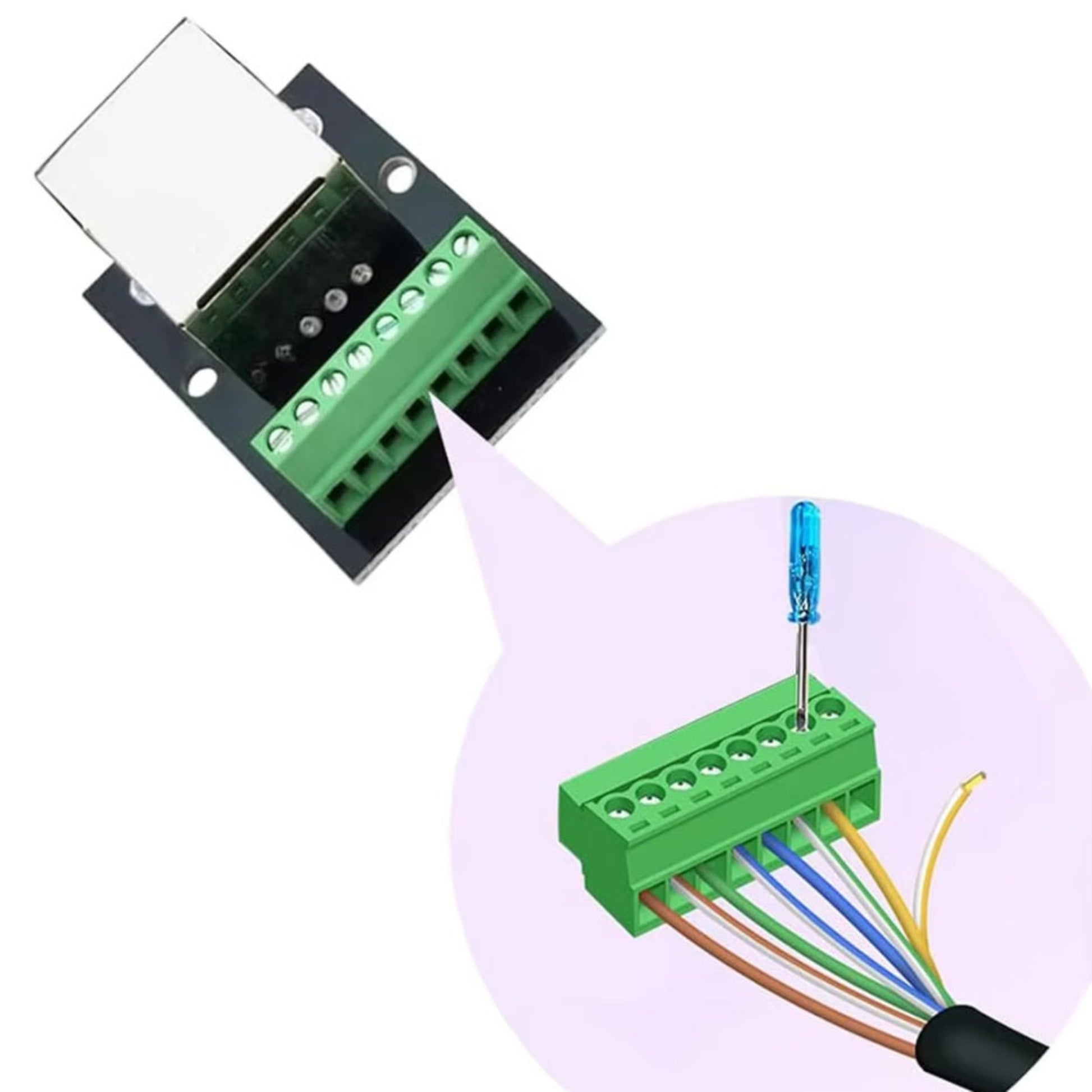

This RJ45 breakout board eliminates the need for manual soldering by utilizing an 8-pin screw terminal block for rapid wire termination. When repairing a broken Ethernet cable or setting up custom network extensions in the field, soldering tiny 24AWG wires can be frustrating and unreliable. The RJ45 Female to 8-Pin Screw Terminal Breakout Board allows you to simply strip your Cat5e or Cat6 wires, insert them into the terminal slots, and tighten them with a small screwdriver for a secure, gas-tight connection.
Corrosion-Resistant for Custom IoT Projects
The RJ45 screw terminal board features corrosion-resistant terminal blocks, making it highly suitable for custom outdoor IoT enclosures and CCTV junction boxes. Standard exposed PCBs often fail in high-humidity environments due to oxidized contacts and degraded signal quality. This breakout board utilizes high-quality, treated screw terminals that resist rust, ensuring your custom sensor networks or IP camera connections remain stable over time. Its compact 24.49mm x 33mm footprint easily fits into standard waterproof project boxes without wasting space.
Pro Tip from Our Technicians
Always use a precision flathead screwdriver to secure your wires into the RJ45 breakout board to prevent stripping the terminal screw heads. Our Sham Shui Po DIY networking specialists with over 20 years of experience recommend tinning the bare ends of your Ethernet wires with a soldering iron before inserting them into the screw terminals. This prevents the fragile copper strands from fraying and ensures a much stronger mechanical grip inside the terminal block.
Technical Specifications
Technical Specifications
- Product Type: RJ45 Breakout Board / Network Terminal Adapter
- Input Interface: RJ45 Female (Horizontal)
- Output Interface: 8-Pin Screw Terminal Block
- Terminal Pitch: 2.54mm
- Hole Diameter: 1.0mm
- Board Thickness: 1.6mm

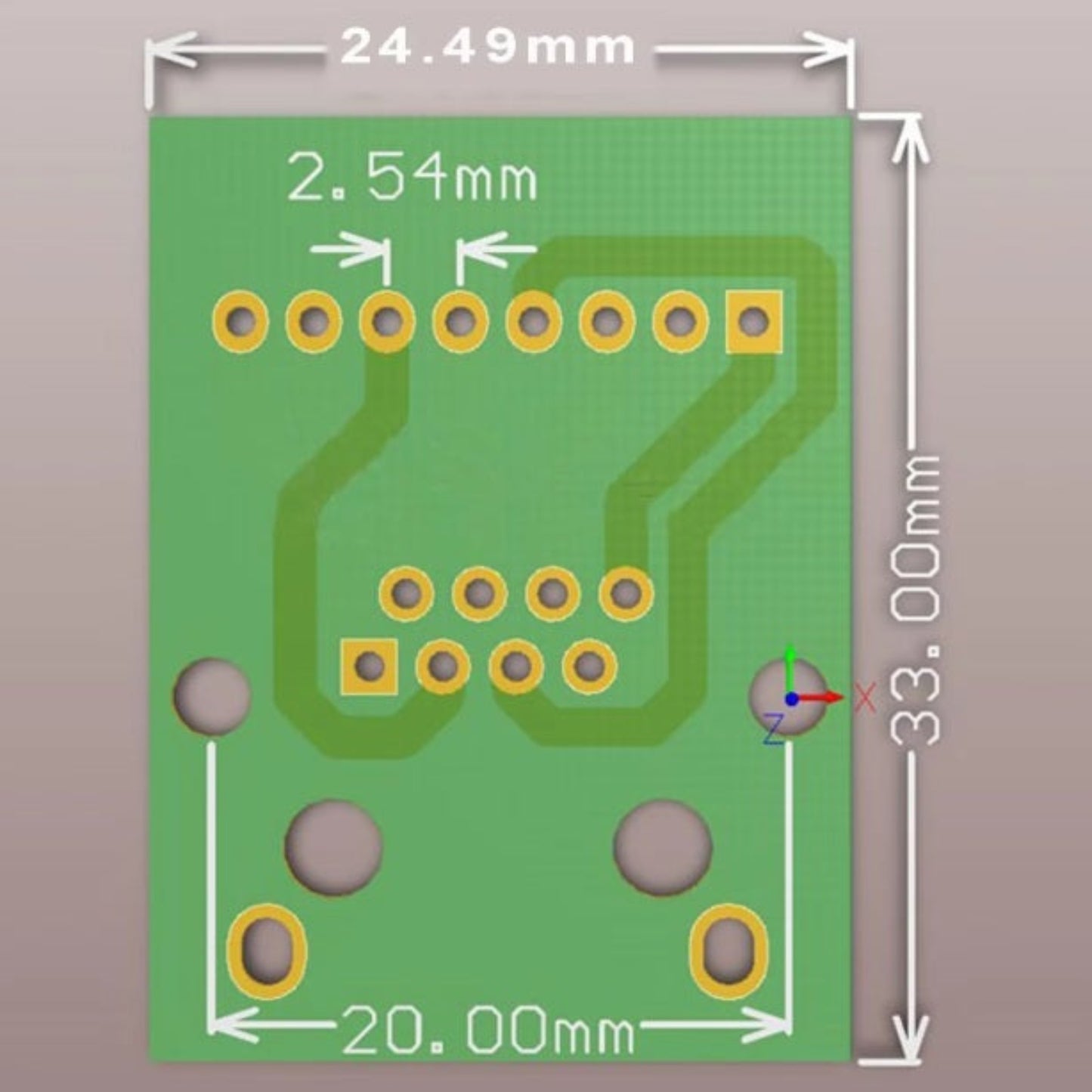

- Dimensions: 24.49mm (W) x 33.00mm (L)
- Installation Method: Solderless Screw Termination
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Can I use this breakout board for Cat6 Ethernet cables?Yes, you can use this RJ45 breakout board with Cat6 cables by stripping the individual internal wires and securing them into the 8-pin screw terminals.
- Do I need a soldering iron to use this RJ45 adapter?No, you do not need a soldering iron because the board features a built-in screw terminal block for completely solderless wire connections.
- What is the hole pitch of the screw terminals on this board?The screw terminals on this RJ45 breakout board feature a standard 2.54mm pitch, making it highly compatible with standard breadboards and custom PCBs.
- Is this network terminal board suitable for outdoor CCTV installations?Yes, the corrosion-resistant terminals make it suitable for outdoor CCTV wiring, provided the board is housed inside a proper waterproof junction box to protect it from direct rain.
- Can I buy this RJ45 breakout board today at your Hong Kong store?Yes, this RJ45 screw terminal board is regularly stocked at our Sun Cheong Computer Co. Ltd. physical store in Sham Shui Po for immediate purchase and pickup.
Target Users / Applications
Target Users / Applications
- CCTV installers needing a quick, solderless way to repair broken IP camera Ethernet cables in the field.
- Smart home DIY enthusiasts building custom RS485 or sensor networks over standard Cat5e wiring.
- IT technicians creating custom loopback testers or breakout diagnostic tools for network troubleshooting.
