Raspberry Pi Zero W Motherboard | 1GHz CPU, Built-in WiFi & Bluetooth
Raspberry Pi Zero W Motherboard | 1GHz CPU, Built-in WiFi & Bluetooth
Couldn't load pickup availability
Short Product Description
Short Product Description
Looking to build a highly compact IoT device or smart home hub? The Raspberry Pi Zero W Motherboard packs a 1GHz ARM11 CPU, 512MB RAM, and built-in 2.4GHz WiFi and Bluetooth 4.1 into a footprint smaller than a credit card (65x30x5mm). It is the perfect low-cost, ultra-small single-board computer for headless setups, STEM education, and DIY electronics. Need help getting started?Sun Cheong Computer Co. Ltd. has over 20 years of technical experience. Visit our Sham Shui Po physical store for instant pickup and expert DIY advice.
Key Features
Key Features
- Ultra-Small Form Factor: At just 65x30x5mm, it easily fits into custom 3D-printed cases, robotics, and tight spaces.
- Integrated WiFi & Bluetooth: Built-in 2.4GHz 802.11n and Bluetooth 4.1 LE eliminate the need for external network dongles.
- Efficient Processing Power: The 1GHz ARM11 CPU and 512MB RAM provide smooth performance for headless Linux applications.
- Versatile GPIO Interface: Features an unpopulated 40-pin GPIO footprint, giving you the flexibility to solder only what you need.
- Low Power Consumption: Highly energy-efficient, making it ideal for battery-operated or solar-powered remote IoT sensors.
Full Product Description
Full Product Description
The Ultimate Ultra-Compact IoT Brain

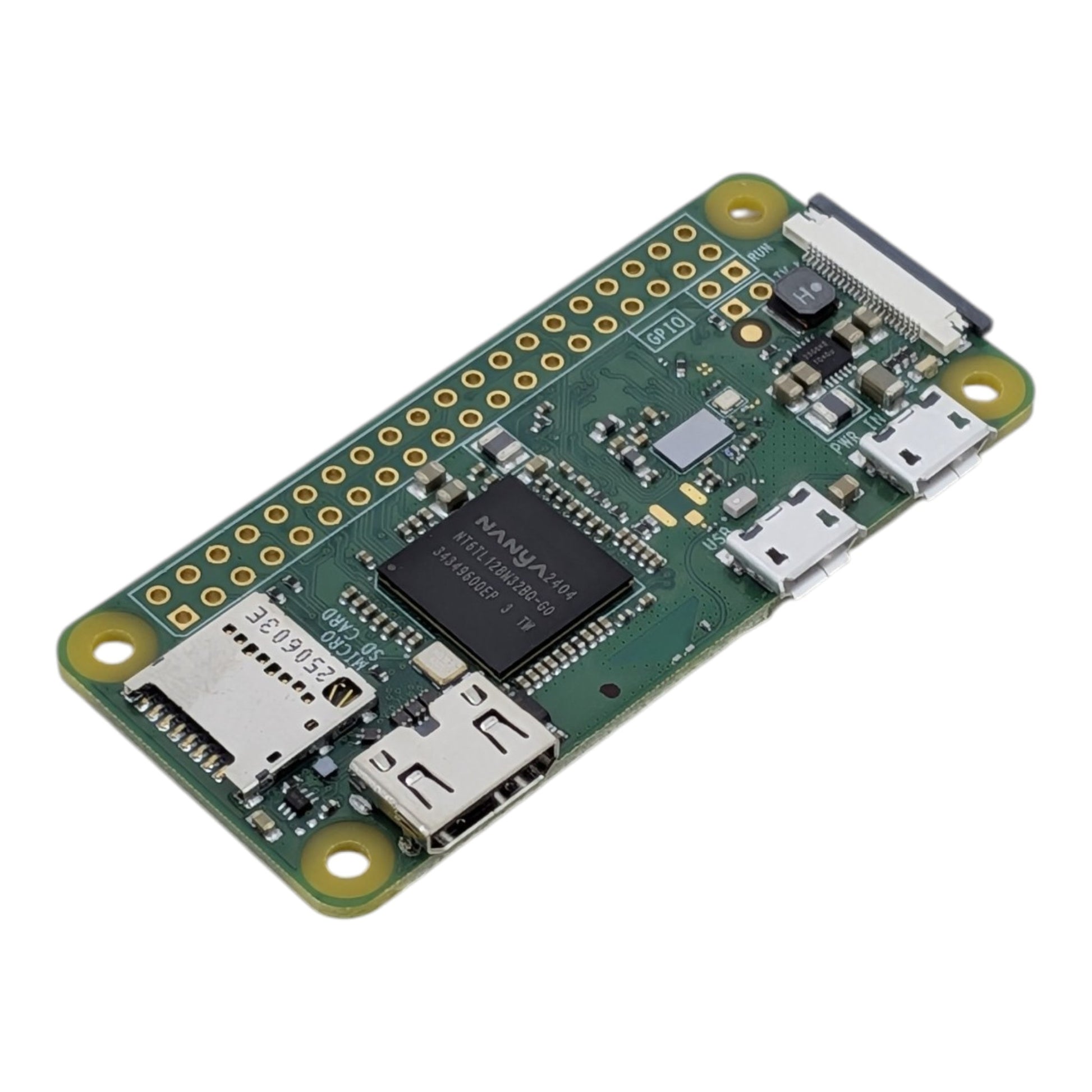

When space is at a premium but you still need the power of a full Linux operating system, the Raspberry Pi Zero W is your go-to solution. Measuring an incredibly tiny 65mm × 30mm × 5mm, this motherboard is designed to fit into the tightest enclosures. Powered by the reliable Broadcom BCM2835 SoC and a 1GHz ARM11 processor, it effortlessly handles lightweight programming tasks, automated scripts, and retro gaming emulation without breaking a sweat.
Built-in Wireless Connectivity for Smart Homes
Unlike the original Pi Zero, the "W" model comes equipped with essential wireless capabilities out of the box. Featuring 2.4GHz 802.11n wireless LAN (WiFi) and Bluetooth 4.1 (Classic & Low Energy), you no longer need to waste valuable USB ports on external dongles. This makes it the ultimate foundation for building wireless security cameras, Bluetooth audio receivers, or a centralized Home Assistant hub to control your smart devices.
Pro Tip from Our Technicians
"To keep the board as slim as possible, the Raspberry Pi Zero W comes with an unpopulated GPIO header. This means you will need to solder your own 40-pin header if you plan to connect external sensors or HATs. If you are new to soldering or need advice on which GPIO pins to use for your specific STEM project, drop by our Sham Shui Po store! Our team has over two decades of DIY electronics experience and can help you pick the right accessories."
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| System on Chip (SoC) | Broadcom BCM2835 |
| Processor (CPU) | ARM11 running at 1GHz |
| Memory (RAM) | 512MB |
| Wireless LAN (WiFi) | 2.4GHz 802.11n wireless LAN |
| Bluetooth | Bluetooth Classic 4.1 Bluetooth Low Energy (BLE) |
| Dimensions | 65mm × 30mm × 5mm |
| GPIO Header | Unpopulated 40-pin footprint |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Does the Raspberry Pi Zero W come with pre-soldered GPIO pins?No, to maintain its ultra-slim 5mm profile, the GPIO header is unpopulated. You will need to solder a 40-pin header yourself if you wish to connect jumper wires, sensors, or HATs.
- What kind of power supply do I need for the Pi Zero W?The board requires a high-quality 5V micro-USB power supply. Because it has built-in WiFi and Bluetooth, we recommend a power supply that can deliver at least 1.2A to 2.0A to ensure stable wireless performance.
- Can I use this board to run a full desktop operating system?While it can run the Raspberry Pi OS desktop environment, the 1GHz single-core CPU and 512MB RAM are best suited for "headless" setups (operated via SSH without a monitor) for IoT tasks, rather than heavy web browsing.
Target Users / Applications
Target Users / Applications
- Smart Home Enthusiasts: Building compact, hidden Home Assistant nodes or wireless temperature sensors in small apartments.
- STEM Students & Educators: Learning Python programming and basic circuitry without investing in expensive hardware.
- Retro Gaming DIYers: Creating ultra-portable, handheld retro gaming consoles using custom 3D-printed shells.
