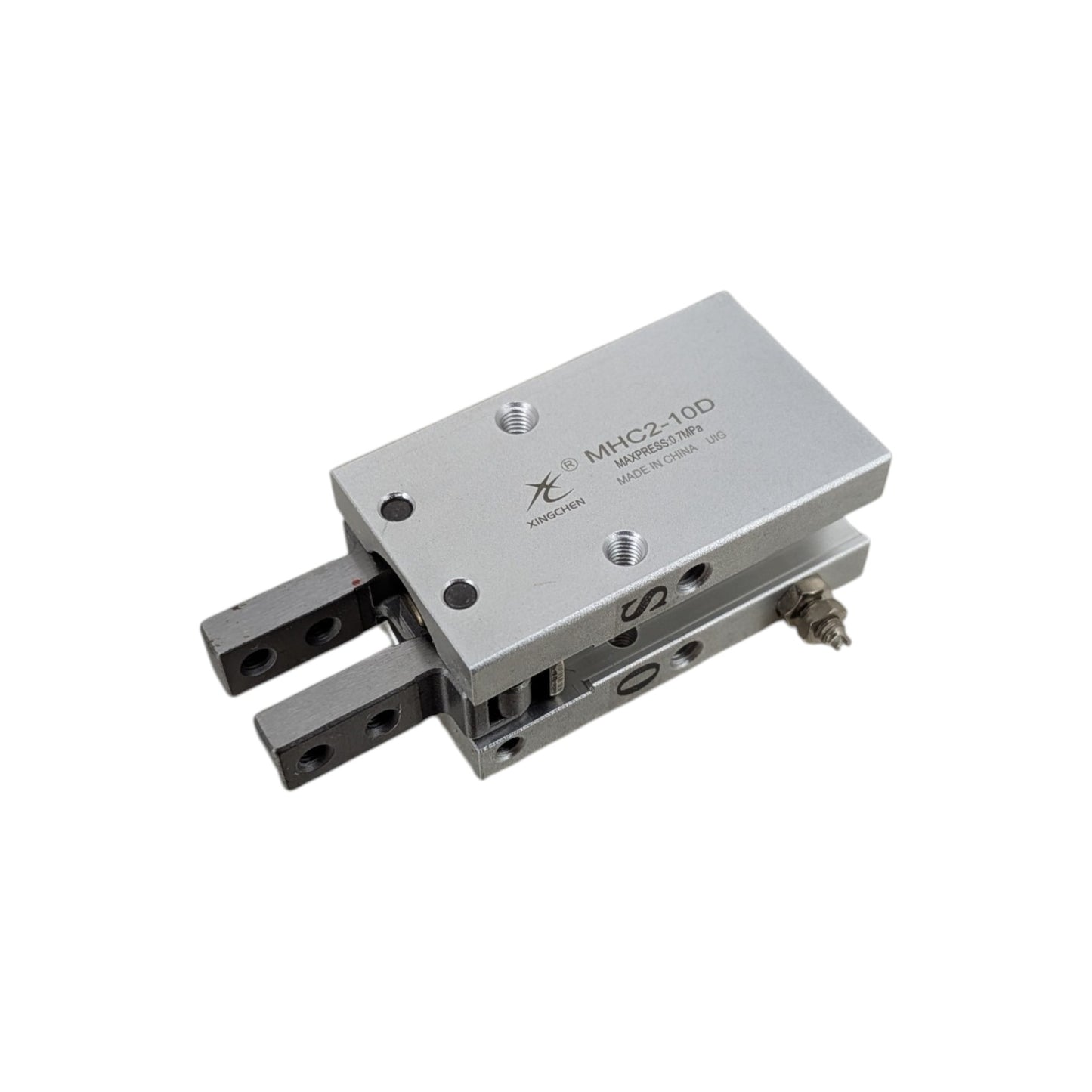

MHC2-10D Pneumatic Angular Air Gripper Cylinder | Alloy Steel Claws
MHC2-10D Pneumatic Angular Air Gripper Cylinder | Alloy Steel Claws
Couldn't load pickup availability
Short Product Description
Short Product Description
Upgrade your automated assembly line with theMHC2-10D Pneumatic Angular Gripper Cylinder. Engineered for high-frequency industrial use, this double-acting air gripper features high-hardnessalloy steel clawsfor stable gripping and importedNBR sealsfor ~99.8% leak-proof performance. Operating at a maximum pressure of 0.7 MPa, it includes built-in slots for D-A93 and D-Z73 magnetic switches. Need help building your pneumatic system?Sun Cheong Computer Co. Ltd.offers 20+ years of expertise. Visit our Sham Shui Po store for instant pickup and on-site technical configuration support!
Key Features
Key Features
- Alloy Steel Claws: High-hardness gripping fingers prevent bending and ensure a secure, stable hold on workpieces.
- Imported NBR Seals: Premium nitrile rubber seals guarantee ~99.8% airtight performance, drastically outlasting standard rubber rings.
- High-Precision Guide Rail: Delivers smooth, repeatable angular motion without unwanted lateral play or wobbling.
- Magnetic Switch Ready: Built-in side slots perfectly fit D-A93 and D-Z73 sensors for automated position tracking.
- Aluminum Alloy Body: Lightweight yet incredibly rugged, designed to withstand high-frequency industrial environments.
- Versatile Mounting: Features multiple M3x0.5 and M2.5x0.45 threaded mounting holes for flexible installation on robotic arms.
Full Product Description
Full Product Description
Precision Gripping for Industrial Automation
When building robotic arms, CNC loading systems, or automated sorting machines, the reliability of your end-of-arm tooling is critical. The MHC2-10D Pneumatic Angular Gripper provides precise, wobble-free clamping action. Unlike cheap grippers that wear out quickly, this model utilizes a high-precision guide rail integrated into a durable aluminum alloy cylinder body, ensuring smooth, repeatable opening and closing cycles for millions of operations.
Upgraded Alloy Steel Claws & NBR Seals
Downtime costs money. That is why this gripper is built with heavy-duty alloy steel claws, offering significantly higher hardness and clamping stability compared to inferior metal alternatives that easily bend or snap. Internally, it is equipped with imported NBR (Nitrile Butadiene Rubber) seals. These premium seals provide a ~99.8% leak-proof guarantee, maintaining consistent air pressure and preventing the sudden pressure drops associated with cheap, disposable rubber O-rings.
Seamless Sensor Integration
Automation requires feedback. The MHC2-10D cylinder body is designed with dedicated magnetic switch mounting slots on the sides. It perfectly accommodates standard D-A93 and D-Z73 magnetic sensors, allowing your PLC or microcontroller to accurately detect whether the jaws are in the open or closed position, ensuring flawless synchronization in your automated workflows.
💡 Pro Tip from Our Technicians
"For the longest lifespan, always ensure your compressed air supply is filtered and lubricated before it reaches the MHC2-10D gripper. Running dry, dirty air will prematurely wear out even the best NBR seals. Also, do not exceed the 0.7 MPa maximum pressure limit. If you are unsure which pneumatic fittings (M3 threads) or magnetic switches pair best with this cylinder, drop by our Sham Shui Po store! Our team at Sun Cheong Computer Co. Ltd. has over two decades of experience in automation components and can help you test-fit everything on the spot."
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Model | MHC2-10D (Angular Style Air Gripper) |
| Action Type | Double Acting |
| Maximum Operating Pressure | 0.7 MPa |
| Claw Material | High-Hardness Alloy Steel |
| Cylinder Body Material | Aluminum Alloy |
| Seal Material | Imported NBR (Nitrile Butadiene Rubber) |
| Claw Opening Distance | 15.2 mm (Open) / 11.2 mm (Closed) |
| Air Port Size | M3 x 0.5 |
| Mounting Hole Sizes | M3 x 0.5 (Body) / M2.5 x 0.45 (Claws) |
| Compatible Magnetic Switches | D-A93, D-Z73 (Slots integrated) |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- What is the maximum operating pressure for the MHC2-10D gripper?The maximum safe operating pressure for this pneumatic cylinder is 0.7 MPa (approx. 101 PSI or 7 Bar). Exceeding this pressure can damage the internal NBR seals and void the warranty.
- How do I track the open/close position of the claws?The cylinder body features integrated mounting grooves specifically designed for D-A93 and D-Z73 magnetic switches. By sliding these sensors into the grooves, your automated system can accurately detect the piston's position.
- What size air fittings do I need for this cylinder?The air inlet and outlet ports on the MHC2-10D use M3 x 0.5 metric threads. You will need M3 pneumatic micro-fittings to connect your air tubing (typically 4mm or 6mm OD tubes).
Target Users / Applications
Target Users / Applications
- Factory Automation Engineers: Integrating reliable end-effectors for pick-and-place machines and CNC loading bays.
- Robotics Integrators: Building custom robotic arms that require lightweight, high-grip pneumatic hands.
- Packaging Machinery Builders: Designing automated sorting and capping machines that require high-frequency, leak-proof actuation.
