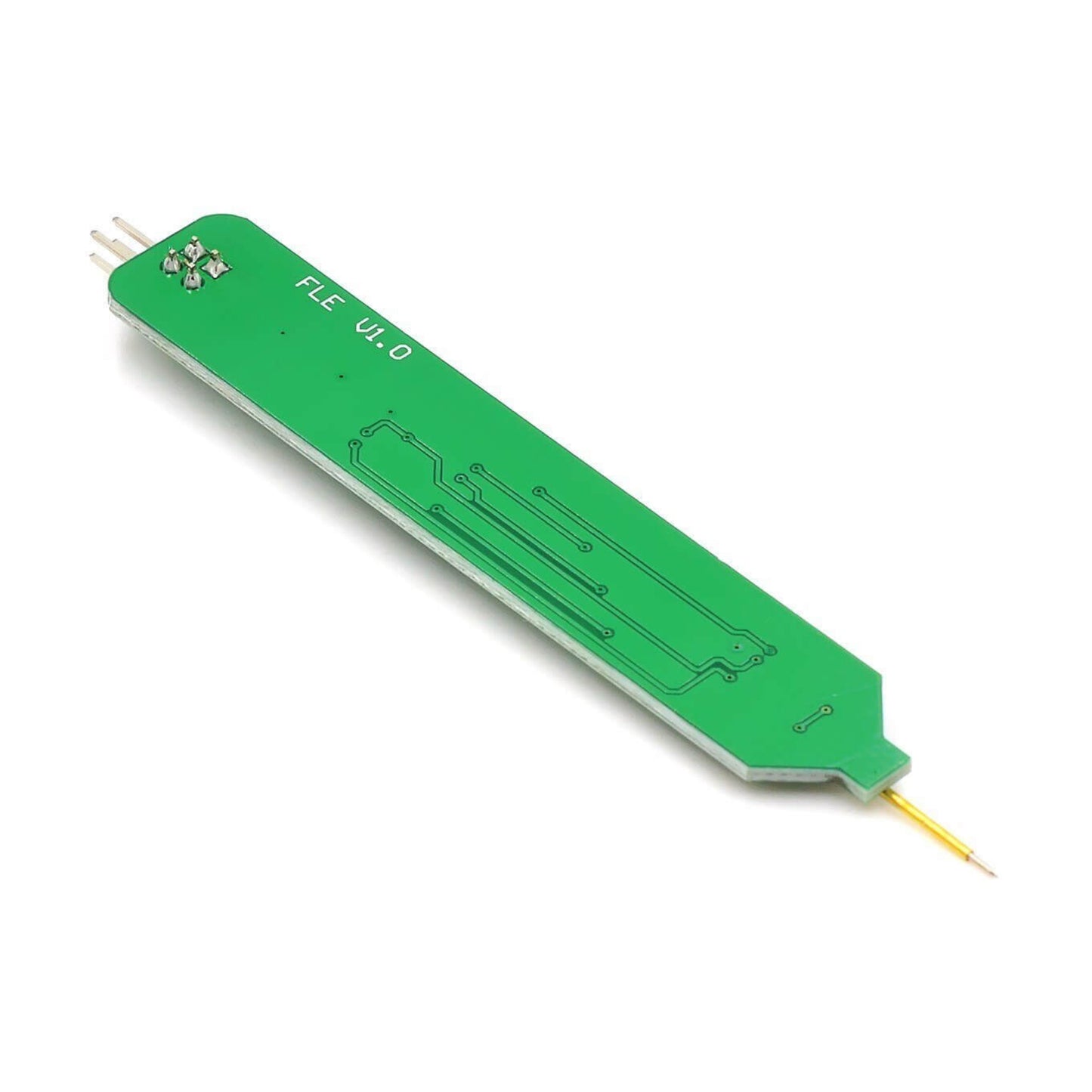

  • Back view of the printed circuit board for the logic tester pen.
1 3

V/3.3V Digital Logic Test Pen | Fast Circuit Debugging Tester

V/3.3V Digital Logic Test Pen | Fast Circuit Debugging Tester

🔥 4 sold•✓ In stock
$83.00 TWD
$83.00 TWD
Sale Sold out
Shipping calculated at checkout.

Short Product Description

Stop slowing down your workflow with a bulky multimeter! The 5V/3.3V Logic Test Pen is a handheld, essential tool for instant digital circuit debugging. Featuring a spring-loaded probe and a clear three-color LED display (Red, Green, Blue), it instantly identifies high, low, and high-impedance states. Perfect for DIY electronics, STEM learning boards, and professional PCB repairs.

Key Features

  • Instant Visual Feedback: Three-color LED system (Red/Green/Blue) instantly identifies High, Low, and High-Impedance states without needing a multimeter screen.
  • Dual Voltage Support: Compatible with both standard 5V and modern 3.3V logic systems, making it highly versatile for various microcontrollers.
  • Spring-Loaded Precision Probe: Features an elastic tip that ensures stable, non-slip contact with IC pins and solder pads while preventing mechanical damage to the board.
  • Compact & Ergonomic: Measuring just 102mm x 15mm, it handles like a standard pen, preventing hand fatigue during prolonged debugging sessions.
  • Direct DuPont Power: Draws power directly from your target board (VCC/GND) via included DuPont wires, requiring no external batteries.

Full Product Description

Debug Digital Circuits Faster and Smarter

When you are deep into prototyping or troubleshooting a printed circuit board (PCB), constantly shifting your eyes to a multimeter screen breaks your concentration. The 5V/3.3V Digital Logic Test Pen is engineered to streamline your workflow. It provides instant visual feedback right at the probe's tip, allowing you to test logic levels intuitively and efficiently.



Intuitive Three-State LED Indicator

No more guessing or interpreting fluctuating numbers. This tester uses a straightforward traffic-light system to indicate circuit states at a glance:

  • Red Light (High Level): Indicates voltage above 2.4V (in 5V mode).
  • Green Light (Low Level): Indicates voltage below 0.6V (in 5V mode).
  • Blue Light (High Impedance): Indicates an open circuit or floating voltage (0.6V - 2.4V), a crucial feature for identifying disconnected pins or faulty traces.



Built for Convenience and Precision

Designed with the maker and engineer in mind, this logic probe features an ergonomic, compact PCB body that feels natural in the hand. The built-in elastic (spring-loaded) pogo-pin probe ensures solid electrical contact without slipping or damaging delicate surface-mount components.



Plug-and-Play Compatibility

Powered directly via standard DuPont jumper wires, it seamlessly integrates with your existing breadboards, Arduino, Raspberry Pi, or custom development boards. Simply connect it to your board's VCC and GND, and you are ready to diagnose.

Technical Specifications

  • Dimensions: 102 mm (L) × 15.5 mm (W)
  • Operating voltage: 5 V DC or 3.3 V DC
  • Connection type: Standard DuPont wire headers (VCC, GND)
  • 5 V logic thresholds:Low: < 0.6 VHigh: > 2.4 VHigh-Z: 0.6 V – 2.4 V
  • 3.3 V logic thresholds:Low: < 0.39 VHigh: > 1.49 VHigh-Z: 0.39 V – 1.49 V
  • Indicators:Red: HighGreen: LowBlue: High impedance / open circuit
