L-Shaped DC Gear Motor 3-6V (1:48 Ratio) for Smart Cars & Robotics Kit
L-Shaped DC Gear Motor 3-6V (1:48 Ratio) for Smart Cars & Robotics Kit
Couldn't load pickup availability
Short Product Description
Short Product Description
Bring your robotic visions to life with our compact L-Shaped DC Gear Motor. Operating smoothly between 3V and 6V, this motor features a reliable 1:48 gear ratio that strikes the perfect balance between speed and torque. Whether you are upgrading a smart car chassis or building a custom STEM project from scratch, this space-saving L-shaped motor is the reliable powerhouse your electronics project needs.
Key Features
Key Features
- Space-Saving L-Shape Design: Mounts flat against your chassis, lowering the center of gravity and freeing up space for additional electronic components.
- Optimal 1:48 Gear Ratio: Delivers the ideal combination of torque and speed, ensuring your smart car can climb gentle inclines and navigate rough surfaces effortlessly.
- Wide Voltage Range (3-6V): Highly adaptable power requirements mean you can run it off standard AA battery packs or directly from compatible motor driver shields.
- Low Current Draw (≤250mA): Energy-efficient operation prevents your microcontroller from browning out and extends the overall battery life of your build.
- Standardized Output Shaft: Easily attaches to standard TT motor wheels and robotic tracks, saving you time sourcing proprietary accessories.
Full Product Description
Full Product Description
Build Your Robotics Project with Precision
Finding the right motor is often the biggest hurdle in DIY electronics. Too little torque, and your robot won't move; too much speed, and it becomes uncontrollable. This L-Shaped DC Gear Motor is specifically engineered for precision control and consistent power. Designed seamlessly for Arduino and Raspberry Pi projects, it is the perfect core component for 2WD or 4WD smart cars.
Why Choose an L-Shaped Gearbox?
Space management is crucial in robotics. The unique L-shaped design allows you to mount the motor flush against your chassis, saving vertical space and keeping your robot's center of gravity low. This means better stability during turns and more room on your board for sensors, batteries, and microcontrollers.
Reliable Performance Across Voltages
Flexibility is key for makers. This motor provides stable performance across a wide voltage range:
- At 3V, it delivers a steady 110 RPM, drawing less than 160mA—perfect for low-power setups and careful maneuvering.
- At 6V, it ramps up to 250 RPM, drawing under 250mA—ideal for speed-focused obstacle-avoidance robots.
It’s an energy-efficient solution that won't drain your battery packs prematurely, keeping your projects running longer.
Technical Specifications
Technical Specifications
- Operating Voltage: 3V - 6V DC
- Gear Ratio: 1:48
- No-Load Speed (3V): 110 RPM (±10%)
- No-Load Current (3V): ≤160mA
- No-Load Speed (6V): 250 RPM (±10%)
- No-Load Current (6V): ≤250mA
- Motor Type: Brushed DC Gear Motor

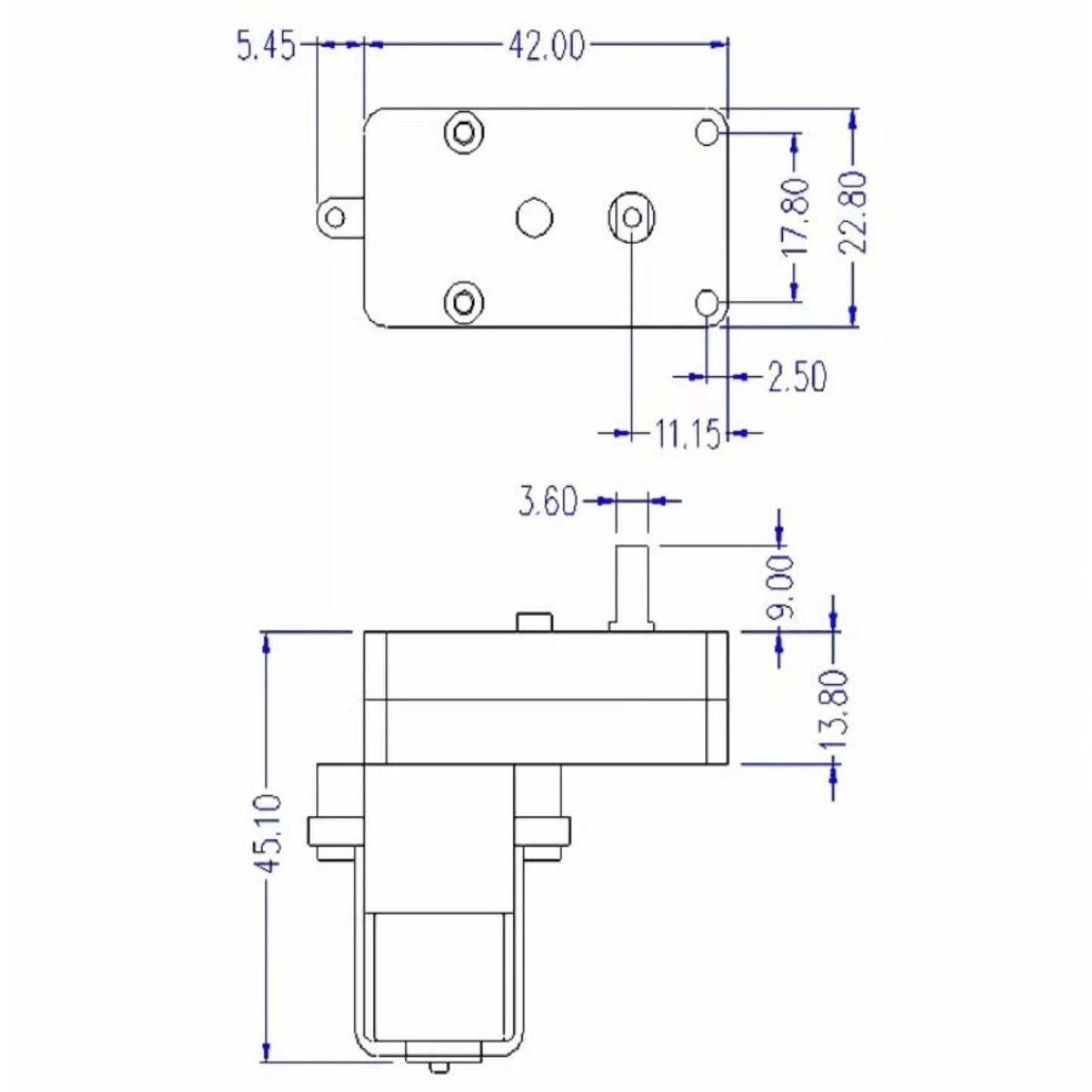

- Dimensions: 42.00 x 22.80 x 45.10 mm (See schematic)
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Is this motor compatible with an Arduino motor shield (like the L298N)?
A: Yes! The 3-6V operating range and low current draw make it perfectly compatible with popular motor drivers like the L298N or L293D shields commonly used with Arduino.
Q: Can I use this for a 4-wheel drive (4WD) robot?
A: Absolutely. You will need four of these motors (one for each wheel). Their consistent manufacturing ensures they will run at similar speeds, making differential steering easy to program.
Q: Does it come with wires pre-soldered?
A: This specific unit features standard copper terminal tabs. You will need to solder your own jumper wires to the terminals to connect them to your breadboard or motor driver.
Target Users / Applications
Target Users / Applications
- STEM Educators & Students: Perfect for classroom robotics labs and science fair projects.
- DIY Hobbyists & Makers: Ideal for custom Arduino, Raspberry Pi, or Micro:bit builds.
- Prototyping: Useful for engineers building proof-of-concept automated guided vehicles (AGVs) or motorized mechanisms.
