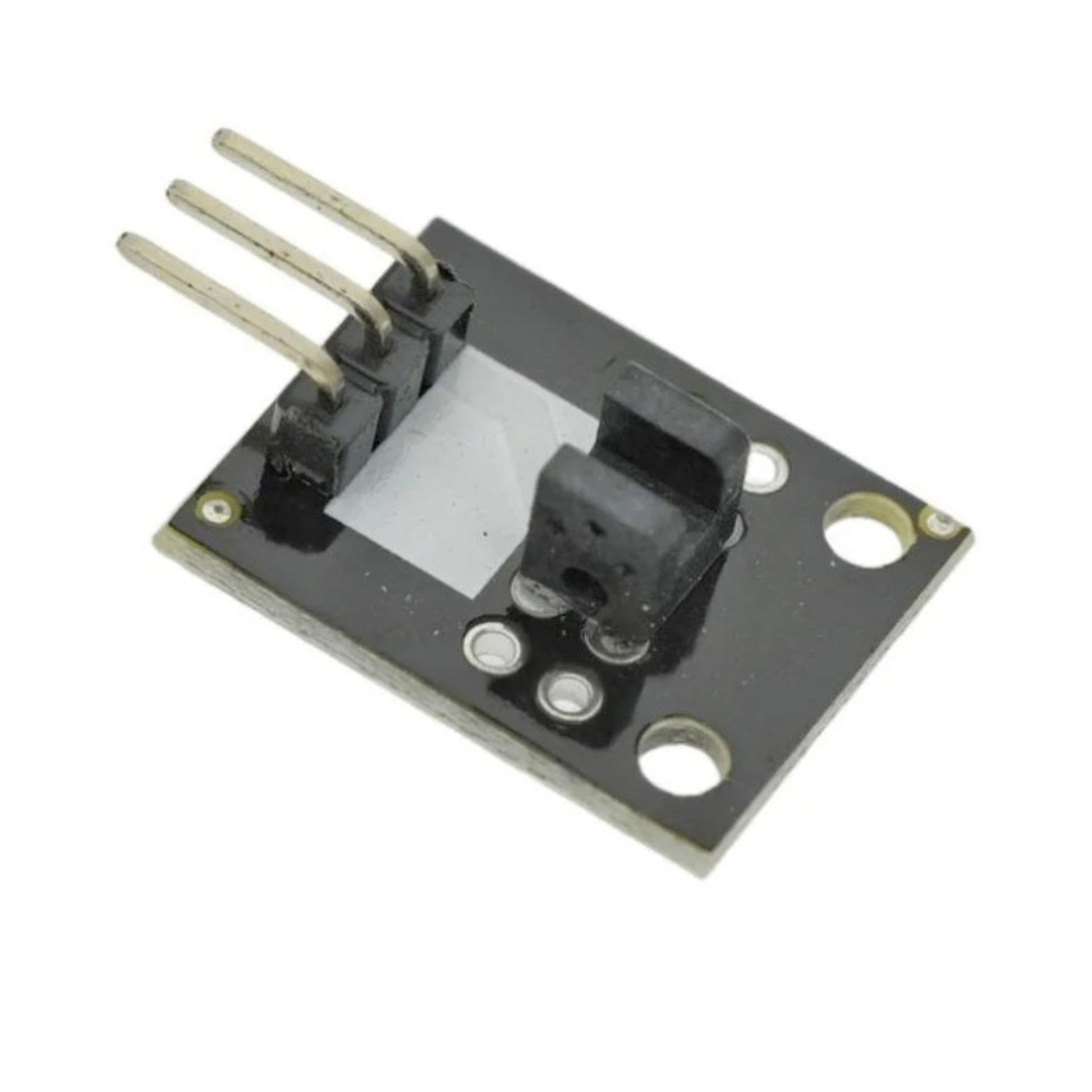

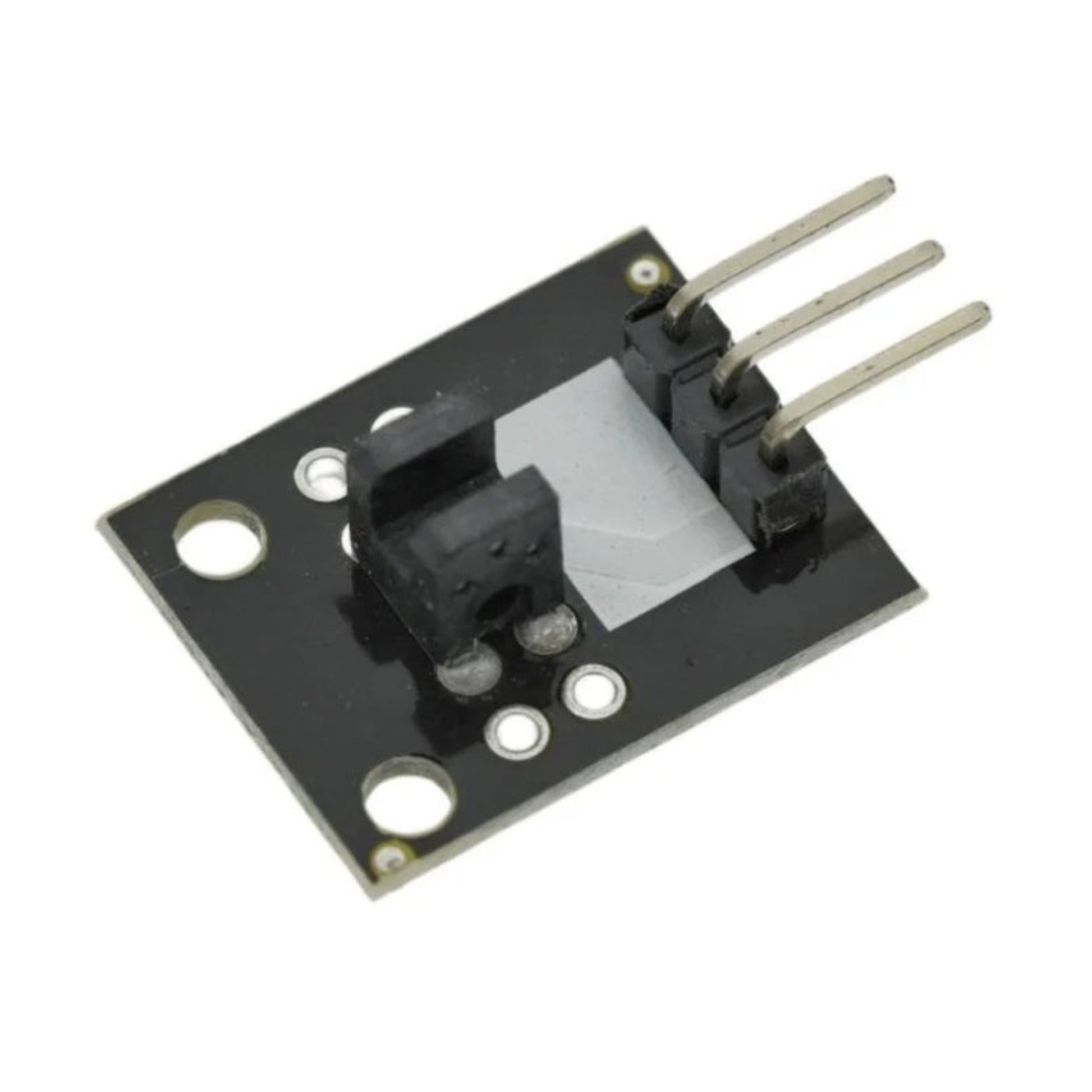

Upgrade your DIY electronics and robotics projects with the KY-010 Photo Interrupter Sensor Module. Designed for seamless integration with Arduino, AVR, and PIC microcontrollers, this U-shaped optical sensor delivers highly accurate, non-contact object detection. Whether you are building a custom optical encoder, a precise limit switch for a 3D printer, or a smart motor speed monitor, the KY-010 provides instantaneous digital feedback. Operating on a standard 5V DC supply and featuring a durable GaAs infrared LED, this module brings reliable, solid-state automation to your next STEM project.
Key Features
Key Features
- Instant Object Detection: Utilizes a U-shaped optical interrupter for highly responsive, non-contact sensing, completely eliminating mechanical bounce and physical wear.
- Long-Lasting Performance: Built with a premium GaAs infrared light-emitting diode, ensuring a prolonged service life and stable output for continuous projects.
- Clear Digital Output: Delivers a straightforward logic signal (HIGH/LOW) for effortless programming and integration with microcontrollers like Arduino, AVR, and PIC.
- Compact & Mountable Design: Measuring just 24x15x8mm and featuring a standard 3mm positioning hole, it easily fits into tight robotic chassis and custom enclosures.
- Universal 5V Compatibility: Operates on standard DC 5V, making it plug-and-play ready for most DIY starter kits, breadboards, and logic circuits.
Full Product Description
Full Product Description
Precision Non-Contact Detection for Your Electronics Projects
When mechanical switches fall short, optical sensing steps in. The KY-010 Photo Interrupter Module is engineered to provide friction-free, instantaneous object detection. By utilizing a continuous beam of light, this sensor eliminates the physical wear and tear associated with traditional push buttons or microswitches, ensuring your automated systems run smoothly and reliably over time.
How the KY-010 Optical Sensor Works
At the core of this module is a high-output GaAs infrared light-emitting diode (LED) positioned directly across from a highly sensitive photo-receiving component. They are housed in a specialized U-shaped bracket. When an object passes through the gap and breaks the infrared beam, the receiver instantly detects the shading effect and triggers a change in the logic state. This provides a crisp, clean digital signal to your microcontroller, letting your code know exactly when an interruption occurred.
Perfect for Robotics and Automation
This sensor is a staple for DIY hardware enthusiasts and STEM educators. It is widely used to create custom optical encoders—simply attach a slotted wheel to a motor shaft, and the KY-010 will count the interruptions to calculate RPM or distance traveled. It also serves as an exceptionally accurate limit switch for CNC machines, robotic arms, and automated counting assembly lines.
Plug-and-Play Simplicity
We know that in DIY electronics, ease of use is everything. The KY-010 features a straightforward 3-pin interface and operates on a standard DC 5V logic level, making it natively compatible with popular development boards like Arduino. With its ultra-compact footprint and a pre-drilled 3mm positioning hole, mounting this sensor into your custom 3D-printed enclosures or tight chassis spaces is completely hassle-free.
Technical Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Voltage | DC 5V |
| Interface Type | 3-Pin Placement Interface (VCC, GND, Signal) |
| Control Signal | Digital Signal (Logic HIGH / LOW) |
| Light Source | GaAs Infrared Light-Emitting Diode |
| Positioning Hole Size | 3mm in diameter |
| Dimensions (L x W x H) | 24mm x 15mm x 8mm |
| Weight | 1.2g |
