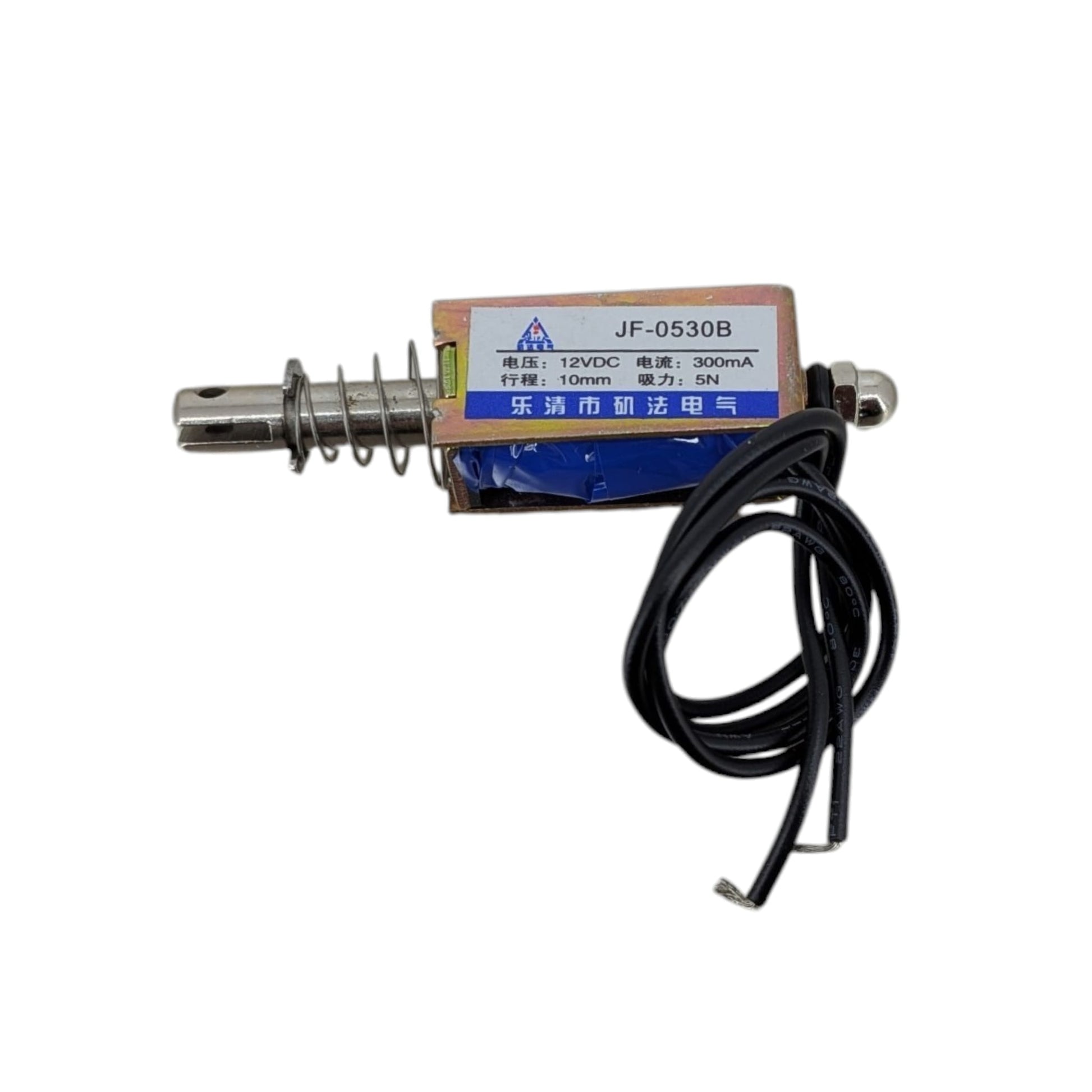

JF-0530B 12V DC Push-Pull Linear Solenoid Electromagnet
JF-0530B 12V DC Push-Pull Linear Solenoid Electromagnet
Couldn't load pickup availability
Short Product Description
Short Product Description
Upgrade your automated systems or complete your DIY engineering projects with the reliable JF-0530B 12V DC Solenoid. Engineered for over 1 million cycles, it features a 10mm stroke and a built-in E-ring with a rubber washer for silent operation. Ideal for vending machines, electronic locks, and STEM robotics. In-stock and ready for pickup at Sun Cheong Computer, Sham Shui Po.
Key Features
Key Features
- High Durability: Tested to withstand over 1,000,000 operational cycles under standard load.
- Silent Mechanics: Integrated E-ring and rubber washer minimize mechanical impact noise.
- Thermal Stability: Class A temperature rating ensures stable performance without overheating during extended operations.
- Low Friction Design: Maximizes energy conversion from electrical to mechanical pushing force (5N).
- Easy Integration: Simple mounting structure with pre-stripped wires for fast connection to relay modules or direct power sources.
Full Product Description
Full Product Description
Industrial-Grade Reliability for Your Next Project
Whether you are a facility manager repairing an automated vending machine, or a STEM educator guiding students through an Arduino robotics project, the actuator is the heart of your mechanical movement. The JF-0530B 12V DC Solenoid delivers precise, linear push-pull action designed for longevity and efficiency.
Engineered for Silent, Low-Friction Operation

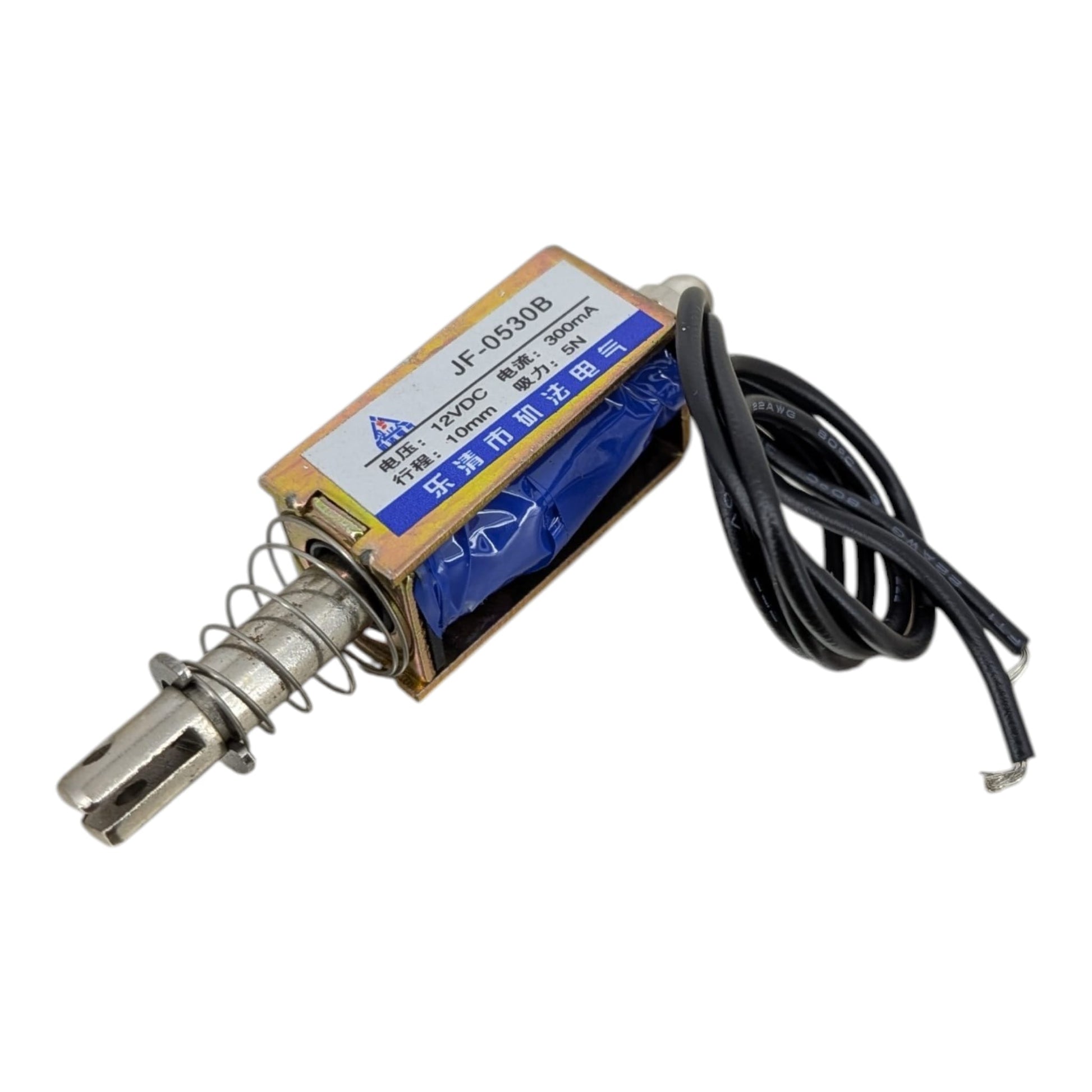

Unlike standard electromagnetic actuators that suffer from wear and loud mechanical clicking, the JF-0530B is equipped with an E-ring and rubber washer system. This significantly dampens operational noise while the low-friction design ensures high efficiency. With a Class A temperature rise rating (under 65°C) and a tested lifespan of over 1,000,000 cycles under load, it offers commercial-grade stability.
The Sun Cheong Advantage
Backed by over 20 years of experience in Sham Shui Po, Sun Cheong Computer ensures you get quality electronic components with localized technical support. Need to integrate this into a larger Dahua security setup or a Raspberry Pi automated locking system? Our in-store experts at our Apliu Street shop are ready to assist.
Technical Specifications
Technical Specifications

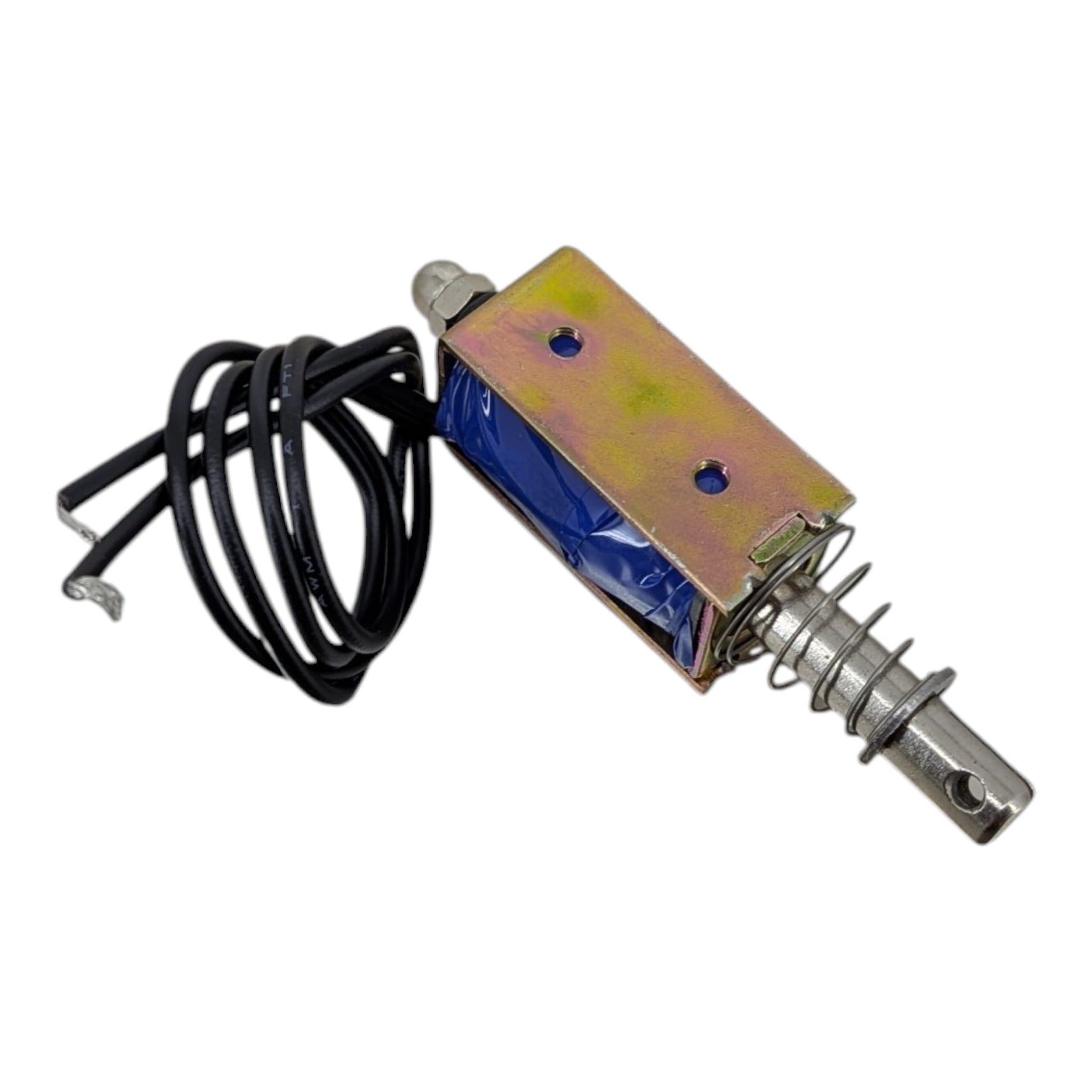

- Model: JF-0530B
- Action type: Push-pull linear
- Rated voltage/current: 12V DC / 300mA
- Stroke capacity: 10mm
- Force: 5N
- Lifespan: > 1,000,000 cycles
- Operating temp/humidity: -5°C to 40°C / 45% to 85% RH (non-condensing)
- Body dimensions: 30mm (L) x 13mm (W)
- Overall length: 58mm
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Can I control this solenoid directly with an Arduino or Raspberry Pi?
No, microcontrollers cannot output 300mA at 12V directly. You will need to use a relay module or a transistor circuit (like a TIP120) as a switch between the microcontroller and the solenoid.
Is this suitable for continuous power (100% duty cycle)?
Linear solenoids like the JF-0530B are generally designed for intermittent use. Applying continuous power for long periods may cause overheating beyond the Class A limits.
Do you offer bulk pricing for engineering projects?
Yes! Corporate and engineering buyers can contact our Sham Shui Po retail team directly for B2B quotations and bulk inventory checks.
Target Users / Applications
Target Users / Applications
- Enterprise / Engineering Buyers: Seeking reliable replacement parts for automated systems, access control, and manufacturing equipment.
- Electronic DIY Enthusiasts / Makers: Looking for actuators for custom robotics, smart home locks, and automated dispensers.
- STEM Educators / Students: Requiring safe, easy-to-use mechanical components for school projects.
