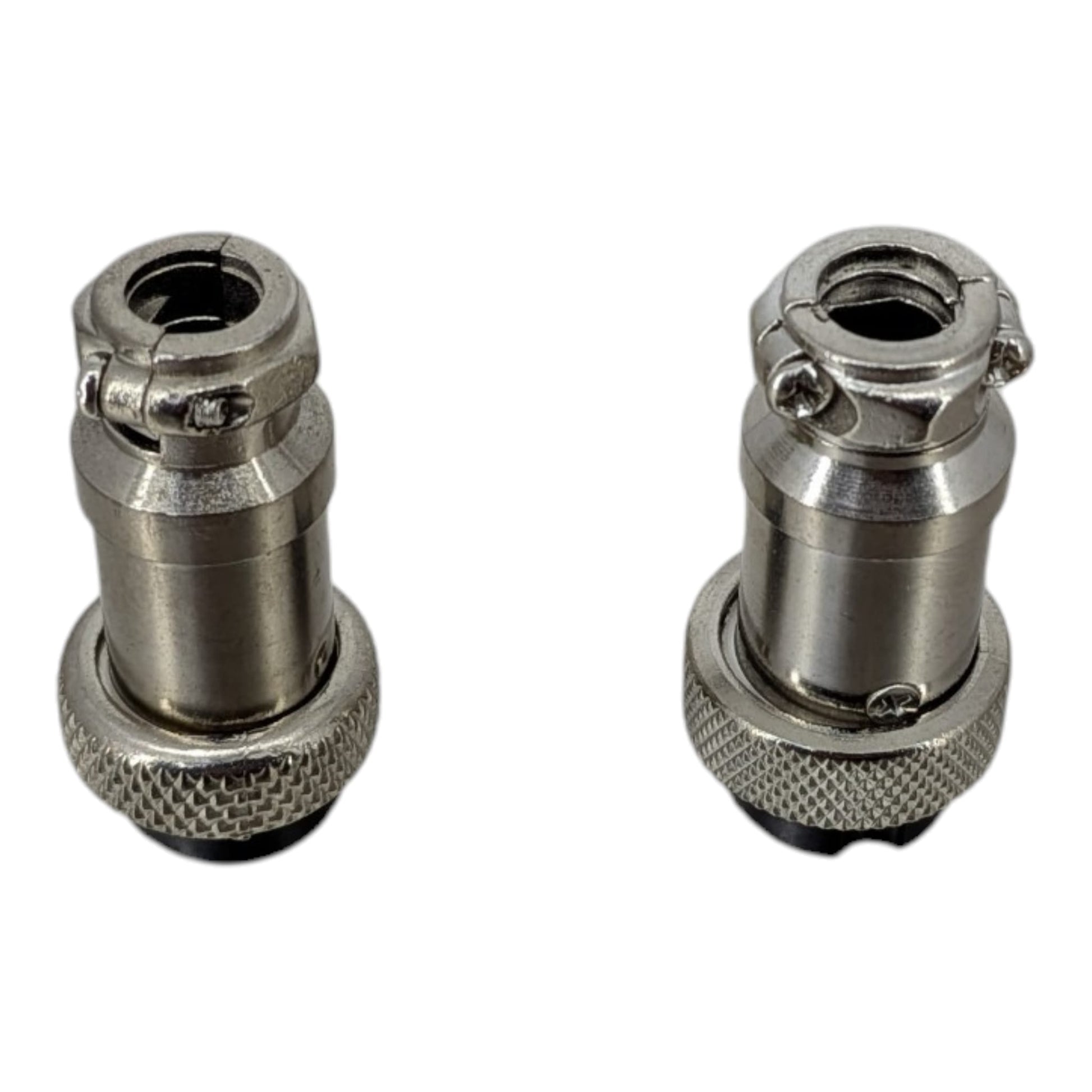

GX16 Aviation Connector Female Plug 3-Pin/4-Pin | Metal Screw Lock
GX16 Aviation Connector Female Plug 3-Pin/4-Pin | Metal Screw Lock
Couldn't load pickup availability
Short Product Description
Short Product Description
Stop letting loose connections ruin your mission-critical projects. Whether you're building a CNC machine, upgrading a CCTV system, or crafting a custom mechanical keyboard cable, the GX16 Aviation Connector Female Plug provides the rock-solid stability you need. Featuring a heavy-duty metal housing and a secure screw-locking mechanism, this industrial-grade connector ensures zero signal loss even in high-vibration environments. Available in 3-pin and 4-pin configurations, it's the professional’s choice for durability and ease of installation.
Key Features
Key Features
Rugged Zinc Alloy Shell: Provides superior impact resistance and long-term durability.
Secure Screw-Locking Mechanism: Prevents accidental disconnection even in high-vibration environments.
Silver-Plated Copper Contacts: Ensures maximum conductivity and minimizes signal resistance.

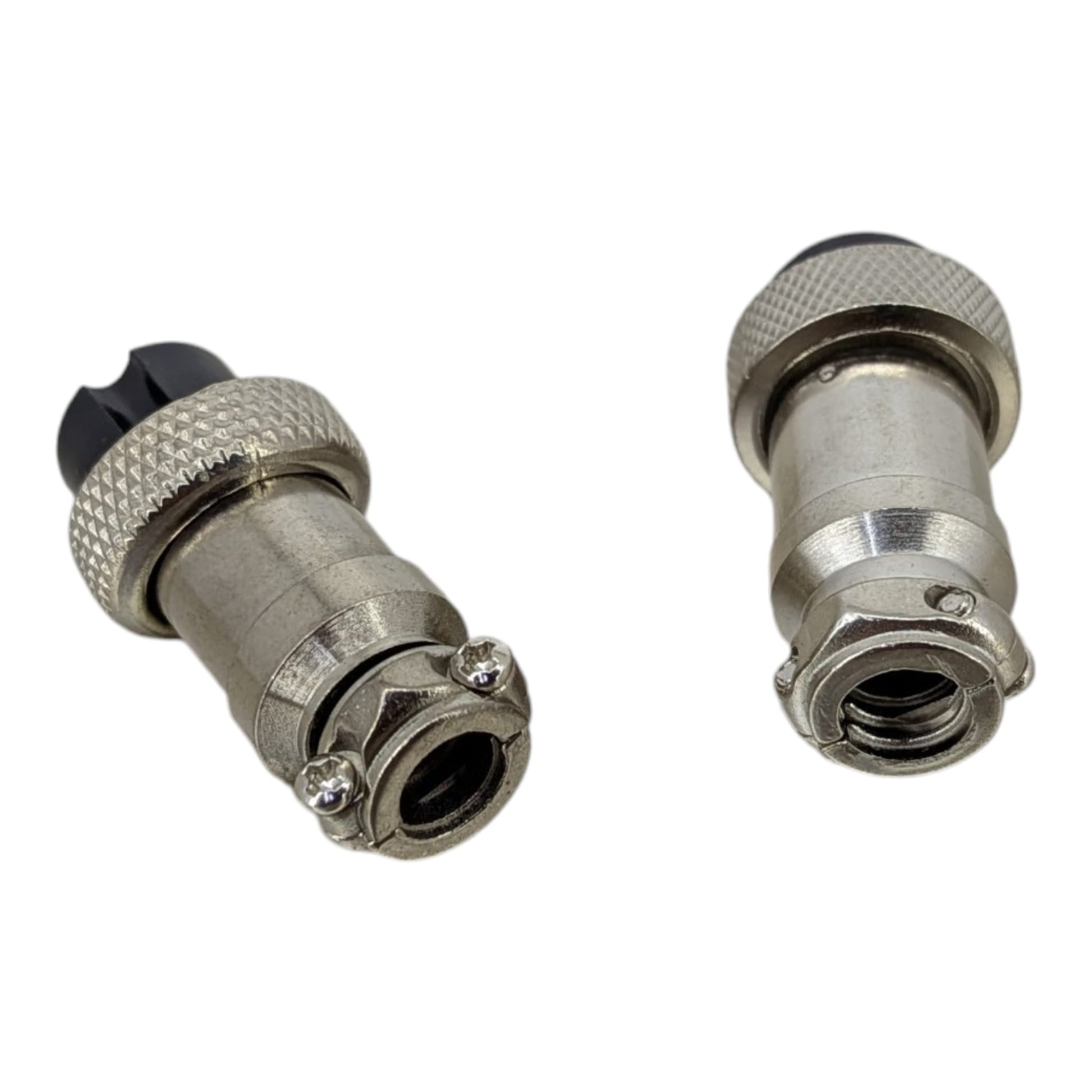

Internal Strain Relief: Protects soldered wire joints from tension and fatigue.
Wide Compatibility: Fits standard 16mm panel-mount male aviation sockets perfectly.
Easy Solder Terminals: Deep solder cups make for a fast, clean, and professional assembly.
Full Product Description
Full Product Description
Why Connection Stability Matters for Your Electronics
In the world of DIY electronics and industrial maintenance, a single loose wire can lead to hours of troubleshooting or even hardware damage. Standard plastic connectors often fail under tension or heat. This is where the GX16 Aviation Connector excels. Designed originally for aerospace and military applications, these connectors bring industrial-grade reliability to your workbench.
Engineered for Durability and Performance
Each GX16 female plug is constructed with a high-quality zinc alloy shell and silver-plated copper contacts. The M16 screw-lock design creates a physical bond that won't budge, making it perfect for moving parts like 3D printer heads or CNC motors. Unlike snap-on plugs, the GX16 requires a deliberate unscrewing action, providing peace of mind against accidental tugs.
Seamless Integration for STEM and Hobbyists
For the growing community of custom mechanical keyboard enthusiasts, the GX16 4-pin is the "Gold Standard" for creating detachable aviator cables. Its aesthetic metallic finish adds a premium look, while the easy-to-solder terminals make it accessible for beginners learning to build their own gear.
Solving the "Interference" Problem
The full metal casing doesn't just look good—它 acts as a Faraday cage, shielding your sensitive data or audio signals from electromagnetic interference (EMI). This makes it an ideal choice for high-precision sensors and professional audio equipment where signal purity is non-negotiable.
Technical Specifications
Technical Specifications
- Series: GX16 (Aviation Standard)

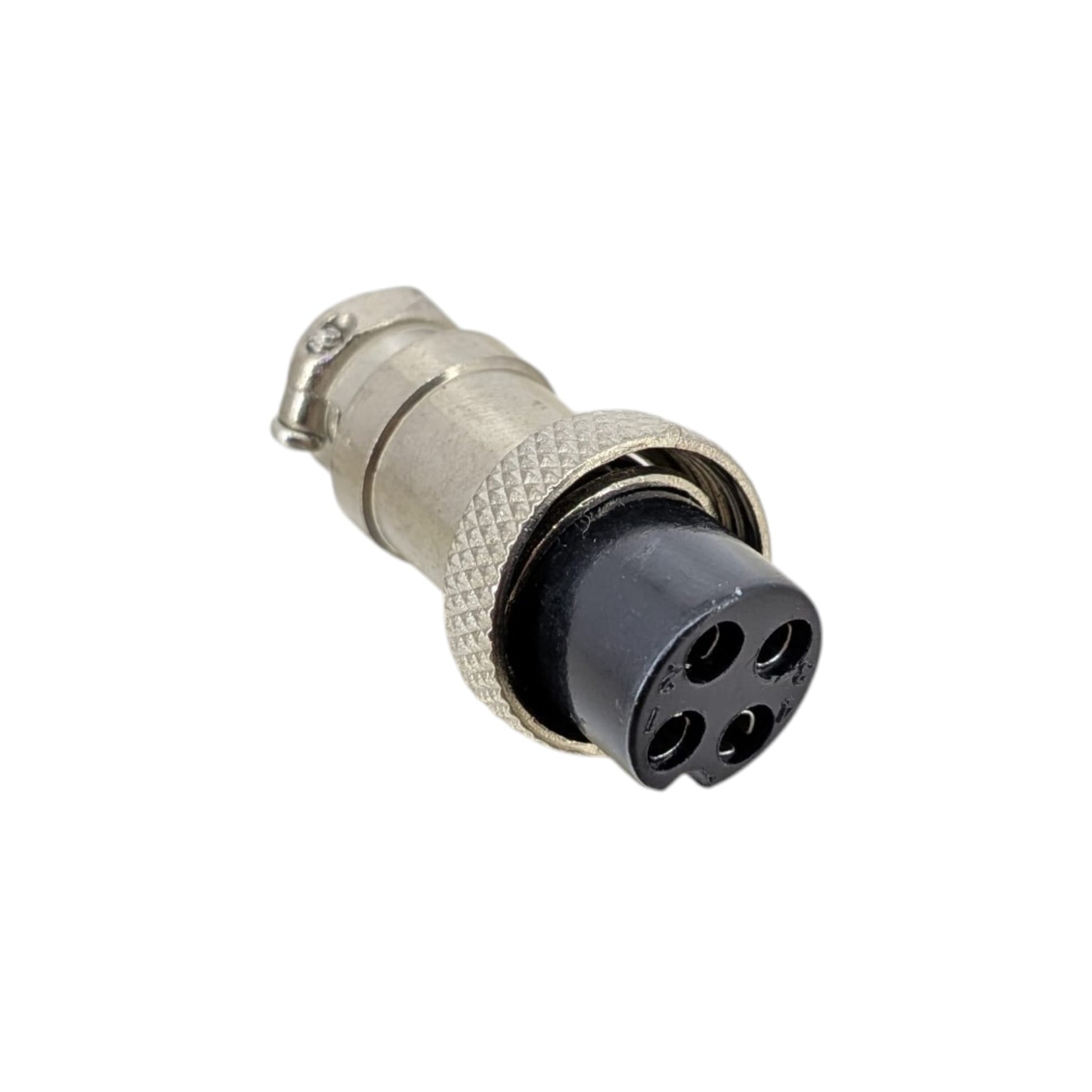

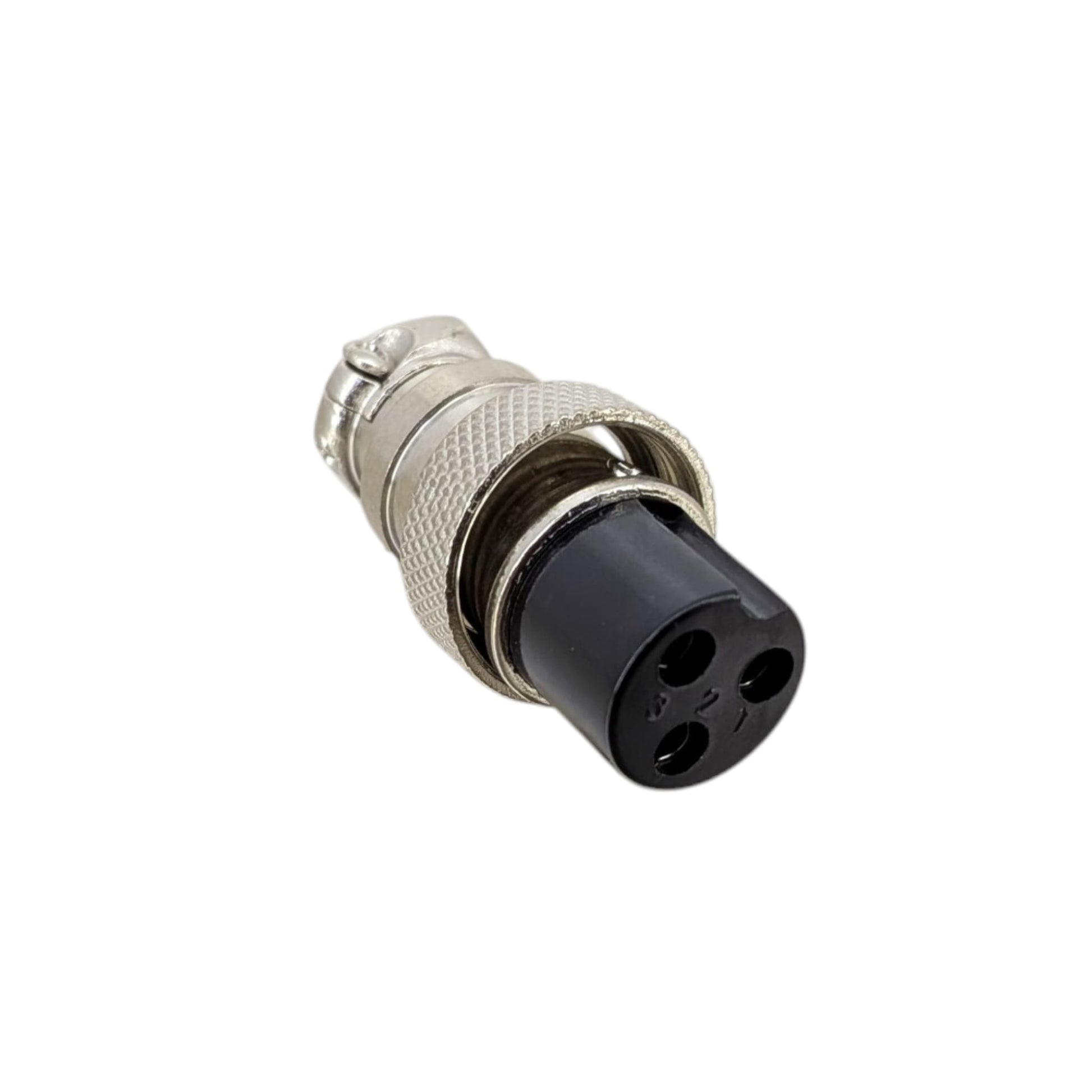

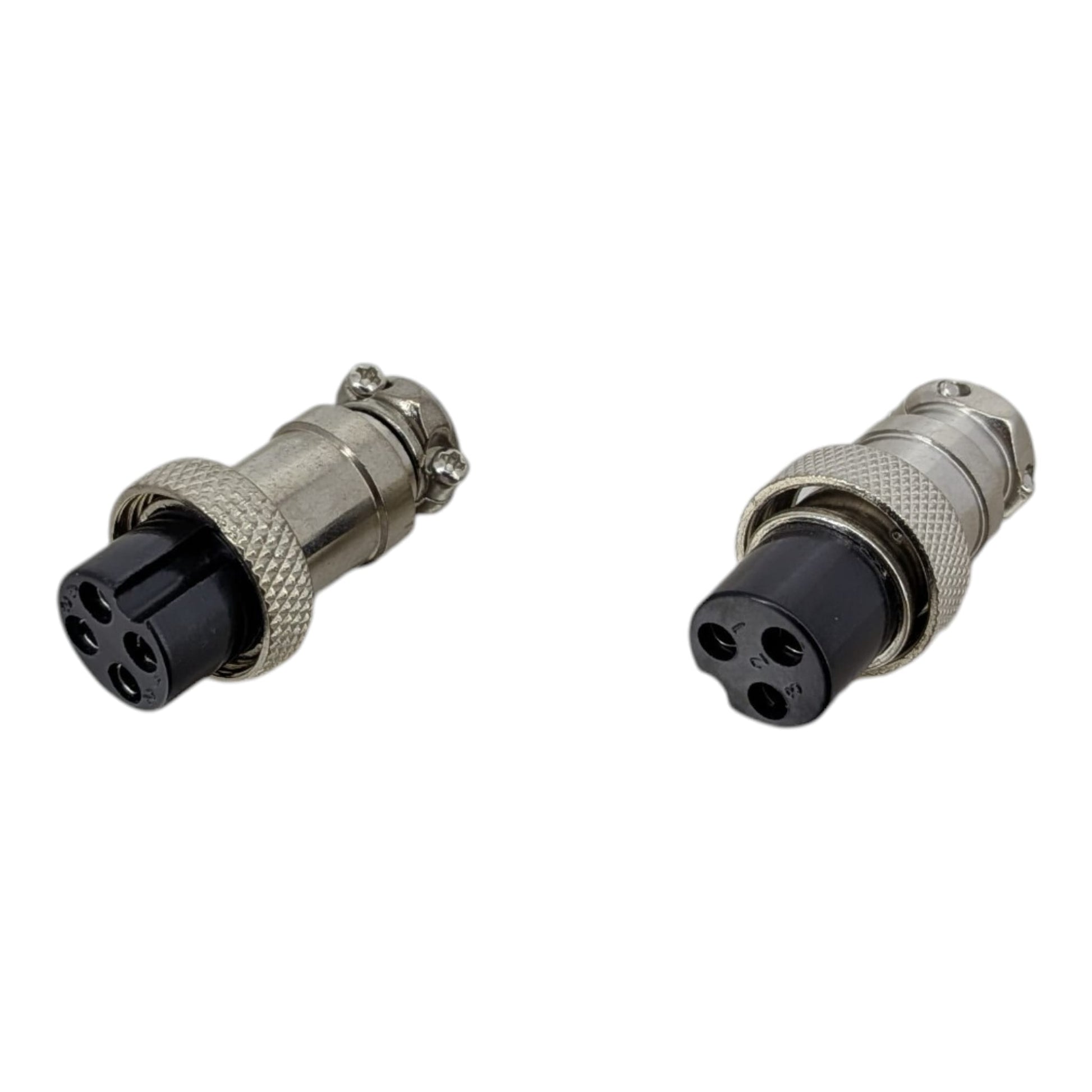

- Pin Count: 3-Pin (3P) or 4-Pin (4P)
- Connector Type: Female (Cable Mount)
- Mounting Hole: 16mm
- Shell Material: Zinc Alloy with Nickel Plating
- Contact Material: Silver-plated Copper
- Rated Current/Voltage: 5A / 125V
- Contact Resistance: ≤0.005Ω
- Total Length: 35.5 mm
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Can I use the GX16-4P for my custom mechanical keyboard cable? Yes, the 4-pin version is the industry standard for "Aviator" style keyboard cables, handling VCC, Ground, D+, and D- signals perfectly.
Is this connector waterproof? The GX16 is a high-stability indoor/industrial connector but is not rated for full immersion. It provides basic dust protection when locked.
Do I need special tools to install this? No special crimping tools are required. You only need a standard soldering iron and a small screwdriver for the cable clamp.
Target Users / Applications
Target Users / Applications
- Custom Keyboard Builders: Crafting high-end "Aviator" cables.
- Industrial Engineers: Maintenance for CNC, 3D printers, and automated machinery.
- CCTV Installers: Secure power and signal transmission for security systems.
- STEM Students: Building robotics and sensor-based Arduino projects.
