Building a robotic hand or a VR smart glove? The4.5" Flex Sensor with Pre-Soldered Moduleis the ultimate bend-detection solution for your DIY electronics. Bare flex sensors have notoriously fragile pins, but this upgraded version comes pre-soldered to a protective PCB module with heat-shrink reinforcement, ensuring maximum durability. Operating on 3.3V-5V, it provides both Analog (AO) and adjustable Digital (DO) outputs. Need help coding your Arduino smart glove?Sun Cheong Computer Co. Ltd.has over 20 years of STEM expertise. Visit our Sham Shui Po physical store for instant pickup and expert DIY technical advice!
Key Features
Key Features
- Pre-Soldered Module: Eliminates the fragile pin issue of bare flex sensors, featuring heat-shrink reinforcement for extreme durability.
- Dual Signal Outputs: Provides both Analog (AO) for precise angle measurement and Digital (DO) for simple threshold triggering.

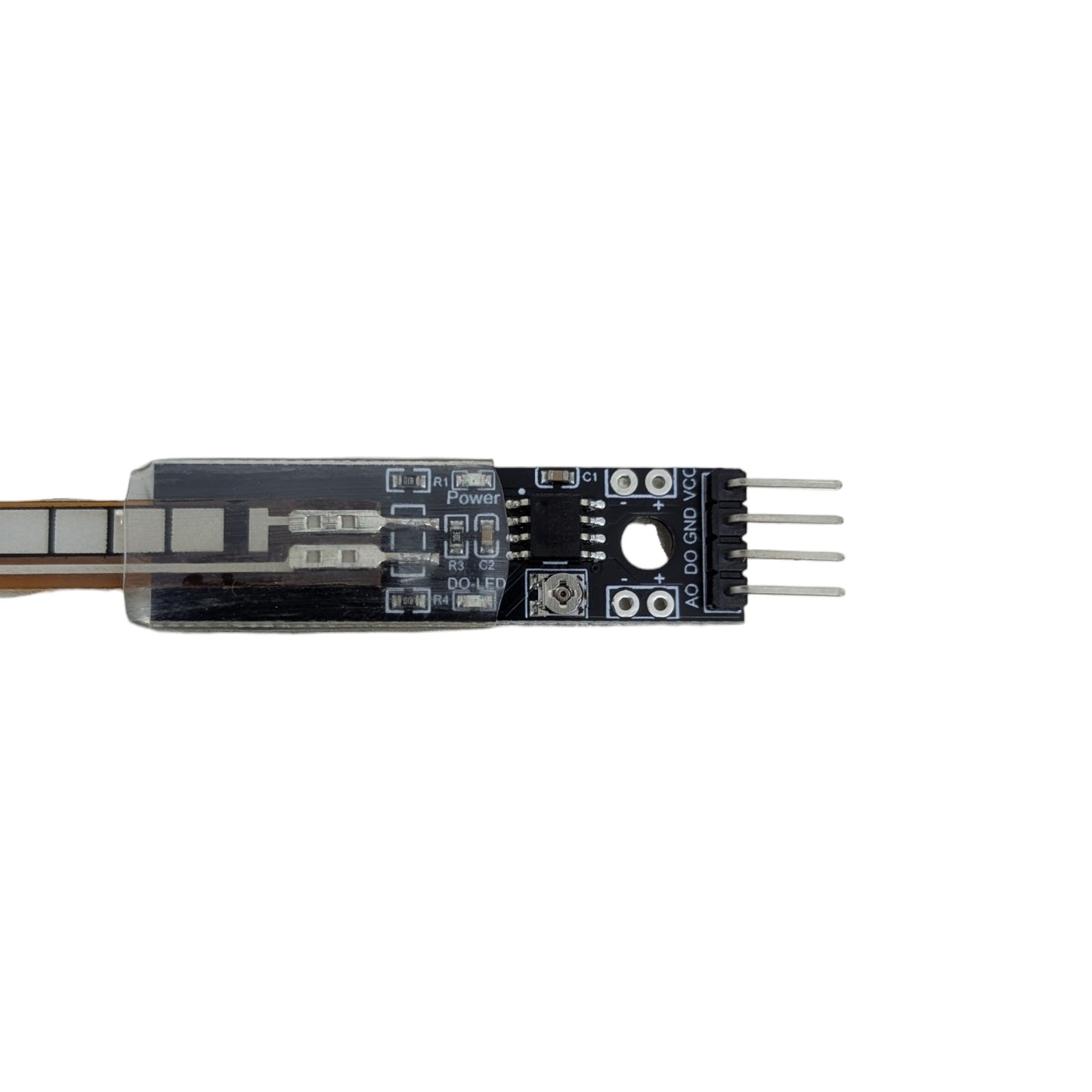

- Adjustable Sensitivity: Built-in 100KΩ potentiometer allows you to easily adjust the trigger point for the Digital Output.
- Wide Voltage Compatibility: Operates flawlessly on both 3.3V and 5V systems, making it perfect for Arduino, ESP32, and Raspberry Pi.
- 1 Million+ Cycle Lifespan: High-quality flexible materials ensure the sensor survives continuous, repetitive bending in wearable tech.
- Cascadable Power Interface: Designed with convenient power pins that allow multiple modules to be linked together easily for 5-finger smart gloves.
Full Product Description
Full Product Description
Build Smart Wearables & Robotic Hands
Measuring the exact angle of a bending finger or a mechanical joint is critical for advanced robotics. This 4.5-inch Flex Sensor Module changes its electrical resistance based on how much it is bent. When perfectly straight, it reads approximately 10KΩ; when bent to 90 degrees, the resistance increases to between 60KΩ and 110KΩ. This makes it the perfect sensor for creating interactive animatronics, VR gaming gloves, and physical rehabilitation devices.
Pre-Soldered for Maximum Durability
If you have used bare flex sensors before, you know their biggest flaw: the terminal pins are incredibly fragile and snap off easily during use. We solved this problem. This sensor comes pre-soldered to a custom PCB module, reinforced with heavy-duty heat shrink tubing at the base. This eliminates stress on the delicate pins, allowing the sensor to withstand over 1 million bending cycles without failing.
Dual Output: Analog & Digital
This module offers incredible flexibility for your microcontroller projects. Use the Analog Output (AO) to read the exact degree of the bend via your Arduino's ADC pin. Alternatively, use the onboard 100KΩ potentiometer to set a specific trigger threshold. Once the sensor bends past your set angle, the Digital Output (DO) will instantly switch states—perfect for triggering relays, LEDs, or alarms without writing complex code.
💡 Pro Tip from Our Technicians
"CRITICAL WARNING: This flex sensor is directional! You must ONLY bend it towards the side with the printed text. Bending it backward will yield unreliable data and permanently damage the internal carbon traces. Also, never bend the sensor right at the base where it meets the PCB, as this causes kinking. If you are struggling to calibrate the Analog Output (AO) values in your Arduino code, drop by our Sham Shui Po store!
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Sensor Type | 4.5" Unidirectional Flex Sensor |
| Operating Voltage (VCC) | 3.3V - 5V DC |
| Straight Resistance | ~10KΩ (±30%) |
| Bend Resistance | 60KΩ ~ 110KΩ |
| Outputs | Analog (AO) & Digital (DO) |
| Potentiometer | 100KΩ (Adjustable Rotation: 260° ±20°) |
| Bending Lifespan | > 1 Million Times |
| Operating Temperature | -35°C to +80°C |
| Sensor Dimensions | 112.24 mm x 6.35 mm |
| Module Dimensions | 43.5 mm x 12.5 mm |
