Can I use this exit button directly with a magnetic lock without a controller?

No, this is a momentary dry contact switch that must be wired into an access control power supply or controller, which then manages the power release to the magnetic lock.

How do I wire this exit button to my access control system?

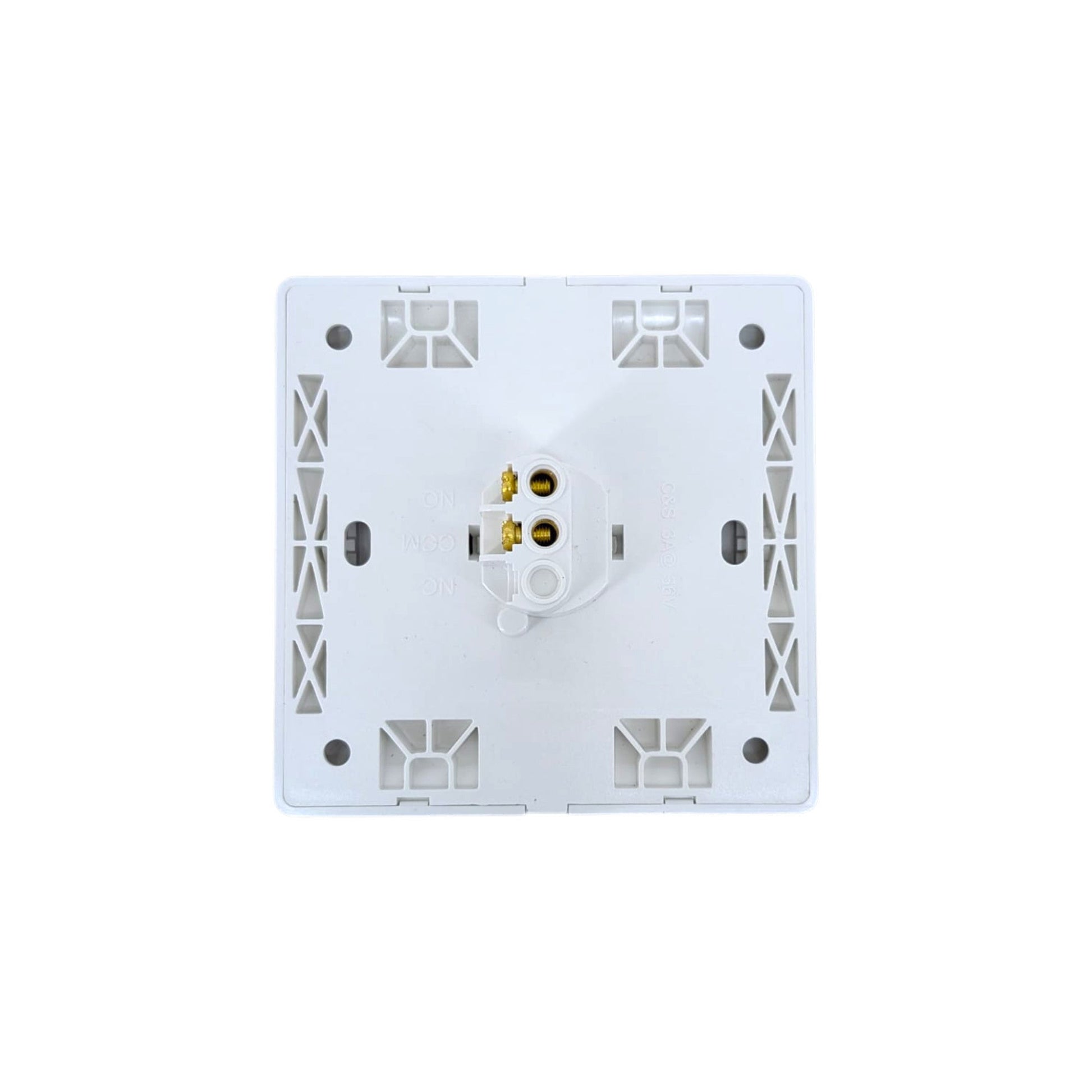

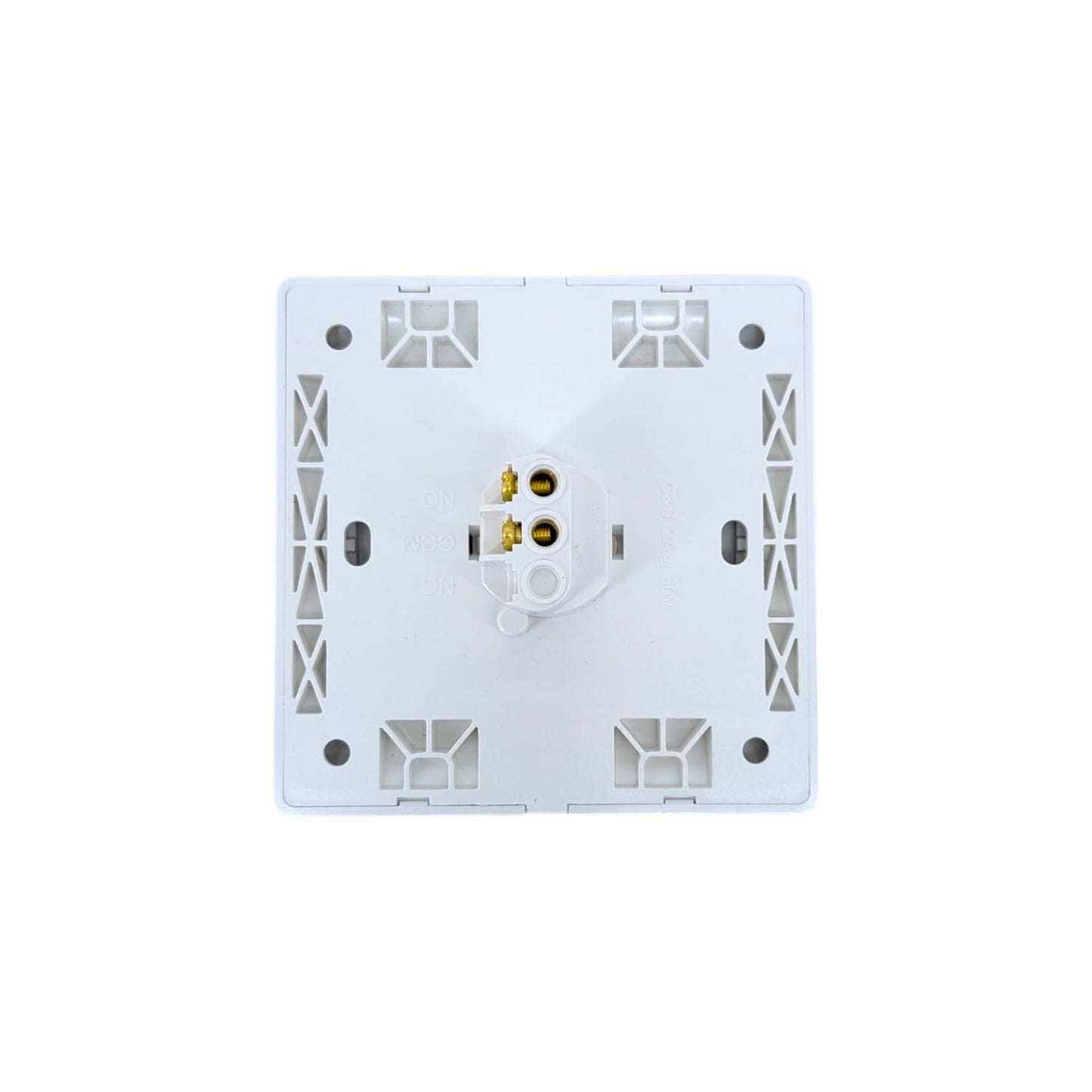

You must connect your access controller's exit button signal wires to the COM (Common) and NO (Normally Open) screw terminals located on the back of the switch.

Does this switch fit into a standard Hong Kong wall box?

Yes, the 86mm x 86mm dimensions are designed specifically to fit standard UK/HK 86-type square electrical backboxes (pattress boxes).

Can I buy this exit button today at your Sham Shui Po store?

Yes, this E6 door exit button is regularly stocked at our Sun Cheong Computer Co. Ltd. physical store for immediate purchase and pickup.

Is this exit button suitable for outdoor installation?

No, this mechanical switch does not have an IP waterproof rating and is designed strictly for indoor use in offices, lobbies, and residential corridors.

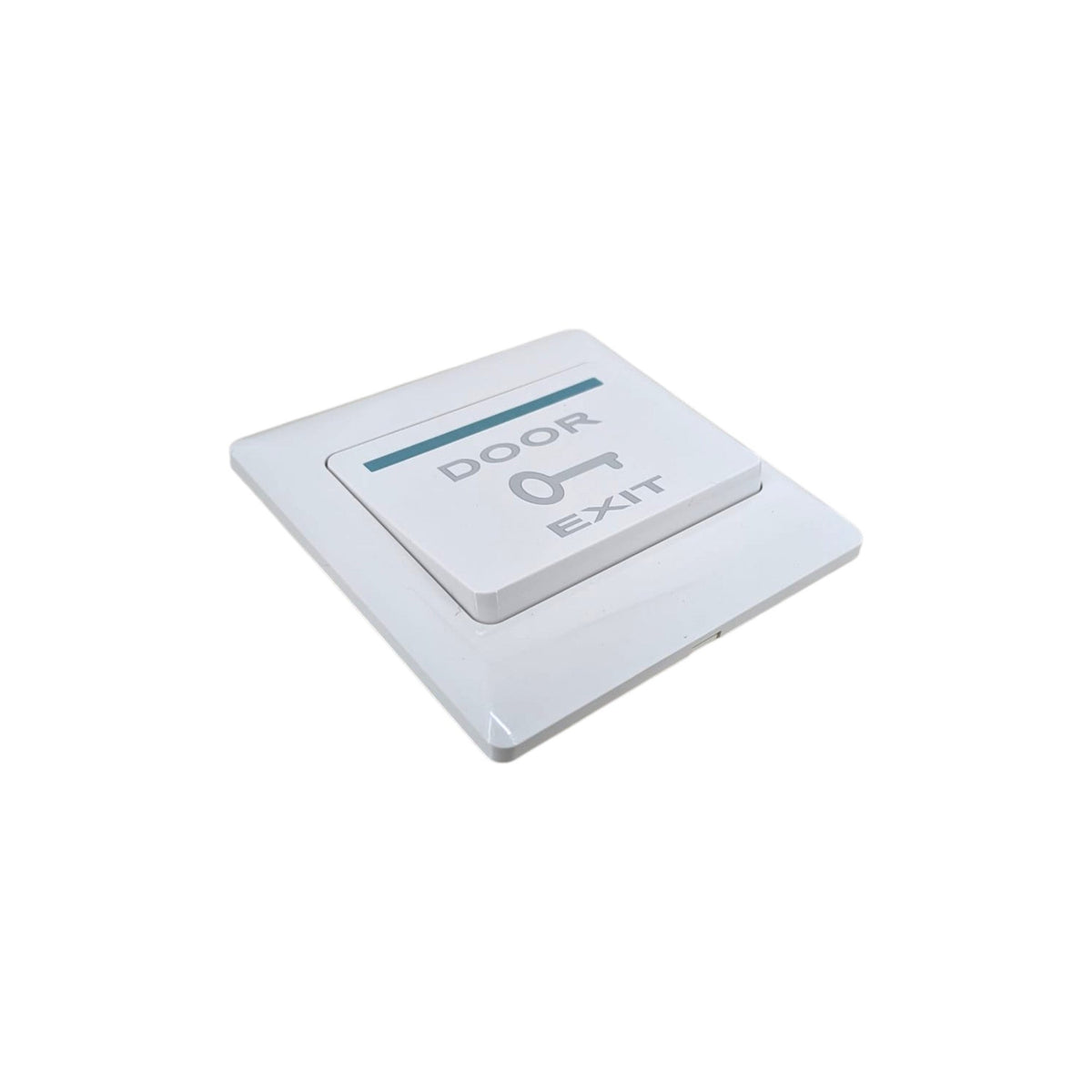

E6 Door Exit Push Button | 86x86mm Access Control Switch

Name: E6 Door Exit Push Button | 86x86mm Access Control Switch
Brand: Sun Cheong Computer Company Limited
SKU: 21TS000845
Price: 41.0 TWD
Availability: InStock

Short Product Description

The E6 Door Exit Push Button Switch is a standard 86-type mechanical wall switch designed for seamless integration with electronic access control systems. Featuring a clean white finish, clear "DOOR EXIT" labeling, and reliable Normally Open (NO/COM) dry contacts, this lightweight 43g switch provides a fail-safe manual release for magnetic locks and electric strikes. Available in-stock at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po, it is the perfect quick-replacement component for office buildings, retail shops, and residential security upgrades.

Key Features

Standard 86-Type Faceplate: Measures 86x86mm to perfectly fit standard square electrical backboxes for a flush, professional look.
Universal NO/COM Contacts: Features standard Normally Open (NO) and Common (COM) screw terminals compatible with 99% of access control boards.

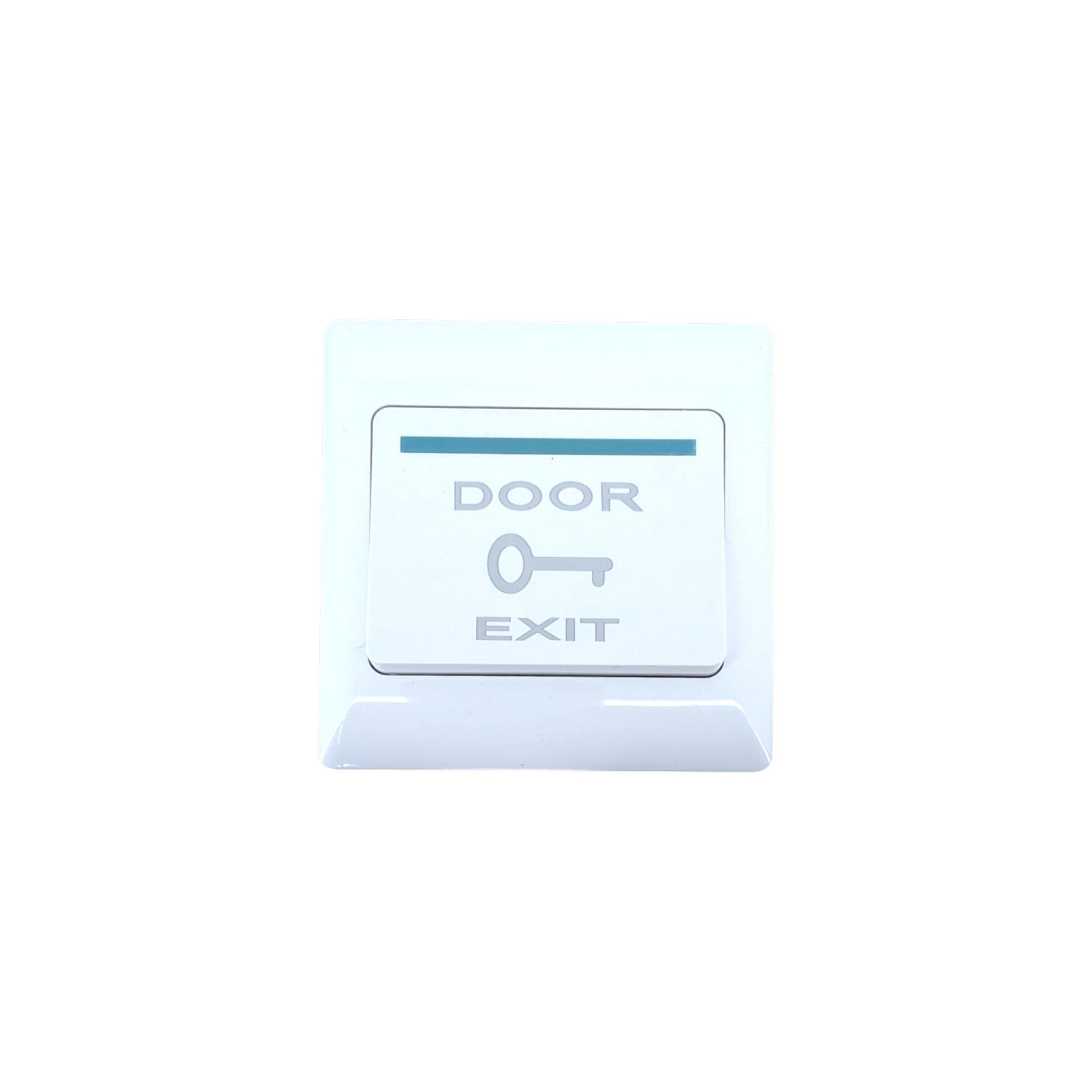

Clear Visual Indicators: Printed with a universal key symbol and "DOOR EXIT" text to ensure users can easily identify the release button during emergencies.
Lightweight & Durable: Weighing only 43g, the fire-retardant plastic housing provides excellent durability for high-traffic office environments.

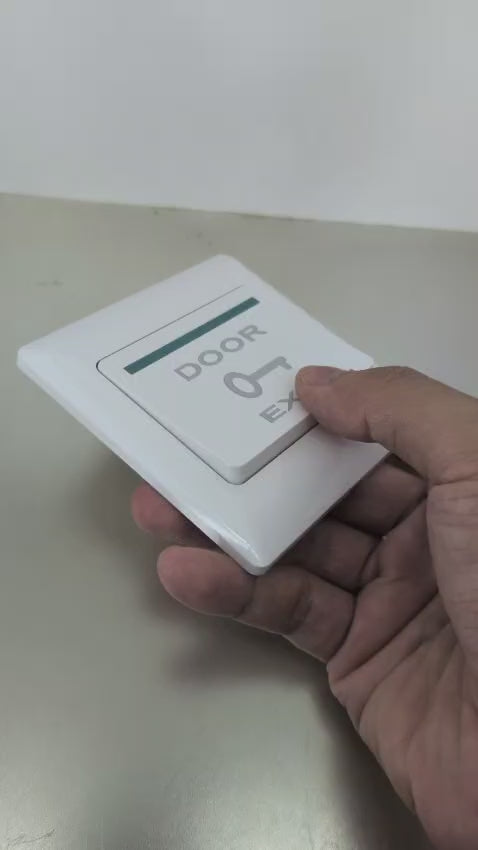

Tactile Mechanical Press: Delivers a satisfying mechanical click upon pressing, providing immediate physical feedback to the user.

Full Product Description

Reliable Access Control Release

This E6 exit button provides a reliable, mechanical release solution for electronic door locks and access control systems. When integrated into your security network, pressing the button momentarily closes the circuit, signaling the main access controller to disengage the magnetic lock or electric strike. Its tactile mechanical feedback ensures users know exactly when the door has been triggered, making it an essential safety and convenience feature for any secure exit point.

Standard 86-Type Flush Installation

Designed to fit standard 86mm square wall boxes, this switch ensures a clean and professional flush-mount installation in any modern building. The 86x86x33mm dimensions match standard electrical faceplates used throughout Hong Kong and international markets, allowing you to easily retrofit old switches without cutting new holes in the wall. The sleek white casing blends unobtrusively into office environments while remaining highly visible thanks to the clear key icon and "DOOR EXIT" text.

Pro Tip from Our Technicians

Always verify your access controller's wiring diagram before installation, but generally, you will only need to use the COM (Common) and NO (Normally Open) terminals for a standard exit button. Our Sham Shui Po security system specialists strongly remind DIY installers that this is a low-voltage dry contact switch (typically 36VDC max); you must never connect it directly to 220V AC mains power, as this will instantly destroy the internal contacts and pose a severe safety hazard.

Technical Specifications

Product Type: Door Exit Button / Access Control Switch
Model Series: E6
Contact Output: NO / COM (Normally Open Dry Contact)
Electrical Rating: 3A @ 36VDC (Low Voltage Only)

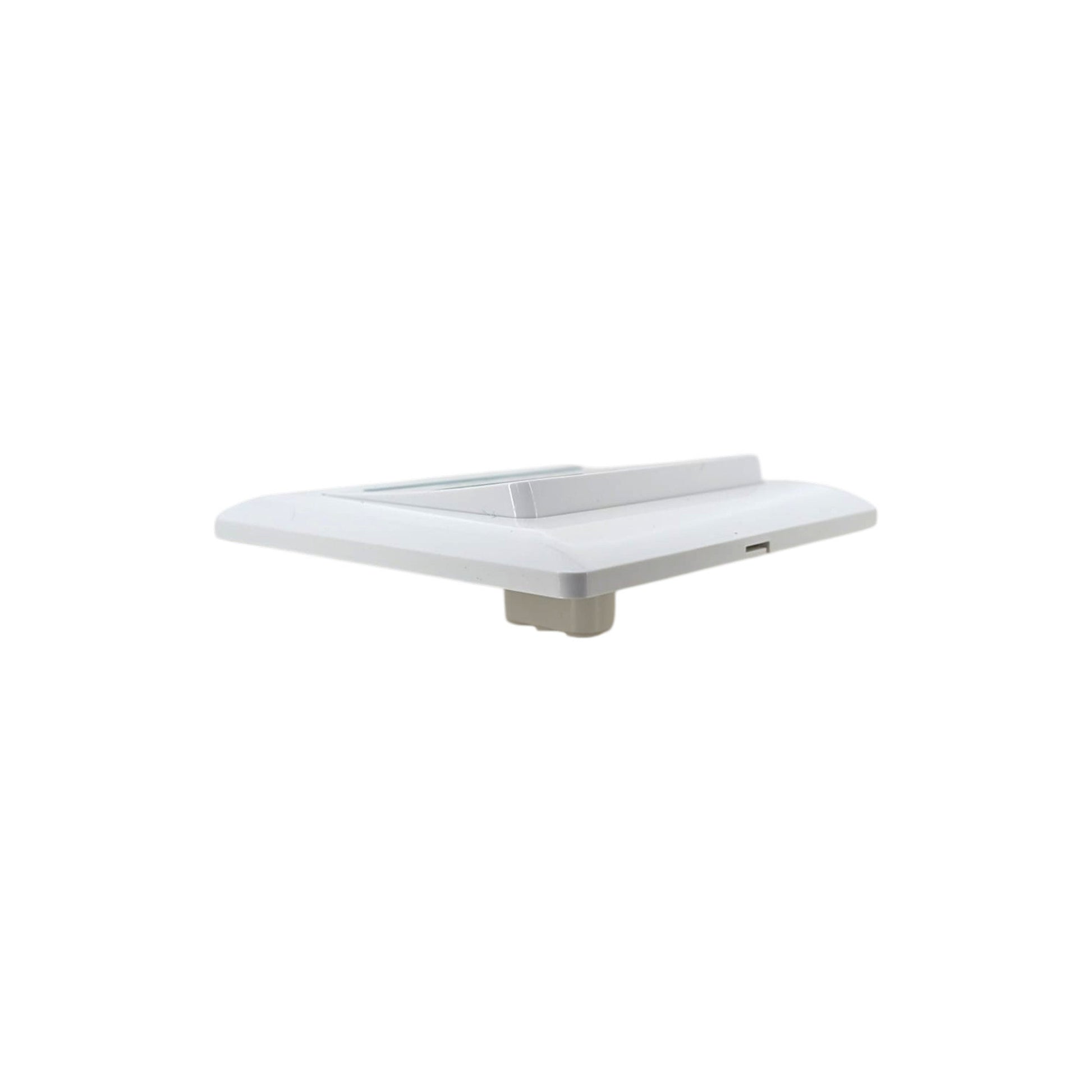

Dimensions: 86mm x 86mm x 33mm
Weight: 43g
Material: Fire-retardant PC Plastic
Color: White with Grey/Blue Text

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Can I use this exit button directly with a magnetic lock without a controller?No, this is a momentary dry contact switch that must be wired into an access control power supply or controller, which then manages the power release to the magnetic lock.
How do I wire this exit button to my access control system?You must connect your access controller's exit button signal wires to the COM (Common) and NO (Normally Open) screw terminals located on the back of the switch.
Does this switch fit into a standard Hong Kong wall box?Yes, the 86mm x 86mm dimensions are designed specifically to fit standard UK/HK 86-type square electrical backboxes (pattress boxes).
Can I buy this exit button today at your Sham Shui Po store?Yes, this E6 door exit button is regularly stocked at our Sun Cheong Computer Co. Ltd. physical store for immediate purchase and pickup.
Is this exit button suitable for outdoor installation?No, this mechanical switch does not have an IP waterproof rating and is designed strictly for indoor use in offices, lobbies, and residential corridors.

Target Users / Applications

Office building administrators needing to replace worn-out exit buttons in high-traffic lobbies.
Retail shop owners in Hong Kong upgrading their staff-only storeroom access control systems.
DIY security installers setting up magnetic locks for residential village house gates (indoor side).
