COUNS CU-P10 Access Control Power Supply | 12V/15V 4A Lock Controller
COUNS CU-P10 Access Control Power Supply | 12V/15V 4A Lock Controller
Couldn't load pickup availability
Short Product Description
Short Product Description
Upgrade your building's security with the COUNS CU-P10 Access Control Power Supply. Designed specifically for professional access control systems, this heavy-duty 12V/15V 4A (48VA) controller seamlessly integrates with NO/NC electric locks, magnetic locks, and intercoms. Featuring a built-in adjustable time delay and a universal AC 110-240V input, it ensures stable, continuous operation for your security hardware. Need help with access control wiring? Sun Cheong Computer Co. Ltd. has over 20 years of security and IT expertise. Visit our Sham Shui Po physical store for instant pickup and expert on-site technical configuration!
Key Features
Key Features
- Dedicated Access Control Power: Provides a stable 48VA (approx. 4A) output, specifically engineered to handle the high inrush current of electric locks.
- NO & NC Outputs: Universally compatible with both fail-safe (magnetic) and fail-secure (electric strike) locking mechanisms.
- Adjustable Time Delay: Built-in timing dial allows you to customize the door unlock duration, enhancing building security.
- 12V / 15V Toggle Switch: Compensates for voltage drop over long wire runs, ensuring distant locks receive adequate power.
- Centralized Wiring Hub: Features clearly labeled terminals for intercoms, access control keypads, and push-to-exit buttons.

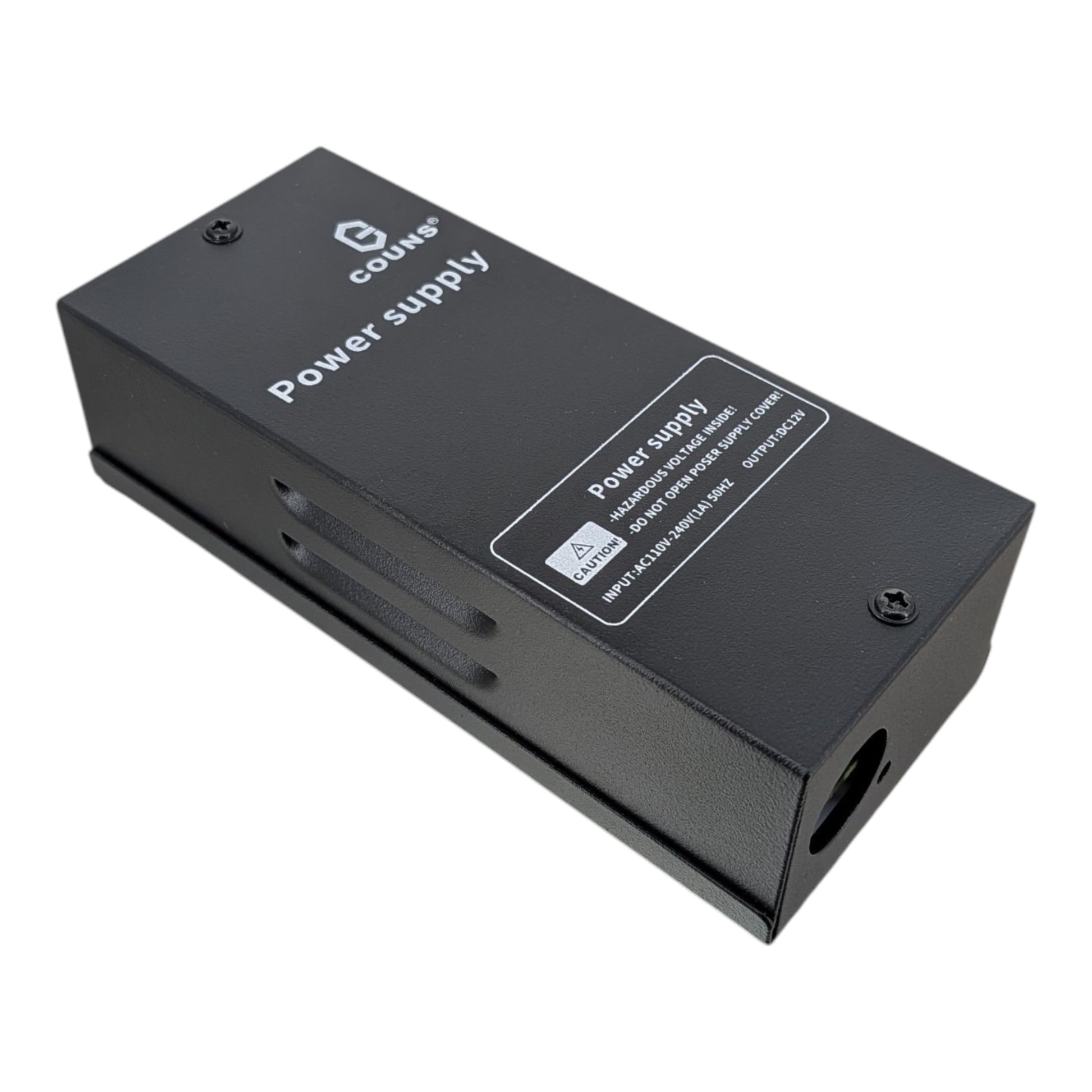

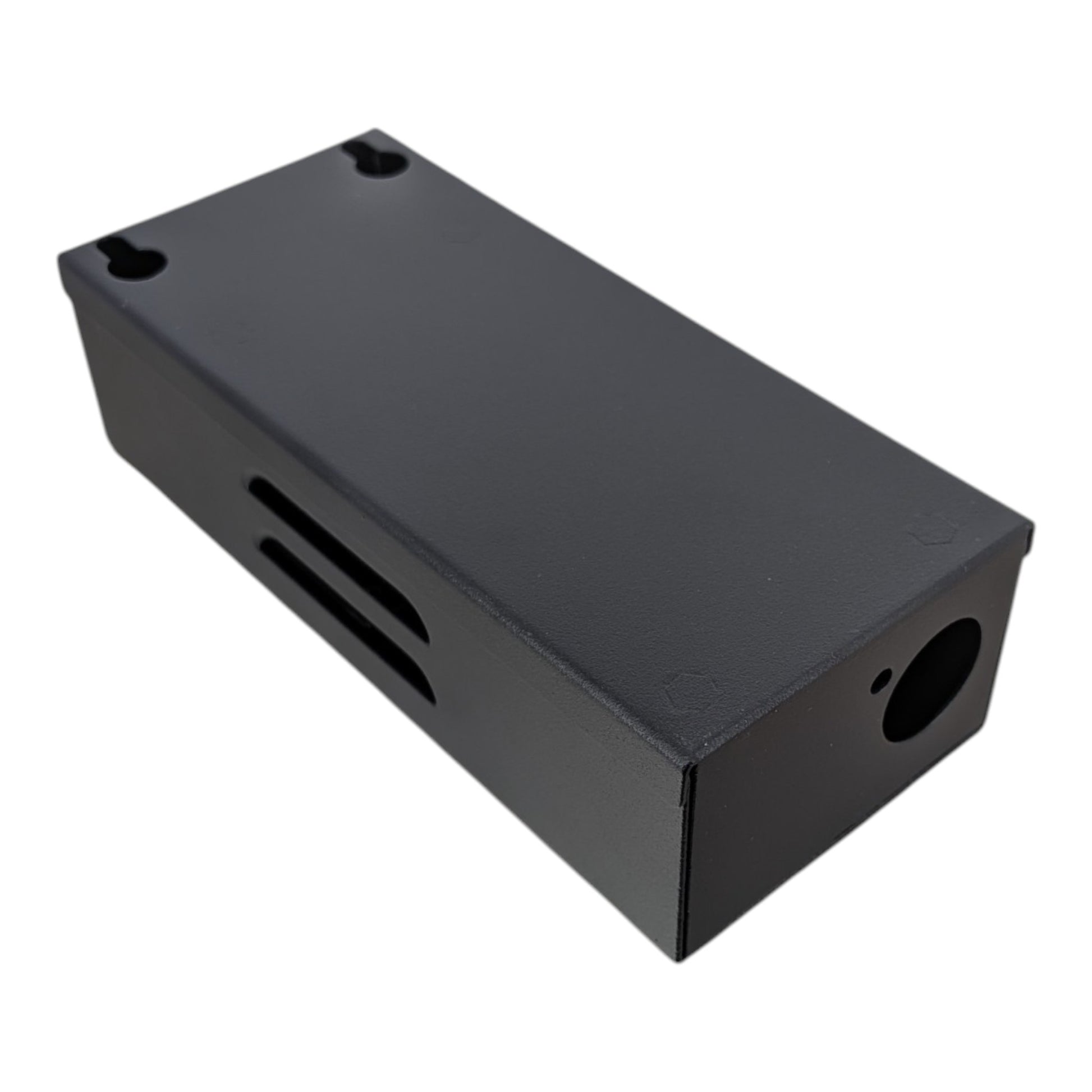

- Durable Metal Casing: Enclosed in a rugged, heat-dissipating metal box with mounting holes for secure wall installation.
Full Product Description
Full Product Description
The Heart of Your Access Control System
A reliable security system requires a flawless power foundation. The COUNS CU-P10 Power Supply Controller is engineered specifically to manage the demanding power requirements of modern access control hardware. Whether you are installing a keypad reader for a small office or upgrading a multi-story residential intercom system, this dedicated power supply ensures your electric locks receive stable, uninterrupted direct current, preventing lock failures and security breaches.
Universal NO/NC Lock Compatibility
Different doors require different locking mechanisms. This controller features dedicated output terminals for both Normally Open (N.O.) and Normally Closed (N.C.) electric locks. This means it is universally compatible with fail-safe magnetic locks (maglocks), fail-secure electric strike locks, and electronic drop bolts. It also includes dedicated inputs for push-to-exit buttons (PUSH) and access control panels (CTRL), centralizing your entire security wiring into one neat, metal-cased hub.
Built-in Adjustable Time Delay
Prevent tailgating and ensure secure door closures with the integrated Timing adjustment dial. This feature allows you to set a specific delay time (typically 0-15 seconds) for how long the electric lock remains open after a user swipes their card or presses the exit button. This eliminates the need to buy and wire a separate delay timer relay, saving you time and money during installation.
💡 Pro Tip from Our Technicians
"When wiring the COUNS CU-P10, always ensure the main AC power is completely disconnected before touching the terminals! Notice the SW2 switch on the board? This allows you to toggle the output between 12V and 15V to compensate for voltage drop over very long cable runs. Always check your electric lock's rated voltage before switching to 15V to avoid burning out the coil. If you are building a custom access control system and aren't sure how to wire the NO/NC terminals to your specific keypad, drop by our Sham Shui Po store! Our team at Sun Cheong Computer Co. Ltd. will map out the exact wiring diagram for you on the spot."
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Brand & Model | COUNS CU-P10 |
| Input Voltage | AC 110V - 240V, 50/60Hz (Universal) |
| Output Voltage | DC 12V - 15V (Adjustable via SW2 switch) |
| Output Power | 48VA (approx. 4A at 12V) |
| Lock Compatibility | N.O. (Normally Open) & N.C. (Normally Closed) |
| Control Inputs | PUSH (Exit Button), CTRL (Access Panel), Intercom |
| Time Delay Function | Built-in adjustable timing dial |
| Operating Temperature | -20°C to +45°C |
| Operating Humidity | 30% - 90% RH |
| Dimensions | 145 mm x 66 mm x 40 mm |
| Weight | 320g |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Can this power supply control both magnetic locks and electric strikes?Yes, absolutely. The CU-P10 features both N.C. (Normally Closed) terminals for fail-safe magnetic locks, and N.O. (Normally Open) terminals for fail-secure electric strike locks. You can wire it to match your specific door hardware.
- What is the purpose of the 12V/15V switch (SW2)?In large buildings, long cable runs between the power supply and the electric lock can cause a "voltage drop," resulting in a weak lock. Switching the SW2 toggle to 15V compensates for this drop, ensuring a full 12V reaches the lock. Always verify your lock's tolerance before using the 15V setting.
- Does this unit support a push-to-exit button?Yes. There is a dedicated "PUSH" terminal and a "GND" terminal specifically designed for wiring a push-to-exit button. When pressed, it triggers the internal relay and the adjustable time delay to release the lock.
Target Users / Applications
Target Users / Applications
- Commercial Security Installers: Providing centralized, reliable power for office glass door magnetic locks and RFID keypads.
- Residential Building Managers: Upgrading old intercom systems in apartment buildings to integrate with modern electric drop bolts.
- DIY Smart Home Enthusiasts: Building custom access control systems for home gates or secure storage rooms.
