Should I use a Cat5e or Cat6 cable for this HDMI extender?

We highly recommend using a pure copper Cat6 cable for the best performance. A high-quality Cat6 cable has better shielding and lower resistance, which is crucial for maintaining a stable 1080p signal when pushing the transmission distance to 50 meters.

Why does the manual say 60m, but you recommend 50m?

While the internal chipset is theoretically capable of reaching 60 meters under perfect laboratory conditions, real-world environments introduce electrical interference and cable resistance. Keeping the distance to 50 meters or less guarantees a stable, flicker-free connection without signal dropouts.

Do both the Transmitter (TX) and Receiver (RX) units need to be plugged into power?

Yes, both the TX and RX units require active power to process and boost the AV signal. You must connect the included DC 5V/1A power adapters to both units for the extender system to function properly.

What does the EDID button on the Transmitter (TX) unit do?

The EDID button allows the extender to communicate the correct display capabilities to your source device. By pressing this button, you can manually switch the EDID profile between standard 2D and 3D modes, ensuring compatibility with your specific monitor or projector.

Can I buy this HDMI extender and the required network cables in Sham Shui Po today?

Absolutely! Sun Cheong Computer Co. Ltd. keeps a large inventory of AV extenders, HDMI cables, and pure copper Cat6 network cables at our Sham Shui Po physical store. You can pick up everything you need for your AV installation instantly.

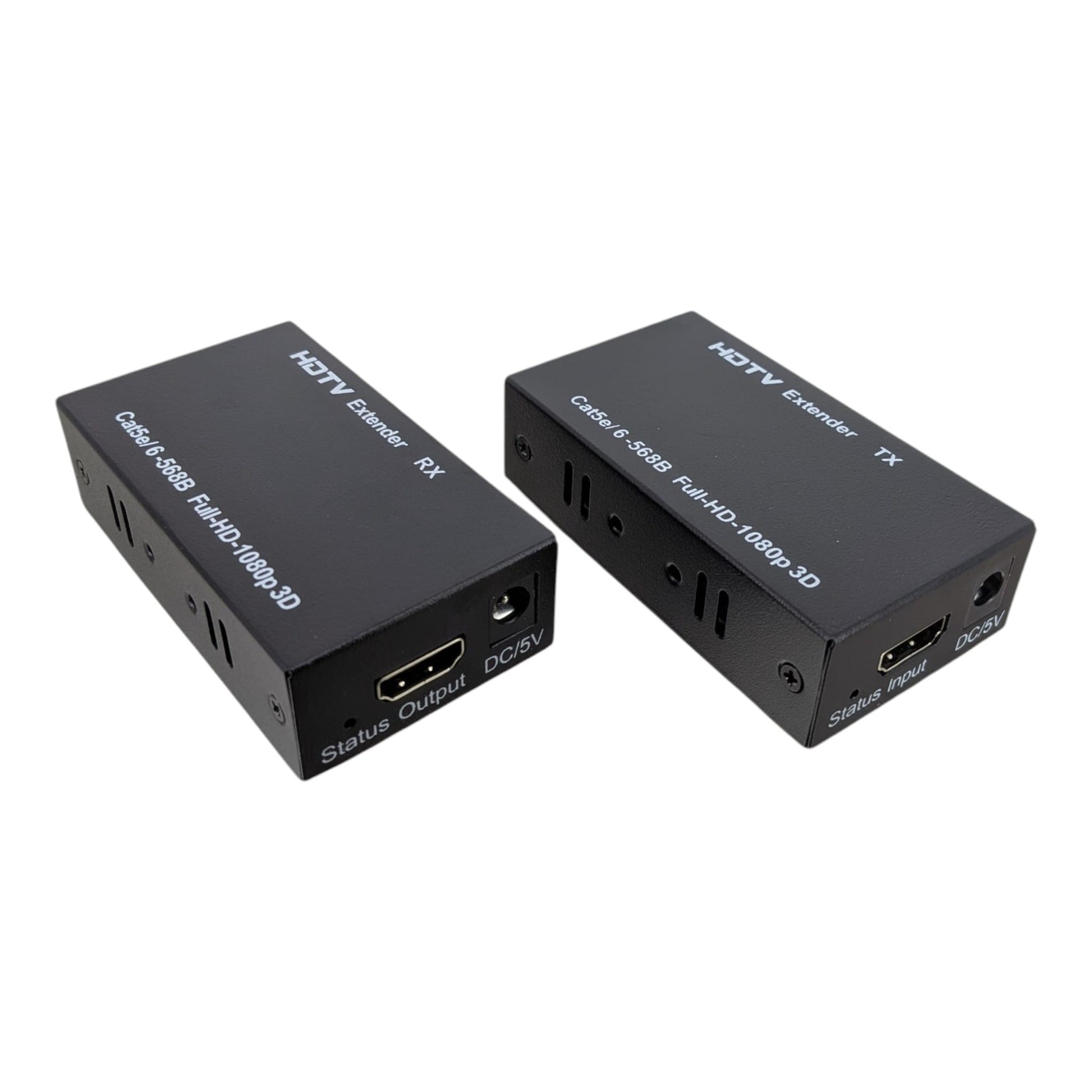

1080p RJ45 Video Transmitter & Receiver Set

Name: 1080p RJ45 Video Transmitter & Receiver Set | Long Range AV
Brand: Sun Cheong Computer Company Limited
SKU: 21TS001722
Price: 832.0 TWD
Availability: InStock

Short Product Description

Send high-definition video across large venues without signal degradation using the 50m HDMI Extender over Single Cat5e/Cat6 Cable. This cost-effective TX/RX kit transmits uncompressed 1080p 60Hz video and lossless audio up to 50 meters for maximum stability using a standard Ethernet cable. Featuring an EDID switch for 3D support and dual 5V power inputs, it is ideal for conference rooms, digital signage, and home theaters. Need advice on your AV wiring project? 新昌電腦有限公司 (Sun Cheong Computer Co. Ltd.) has 20 years of hardware experience. Visit our Sham Shui Po store for instant pickup and expert technical support!

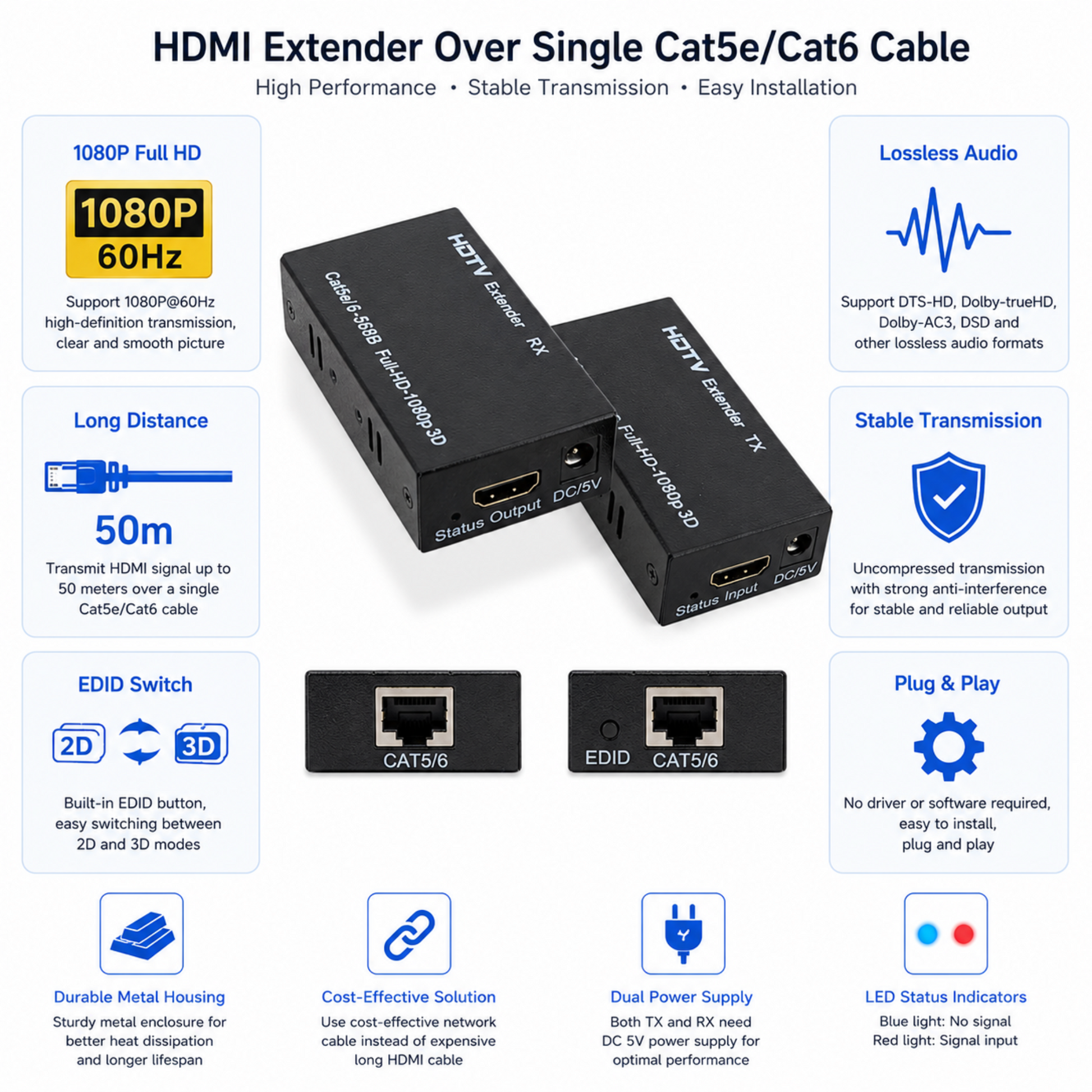

Key Features

50-Meter Optimal Range: Transmits high-definition HDMI signals reliably up to 50 meters using a single Cat5e or Cat6 network cable for maximum stability.
Full HD 1080p Support: Delivers crisp, uncompressed 1080p video at 60Hz, ensuring zero loss of visual quality over long distances.
Cost-Effective Wiring: Replaces expensive, bulky long HDMI cables with affordable and easy-to-route Ethernet cables.

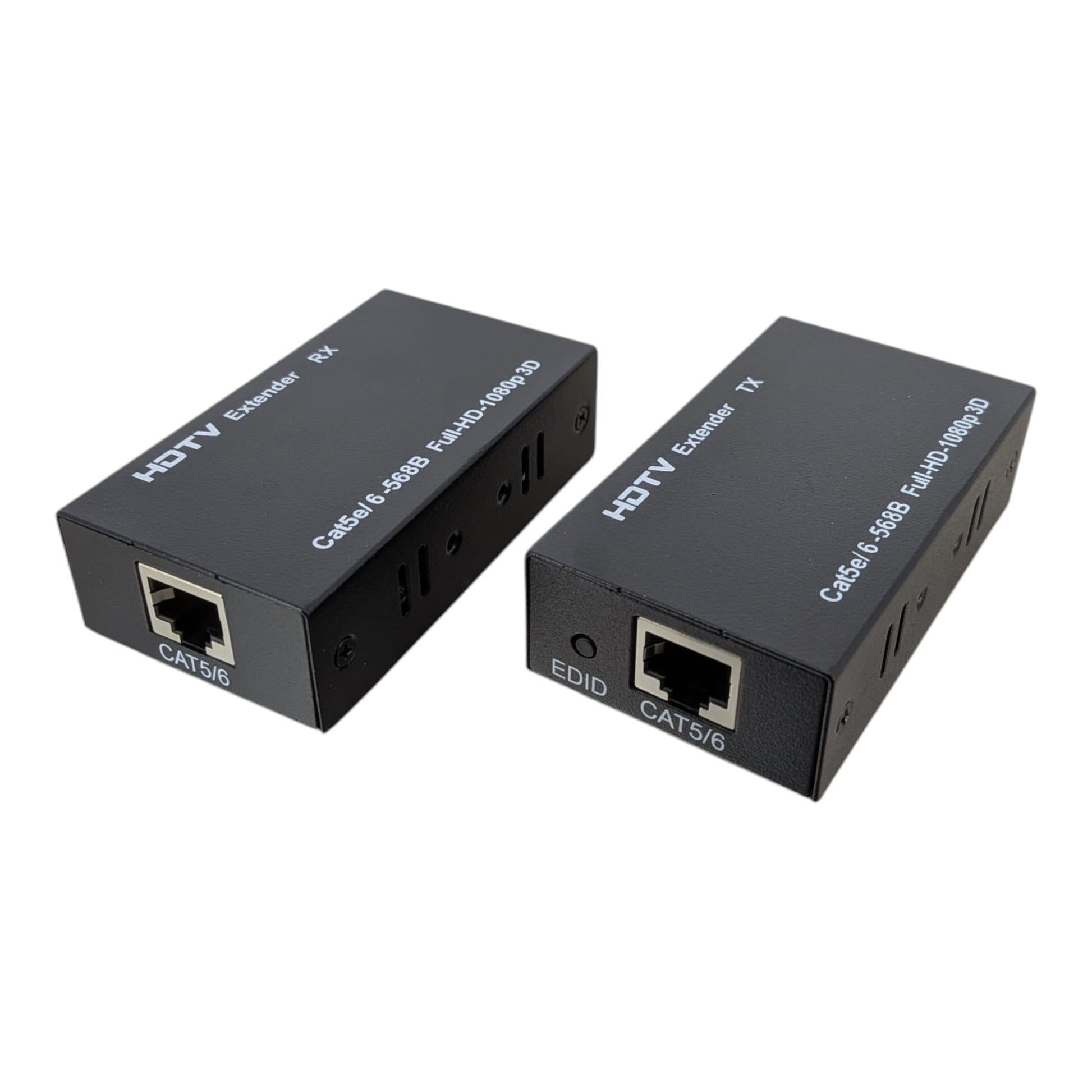

EDID Switch Button: Built-in EDID control on the transmitter allows seamless switching between 2D and 3D display modes.
Lossless Audio Passthrough: Fully supports premium audio formats including DTS-HD, Dolby-trueHD, Dolby-AC3, and DSD.
Plug and Play Setup: Installs in minutes with clear LED status indicators (Blue for no signal, Red for active signal input).

Full Product Description

Reliable Long-Distance AV Transmission

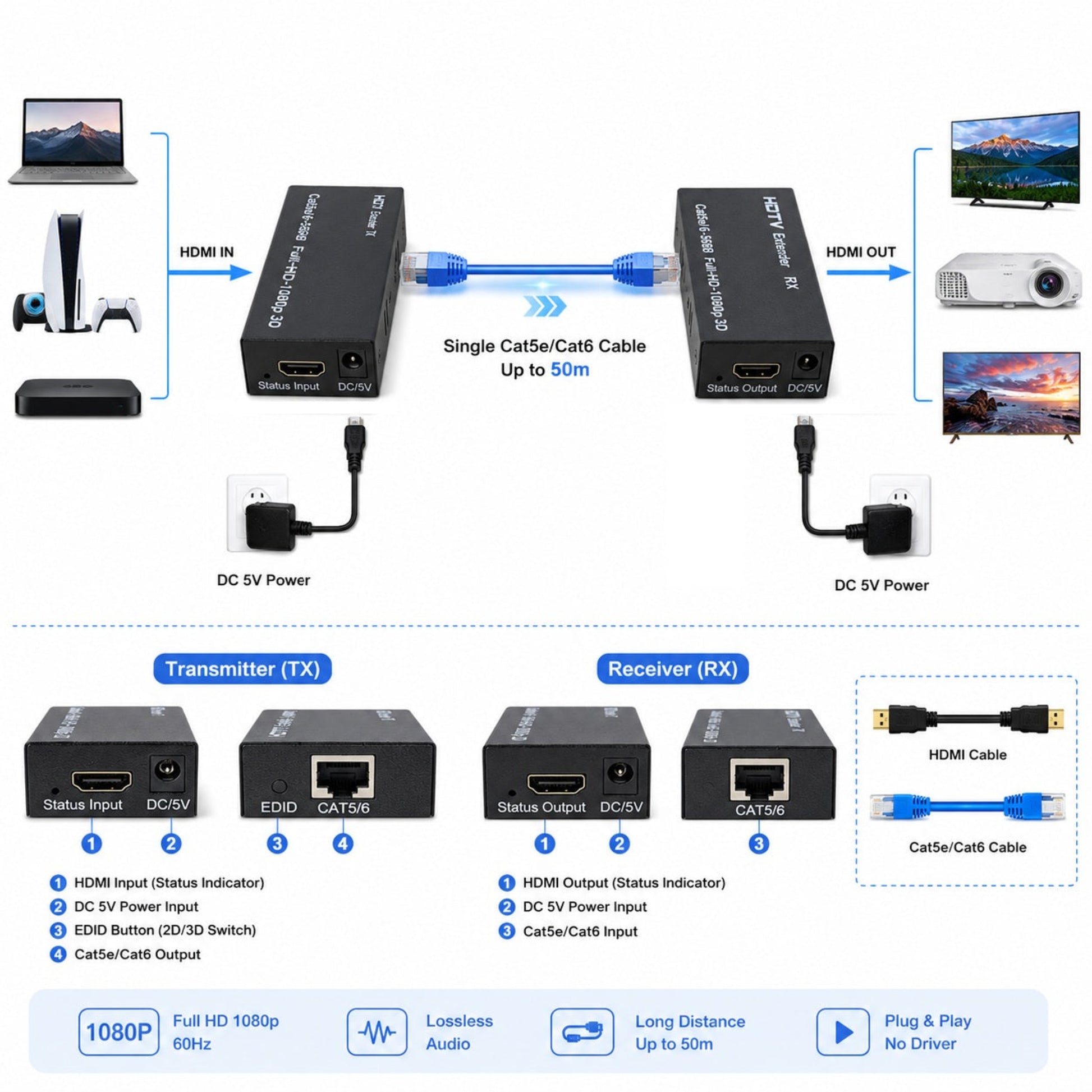

Extend your high-definition video across large spaces using a single, cost-effective Ethernet cable. Running long, heavy HDMI cables through walls or ceilings is expensive and highly prone to signal dropouts. The HDMI to RJ45 Extender Kit solves this by converting the HDMI signal to run over standard Cat5e or Cat6 network cables. This Transmitter (TX) and Receiver (RX) setup provides a reliable, space-saving solution for datacenter control, information distribution, and corporate training environments.

Uncompromised 1080p & Lossless Audio

Enjoy crystal-clear 1080p resolution at 60Hz with zero loss of visual quality. This extender supports a high data rate of 1.65Gbps and 8/10/12-bit deep color, ensuring your presentations and videos look exactly as intended. It also fully supports premium lossless audio formats, including DTS-HD, Dolby-trueHD, and DSD. The transmitter unit features a dedicated EDID button, allowing you to easily toggle between 2D and 3D display modes to match your monitor's capabilities.

💡 Pro Tip from Our Technicians

"You might notice the user manual states a 60-meter maximum range, but we highly recommend keeping your cable runs under 50 meters for the most stable, flicker-free 1080p experience! Pushing the signal to the absolute limit can cause intermittent dropouts depending on cable quality. Always use a pure copper Cat6 cable rather than a cheaper copper-clad aluminum (CCA) Cat5e cable to minimize signal attenuation. If you are setting up a complex multi-screen display for a restaurant or office and need wiring advice, drop by our Sham Shui Po store! Our team at 新昌電腦有限公司 (Sun Cheong Computer Co. Ltd.) can help you select the right pure copper network cables for a flawless setup."

Technical Specifications

Product Type: HDMI over RJ45 Extender (TX + RX Kit)
Optimal Transmission Distance: Up to 50 meters (Manual states 60m; 50m recommended for stability)
Supported Video Resolution: Up to 1080p / 60Hz (Supports 3D)
Supported Audio Formats: DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD
Max Data Rate: 1.65Gbps (TMDS clock up to 165MHz)
HDMI Cable Constraints: Input (TX) ≤ 15m AWG26; Output (RX) ≤ 20m AWG26
Power Supply: DC 5V / 1A (Required for both TX and RX)
Dimensions: 81mm x 43mm x 22mm (per unit)
Weight: TX: 100g | RX: 120g

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Should I use a Cat5e or Cat6 cable for this HDMI extender?We highly recommend using a pure copper Cat6 cable for the best performance. A high-quality Cat6 cable has better shielding and lower resistance, which is crucial for maintaining a stable 1080p signal when pushing the transmission distance to 50 meters.
Why does the manual say 60m, but you recommend 50m?While the internal chipset is theoretically capable of reaching 60 meters under perfect laboratory conditions, real-world environments introduce electrical interference and cable resistance. Keeping the distance to 50 meters or less guarantees a stable, flicker-free connection without signal dropouts.
Do both the Transmitter (TX) and Receiver (RX) units need to be plugged into power?Yes, both the TX and RX units require active power to process and boost the AV signal. You must connect the included DC 5V/1A power adapters to both units for the extender system to function properly.
What does the EDID button on the Transmitter (TX) unit do?The EDID button allows the extender to communicate the correct display capabilities to your source device. By pressing this button, you can manually switch the EDID profile between standard 2D and 3D modes, ensuring compatibility with your specific monitor or projector.
Can I buy this HDMI extender and the required network cables in Sham Shui Po today?Absolutely! Sun Cheong Computer Co. Ltd. keeps a large inventory of AV extenders, HDMI cables, and pure copper Cat6 network cables at our Sham Shui Po physical store. You can pick up everything you need for your AV installation instantly.

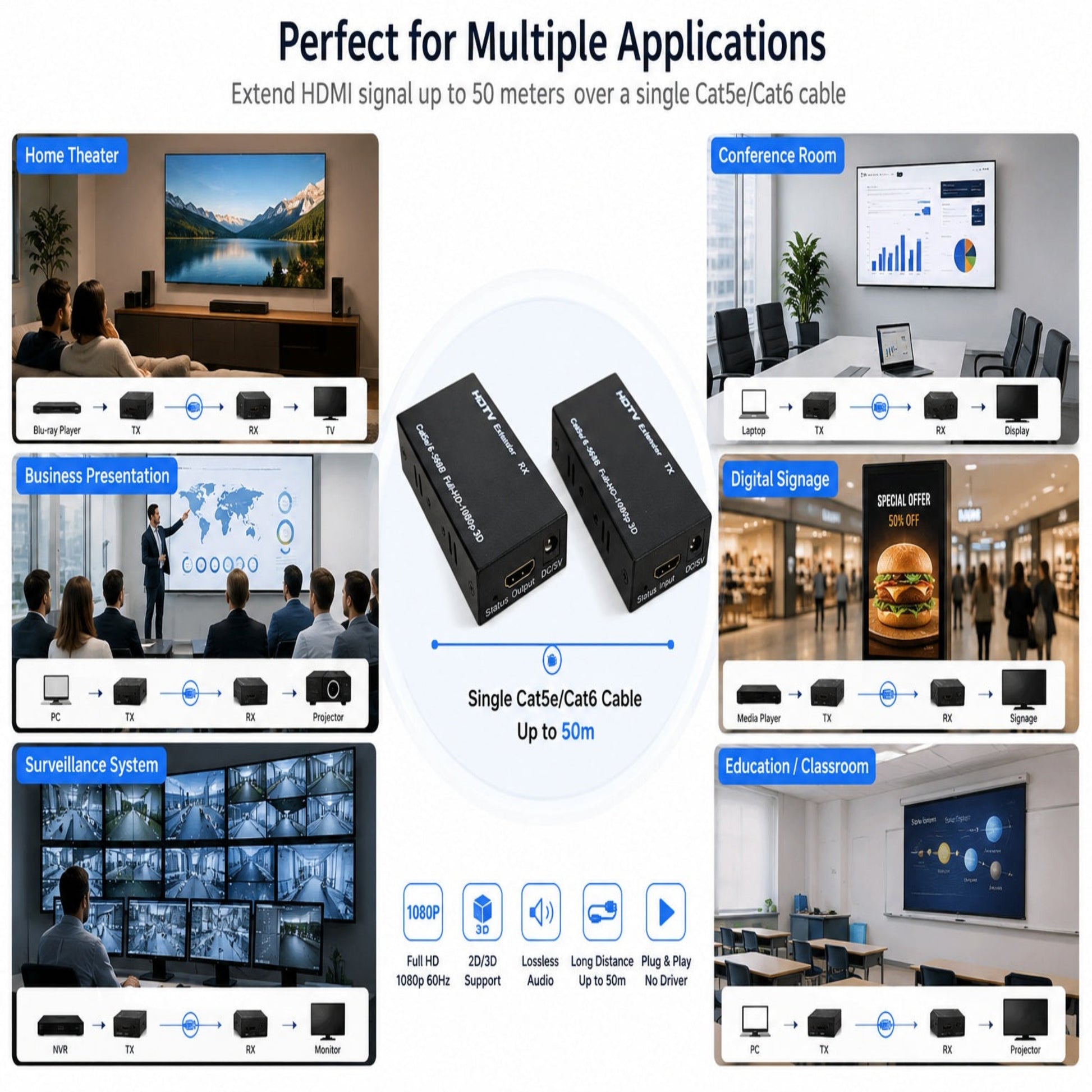

Target Users / Applications

AV Installers & Contractors: Routing high-definition video signals through office ceilings and walls where thick HDMI cables cannot fit.
Restaurant & Bar Owners: Broadcasting live sports or digital menus from a central media player to multiple TVs located up to 50 meters away.
Church & Conference Room IT: Connecting a laptop at the speaker's podium to a ceiling-mounted projector using existing Cat6 Ethernet infrastructure.
