Name: 3-6V Dual Shaft DC Gear Motor | Worm Gearbox for DIY
Brand: Sun Cheong Computer Company Limited
SKU: 21PS001832
Price: 38.0 TWD
Availability: InStock

Short Product Description

Building your own custom RC car, robotic tank, or motorized conveyor belt? Stop struggling with complex dual-motor alignments. This compact 3-6V Dual Shaft Worm Gear Motor acts as a ready-to-mount rear-wheel drive system for your DIY chassis. Delivering a snappy 700 to 1300 RPM range with low power consumption, it’s the perfect high-speed, easy-to-install propulsion unit for STEM projects, hobbyist robotics, and kinetic models. Note: Back cover comes in random green or pink.

Key Features

Integrated Dual Shaft Output: Drives two wheels synchronously from a single motor, ensuring straight-line movement without complex alignments.
High-Speed Worm Gearbox: Delivers rapid rotation (up to 1300 RPM at 6V) for fast-moving DIY vehicles and kinetic projects.
Ultra-Low Current Draw: Consumes only 90mA to 120mA, drastically extending the battery life of your portable robotic builds.
Easy Flat-Base Mounting: The flat bottom design allows for instant installation onto any chassis material using standard double-sided tape or adhesives.
Universal 2.5mm Shaft: Compatible with a massive variety of standard hobby wheels, pulleys, and gears for endless project possibilities.

Full Product Description

Power Your DIY Creations with the Dual Shaft Worm Gear Motor

Have you ever tried building a custom motorized vehicle, only to struggle with aligning two separate motors to drive your wheels straight? It's a common frustration for makers and educators alike. We know that building the chassis should be fun, not a mechanical nightmare.

That’s exactly why this 3-6V Dual Shaft DC Gear Motor is a game-changer for hobbyists. Designed with an integrated worm gear reduction box, it provides synchronized power to both sides of your model simultaneously.

The Ultimate "Plug-and-Play" Drive System

Forget complex mounting brackets. You can instantly create a functional rear-wheel drive system by simply securing this gearbox onto a piece of wood, thick cardboard, or a plastic base plate using double-sided tape or hot glue. Just slide two 2.5mm bore wheels onto the extended 28mm shafts, connect your battery, and your custom vehicle is ready to roll!

Efficient Power, Impressive Speed

Whether you are building a lightning-fast mini RC car or a reliable pulley mechanism, this motor delivers. Operating seamlessly between 3V and 6V, it offers an impressive speed range from 700 RPM (at 90mA) up to 1300 RPM (at 120mA). This means you get a fantastic balance of high-speed rotation and low current draw, ensuring your batteries outlast your creative sessions.

Versatile Applications for STEM and Hobbyists

Beyond simple cars, this dual-shaft mechanism is perfect for driving mini tanks, operating custom belt drives, or powering miniature conveyor belts for school science fairs. Weighing just 21.7 grams, it packs highly efficient kinetic energy into an incredibly lightweight and compact form factor.

Technical Specifications

Operating Voltage: 3V - 6V DC

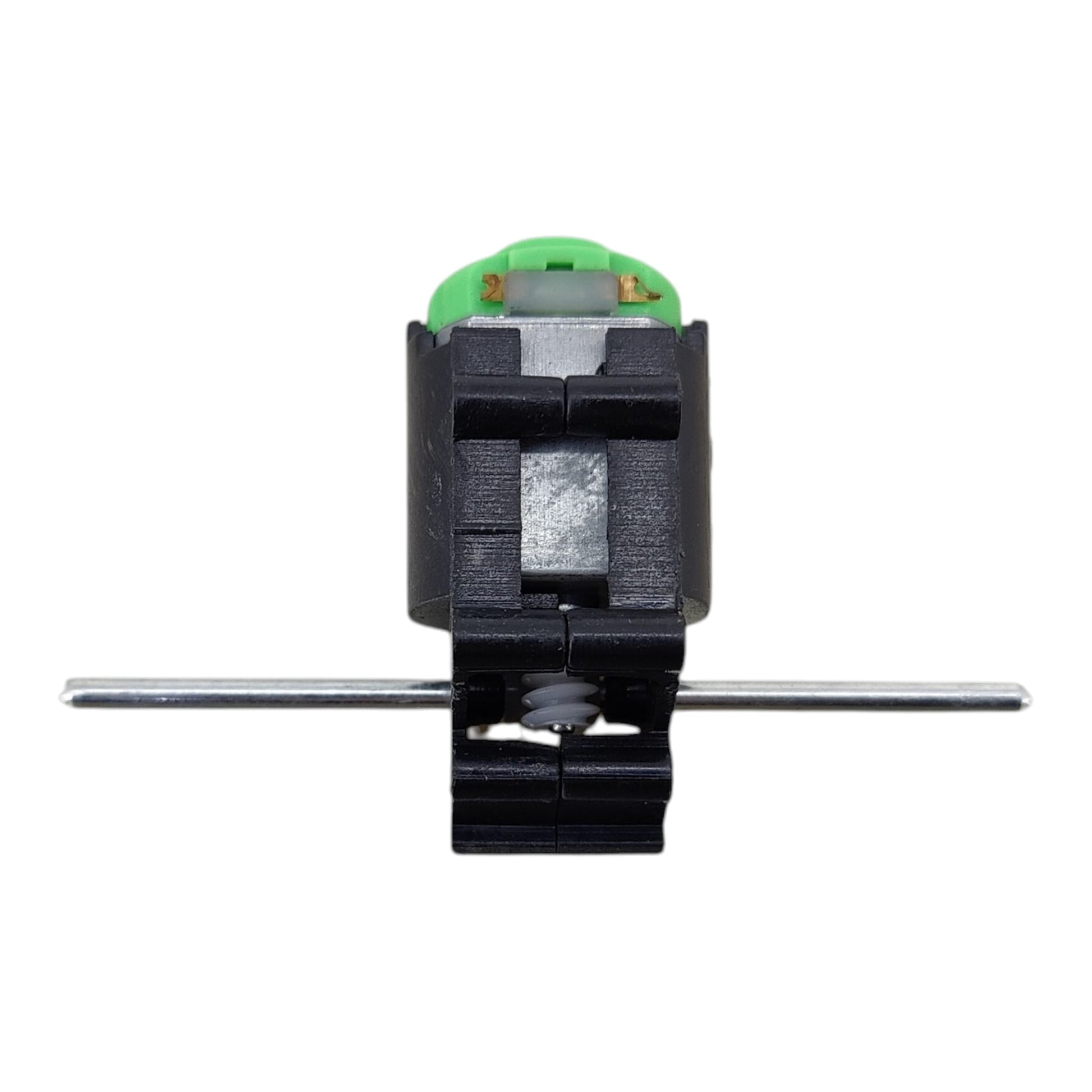

Gear Mechanism: Bevel / worm gear reduction

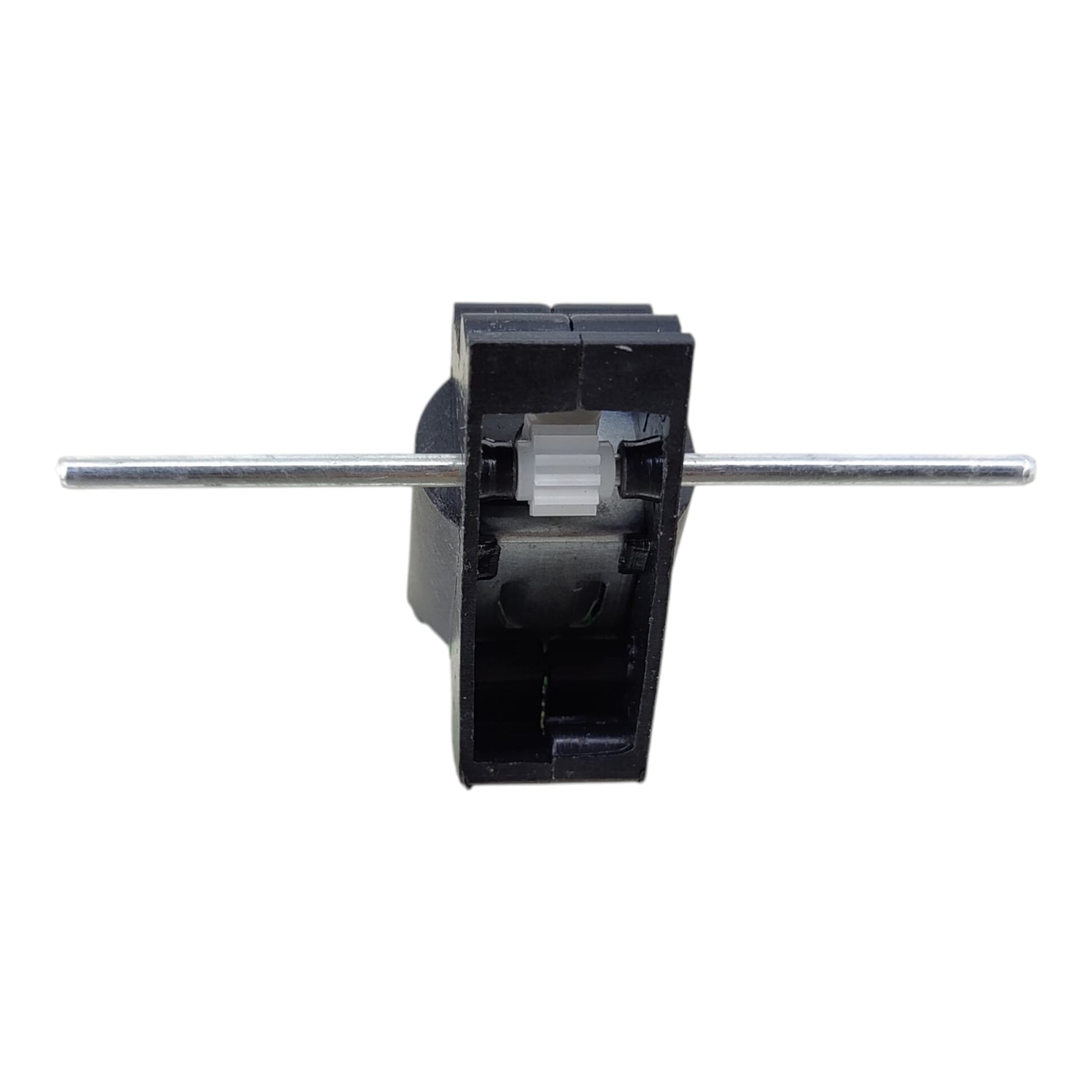

Shaft Diameter: 2.5mm
Total Shaft Length: 75mm (about 28mm exposed on each side)

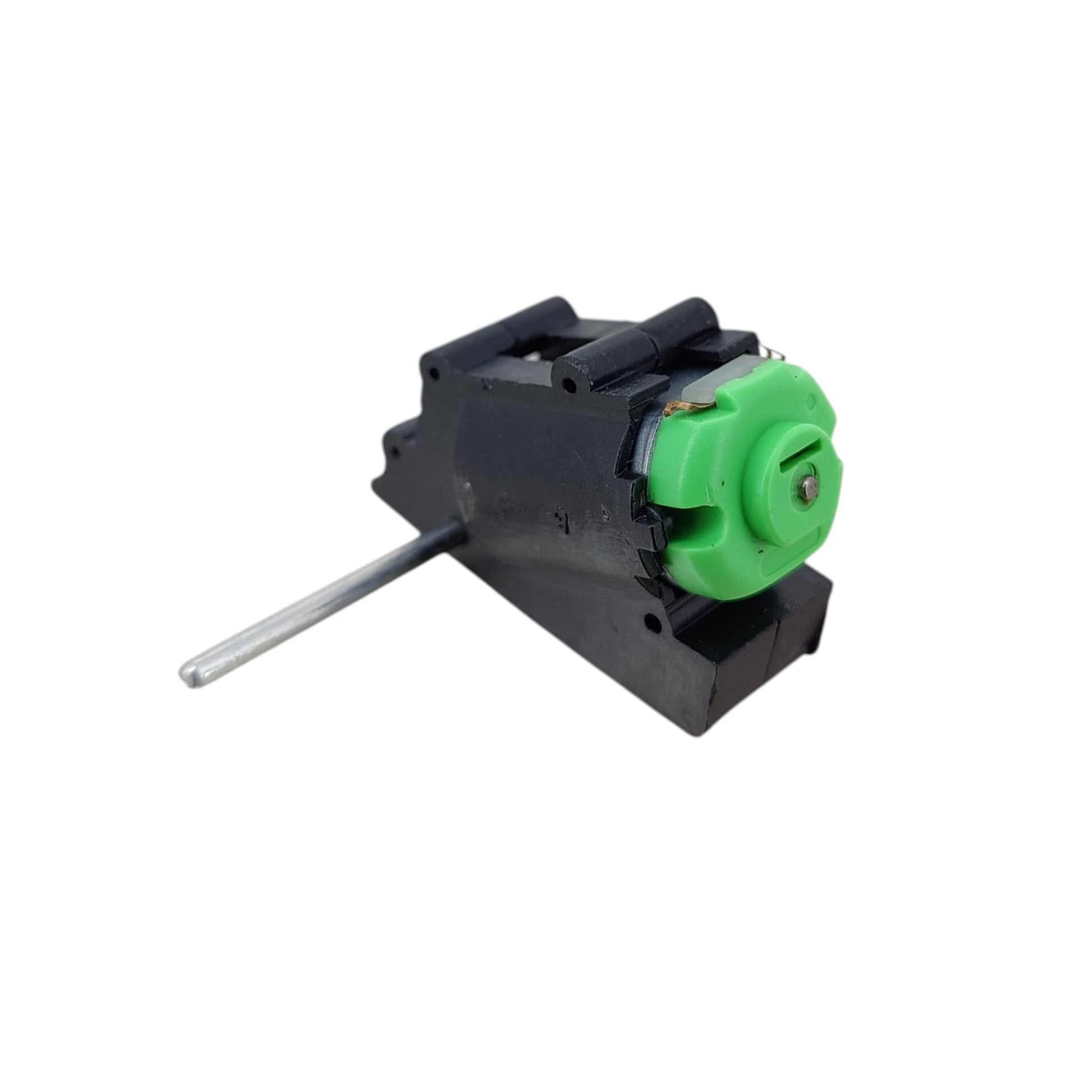

Dimensions: 45 x 22 x 29 mm
Weight: Approx. 21.7g
Performance @ 3V: Current ~90mA | Speed ~700 RPM
Performance @ 6V: Current ~120mA | Speed ~1300 RPM

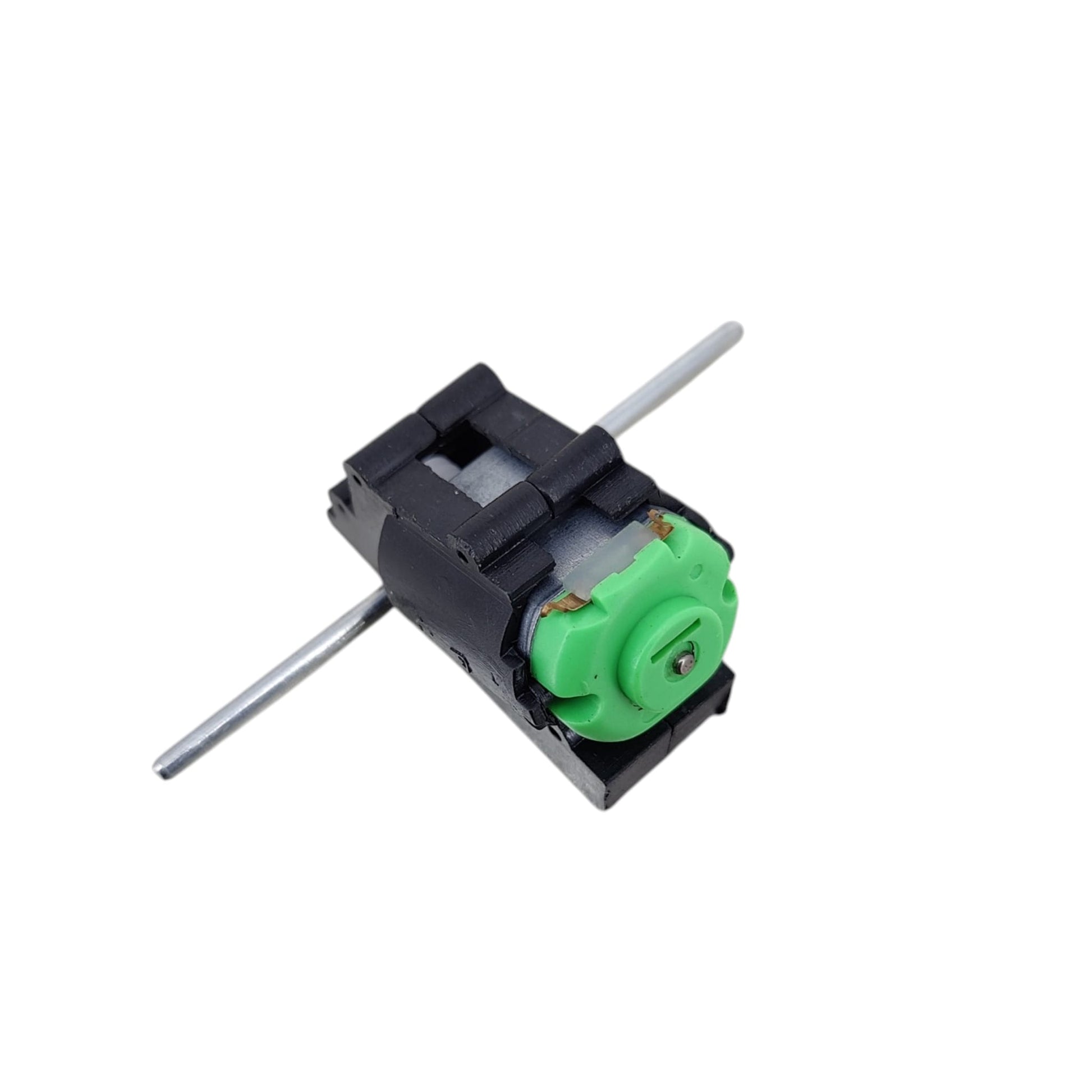

Color Variant: Random (pink or green back cover)

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Q. How do I attach wheels to this dual shaft motor?
A. The motor features a standard 2.5mm diameter round shaft. You can simply press-fit any plastic hobby wheel or pulley that has a matching 2.5mm bore directly onto the extended metal rods.

Q. Can I control the speed of this DC gear motor?
A. Yes! By adjusting the voltage between 3V and 6V (using different battery packs or a step-down converter), you can vary the speed from roughly 700 RPM to 1300 RPM. You can also use a PWM motor controller.

Q. Is this suitable for building a robotic tank?
A. Absolutely. While it drives both shafts at the same speed (meaning you can't use this specific motor alone for differential tank steering), it makes an excellent main drive motor for single-tread systems or synchronized conveyor belt models.
