10W High-Power UV LED Bead with Star PCB (395nm) | DIY Curing
10W High-Power UV LED Bead with Star PCB (395nm) | DIY Curing
Couldn't load pickup availability
Short Product Description
Short Product Description
Unlock professional-grade ultraviolet power for your DIY projects. This 10W 395nm UV LED delivers intense ultraviolet light, perfect for rapid UV resin curing, mineral inspection, and fluorescence detection. Mounted on a 20mm aluminum star base for easier installation, it is the ideal component for custom UV flashlights and repair station setups. Requires heat sink.
Key Features
Key Features
- High-Intensity 10W Output: Delivers deep, powerful UV curing energy significantly faster than standard LEDs.
- 395nm Wavelength (UV-A): The industry standard for curing UV adhesives, resin printing, and leak detection dyes.
- Integrated Star PCB: 20mm hexagonal aluminum base simplifies soldering and mounting to heatsinks.
- Versatile Voltage (3V-5V): Compatible with various DC power sources (proper LED driver or current limiting resistor recommended).
- Compact Form Factor: Measures approximately 2cm x 2cm, fitting easily into custom enclosures or flashlight bodies.
- Multi-Purpose Application: Ideal for PCB inspection, scorpion hunting, sterilization experiments, and forensic analysis.
Full Product Description
Full Product Description
Build Your Own High-Intensity UV Solutions
Whether you are a specialized technician at Sun Cheong Computer or a STEM hobbyist, standard UV lights often lack the power needed for fast results. This 10W UV LED Bead is engineered to bridge the gap between consumer toys and industrial equipment.
Optimized for Curing and Inspection
Emitting a focused 395nm wavelength (UV-A), this LED hits the "sweet spot" for interacting with photo-initiators. It is highly effective for curing LOCA glue (used in phone screen repairs), UV-reactive resins, and checking security features on banknotes or ID cards.
Heavy-Duty Performance

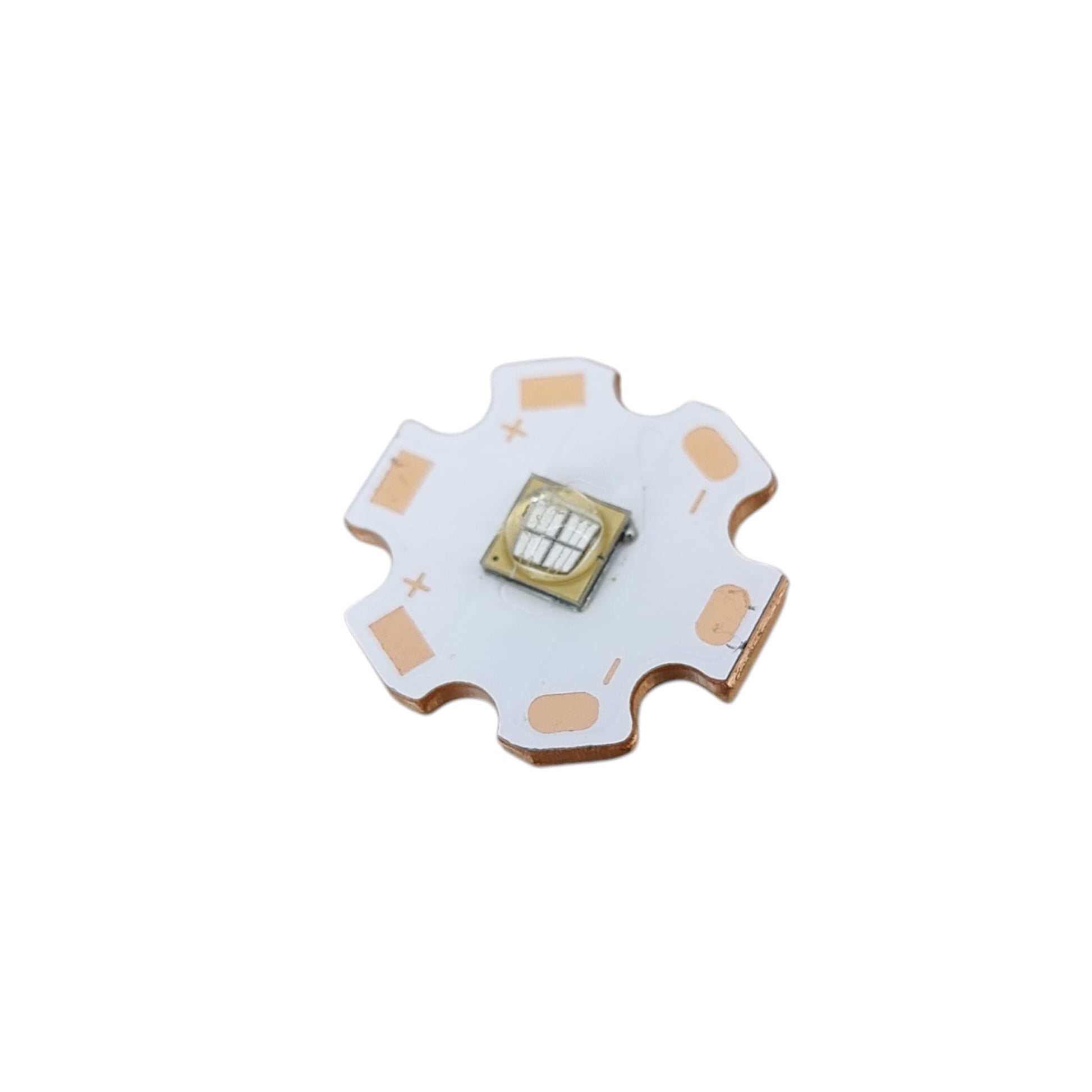

Unlike standard 1W or 3W LEDs, this 10W unit features a multi-chip array designed for high-intensity output. The integrated aluminum star PCB acts as a primary thermal transfer interface, making it easier to mount onto a heatsink.
Critical Usage Note:
High power generates high heat. To prevent burnout within seconds, you must use a heatsink with thermal paste or a cooling fan. Do not run this LED on the bare aluminum star base alone.
Technical Specifications
Technical Specifications
- Product Type: High Power UV LED Emitter
- Power Consumption: 10 Watts
- Wavelength: 395nm – 400nm (UV-A)
- Forward Voltage: 3V – 5V DC
- Base Material: Aluminum PCB (Star Type)
- Dimensions: ~20mm × 20mm
- Chip Structure: Integrated Array
- Thermal Requirement: Heatsink and cooling fan mandatory (use thermal paste)
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Can I connect this directly to a 5V USB charger?
A: While the range is 3-5V, LEDs are current-driven devices. Connecting directly to 5V without a current-limiting resistor or LED driver may overheat and destroy the chip. We recommend using a constant current driver.
Q: Is this light safe for my eyes?
A: No. This is a high-power UV source. Never look directly at the emitter when active. UV radiation can damage eyes. We recommend wearing UV-blocking safety glasses during operation.
Q: Why does the light flicker or dim after a few seconds?
A: This usually indicates thermal throttling or overheating. Ensure the LED is firmly attached to a sufficient heatsink with thermal paste. The star base alone is not enough to dissipate 10W of heat.
Target Users / Applications
Target Users / Applications
- Electronics Repair: Curing LOCA glue on smartphone screens.
- Makers & Hobbyists: DIY UV torches, 3D print post-processing (curing).
- Science & Education: STEM experiments, mineral fluorescence (geology).
- Inspection: HVAC leak detection, banknote verification.
