Name: Round 2D Barcode Scanner Module (D) - UART & IP54 | SCCCLTD
Brand: Waveshare
SKU: 21PS002268
Price: 904.0 TWD
Availability: InStock

Short Product Description

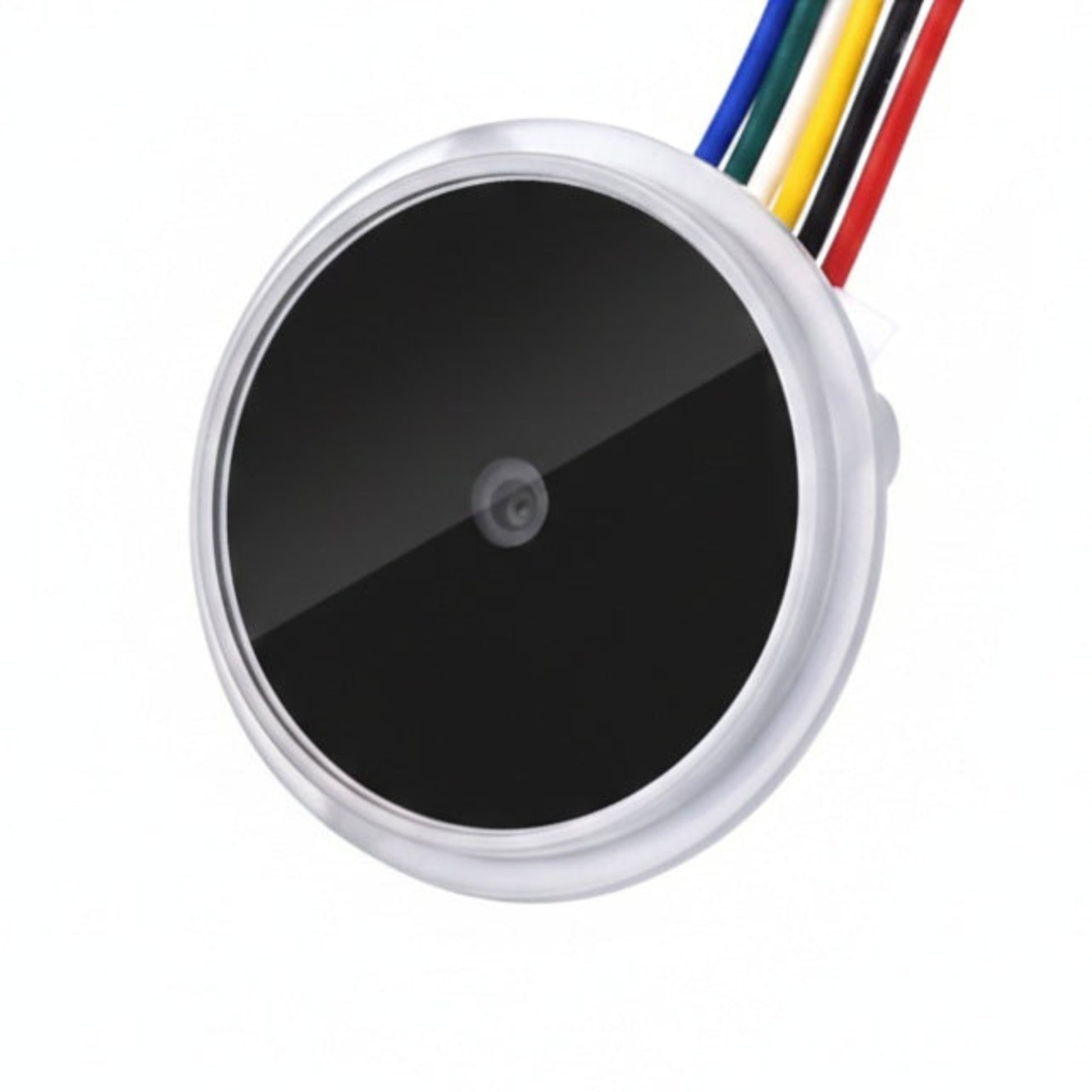

Upgrade your embedded systems with this Ultra-Compact Round 2D Barcode Scanner Module. Designed for seamless integration, it features high-speed 1D/2D code recognition (including QR codes and DataMatrix) even from smartphone screens. With its unique circular form factor and IP54-rated front protection, it is the ideal choice for sleek elevator panels, smart lockers, and automated kiosks. Get professional-grade scanning accuracy in a tiny, easy-to-mount package.

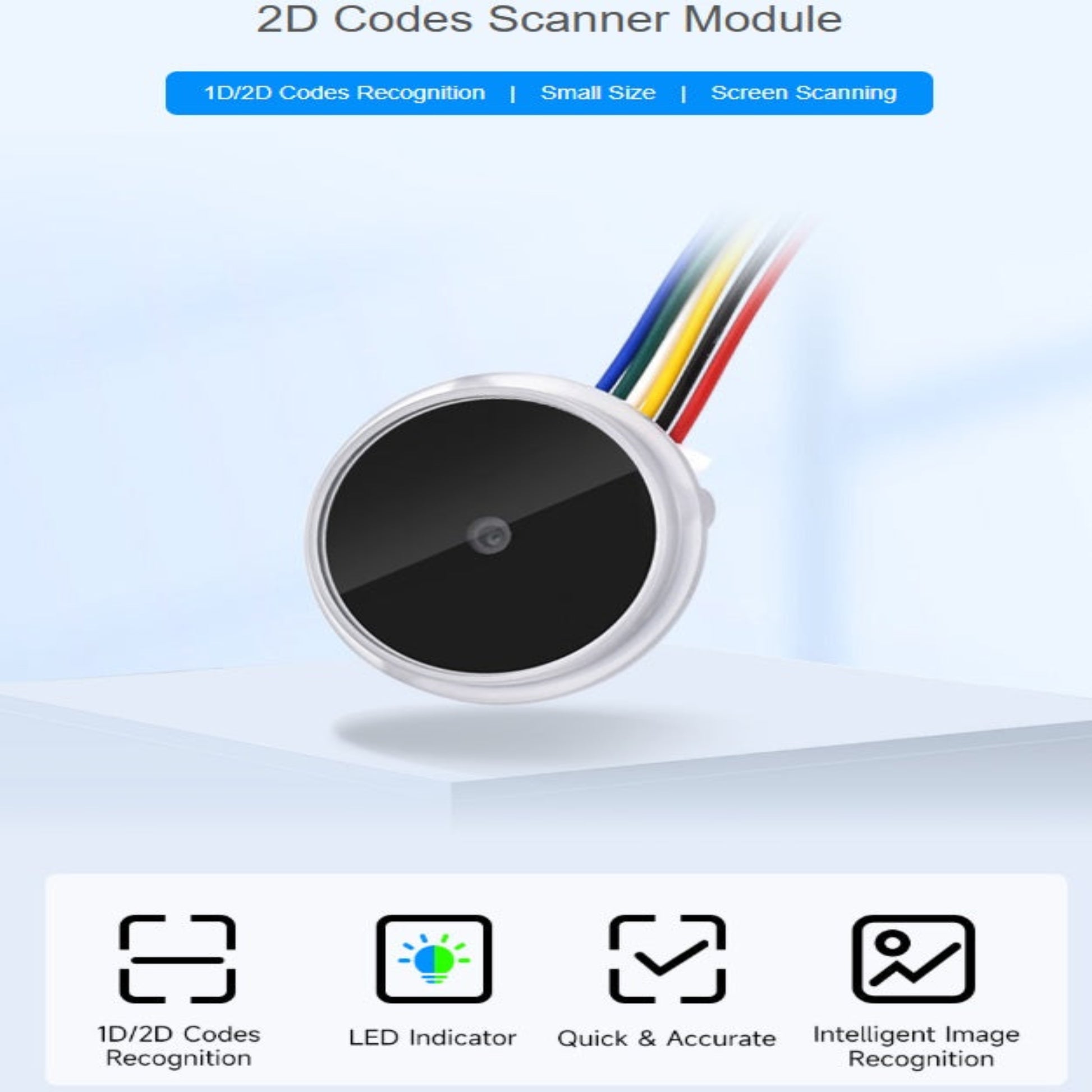

Key Features

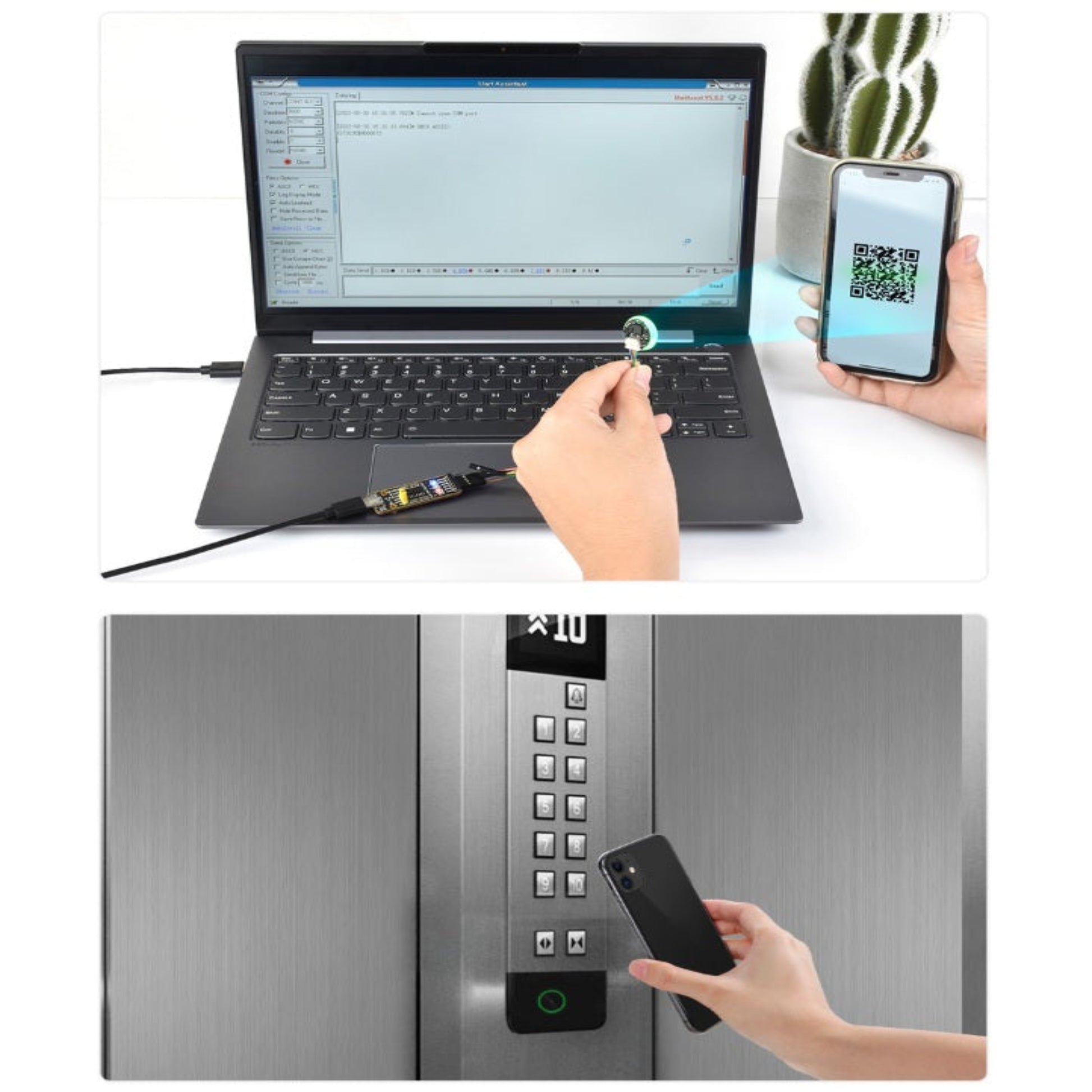

Unique Round Design: Easily integrates into circular panel cutouts for a professional, flush-mount finish.
Dual-Code Recognition: Supports a wide range of 1D and 2D formats (QR, PDF417, DataMatrix) for versatile use.
Superior Screen Scanning: High-sensitivity sensor captures codes from mobile screens with ease, perfect for digital ticketing.

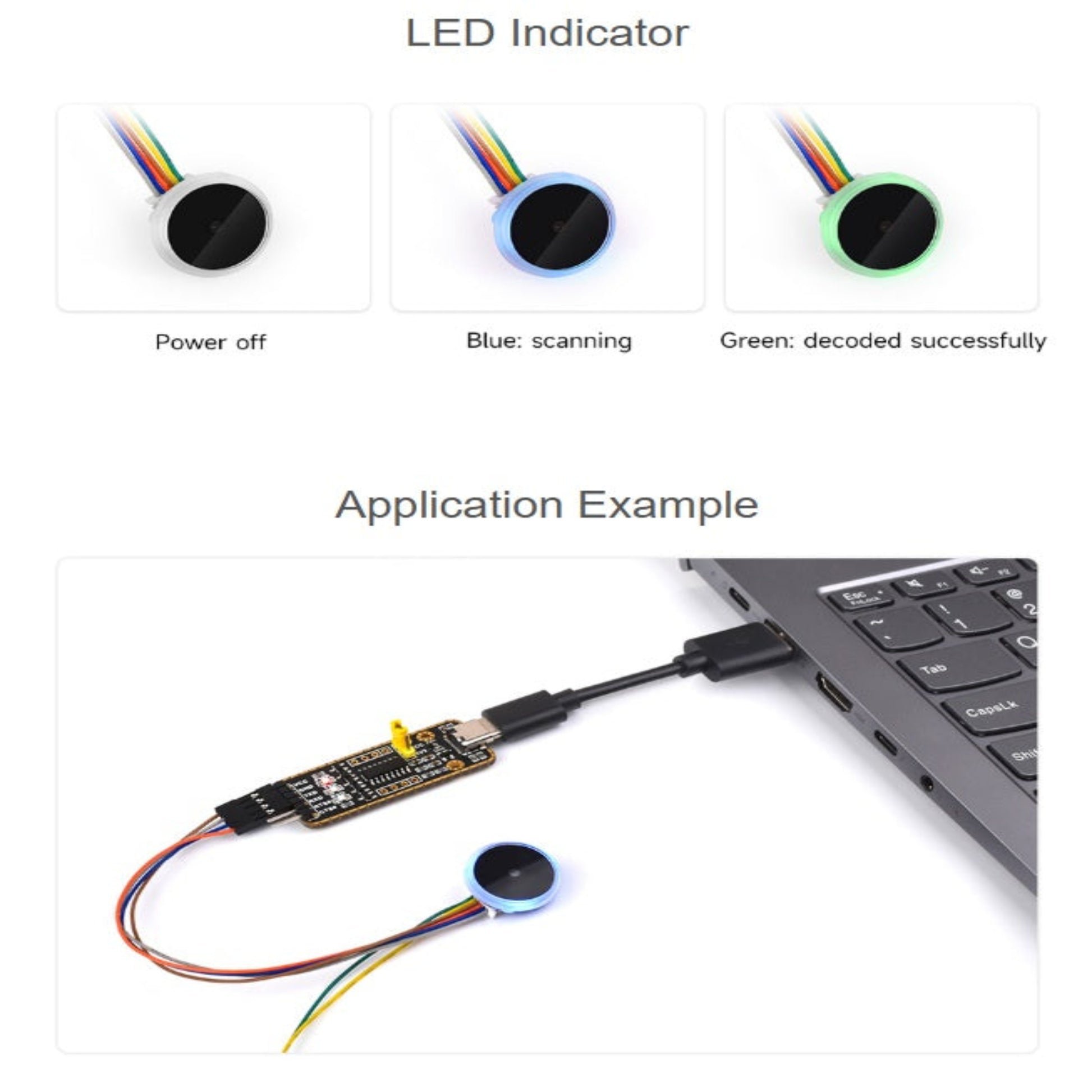

Dual-Color LED Indicator: Integrated blue (scanning) and green (success) lights provide immediate visual feedback to users.
Industrial Grade Durability: IP54 front-side protection and wide temperature tolerance for outdoor or semi-outdoor use.
Plug-and-Play UART: Simple serial communication (9600 8N1) reduces development time and complexity.

Full Product Description

High-Performance Scanning in a Circular Form Factor

Most barcode modules are bulky and rectangular, making them hard to fit into modern, aesthetic designs. Our Round 2D Barcode Scanner Module (D) breaks the mold. Its circular design is not just for looks; it allows for easy "hole-punch" mounting in panels, making it perfect for elevator control boards and high-end access control systems.

Intelligent Image Recognition & Screen Scanning

Equipped with advanced CMOS image sensors and intelligent algorithms, this module excels where others fail. It quickly decodes complex 2D patterns and low-quality 1D barcodes. Whether your customers are scanning a printed ticket or a QR code on a high-brightness smartphone screen, the recognition is near-instantaneous.

Rugged, Reliable, and Ready for Integration

Built for industrial environments, the module operates reliably between -30°C and +70°C. The front side is IP54-rated, providing essential protection against dust and water splashes in public installations. The standard UART (TTL) interface ensures compatibility with popular microcontrollers like Arduino, Raspberry Pi, and ESP32, allowing you to go from prototype to production in record time.

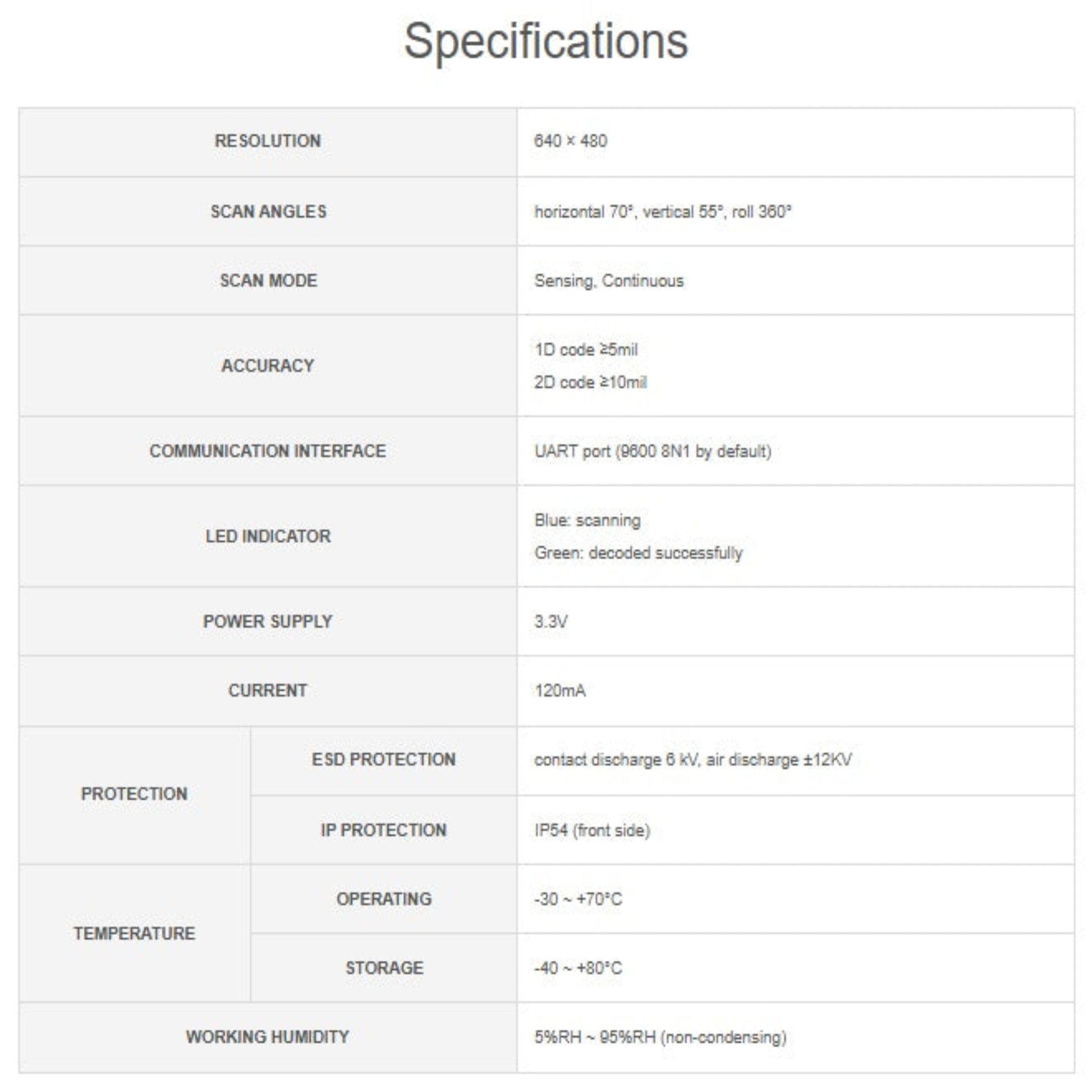

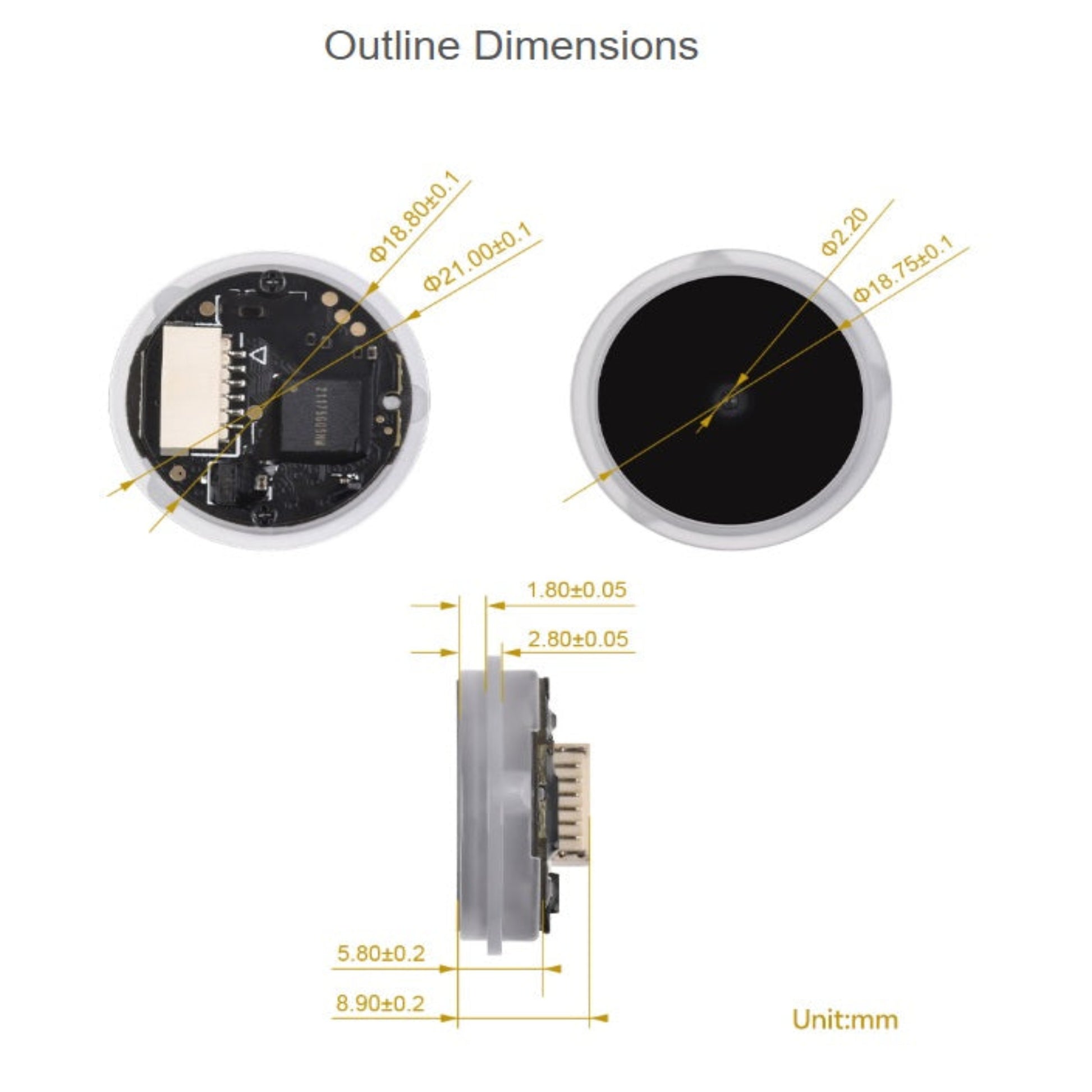

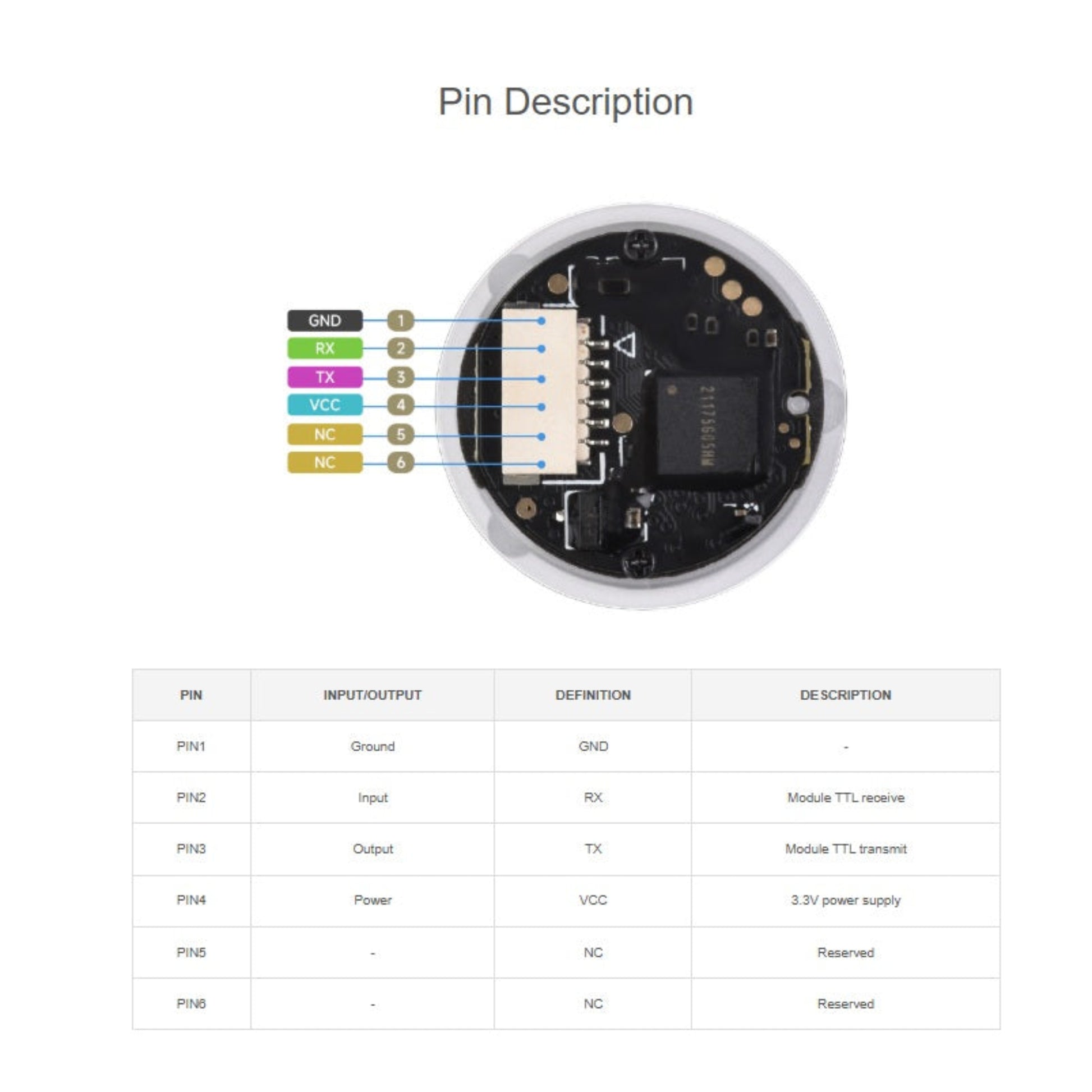

Technical Specifications

Resolution: 640 × 480
Interface: UART (TTL)
Power Supply: 3.3V DC / 120mA
Scan Angles:Horizontal: 70°Vertical: 55°Roll: 360°
Supported Codes: QR Code, DataMatrix, PDF417, EAN, UPC, Code 128/39/93, etc.
Protection Level: IP54 (front side)
Operating Temperature: -30°C to +70°C

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Q: Can this module be used with a 5V system?

A: The module requires a 3.3V power supply. If using with 5V logic (like an Arduino Uno), we recommend using a logic level shifter for the TX/RX pins to ensure long-term stability.

Q: Does it support scanning in dark environments?

A: Yes, the module features intelligent image recognition and can be configured for continuous or sensing modes to work effectively in various lighting conditions.

Q: How do I change the communication settings?

A: You can easily modify the baud rate and enable/disable specific barcode formats by scanning the Configuration Codes provided in the digital manual.
