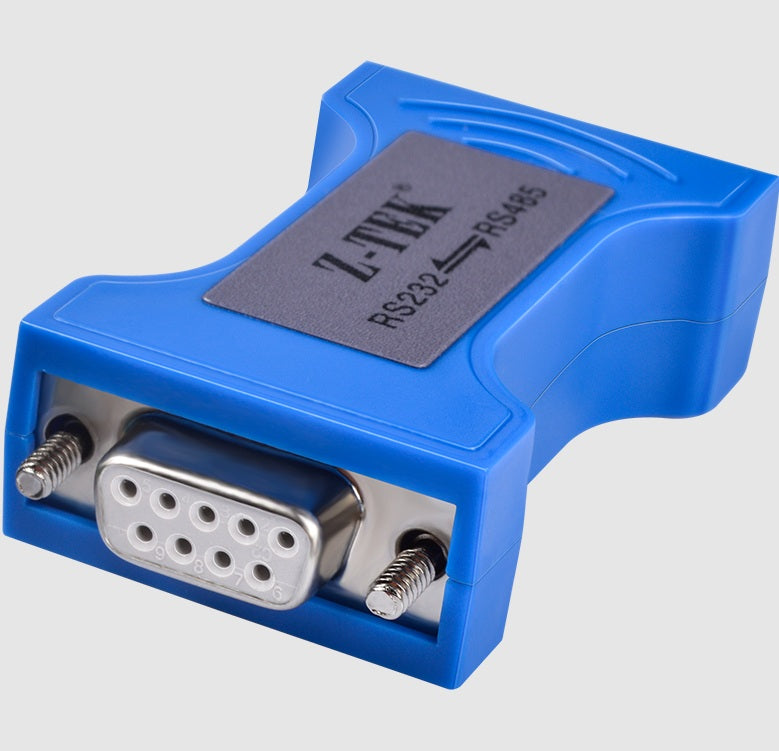

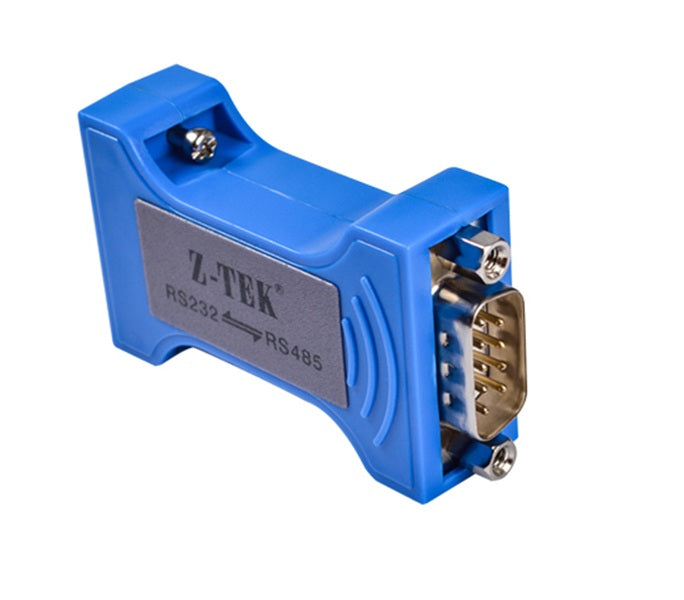

Z-TEK ZY092 RS232 to RS485 Serial Port Converter - Industrial Grade

Seamlessly Bridge Your RS232 and RS485 Devices with the Z-TEK ZY092 Converter

Are you looking for a reliable and efficient way to connect your RS232 and RS485 standard interface devices? The Z-TEK ZY092 RS232 to RS485 Converter is your ideal solution. Engineered for robust performance and ease of use, this universal serial port converter allows for seamless communication between different serial standards, making it perfect for industrial automation, data acquisition, and various other applications.

Key Features & Benefits:

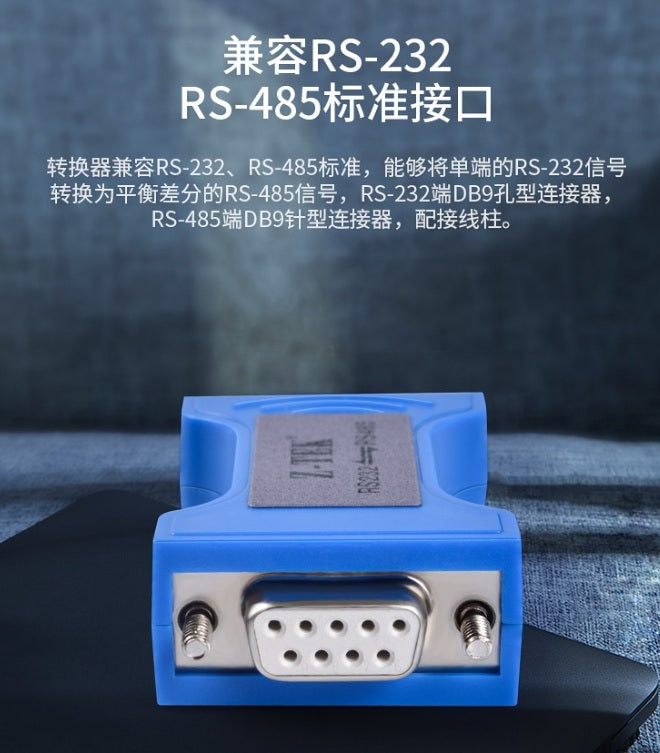

• Universal Compatibility: Fully compatible with both RS-232 and RS-485 standards (EIA/TIA), enabling conversion of unbalanced RS-232 signals to balanced differential RS-485 signals.

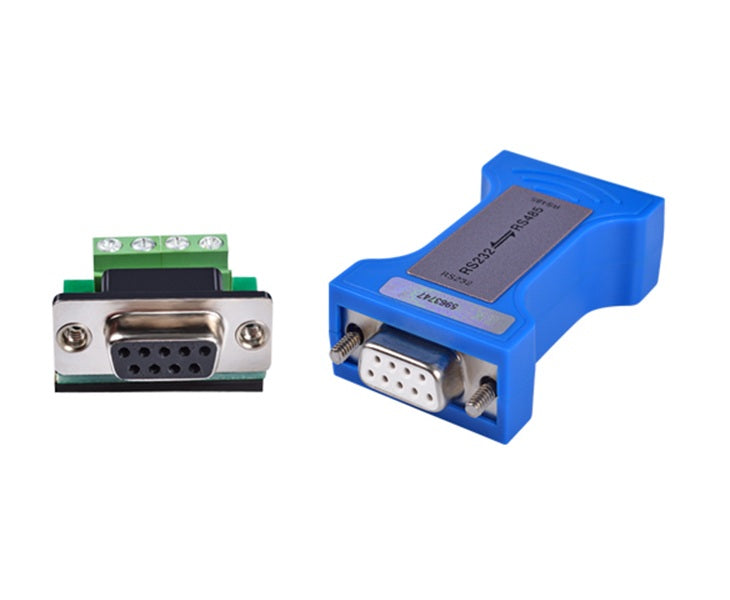

• Plug-and-Play Simplicity: Designed for hassle-free installation and operation. The product features DB9M/DB9F universal adapter plugs and a convenient 4-wire terminal block for easy wiring, requiring no initialization settings.

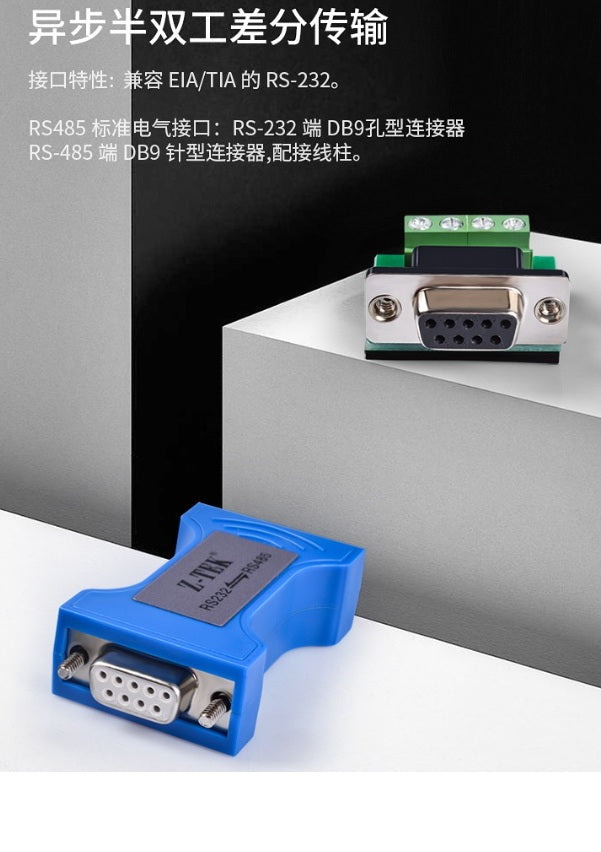

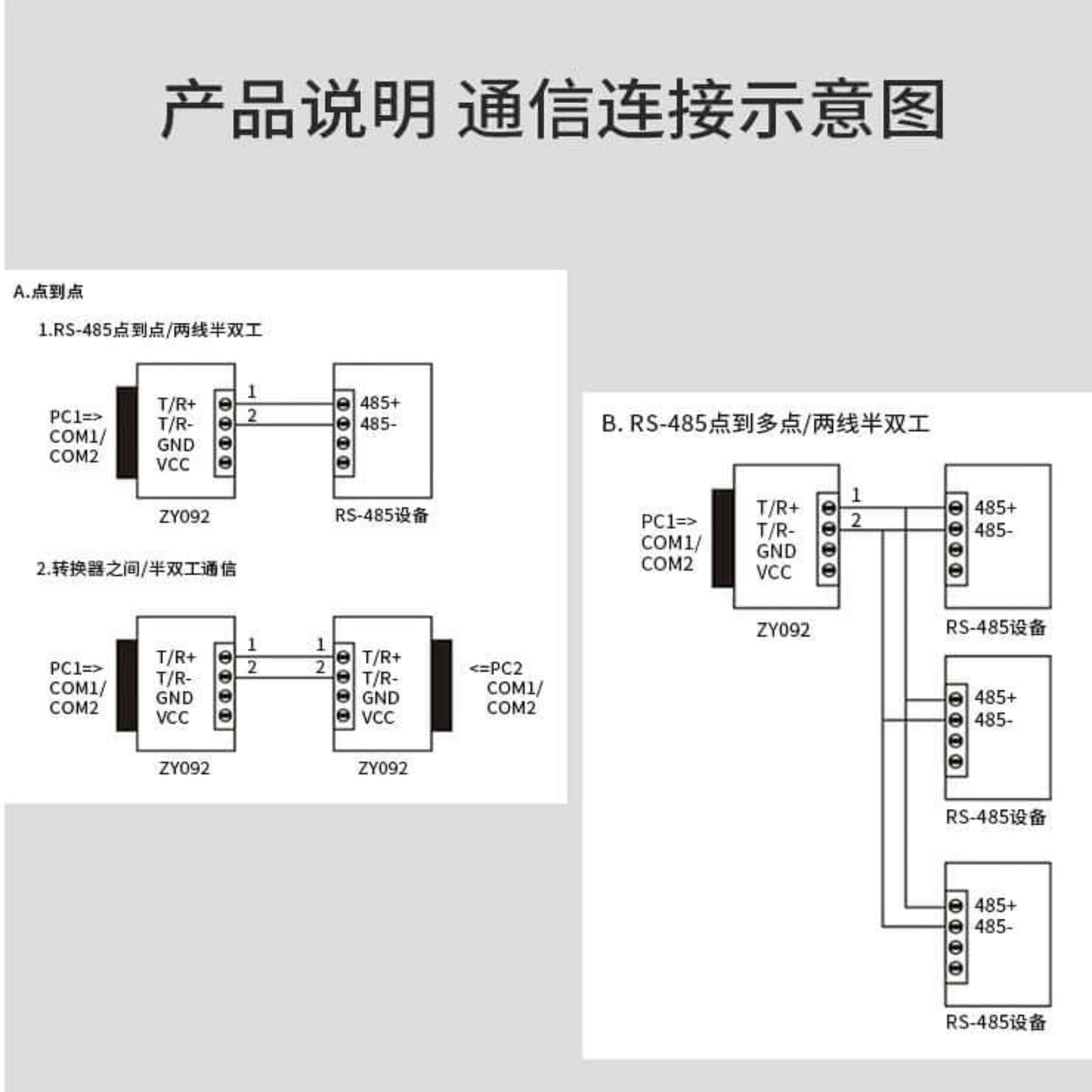

• Asynchronous Half-Duplex Differential Transmission: Ensures stable and efficient data transfer. This converter supports point-to-point and point-to-multipoint communication over a two-wire half-duplex system.
• Robust & Durable Design: Built to withstand demanding environments, with an operating temperature range of -20°C to 70°C and relative humidity of 5% to 95%.
• Enhanced Protection: Features built-in 600W lightning and surge protection on the RS-485 interface, safeguarding your valuable equipment.
• Compact & Portable: With dimensions of 64mm x 33mm x 17mm, its compact size makes it easy to integrate into any setup.

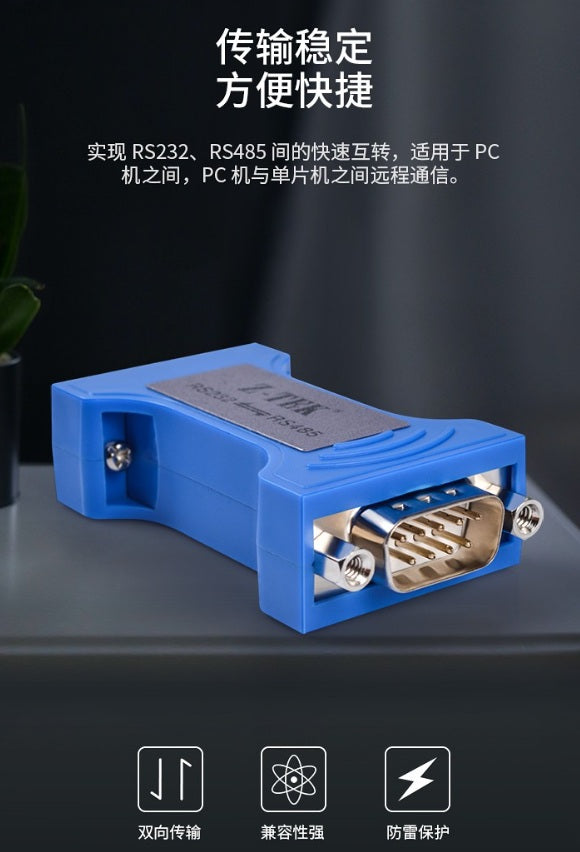

• Wide Application: Perfect for extending serial communication distances, connecting PCs to single-chip microcomputers, or facilitating remote communication between PC machines.

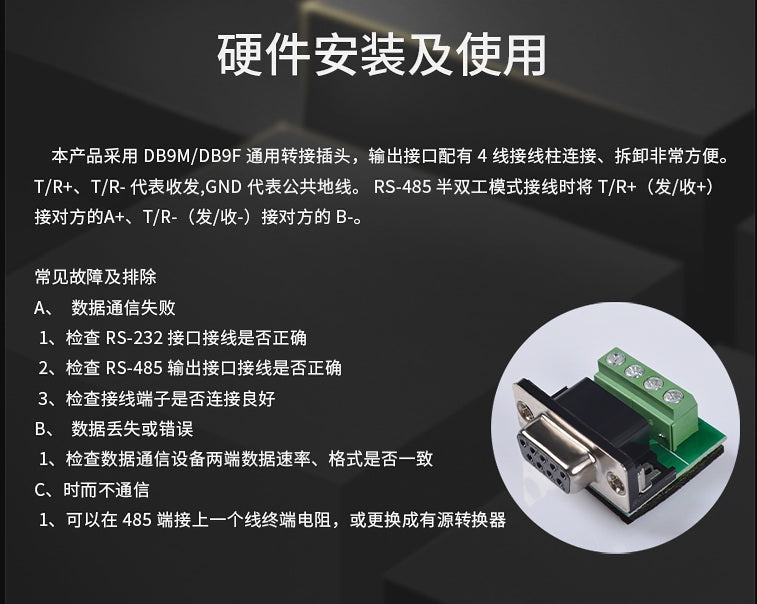

Troubleshooting Common Issues:

• Data Communication Failure:
  1. Check if the RS-232 interface connection is correct.
  2. Check if the RS-485 output interface wiring is correct.
  3. Check if the wiring terminals are well connected.
• Data Loss or Errors:
  1. Ensure that the data rate and format of both communication devices are consistent.
• Intermittent Communication:
  1. Consider adding a termination resistor to the 485 end or replacing it with a powered converter.

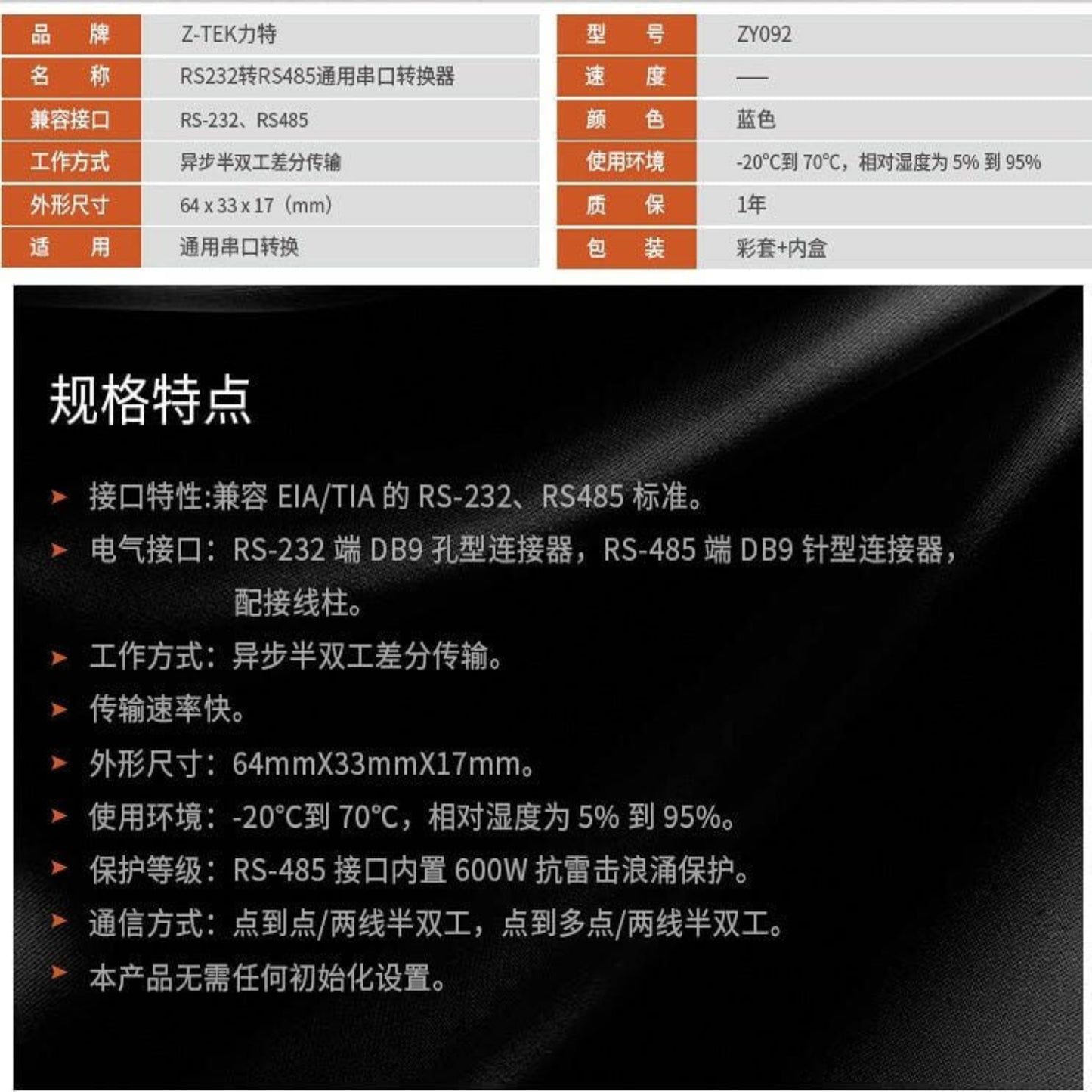

Technical Specifications:

• Brand: Z-TEK
• Model: ZY092
• Color: Blue
• Compatible Interfaces: RS-232, RS-485
• Working Mode: Asynchronous Half-Duplex Differential Transmission
• Dimensions: 64 x 33 x 17 (mm)
• Operating Environment: -20°C to 70°C, Relative Humidity 5% to 95%
• Packaging: Color box + inner tray
