Z-TEK ZE628 USB to RS422/RS485 Industrial Converter Cable - FTDI

Reliable Industrial Connectivity with Z-TEK ZE628 USB to RS422/RS485 Converter

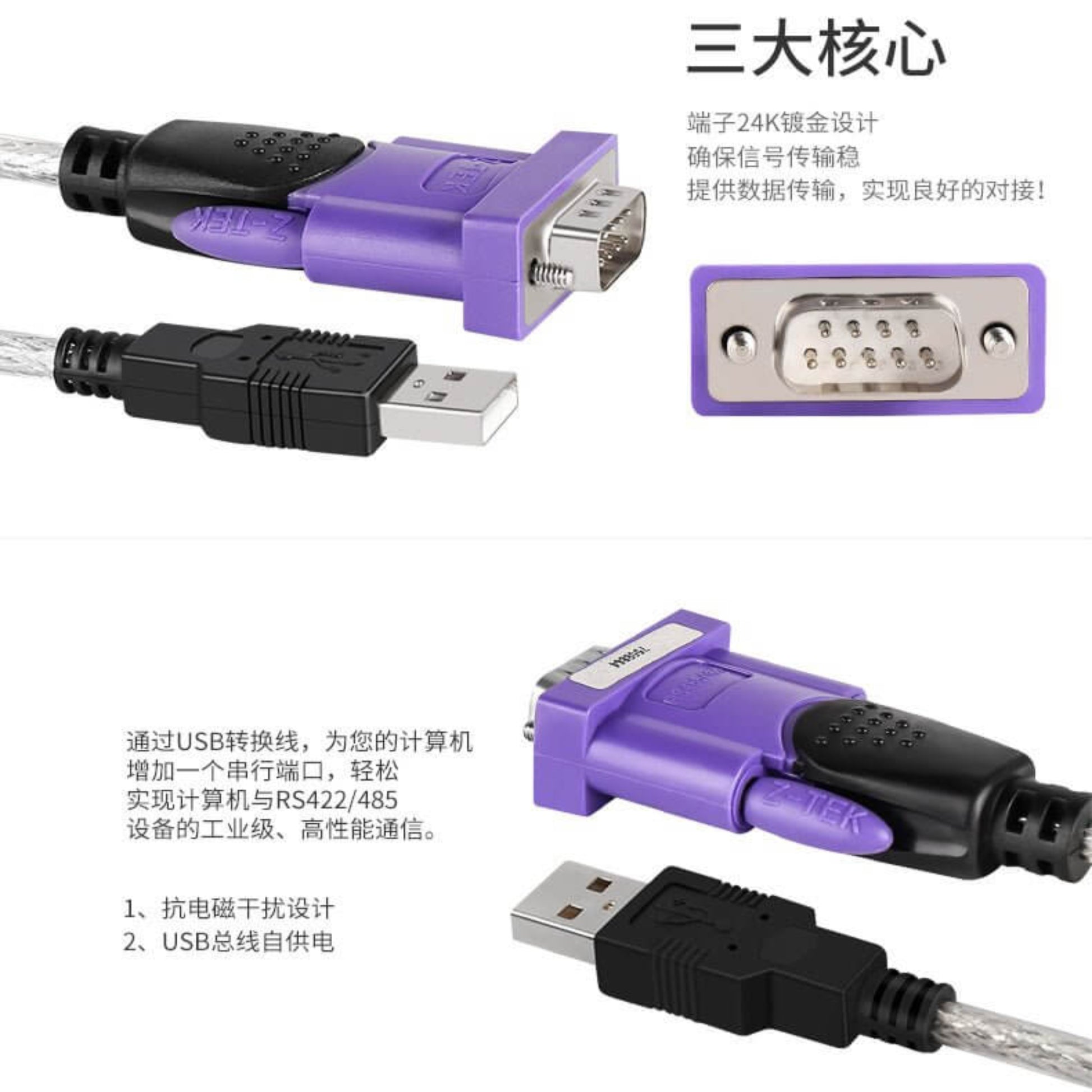

Bridge the gap between modern USB ports and industrial RS-422/RS-485 serial devices with the Z-TEK ZE628 converter cable. Featuring a high-quality FTDI chip for robust performance, this 1.8-meter cable offers a reliable solution for connecting PLCs, industrial control systems, POS machines, data acquisition devices, and more to your computer. Designed for stability and durability in demanding environments.

Seamless Conversion & Broad Compatibility:

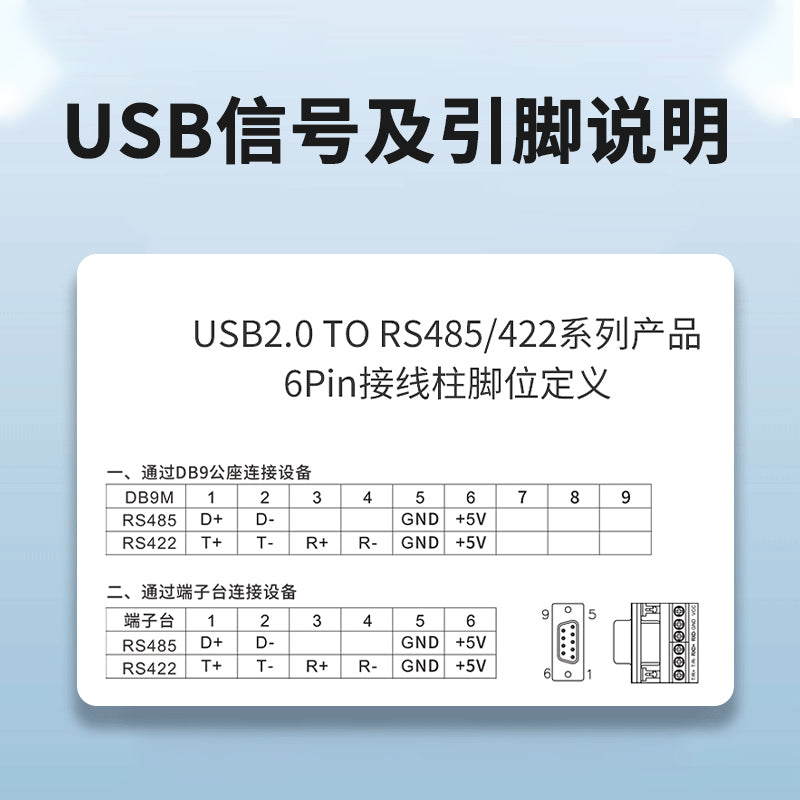

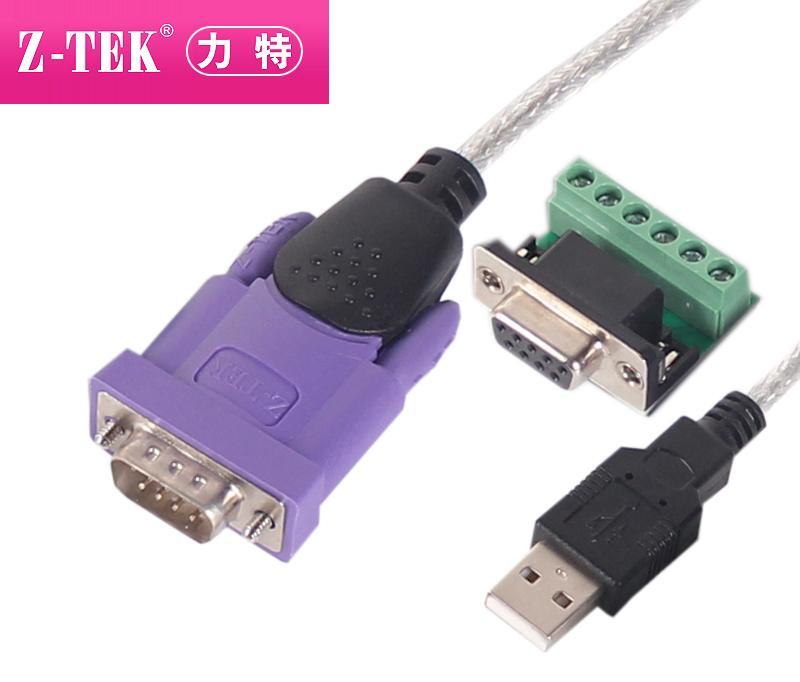

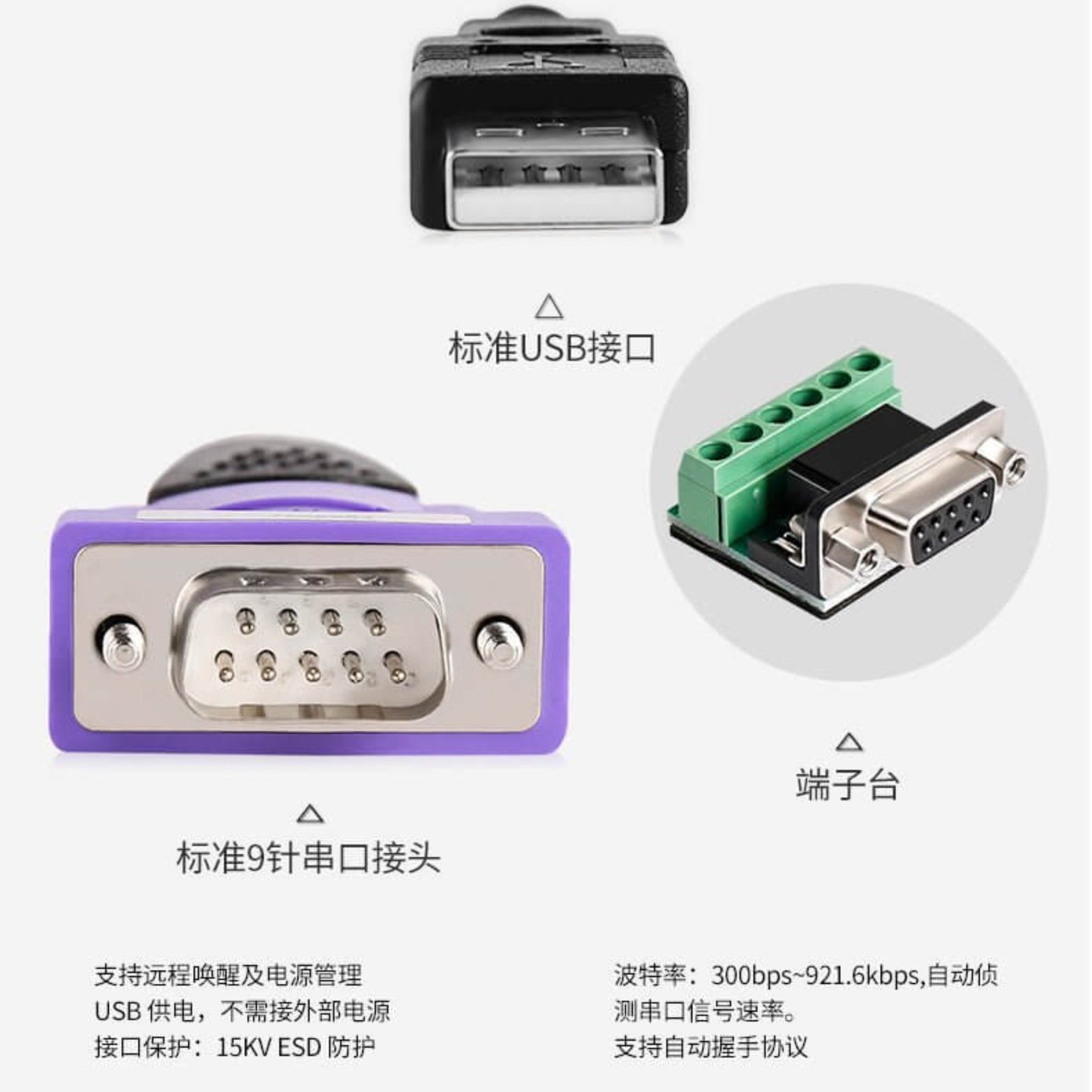

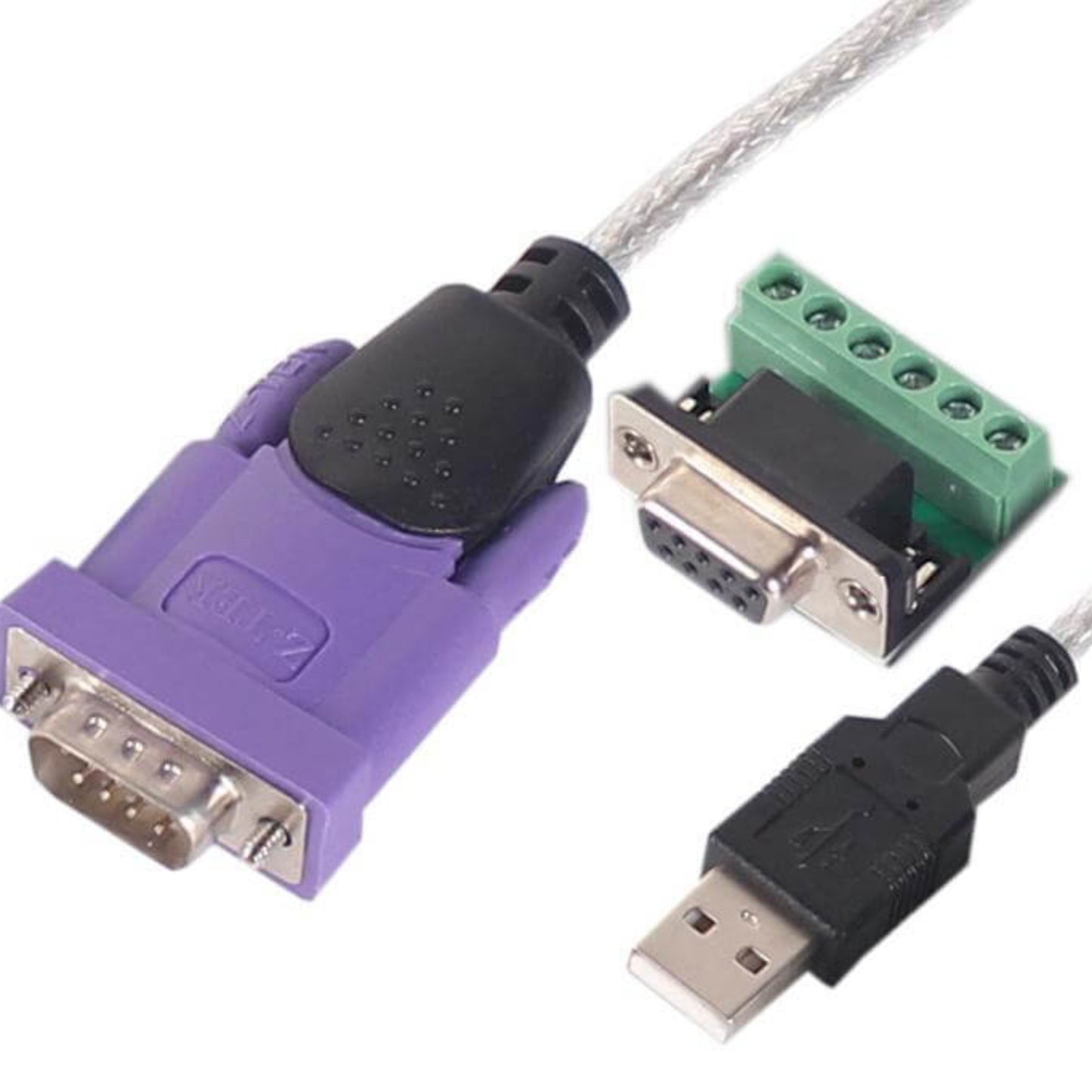

This converter seamlessly transforms USB signals from your PC into balanced differential full-duplex (RS-422) or half-duplex (RS-485) signals. It comes with a convenient pluggable terminal block for easy wiring.

Key Features & Benefits:

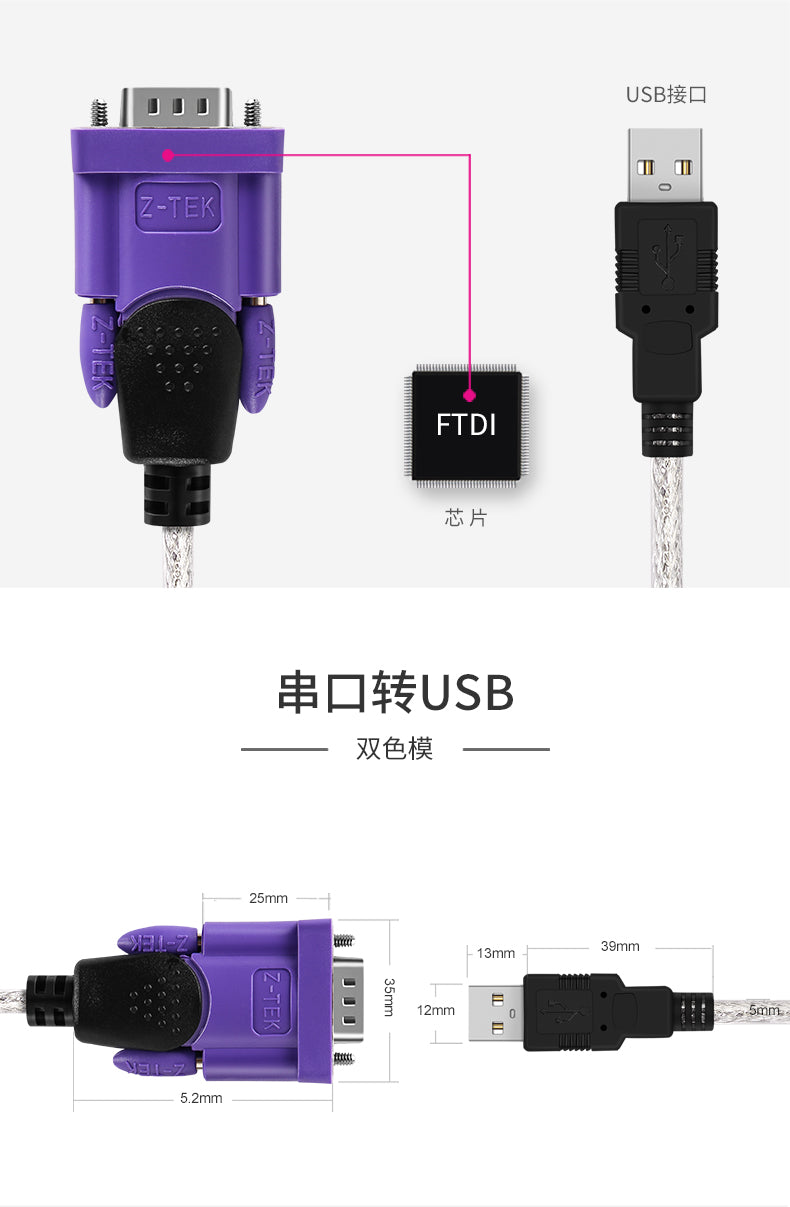

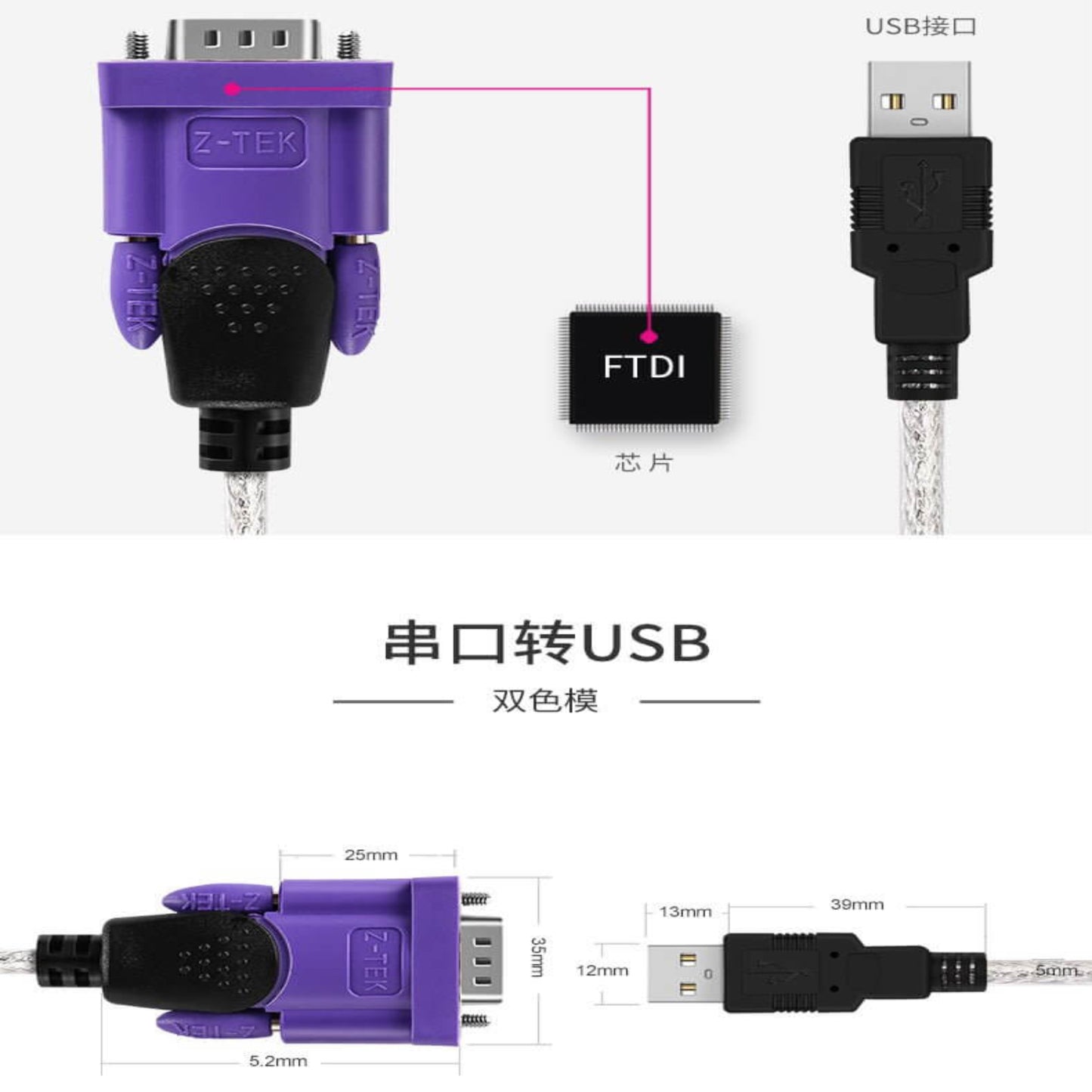

• FTDI Chipset: Ensures superior compatibility, stability, and reliability for industrial applications.
• USB 2.0 Standard: Supports hot-plugging and plug-and-play functionality for quick and easy setup.
• TIA/EIA RS-485/RS-422 Compliance: Fully compliant with industry standards for broad device compatibility.
• Auto-Detecting Baud Rate: Automatically detects serial signal rates from 300bps to 921.6kbps, simplifying configuration.
• Automatic Handshake Protocol Support: Ensures smooth and efficient data flow control.
• Remote Wake-Up & Power Management: Convenient features for system integration.
• Multi-Device Connectivity: Provides reliable point-to-point and point-to-multipoint connections, supporting up to 32 RS-422 or RS-485 devices simultaneously.
• USB Bus-Powered: No external power supply required, simplifying installation and reducing clutter.
• Enhanced Interface Protection: Built-in 15KV ESD (Electrostatic Discharge) protection safeguards your devices from electrical surges.
• Industrial-Grade Application: Quality wiring and strong anti-interference capabilities make it suitable for harsh industrial environments.

Versatile Applications:

Ideal for connecting a wide array of serial devices to your computer, including:

• PLC Controllers
• Receivers
• PLAM
• Data Machines
• External Modems
• ISDN Terminal Adapters
• Scanners
• Handwriting Pads
• Temperature Control Devices
• LED Displays
• PDAs
• Tax Control Machines
• Touch Pads
• Touch Screens
• Industrial Controllers
• Industrial Machinery & Instruments
• Set-top Boxes
• Attendance Systems
• Barcode Printers

Broad System Compatibility:

• Windows 98 / 98SE / ME / 2000 / 2003 / 2008 / XP / Vista / 7 / 8 / 10 / 11
• Linux
• Mac OS
• Windows CE

Package Includes:

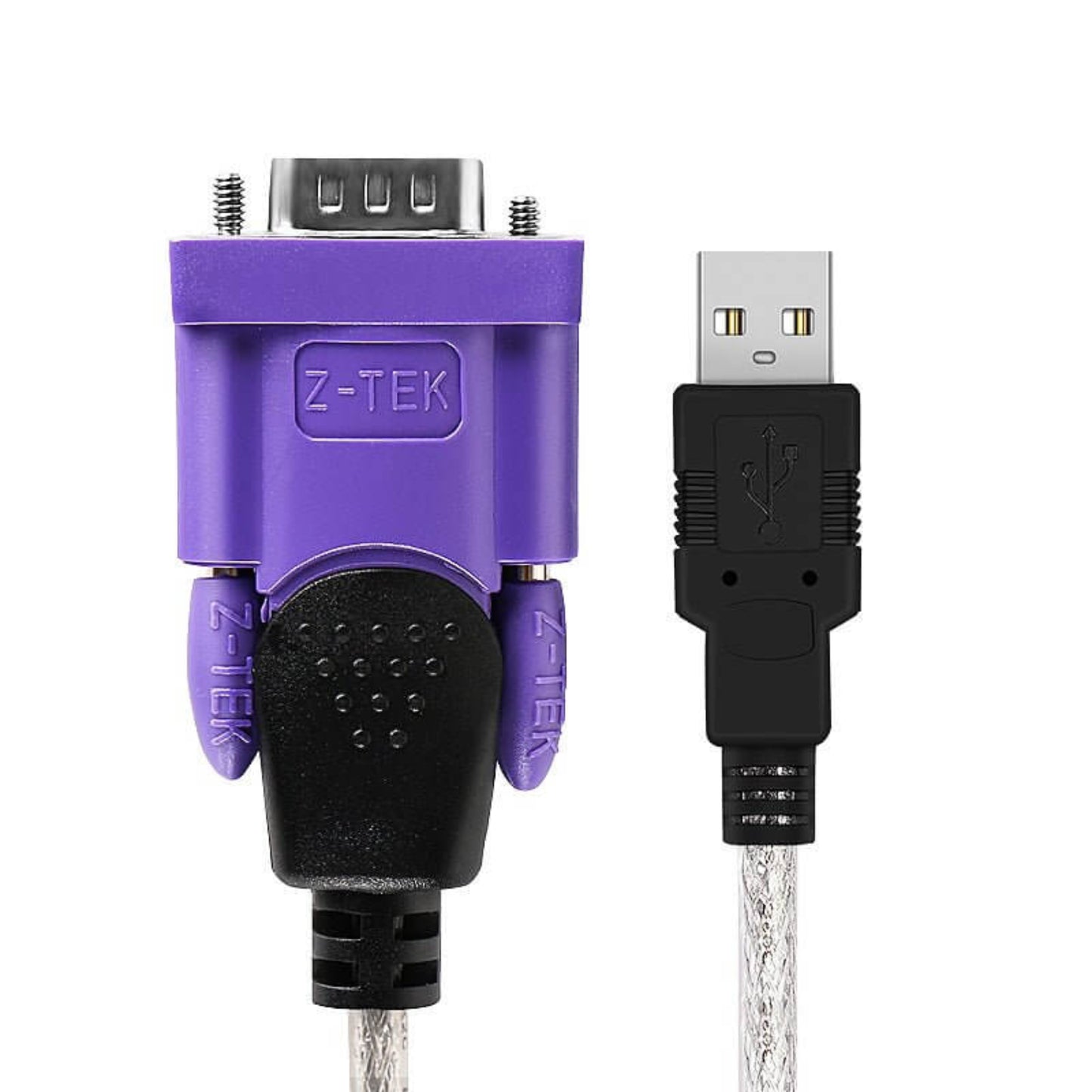

• 1 x Z-TEK ZE628 1.8M USB 2.0 to RS422/RS485 Serial Converter Cable

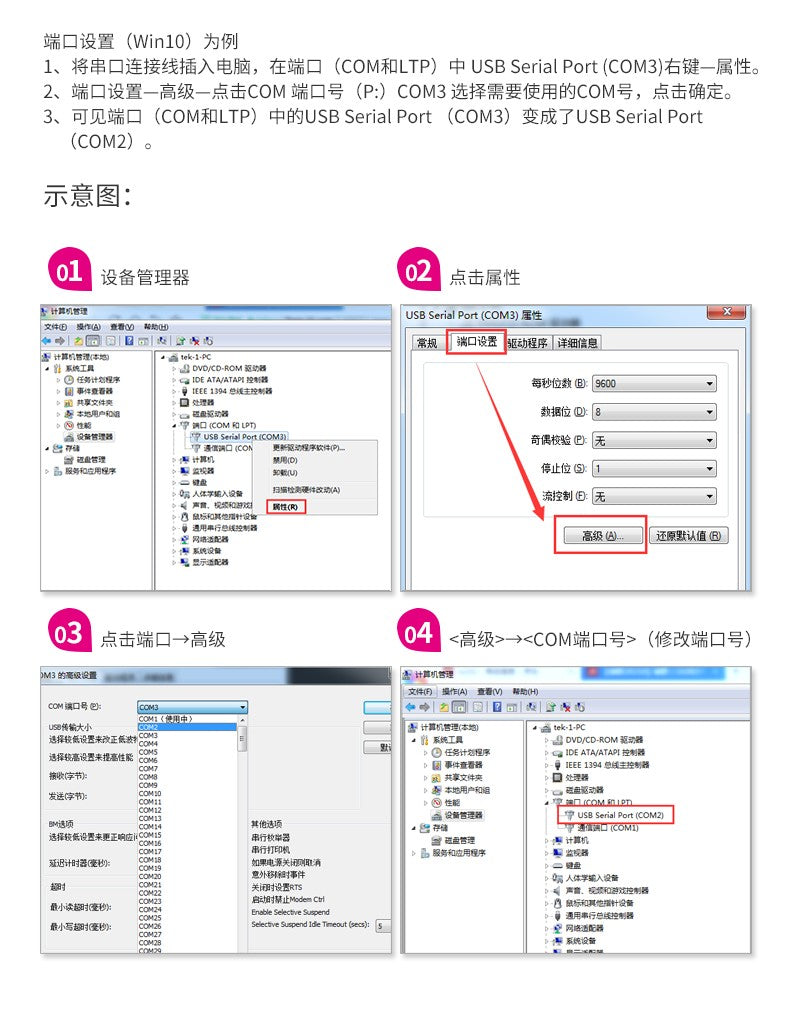

• Please note: A driver CD is NOT included. Drivers can be downloaded from the official website.
