NRF24L01+PA+LNA 2.4GHz Wireless Transceiver Module with Antenna
NRF24L01+PA+LNA 2.4GHz Wireless Transceiver Module with Antenna
Couldn't load pickup availability
Short Product Description
Short Product Description
Break the distance barrier in your IoT and robotics projects with the NRF24L01+PA+LNA Wireless Transceiver Module. Operating on the license-free 2.4GHz ISM band, this module features a built-in Power Amplifier (PA) and Low Noise Amplifier (LNA) to deliver an incredible transmission range of up to 1100 meters. Complete with an external SMA antenna and ultra-low power consumption, it is the ultimate RF solution for smart home systems, active RFID, and long-range remote controls.
Key Features
Key Features
- 1000m+ Extreme Range: Built-in PA and LNA chips extend reliable wireless communication up to 1100 meters (at 250kbps in open areas).
- Global 2.4GHz ISM Band: Operates on a license-free frequency, allowing for point-to-point or star-network configurations anywhere in the world.
- Adjustable Data Rates: Supports 2Mbps, 1Mbps, and 250kbps transmission speeds to perfectly balance data throughput and range (e.g., 520m at 2Mbps).
- Ultra-Low Power Consumption: Draws only 4.2uA in standby mode, making it ideal for battery-powered IoT and smart home devices.

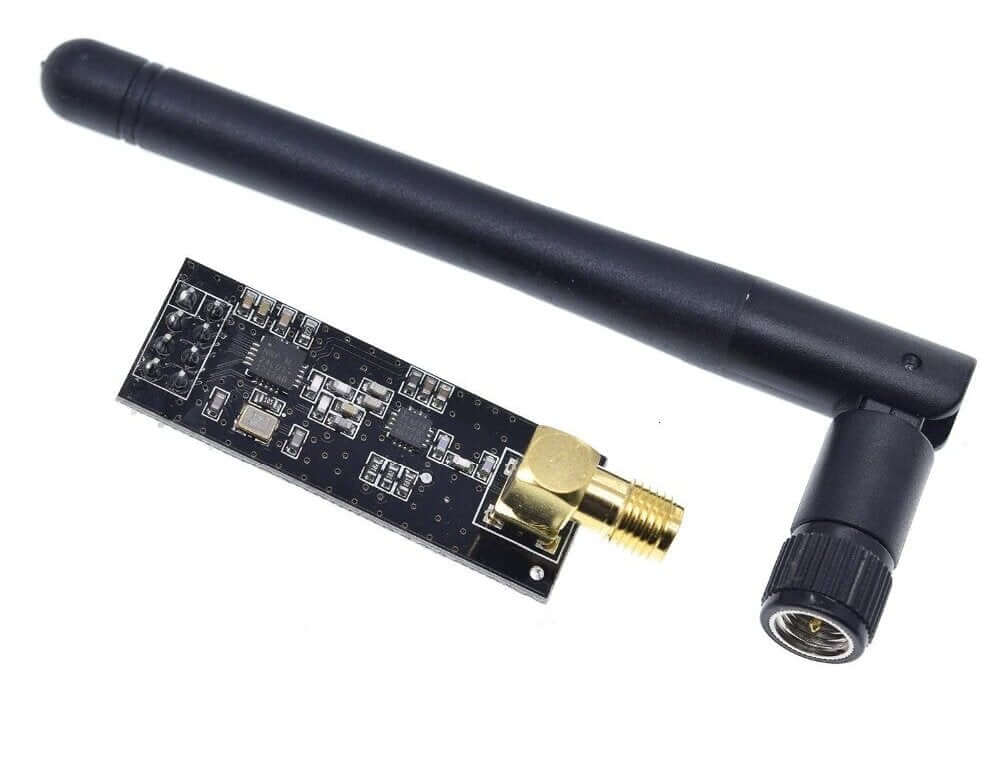

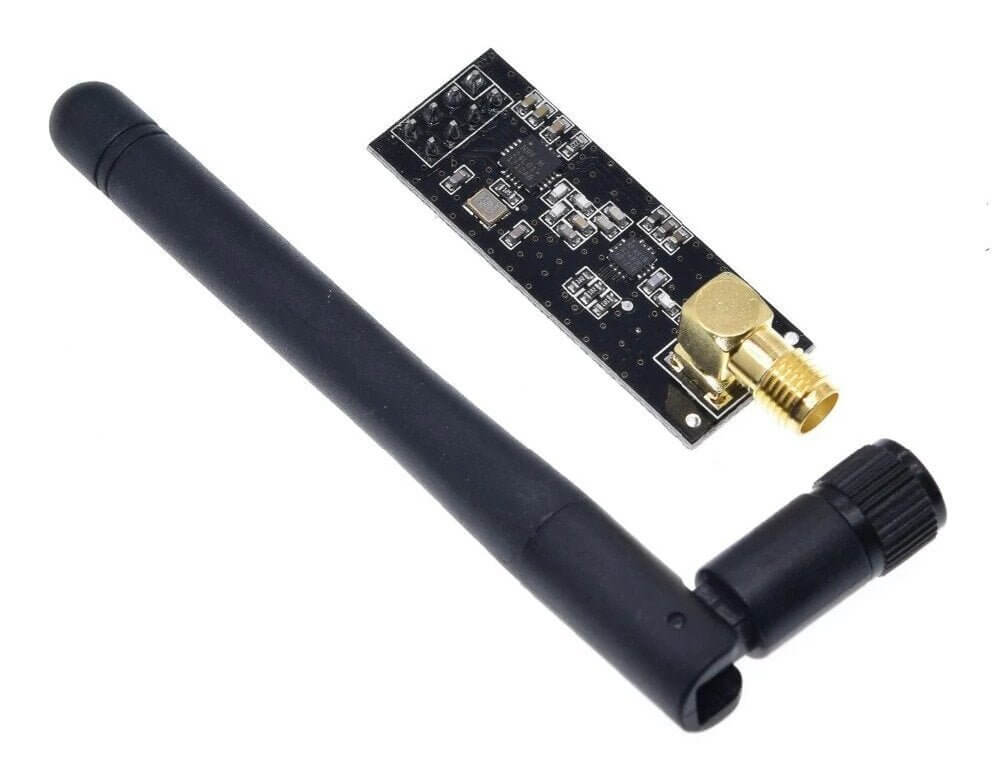

- Included SMA Antenna: Comes with a high-quality 2dBi external antenna for immediate setup and maximum signal gain.
Full Product Description
Full Product Description
Break the Distance Barrier in Your IoT Projects
Standard wireless modules often struggle with signal drops and limited range, ruining the reliability of your custom builds. The NRF24L01+PA+LNA Wireless Module solves this by integrating advanced signal amplification. Whether you are building a long-range drone controller, a smart grid sensor network, or an industrial IoT monitoring system, this module ensures your data packets reach their destination flawlessly—even at distances up to 1100 meters in open spaces.
Powerful Amplification with PA + LNA
What sets this module apart from standard NRF24L01 boards is the dedicated RFX2401C chip, which includes a Power Amplifier (PA) and a Low Noise Amplifier (LNA). The PA boosts the transmission output up to +20 dBm, while the LNA enhances the receiver sensitivity (up to -104dBm at 250kbps) and filters out background noise. Combined with the included 2dBi SMA antenna, you get a rock-solid, bi-directional communication link that penetrates obstacles better than ever before.
Ultra-Low Power for Battery-Operated Devices
High performance doesn't have to mean high power consumption. Designed for modern smart home and wearable tech applications, this transceiver is incredibly energy efficient. It operates on a low 3.0V to 3.6V logic and features a power-down standby mode that draws a mere 4.2uA. This makes it perfectly suited for battery-powered sensor nodes that need to run for months or even years without maintenance.
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 3.0V - 3.6V (3.3V Recommended) |
| Max Output Power | +20 dBm |
| Working Current | Transmit Mode: 115mA Receiver Mode: 45mA Standby/Power-down Mode: 4.2uA |
| Receiver Sensitivity | -92dBm @ 2Mbps -95dBm @ 1Mbps -104dBm @ 250kbps |
| Amplification Specs | PA Gain: 20dB LNA Gain: 10dB LNA Noise Figure: 2.6dB |
| Antenna | External SMA Antenna (2dBi Gain included) |
| Max Range | Up to 1100m @ 250kbps Up to 520m @ 2Mbps |
| Operating Temperature | -20°C to 70°C |

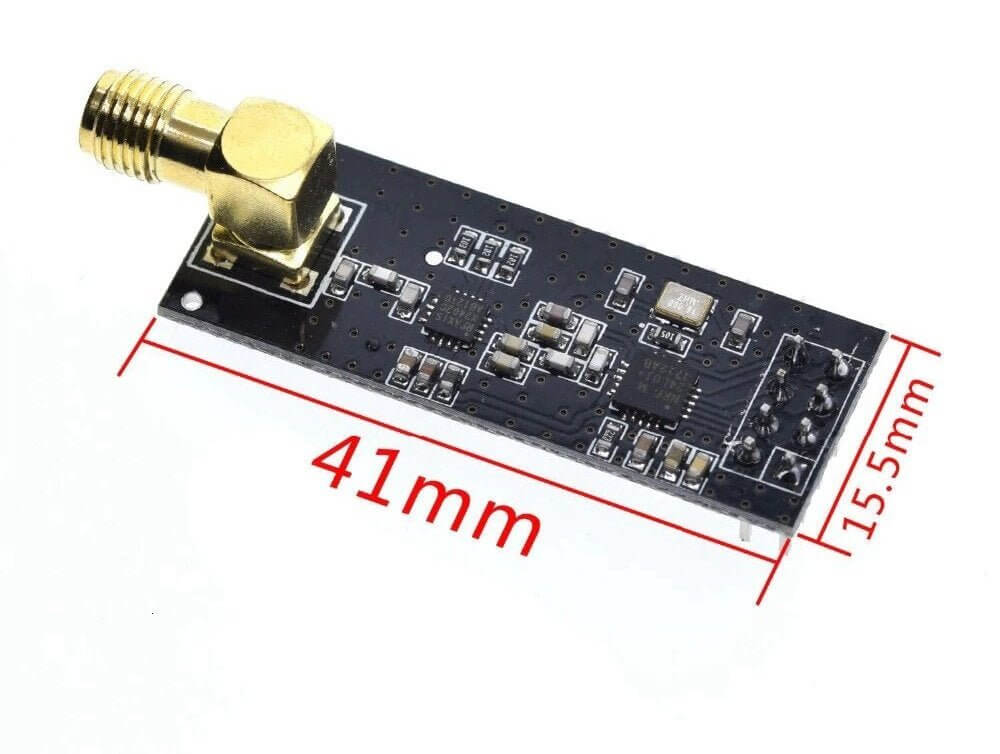

| Board Dimensions | 41mm x 15.5mm |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Is this a Wi-Fi module that connects to my home router?No. While it operates on the same 2.4GHz frequency band as Wi-Fi, the NRF24L01 uses its own proprietary RF protocol. It is designed for microcontrollers (like Arduino or Raspberry Pi) to talk directly to each other over long distances, rather than connecting to a standard internet router.
- Can I power this module directly from a 5V pin?Strictly no. The operating voltage is 3.0V to 3.6V (3.3V is highly recommended). Supplying 5V to the VCC pin will permanently damage the module. However, the data pins are usually 5V tolerant on most microcontrollers.
- How do I achieve the maximum 1000m+ range?To achieve the maximum range, you must set the data transmission rate to the lowest setting (250kbps) in your code, ensure the modules have a clear line-of-sight outdoors, and use a highly stable 3.3V power supply (adding a decoupling capacitor across VCC and GND is highly recommended to handle the 115mA transmit spikes).
Target Users / Applications
Target Users / Applications
- IoT Developers: Creating long-range sensor networks for agriculture, smart grids, or industrial monitoring.
- Arduino/DIY Makers: Building custom RC controllers for drones, boats, and robotics.
- Smart Home Engineers: Developing low-power, battery-operated smart home automation systems and active RFID/NFC triggers.
