Do I need to install drivers to use the touch function on a Raspberry Pi?

No, you do not need to install any drivers to use the touch function on a Raspberry Pi. The Waveshare 7-inch QLED Display features a built-in USB protocol translator that makes it natively recognized as a standard HID multi-touch device by Raspberry Pi OS, Ubuntu, and Windows.

What is the purpose of having two USB ports (Touch and Power Only)?

The "Touch" port transmits touch data and can power the screen, while the "Power Only" port is used strictly for extra power. If your host device (like an older Raspberry Pi) cannot output enough current through its USB port, you can plug a dedicated 5V adapter into the "Power Only" port to prevent screen flickering.

How does the ideal diode isolation protect my devices?

The low dropout ideal diode isolation ensures that if you plug power into both USB ports simultaneously, the display will only draw current from the source with the higher power capability. It completely isolates the two inputs, preventing power from back-feeding and destroying your computer's USB controller.

Can I connect my own speakers directly to this display board?

Yes, you can connect your own speakers directly to the Waveshare 7HP-CAPQLED board. It features a dedicated 4-pin speaker header equipped with a 2.6W PA (Power Amplifier) circuit, providing strong and clear audio output without needing an external amplifier module.

Is this Waveshare display available for testing at your Hong Kong store?

Yes, the Waveshare 7-inch QLED Capacitive Touch Display is in-stock at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po. You are welcome to bring your Raspberry Pi or laptop to our physical store to test the display quality and touch responsiveness before purchasing.

Waveshare 7" QLED Touch Display | 1024x600 HDMI Monitor

Name: Waveshare 7" QLED Touch Display | 1024x600 HDMI Monitor
Brand: Waveshare
SKU: 21MR000113
Price: 550.0 HKD
Availability: InStock

Short Product Description

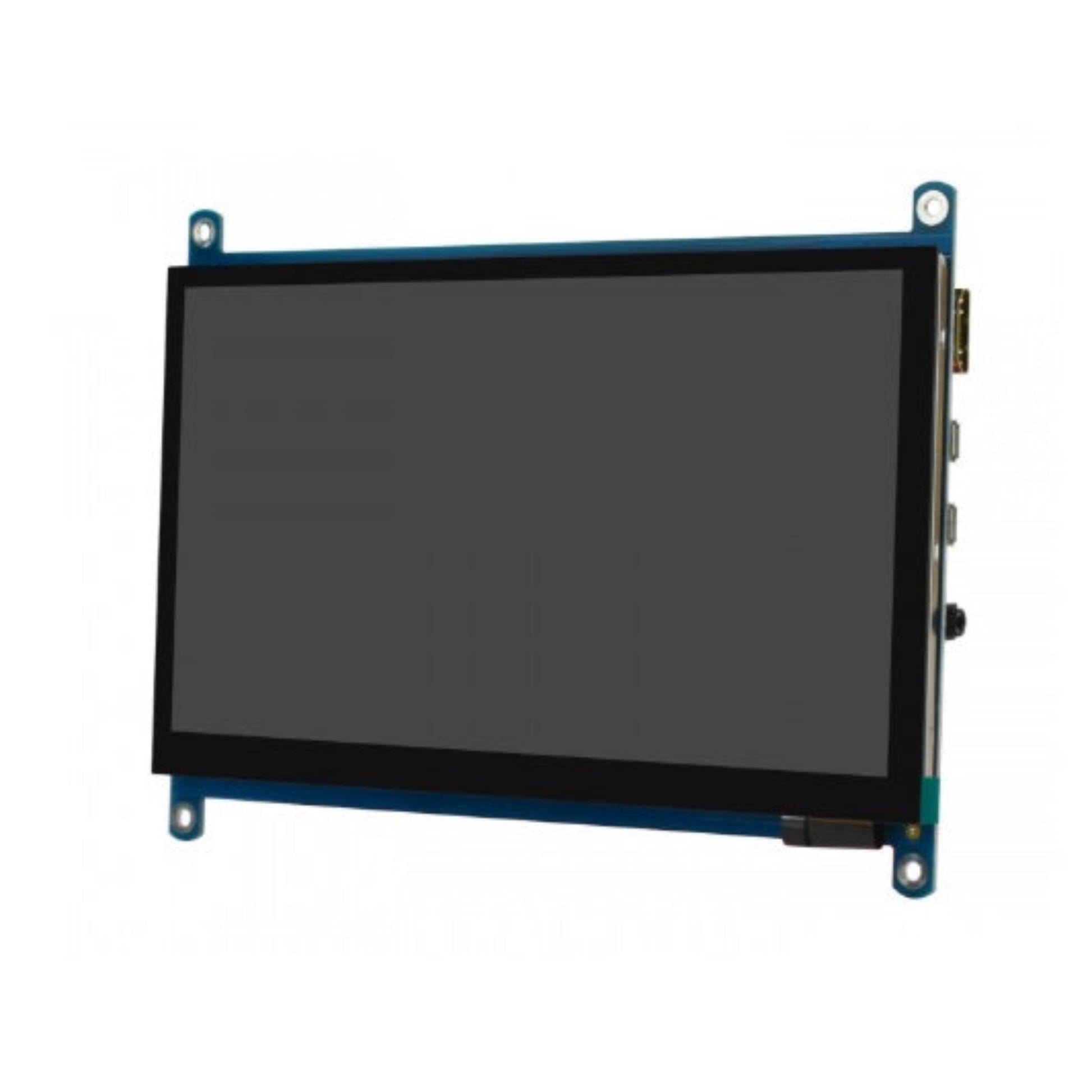

The Waveshare 7-inch QLED Capacitive Touch Display (7HP-CAPQLED) is an industrial-grade HDMI monitor designed for Raspberry Pi, Jetson Nano, and custom HMI (Human-Machine Interface) projects. Featuring a vibrant 1024x600 QLED Quantum Dot panel, a 6H toughened glass touch screen, and advanced dual-power isolation, this display delivers flawless visuals and reliable 5-point touch control. Available for instant pickup at Sun Cheong Computer Co. Ltd.(新昌電腦有限公司) in Sham Shui Po, our technical team can help you integrate this driver-free monitor into your next DIY electronics or automation build.

Key Features

QLED Quantum Dot Panel: Delivers a wider color gamut (NTSC 78%, SRGB 92%) and a 170° IPS viewing angle for stunning visual clarity.
G+G Toughened Glass: Features a 6H hardness capacitive touch panel supporting up to 5-point multi-touch with zero driver installation required.
Ideal Diode Power Isolation: Safely isolates the "Touch" and "Power Only" USB inputs, automatically drawing from the stronger power source to prevent electrical breakdowns.
Anti-Interference Architecture: Utilizes an optimized LCD FFC cable and VCOM voltage adjustment to ensure stable display output in noisy industrial environments.

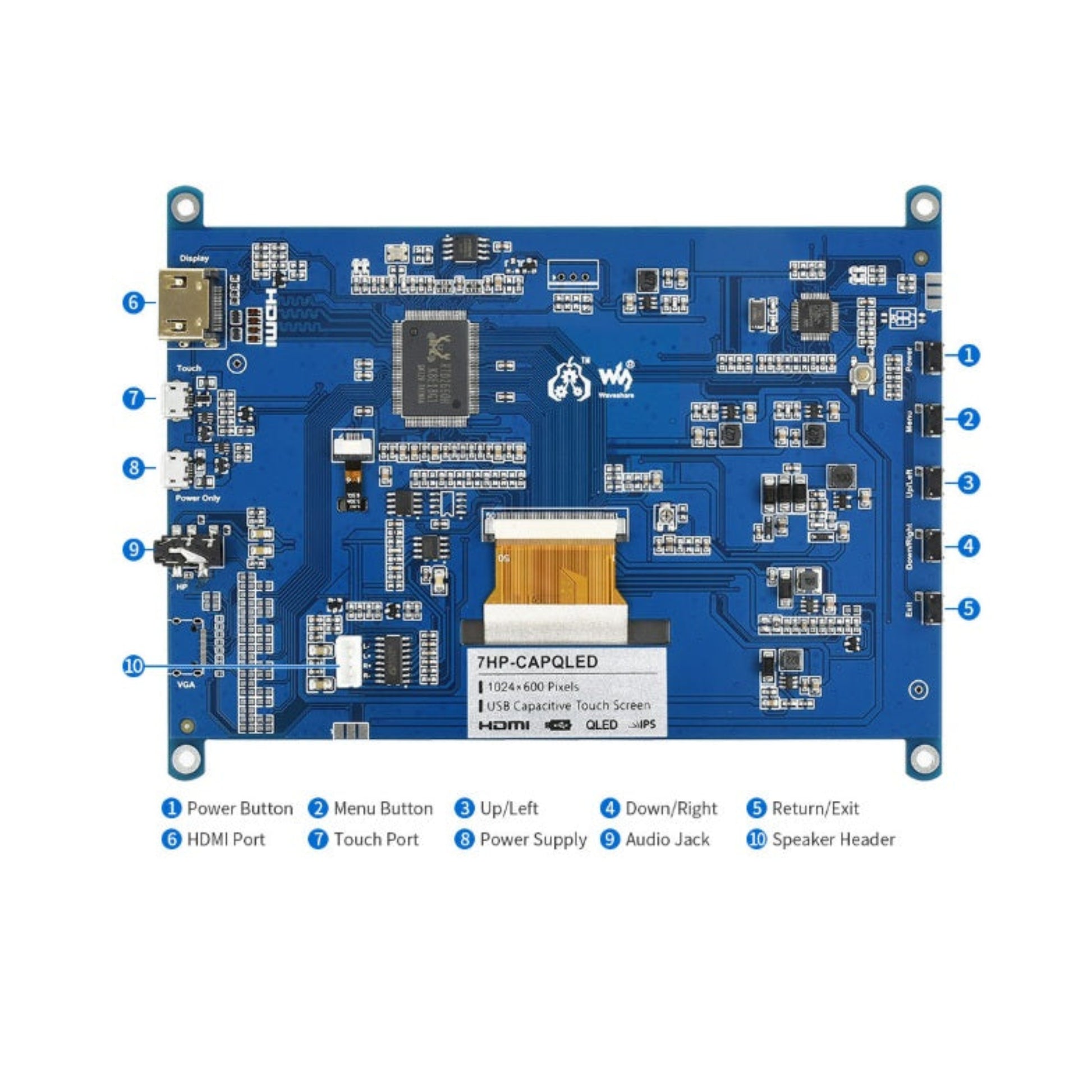

Dual Audio Outputs: Equipped with a standard 3.5mm audio jack and a 4-pin speaker header featuring a built-in 2.6W PA amplifier circuit.
Broad System Compatibility: Works seamlessly out-of-the-box with all versions of Raspberry Pi, Jetson Nano, Windows PCs, and major game consoles (Xbox360, PS4, Switch).

Full Product Description

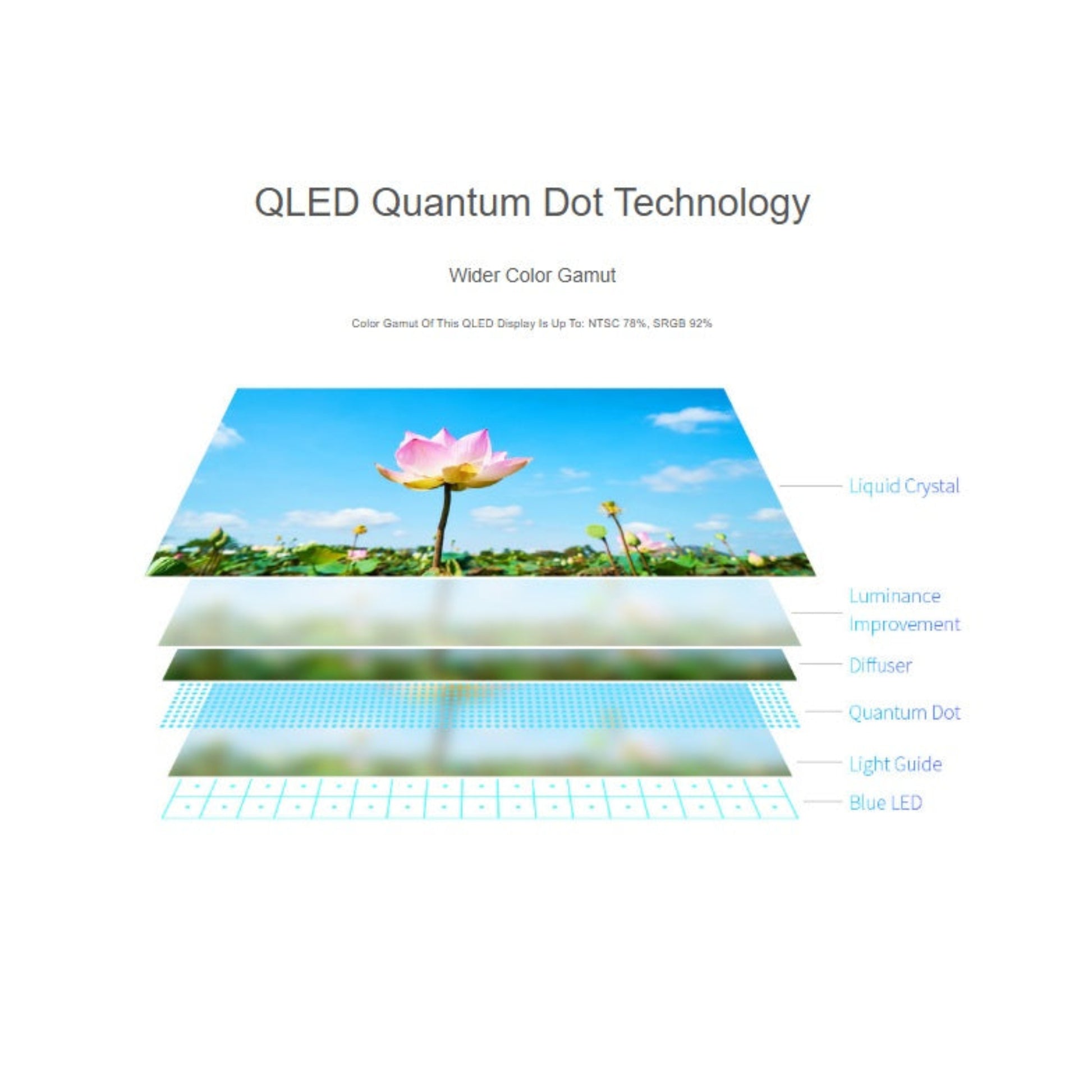

Vibrant QLED Visuals for DIY & Industrial Projects

The Waveshare 7-inch QLED Display utilizes Quantum Dot technology to deliver a significantly wider color gamut (NTSC 78%, SRGB 92%) than standard LCD screens, ensuring your project interfaces look incredibly vivid and sharp. Combined with a 1024x600 resolution and an IPS panel offering a 170° ultra-wide viewing angle, this HDMI monitor guarantees clear, color-accurate visuals from almost any perspective. Whether you are building a retro gaming console or a smart home dashboard, the integrated OSD menu allows you to easily adjust backlight and display colors via software or physical buttons.

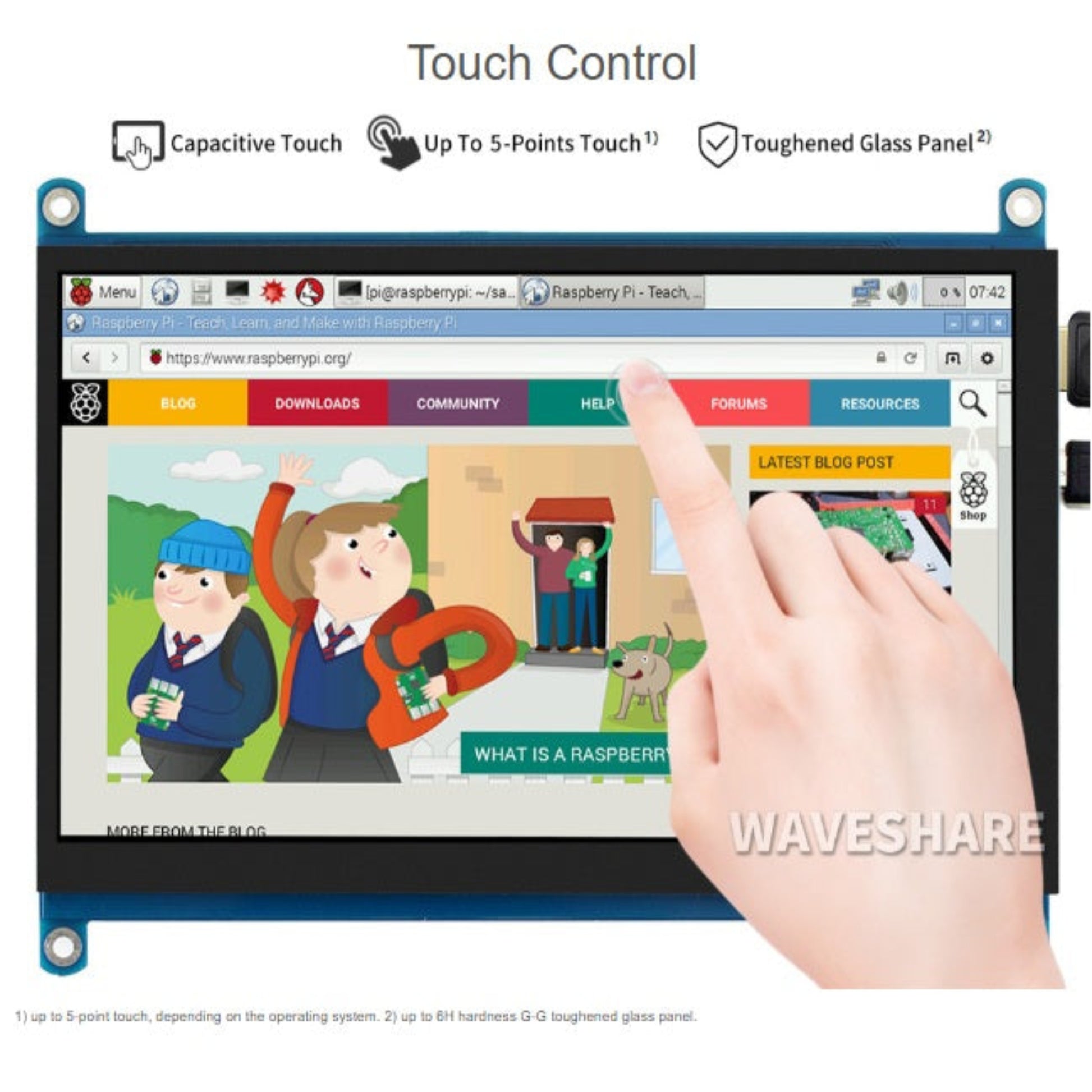

Responsive 5-Point Capacitive Touch

This 7-inch Touch Screen Monitor features a robust G+G (Glass+Glass) toughened panel with a 6H hardness rating, providing excellent scratch resistance for high-traffic environments. It utilizes a built-in USB protocol translator that converts raw touch signals into a standard multi-point touch protocol, ensuring buttery-smooth, 5-point capacitive touch control. Because it is completely driver-free, you can plug the USB touch cable directly into a Raspberry Pi, Windows PC, or Jetson Nano and experience instant, accurate touch response without installing third-party software.

Industrial-Grade Power & Anti-Interference Design

The Waveshare 7HP-CAPQLED Monitor is engineered for long-term stability in demanding industrial applications. It features an LCD FFC cable with a specialized anti-interference design and a DC-DC LCD driver circuit that maintains low heating during continuous 24/7 operation. To prevent screen flickering caused by voltage drops, it supports a wide 4~5.5V USB power input. Furthermore, it incorporates a low dropout ideal diode isolation system; if you connect both the "Touch" and "Power Only" ports, the display intelligently draws power only from the stronger source, completely isolating the two inputs to prevent electrical breakdown.

Pro Tip from Our Technicians

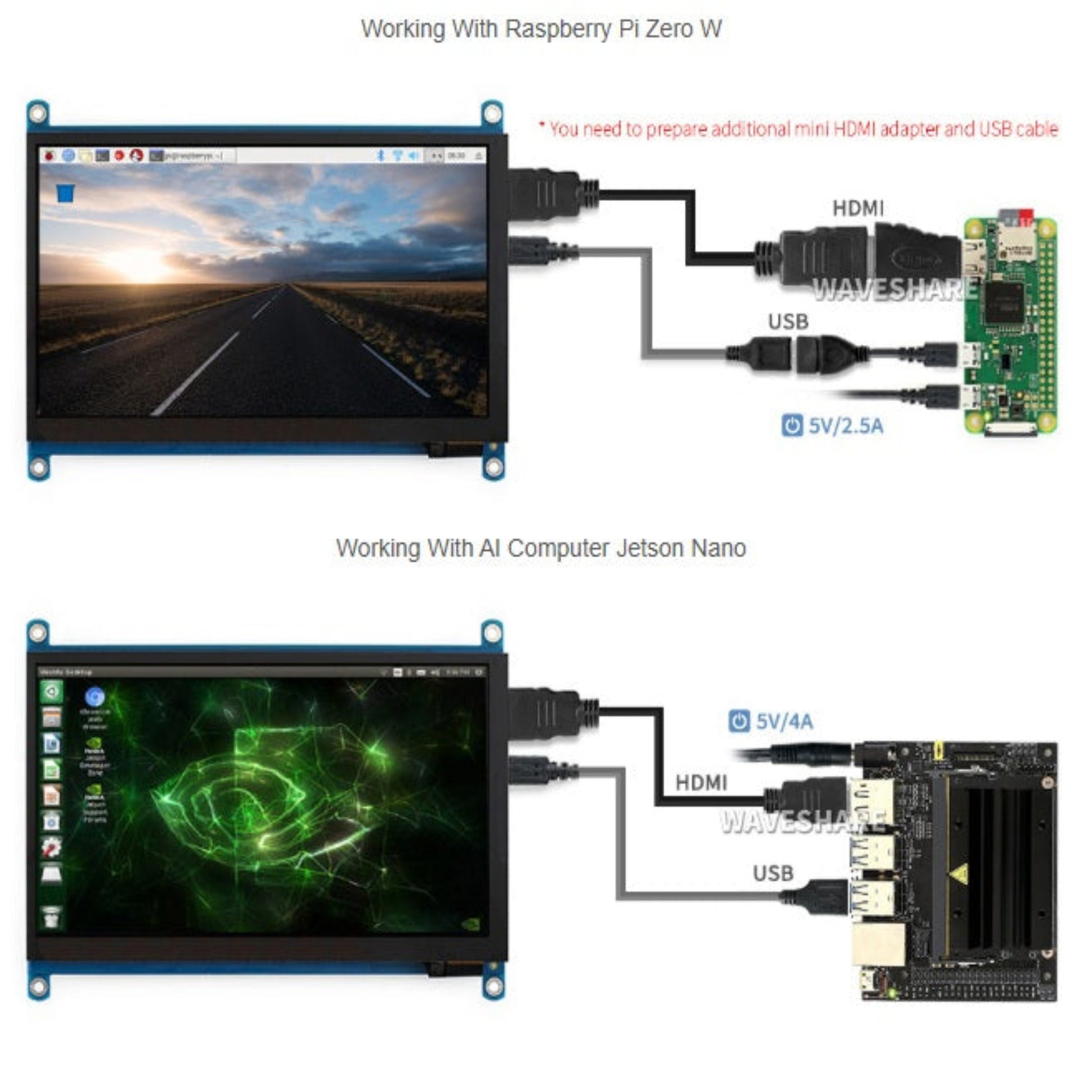

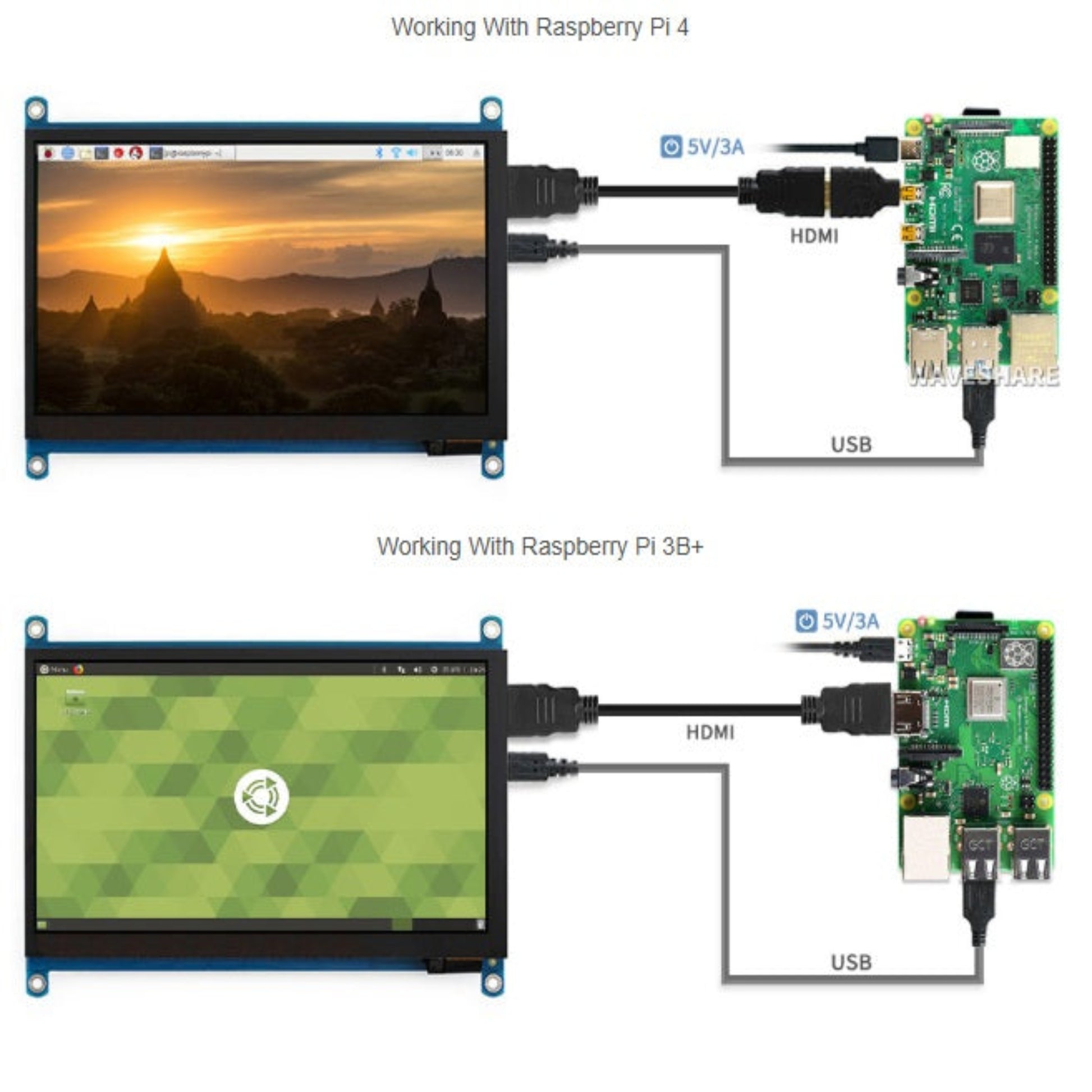

When powering this Waveshare QLED Display via a Raspberry Pi, our Sham Shui Po technical team strongly advises using the dedicated "Power Only" port connected to an external 5V/3A power supply if your Pi is running heavy peripherals. While the display can draw power directly through the USB "Touch" port, using a separate power supply ensures the screen receives stable voltage, preventing the dreaded "under-voltage" lightning bolt warning on your Raspberry Pi OS. Additionally, you can utilize the onboard 4-pin speaker header (which supports a 2.6W PA circuit) to add custom internal speakers to your 3D-printed enclosure!

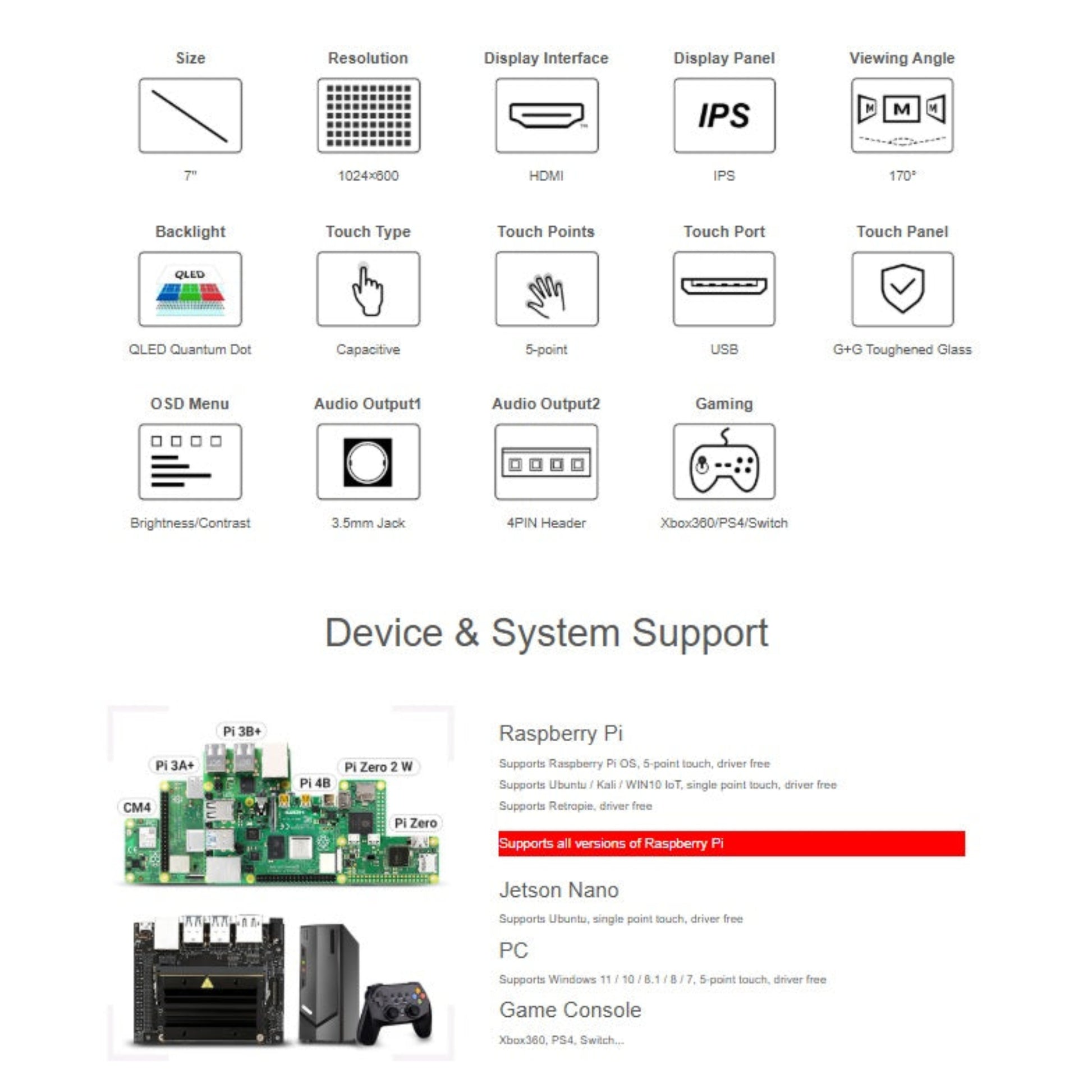

Technical Specifications

Brand: Waveshare
Model: 7HP-CAPQLED
Display Size: 7 Inches
Resolution: 1024 x 600 Pixels
Display Panel: IPS with QLED Quantum Dot Backlight
Viewing Angle: 170°
Touch Type: 5-Point Capacitive Touch (G+G Toughened Glass, 6H Hardness)
Display Interface: HDMI
Touch/Power Interface: USB Type-C (Touch Port & Power Only Port)
Power Input: 4V ~ 5.5V Wide Range USB Input
Audio Output: 3.5mm Earphone Jack & 4-PIN Speaker Header (2.6W PA Circuit)
OSD Menu: Physical buttons for Brightness/Contrast adjustment
Weight: 0.45 kg

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Do I need to install drivers to use the touch function on a Raspberry Pi?No, you do not need to install any drivers to use the touch function on a Raspberry Pi. The Waveshare 7-inch QLED Display features a built-in USB protocol translator that makes it natively recognized as a standard HID multi-touch device by Raspberry Pi OS, Ubuntu, and Windows.
What is the purpose of having two USB ports (Touch and Power Only)?The "Touch" port transmits touch data and can power the screen, while the "Power Only" port is used strictly for extra power. If your host device (like an older Raspberry Pi) cannot output enough current through its USB port, you can plug a dedicated 5V adapter into the "Power Only" port to prevent screen flickering.
How does the ideal diode isolation protect my devices?The low dropout ideal diode isolation ensures that if you plug power into both USB ports simultaneously, the display will only draw current from the source with the higher power capability. It completely isolates the two inputs, preventing power from back-feeding and destroying your computer's USB controller.
Can I connect my own speakers directly to this display board?Yes, you can connect your own speakers directly to the Waveshare 7HP-CAPQLED board. It features a dedicated 4-pin speaker header equipped with a 2.6W PA (Power Amplifier) circuit, providing strong and clear audio output without needing an external amplifier module.
Is this Waveshare display available for testing at your Hong Kong store?Yes, the Waveshare 7-inch QLED Capacitive Touch Display is in-stock at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po. You are welcome to bring your Raspberry Pi or laptop to our physical store to test the display quality and touch responsiveness before purchasing.

Target Users / Applications

Industrial HMI Designers: Building custom control panels for factory machinery relying on the FFC anti-interference design and stable DC-DC driver.
Raspberry Pi Makers: Creating DIY smart home dashboards (Home Assistant) or custom cyberdecks utilizing the driver-free 5-point touch.
Retro Gaming Enthusiasts: Hooking up a Raspberry Pi running RetroPie to a vibrant QLED screen with built-in 2.6W speaker amplification for portable arcade builds.
