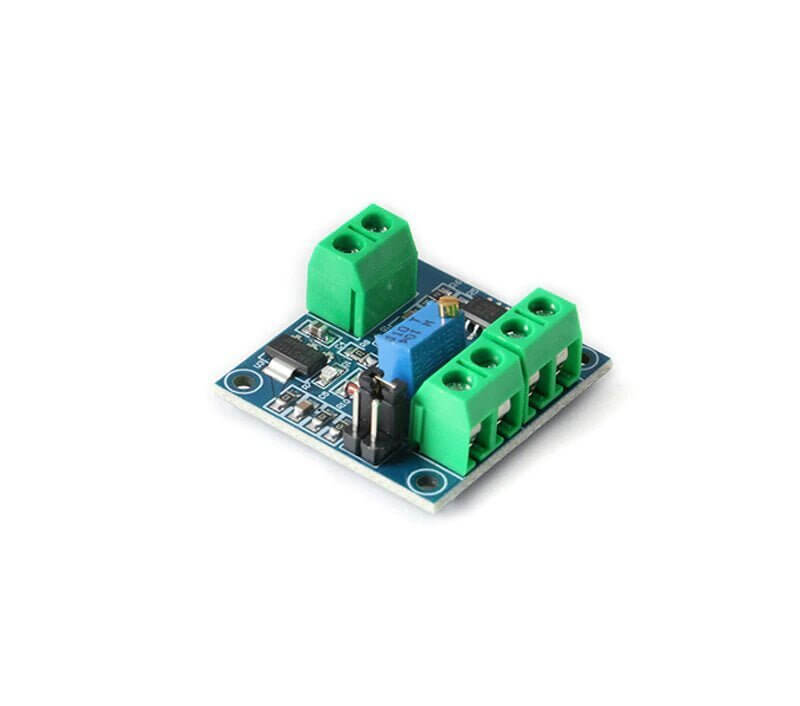

Voltage to PWM Module 0-10v

Voltage to PWM Converter Module 0%-100% to 0-5V 0-10V Digital to Analog Signal PWM Adjustable Power Module

Module working voltage: DC 5V-12V

Output PWM frequency: about 50KHZ

PWM amplitude: 5V

Conversion range: 0-5V/0-10V

Voltage conversion: 0%-100%6PWM

Tolerance: 1%-3%

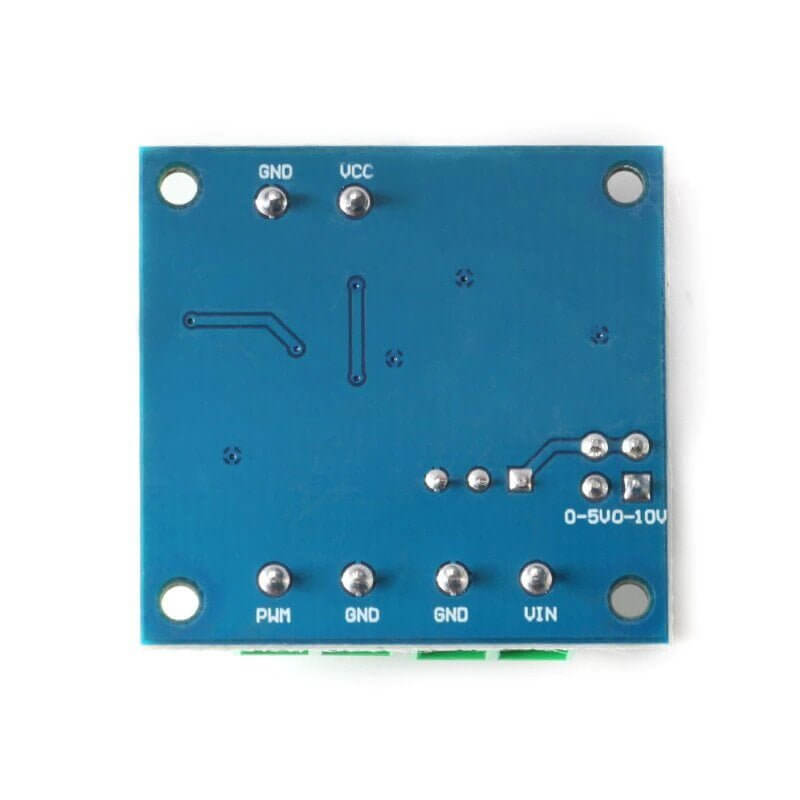

Voltage to PWM:

VCC: Working power supply 5V-12V.

GND: working power ground

VIN: input voltage 0-10V

GND: Input signal negative terminal.

GND: Output PWM ground.

PWM: output PWM

Connect the working voltage to VCC and GND. Do not connect them in reverse to avoid damage to the board and devices. Connect a controllable voltage at the VIN terminal. The voltage range is divided into two types: 0-5V and 0-1 0V according to the selected mode. The PWM output is PWM. The duty cycle can be adjusted by adjusting the voltage. The accuracy can be controlled by adjusting the potentiometer
