60m HD 1080P UTP VGA Extender RJ45 1x1 Splitter With 3.5mm Audio RJ45/Cat5e/6 Ethernet Cable For Projector HDTV PC
Feature
1) Beautiful outlook, easy installation
2) Plug and play, no need to adjust, no need to set up

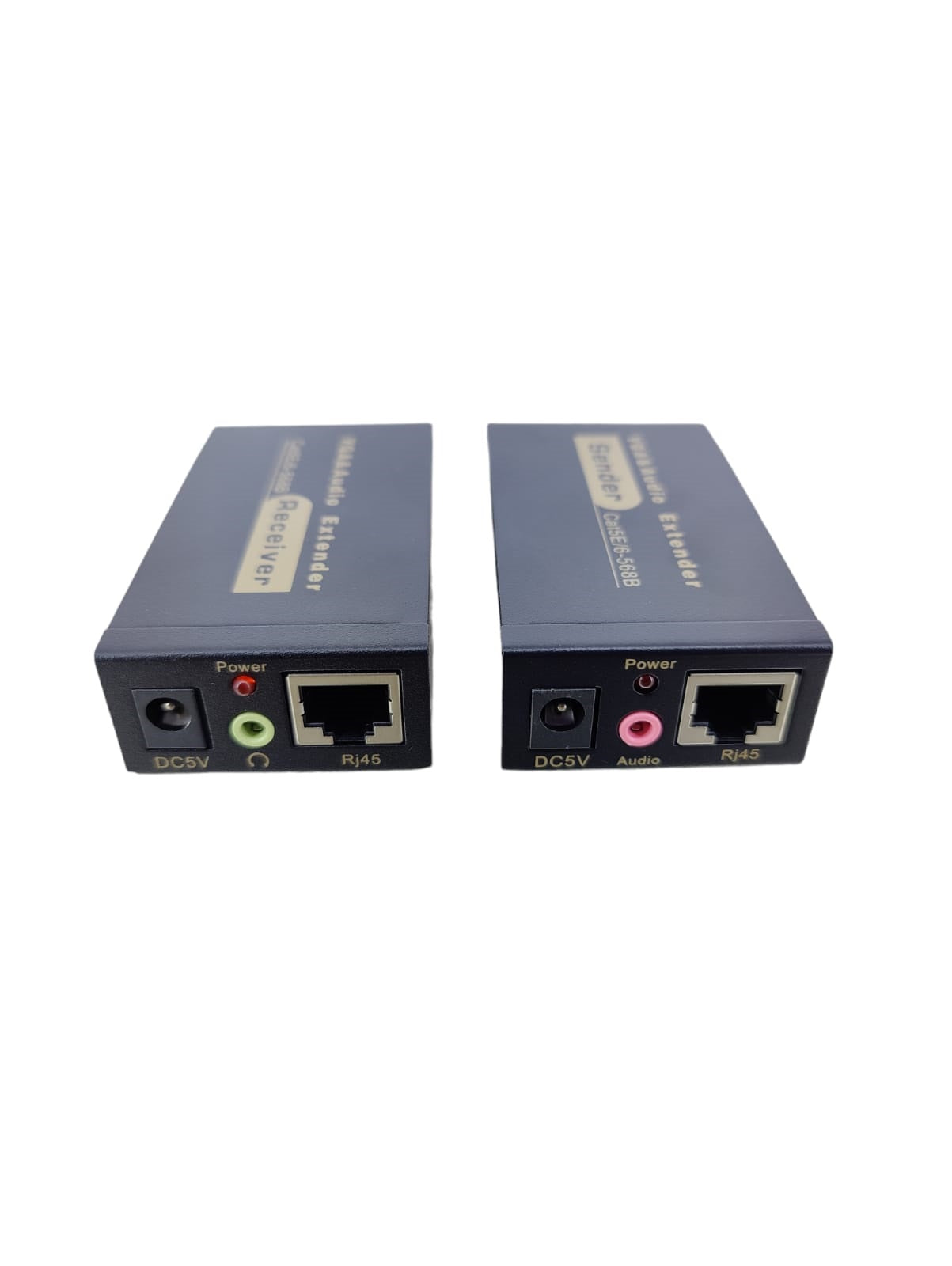

3) Interface type: HDB15-F,RJ45, Audio DC3.5
4) Support video resolution up to:1920x1440@60Hz
5) Support several signal source: Computer, Laptop, Digital Video Recorder(DVR)
8) Video(VGA) and Audio extention simultaneously
9) Extention distance: Up to 60M
10) Power adapter: DC 5V

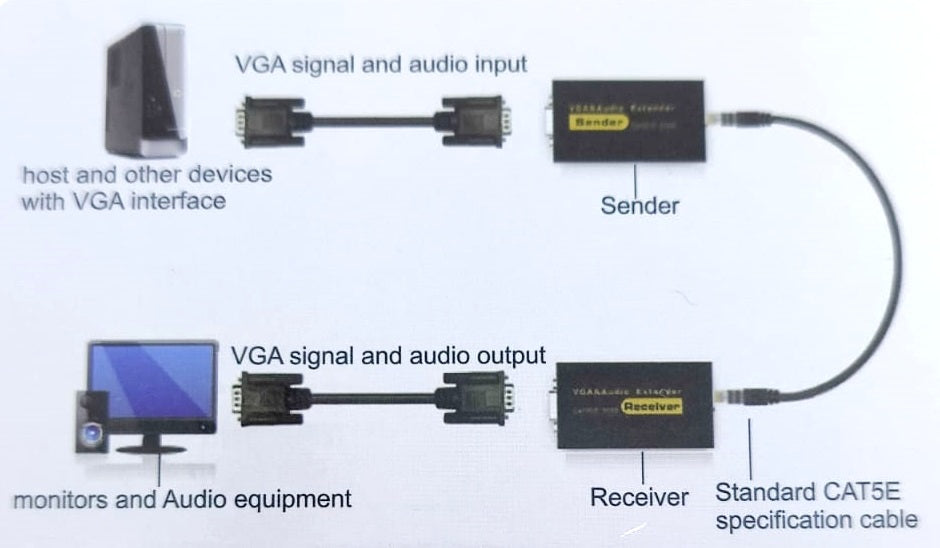

Installation Steps
1) Connect the Sender and signal source with one VGA(M-M) cable, and one DC3.5 audio cable
2) Connect the Receiver to the monitor earphone
3) Connect the Sender and the Receiver with one CAT5E/6 cable
4) Power on the Sender and the Receiver

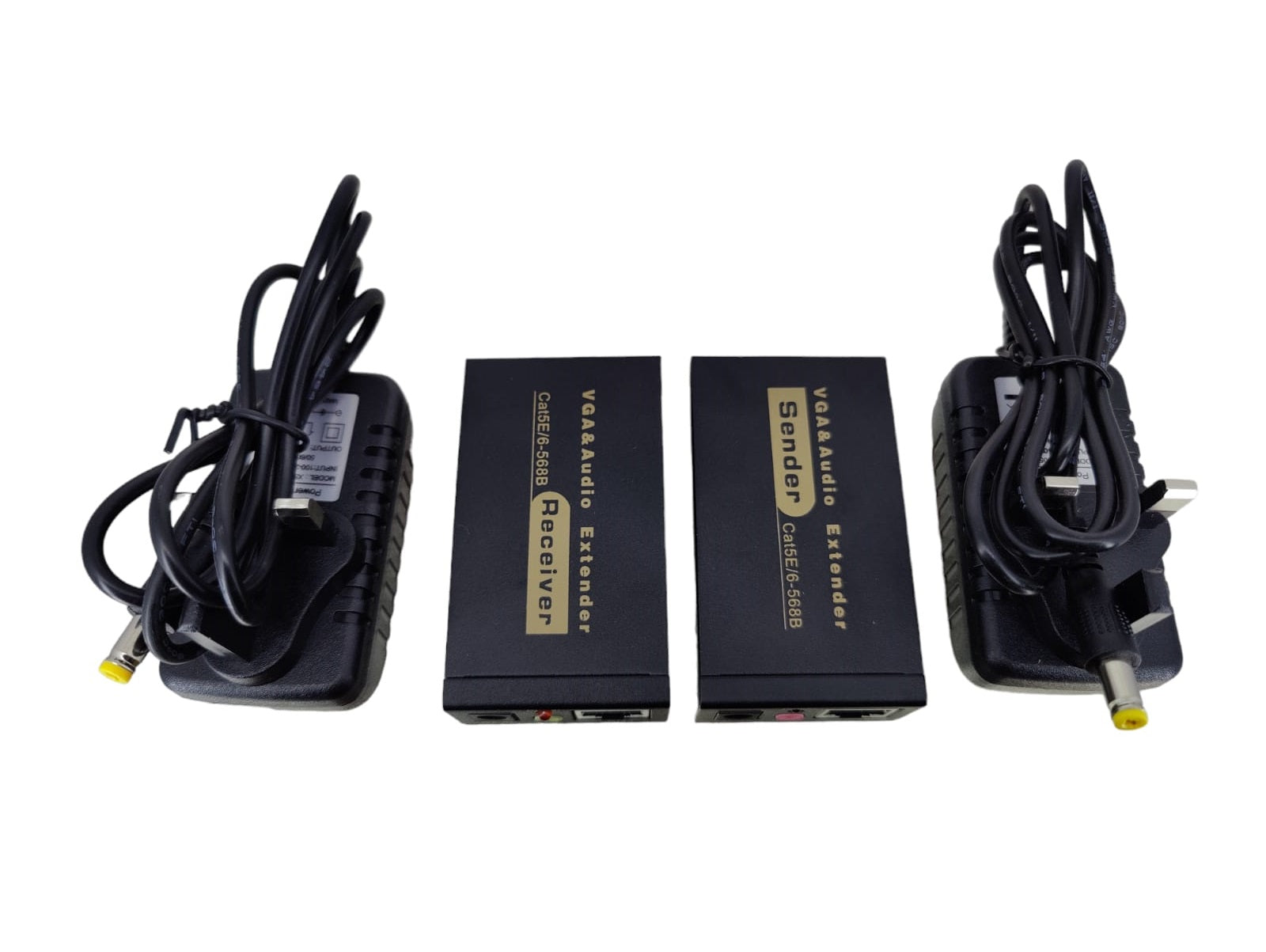

Package List

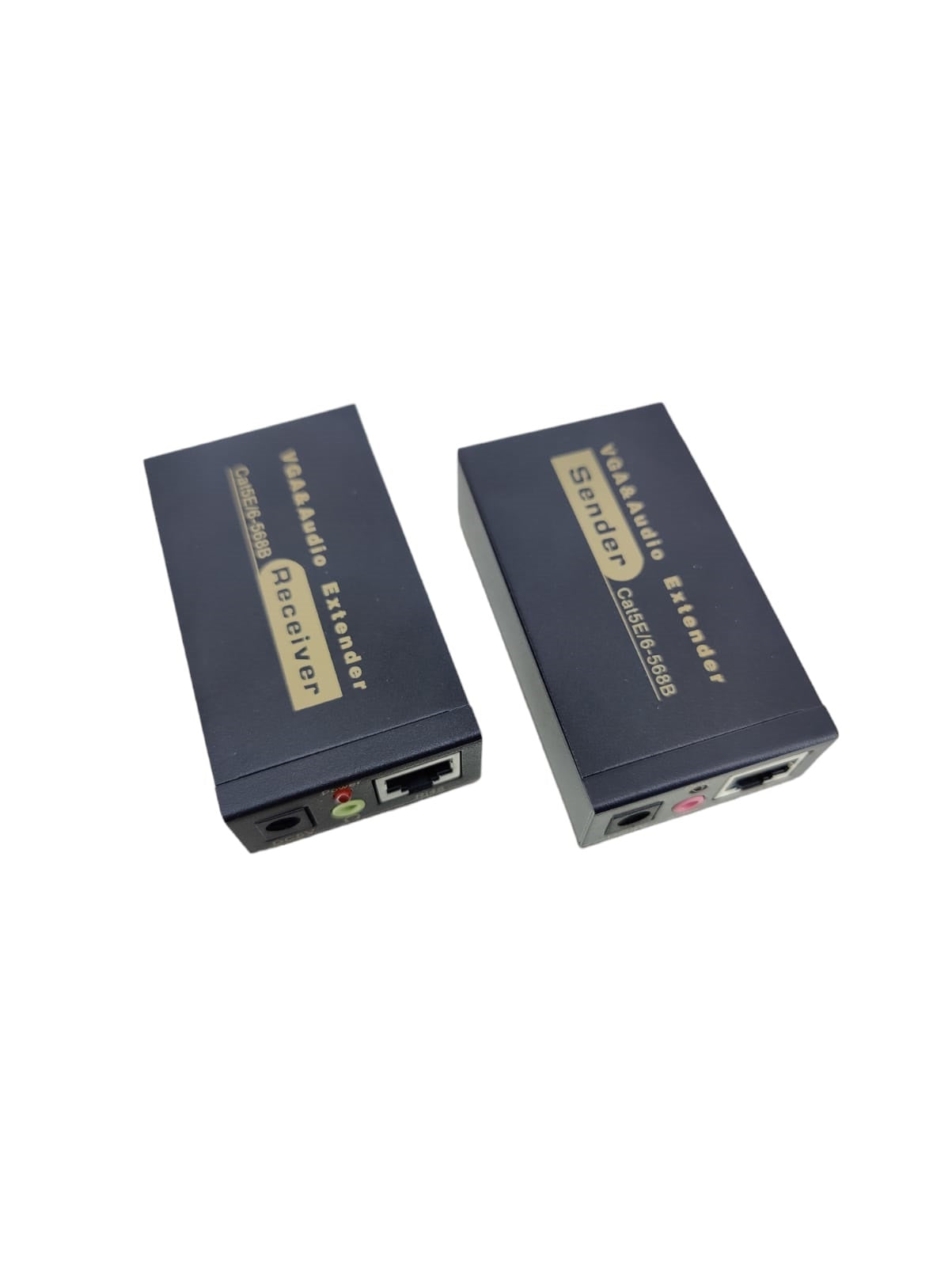

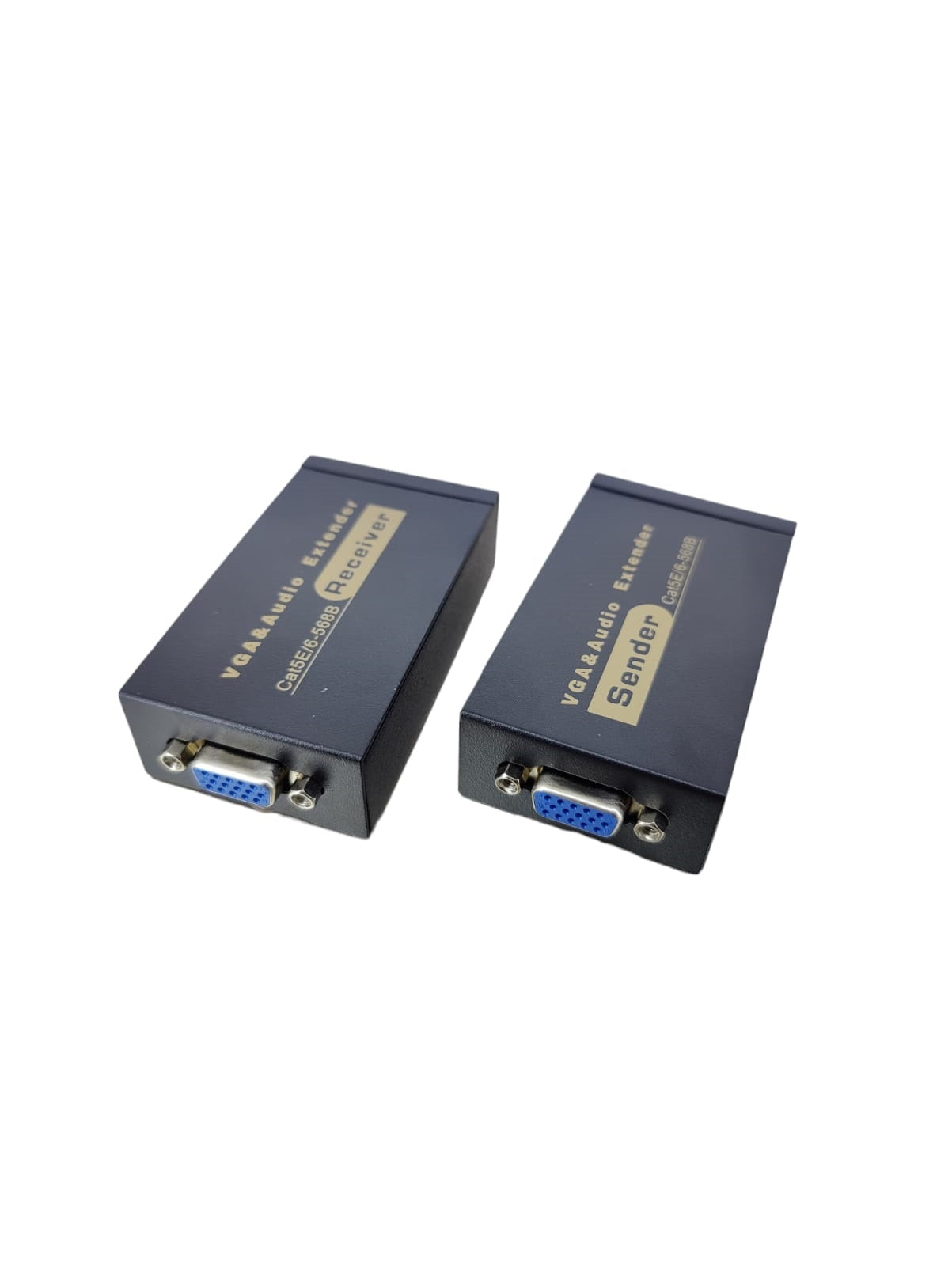

1 x VGA UTP Sender
1 x VGA UTP Receiver
2 x DC 5V Power Adapters
1 x User manual
