Does the UNI-T UT33D+ measure AC current?

No, the UNI-T UT33D+ only measures DC current (up to 10A). It is designed to measure AC Voltage (up to 600V), but if you need to measure AC current for heavy household appliances, you will need to upgrade to a clamp meter or a more advanced multimeter model.

What is the difference between the UT33D+ and other UT33 series models?

The UT33D+ specifically features Non-Contact Voltage (NCV) detection, making it ideal for safely identifying live AC wires. Other models in the series focus on different specialties, such as the UT33A+ which includes capacitance testing and auto-ranging features.

How do I use the NCV function on this multimeter?

To use the NCV function, turn the central dial to the "NCV" position and bring the top edge of the multimeter close to the wire or wall outlet you want to test. If live AC voltage is detected, the meter will emit a loud beeping sound and display a visual indicator on the LCD.

Are the batteries and test leads included in the box?

Yes, the UNI-T UT33D+ comes completely ready to use out of the box. The package includes the digital multimeter, a durable protective cover, two high-quality test leads (probes), two AAA batteries, and the operating manual.

Can I get a demonstration on how to test a battery at your store?

Yes, you can bring your batteries or electronic components to Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po. Our technical staff will gladly demonstrate how to set the dial to the correct DC Voltage range and properly use the test probes to get an accurate reading.

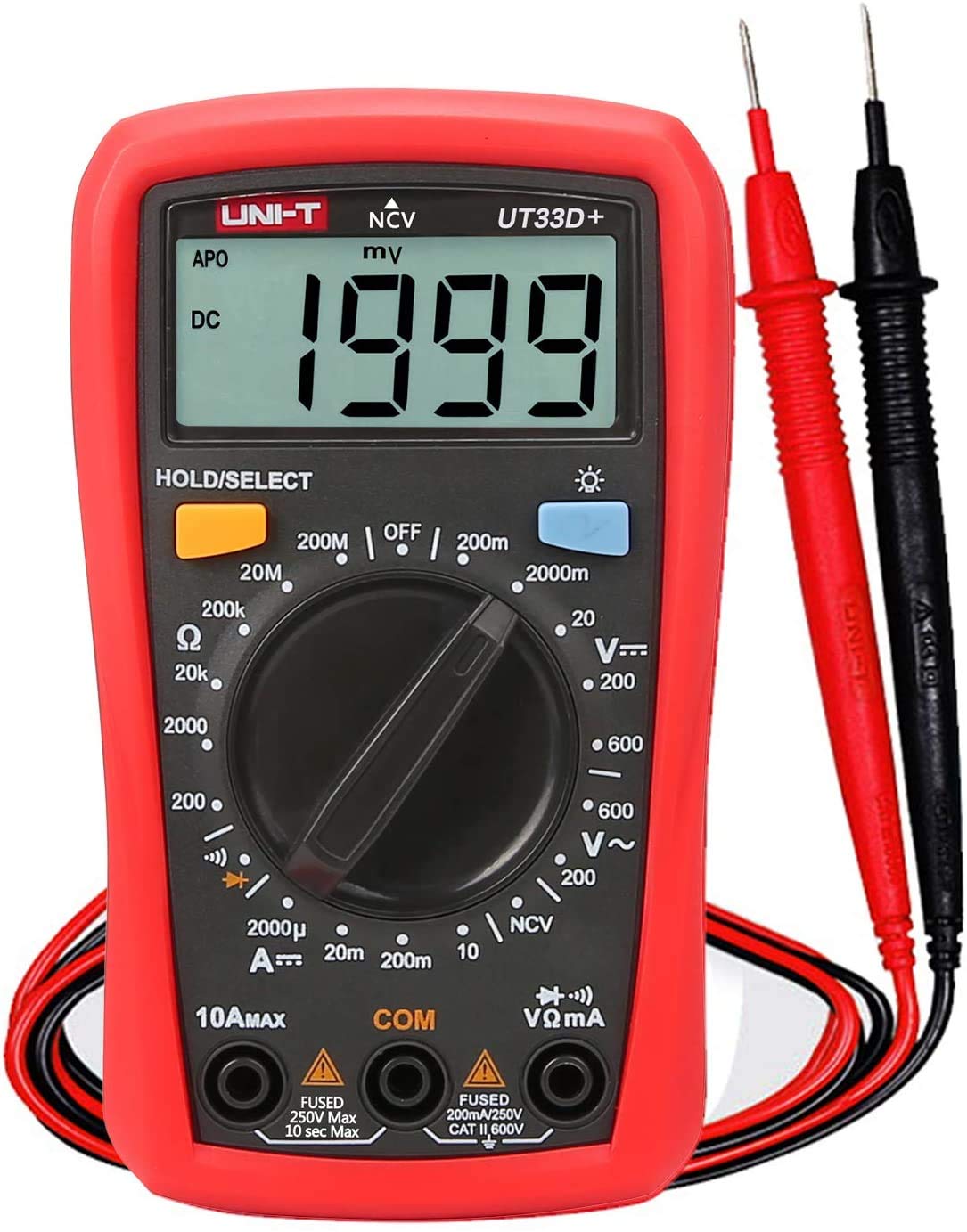

UNI-T UT33D+ Digital Multimeter | NCV & 2m Drop Test

Name: UNI-T UT33D+ Digital Multimeter | NCV & 2m Drop Test
Brand: UNI-T
SKU: 21TS001411
Price: 88.0 HKD
Availability: InStock

Short Product Description

The UNI-T UT33D+ Palm Size Digital Multimeter is a rugged, highly accurate diagnostic tool designed for electricians, STEM students, and DIY hobbyists. Featuring Non-Contact Voltage (NCV) detection, a clear LCD display, and a robust red protective holster certified for 2-meter drops, this pocket-sized meter safely measures AC/DC voltage, DC current, and resistance. Available for instant pickup at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po, our technical staff can help you master its functions for your next custom electronics or home repair project.

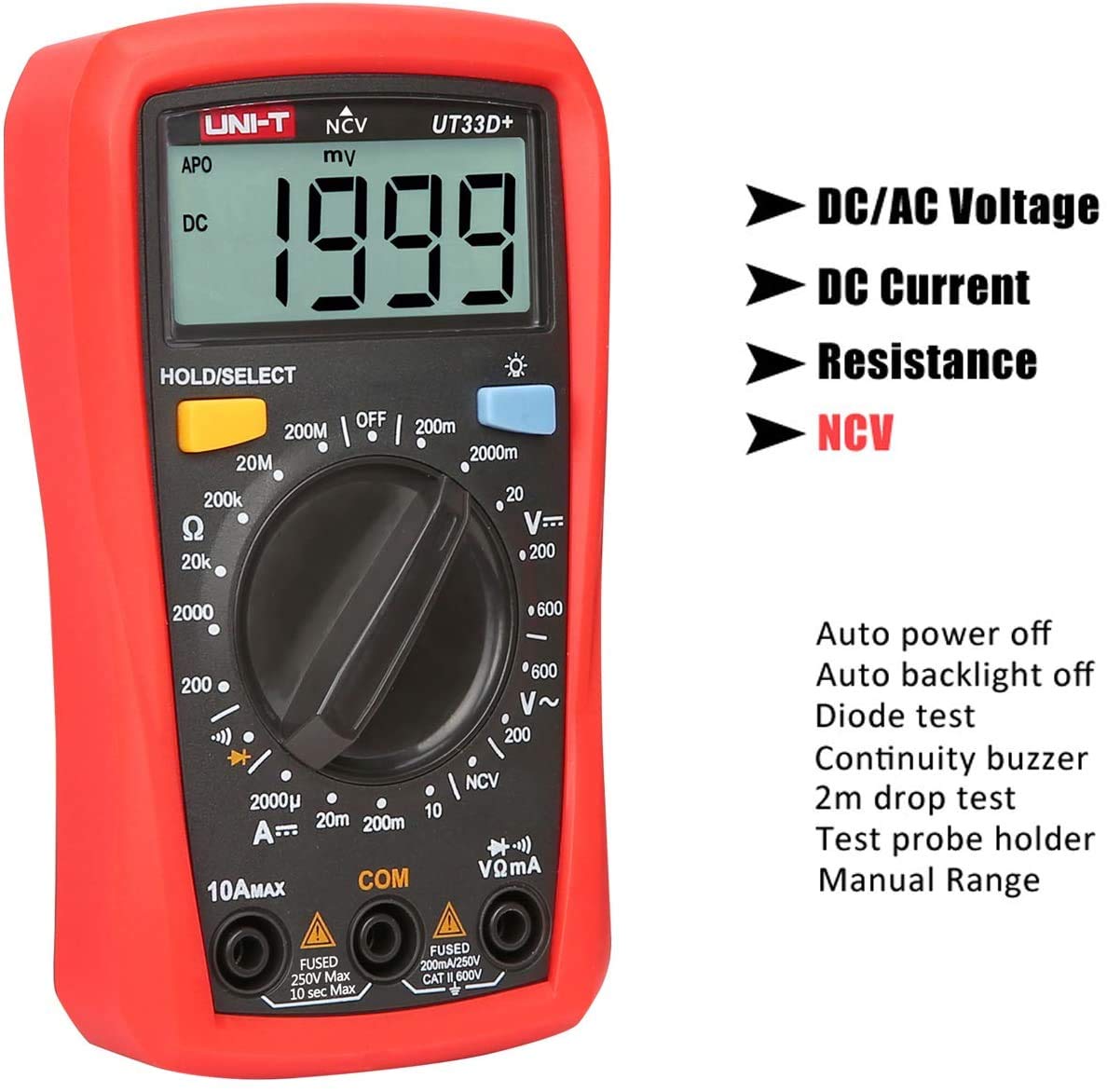

Key Features

Non-Contact Voltage (NCV): Safely detect live AC electrical currents without physical contact, minimizing the risk of electric shock.
2-Meter Drop Resistance: The heavy-duty protective cover absorbs impacts, ensuring the meter survives accidental drops in tough workshop environments.
Clear LCD with Auto-Backlight: Provides crisp, easy-to-read measurements (up to 1999 counts) with an auto-off backlight to conserve battery.
Comprehensive Testing: Accurately measures DC Voltage (up to 600V), AC Voltage (up to 600V), DC Current (up to 10A), and Resistance (up to 200MΩ).
Smart Ergonomic Design: Features a comfortable grip, a loud continuity buzzer, and dedicated test lead hanging grooves for organized storage.
Battery Powered: Runs on two standard AAA batteries (included), featuring an Auto Power Off function to extend operational lifespan.

Full Product Description

Reliable Electrical Diagnostics for DIY and Pros

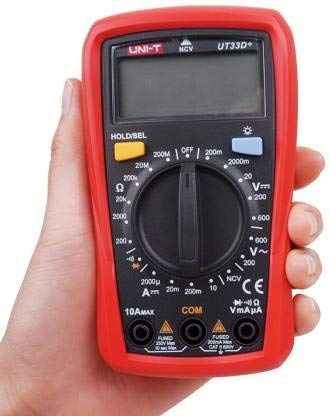

The UNI-T UT33D+ Digital Multimeter delivers precise voltage, current, and resistance measurements in an incredibly compact and ergonomic form factor. Whether you are troubleshooting a faulty household appliance, testing RC drone batteries, or verifying Arduino circuit voltages, this palm-sized device provides accurate readings up to 600V. Its clear LCD display ensures that your diagnostic data is always easy to read, streamlining your workflow and reducing testing errors.

Built-In NCV for Safe AC Detection

The Non-Contact Voltage (NCV) feature allows you to safely detect live AC wires hidden behind walls or inside conduits without physically touching exposed copper. By simply hovering the top of the UT33D+ Multimeter near a power outlet or cable, the device will alert you to the presence of live voltage via a loud continuity buzzer and visual indicators. This hands-free detection is an essential safety feature for anyone performing household electrical repairs or identifying broken circuits.

Rugged 2-Meter Drop Protection

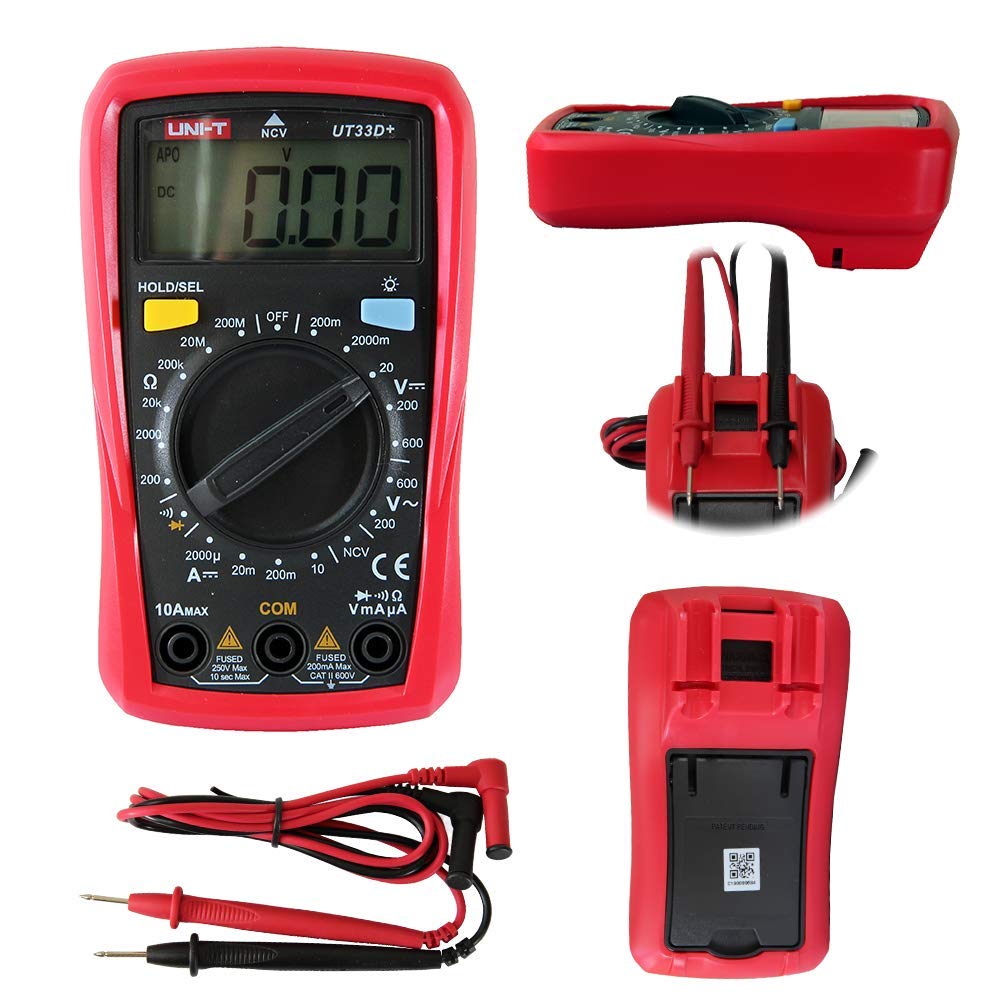

Encased in a durable, ergonomic red protective holster, this Palm Size Multimeter is officially certified to survive 2-meter drops onto hard concrete surfaces. This precision protection ensures the delicate internal calibration remains intact even if it slips from your workbench or toolbelt. The protective cover also features a convenient test lead hanging groove and a built-in probe holder, keeping your workspace organized and your sharp probes safely tucked away when not in use.

Pro Tip from Our Technicians

Always double-check your dial settings before testing high-voltage AC outlets to prevent blowing the internal fuses. Our Sham Shui Po technical team strongly advises ensuring the dial is firmly set to the "ACV 600V" position before probing household mains power; accidentally leaving it in the DC Current (A) or Resistance (Ω) mode will instantly trigger the internal 250V fuse. To preserve battery life, rely on the meter's Auto Power Off and Auto Backlight Off features during long troubleshooting sessions.

Technical Specifications

Brand: UNI-T
Model: UT33D+
Product Type: Palm Size Digital Multimeter
Maximum Display: 1999 Counts
DC Voltage (DCV): 200mV / 2V / 20V / 200V / 600V (Accuracy ±0.5% + 2)
AC Voltage (ACV): 200V / 600V (Accuracy ±1.2% + 3)
DC Current (DCA): 2000μA / 20mA / 200mA / 10A (Accuracy ±1% + 2)
Resistance (Ω): 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ / 200MΩ (Accuracy ±0.8% + 2)
Special Functions: NCV, Diode Test, Continuity Buzzer

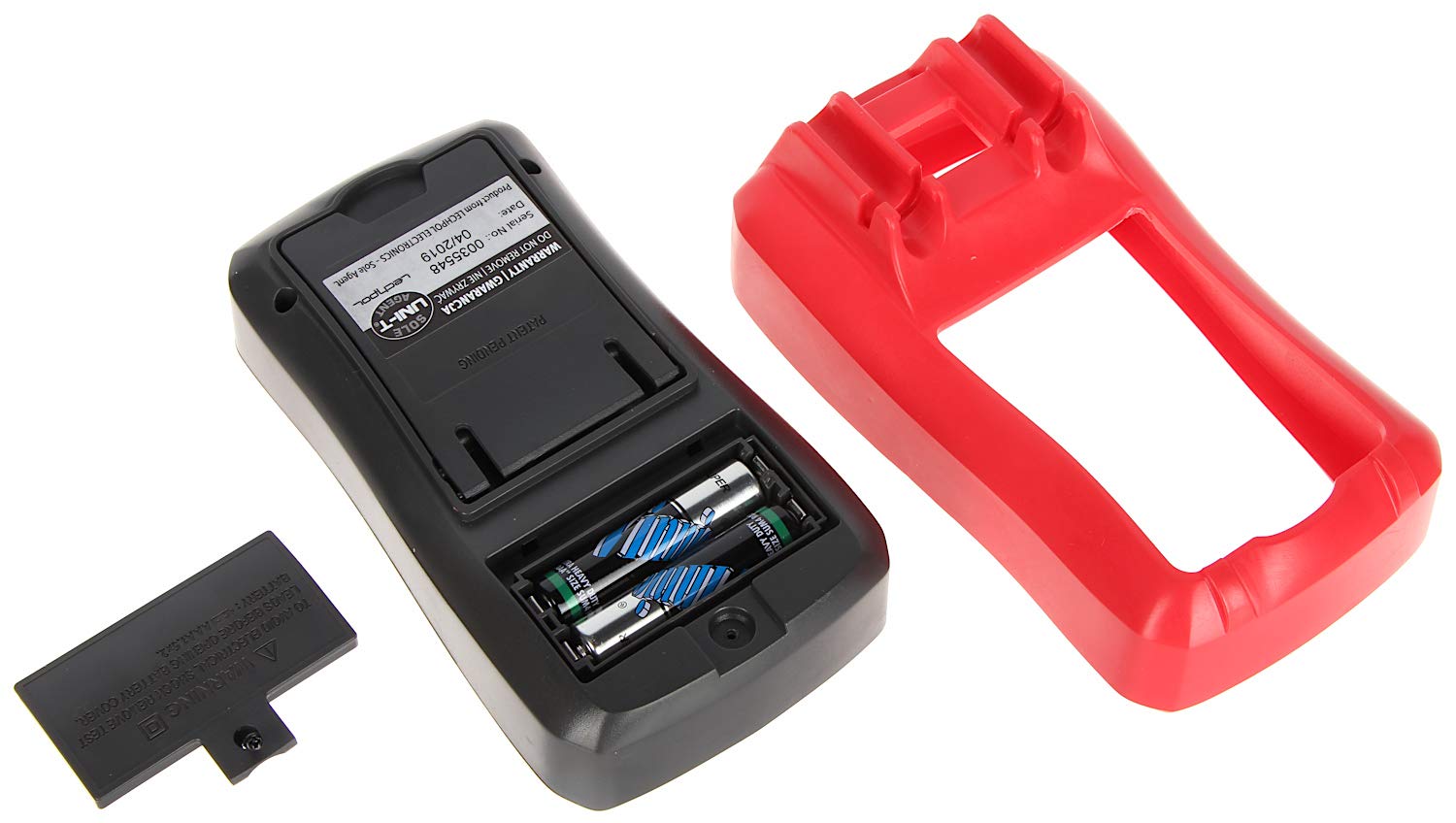

Power Supply: 2 x 1.5V AAA Batteries (Included)
Dimensions: 130mm x 73.5mm x 35mm
Net Weight: 179g (Including protective holster)

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Does the UNI-T UT33D+ measure AC current?No, the UNI-T UT33D+ only measures DC current (up to 10A). It is designed to measure AC Voltage (up to 600V), but if you need to measure AC current for heavy household appliances, you will need to upgrade to a clamp meter or a more advanced multimeter model.
What is the difference between the UT33D+ and other UT33 series models?The UT33D+ specifically features Non-Contact Voltage (NCV) detection, making it ideal for safely identifying live AC wires. Other models in the series focus on different specialties, such as the UT33A+ which includes capacitance testing and auto-ranging features.
How do I use the NCV function on this multimeter?To use the NCV function, turn the central dial to the "NCV" position and bring the top edge of the multimeter close to the wire or wall outlet you want to test. If live AC voltage is detected, the meter will emit a loud beeping sound and display a visual indicator on the LCD.

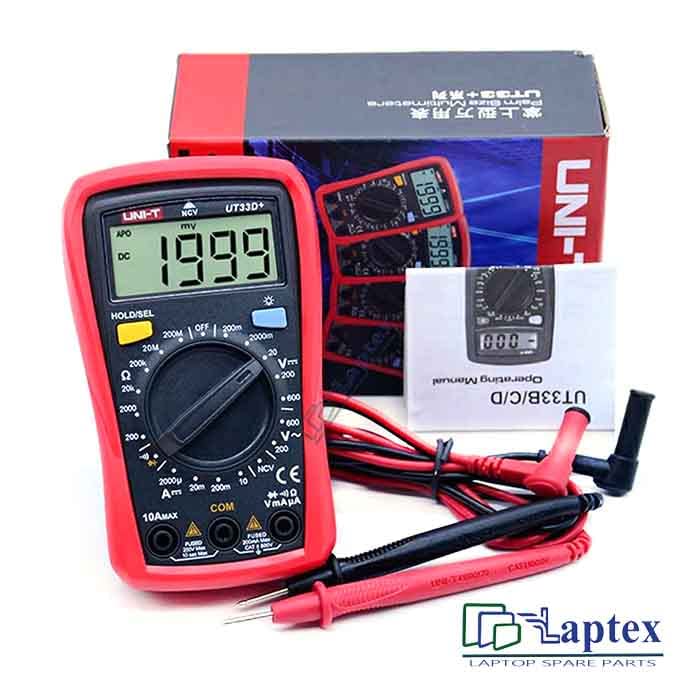

Are the batteries and test leads included in the box?Yes, the UNI-T UT33D+ comes completely ready to use out of the box. The package includes the digital multimeter, a durable protective cover, two high-quality test leads (probes), two AAA batteries, and the operating manual.
Can I get a demonstration on how to test a battery at your store?Yes, you can bring your batteries or electronic components to Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po. Our technical staff will gladly demonstrate how to set the dial to the correct DC Voltage range and properly use the test probes to get an accurate reading.

Target Users / Applications

Household DIY Repairers: Safely checking wall outlets for live AC voltage using the NCV function before installing new light fixtures or ceiling fans.
STEM Students & Hobbyists: Measuring exact resistor values and checking diode continuity on custom Arduino and Raspberry Pi breadboard circuits.
Automotive Modders: Testing 12V car battery health and diagnosing blown DC fuses in vehicle fuse boxes using the 10A DC current setting.
