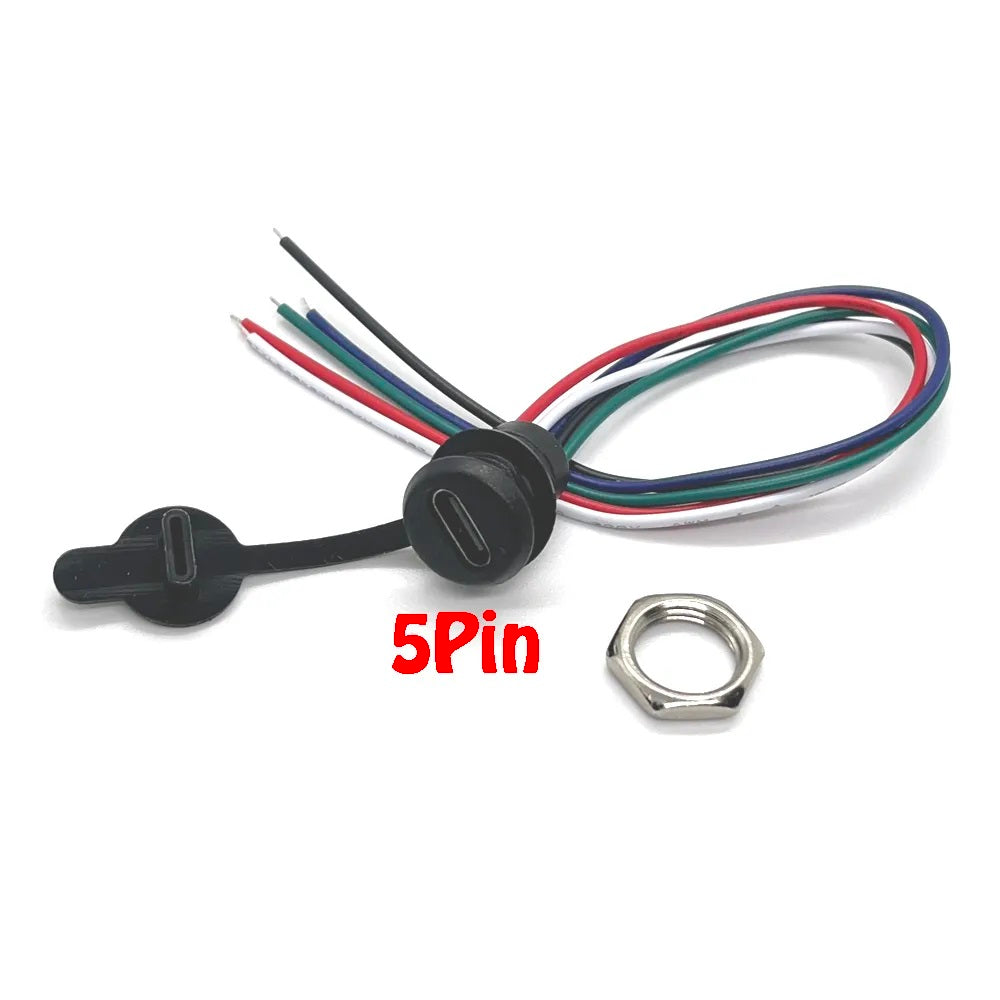

• Includes primary keywords, key features (waterproof, 5Pin, PH2.0), and a view indicator.

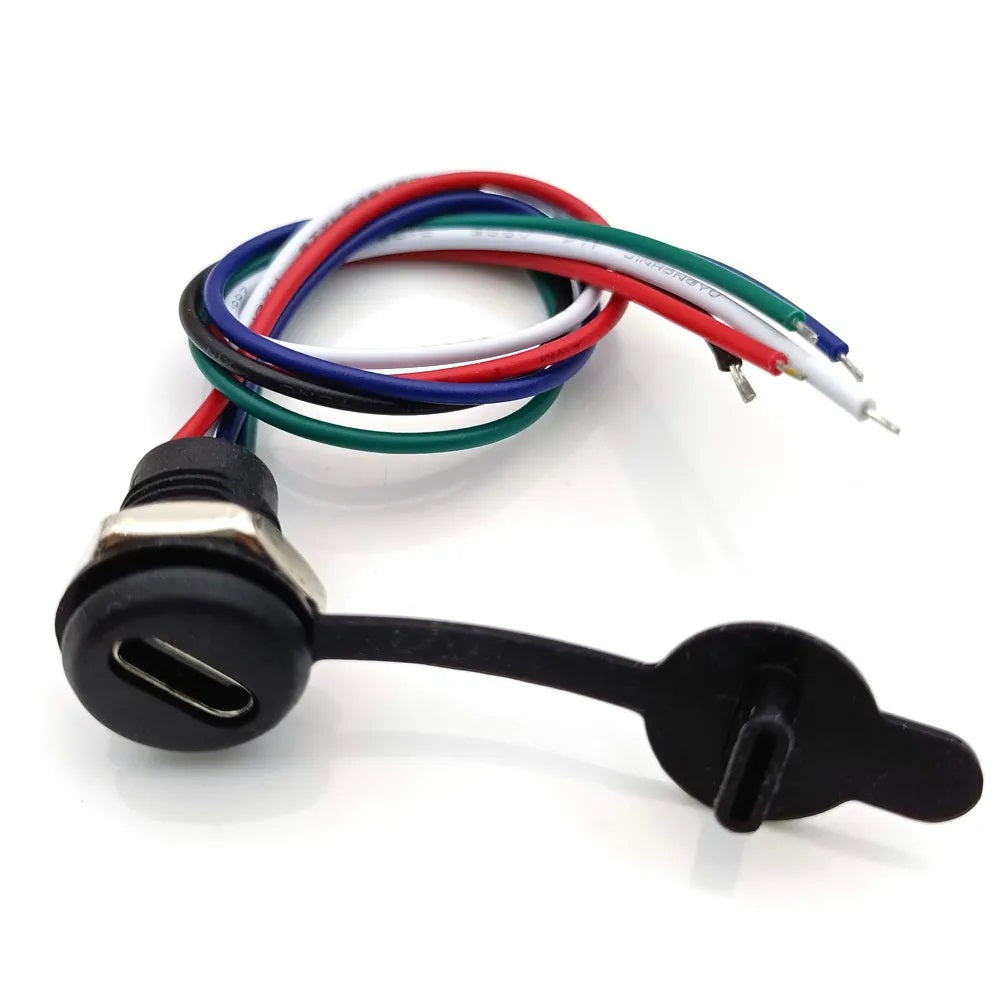

  • Focuses on the high current feature and shows the full assembly or a different angle.
1 2
sales

Waterproof USB Type-C Female Connector Cable

Waterproof USB Type-C Female Connector Cable

HK$12.00
HK$12.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

⚡ Product Overview

This Waterproof USB Type-C Female Connector Cable is designed for DIY electronics, embedded charging ports, and industrial or outdoor applications where reliable waterproof performance is essential.
It combines modern USB-C fast charging capability with a rugged, lock-nut design for secure installation.

🔍 Key Features

  • 💧 IP-rated waterproof protection – Sealed connector design keeps out moisture and dust for safe, stable connections in harsh environments.
  • ⚡ High-current performance – Supports DC 5V/3A and DC 9V/3A charging, suitable for fast-charging circuits or power modules.
  • 🔩 Secure panel mounting – Equipped with a nut-lock panel mount, allowing firm installation on equipment panels or enclosures.
  • 🔌 Easy integration – Comes with a PH2.0 5Pin connector for quick connection to microcontroller or PCB boards.
  • 🧰 Ideal for DIY use – Perfect for hobby projects, embedded systems, or upgrading devices with a waterproof Type-C charging port.

📐 Technical Specifications

Specification Details
Connector Type USB Type-C Female
Pin Count 5Pin
Wire Gauge 24AWG
Cable Length Approx. 15cm
Rated Voltage/Current DC 5V 3A / DC 9V 3A
Terminal Connector PH2.0
Mounting Type Panel Mount (Nut Lock Type)
Function High-current power or charging connection (data optional)

💡 Applications

  • DIY electronic projects
  • Waterproof charging port integration
  • Outdoor equipment or embedded enclosures
  • Industrial automation panels
  • Robotics or automotive charging interfaces
