Name: 8x8mm 6-Pin Tactile Push Button Switch (Latching) | 2-Pack
Brand: Sun Cheong Computer Company Limited
Price: 6.0 HKD
Availability: InStock

Short Product Description

Looking for a reliable, tactile response for your next PCB project? This 2-pack of 8x8mm 6-Pin Tactile Push Button Switches delivers precision control with a satisfying, definitive click. Featuring a durable self-locking (latching) mechanism and color-coded caps (red and black), these micro switches are perfect for custom prototyping, home appliance repair, and educational STEM builds. Engineered for low contact resistance and high reliability, they seamlessly integrate into your circuits, minimizing bouncing noise for a flawless electronic response.

Key Features

Self-Locking (Latching) Mechanism: The switch maintains its state (ON or OFF) after being pressed, freeing up your hands and eliminating the need for complex holding circuits.
Ultra-Low Contact Resistance (≤200mΩ): Guarantees highly efficient current flow with minimal power loss, crucial for battery-operated devices.
6-Pin DIP Configuration: Provides extreme stability when soldered to a PCB and allows the switch to double as jumper leads in complex routing layouts.
High Mechanical Longevity: Tested to endure over 100,000 actuation cycles, ensuring years of maintenance-free operation.
Ergonomic Color-Coded Caps: Includes snap-on red and black caps for immediate visual identification of switch functions.

Full Product Description

Elevate Your Electronics with Precision Control

Whether you are engineering a custom control panel, repairing a beloved home appliance, or teaching a STEM robotics class, the quality of your components dictates the success of your build. Our 8x8mm 6-Pin Tactile Push Button Switches are designed to provide a highly reliable, physical interface for your low-voltage DC circuits. With a definitive mechanical click, you and your users will always know exactly when a connection has been made.

Engineered for Flawless PCB Integration

Avoid the frustration of unstable connections and erratic signal bouncing. These switches feature an optimized 6-pin DIP (Dual In-line Package) configuration that can easily be used as jumper leads to facilitate cleaner, more efficient PCB layouts. The internal mechanism is crafted to ensure low contact resistance (≤200mΩ) and minimal bouncing noise, meaning your microcontrollers (like Arduino or Raspberry Pi) will receive clean, uninterrupted logic signals every single time.

Built to Last: 100,000 Cycles of Reliability

Durability is non-negotiable in hardware design. Rated for a mechanical life of over 100,000 actuations, these tactile switches are built to withstand heavy, repeated use. They operate flawlessly across a wide temperature range (-40°C to 70°C), making them suitable for both indoor appliances and demanding industrial or outdoor DIY projects.

Effortless Identification with Color-Coded Caps

Organization is key in complex electronics. This set includes both a bright red and a solid black cap, allowing you to easily differentiate between primary functions like "Power/Stop" and "Reset/Start" on your control boards. The caps provide an ergonomic, comfortable touch area (250gf actuation force), ensuring a premium feel for the end-user.

Technical Specifications

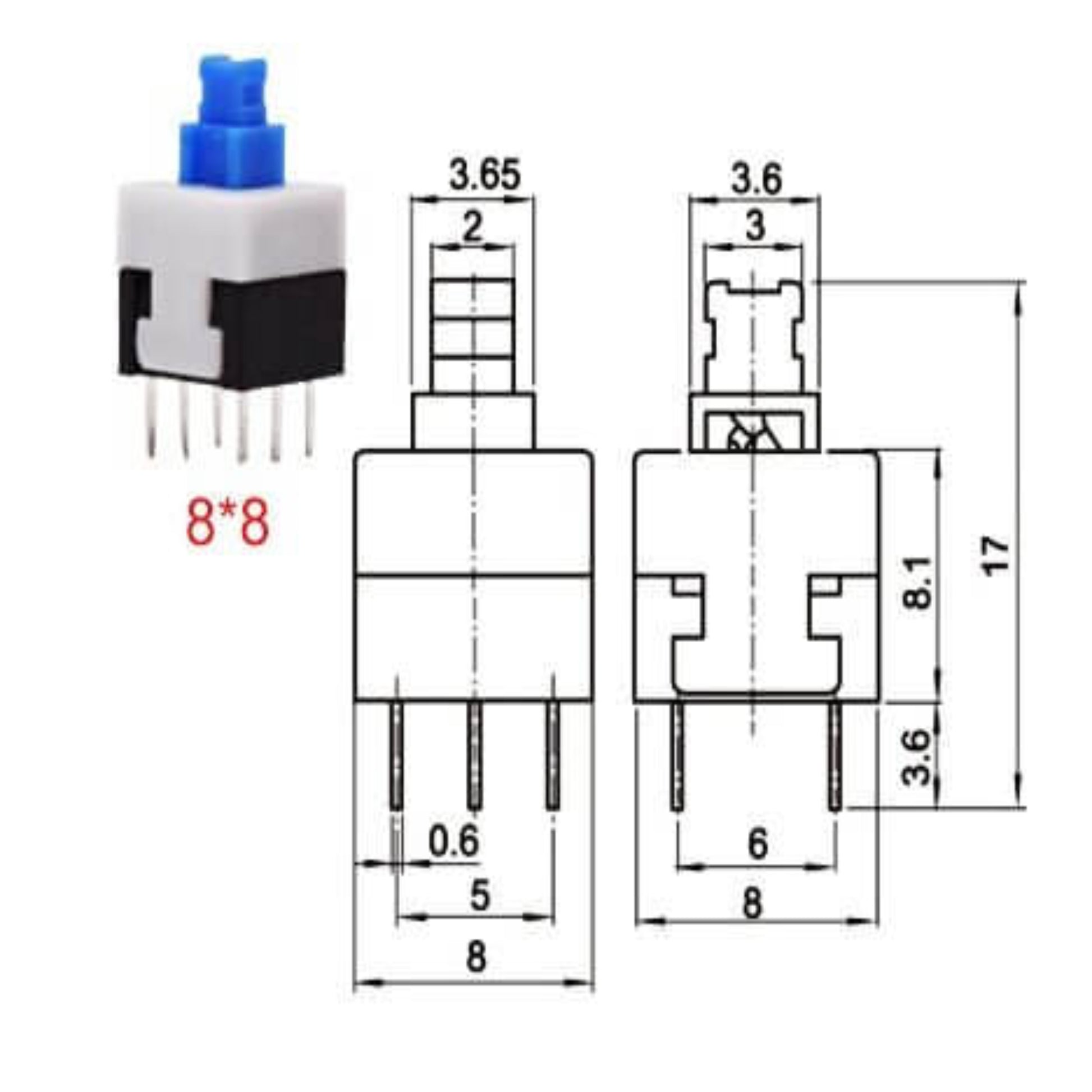

Dimensions: 8 x 8 mm.
Switch Type: Tactile Micro Switch (Self-Locking / Latching).
Pin Count: 6-Pin (DIP).
Electrical Rating: 0.1A 12V DC.
Contact Resistance: ≤200 mΩ.
Insulation Resistance: ≥100 MΩ.
Withstand Voltage: AC 250V (50Hz) for 1 minute.
Actuation Force: 250 ± 50 gf.
Operating Temperature: -40°C to 70°C.
Mechanical Life: 100,000 cycles.

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Q: Are these tactile switches compatible with standard breadboards?
A: Yes, the 6-pin layout is standard breadboard-friendly. They seat firmly into the holes, making them perfect for testing and prototyping circuits before committing to a final soldered PCB layout.

Q: What is the difference between a latching and momentary switch?
A: This product is a latching (self-locking) switch. When you press it, it clicks and stays physically down (completing the circuit). You must press it again to release it. A momentary switch only completes the circuit while your finger is actively holding it down.

Q: Can I use this switch for high-voltage AC applications?
A: No. While it has a withstand voltage test rating of AC 250V for one minute, its operational rating is strictly 0.1A at 12V DC. It is designed for logic-level signals, microcontrollers, and low-voltage DC electronics.

Target Users / Applications

DIY Electronics Enthusiasts: For custom Arduino, Raspberry Pi, and microcontroller projects.
Repair Technicians: Replacing faulty power or function buttons in household appliances, monitors, and AV equipment.
STEM Educators & Students: Building accessible, easy-to-use control panels for robotics and engineering coursework.
