Solderless VGA 15-Pin Female Connector

Name: Solderless VGA 15-Pin Female Connector | Screw Terminal
Brand: Sun Cheong Computer Company Limited
SKU: 21AR000310
Price: 20.0 HKD
Availability: InStock

Short Product Description

The Solderless VGA 15-Pin Female Breakout Connector is a professional-grade repair and custom wiring adapter designed for AV technicians and DIY enthusiasts. Featuring a 15-pin screw terminal block inside a durable plastic housing, it allows you to repair broken VGA cables or create custom-length video runs without using a soldering iron. Accommodating cables up to 7mm in diameter, this 68x35x20mm adapter is in-stock at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司) in Sham Shui Po, making it the perfect instant-pickup solution for rapid on-site projector and monitor repairs.

Key Features

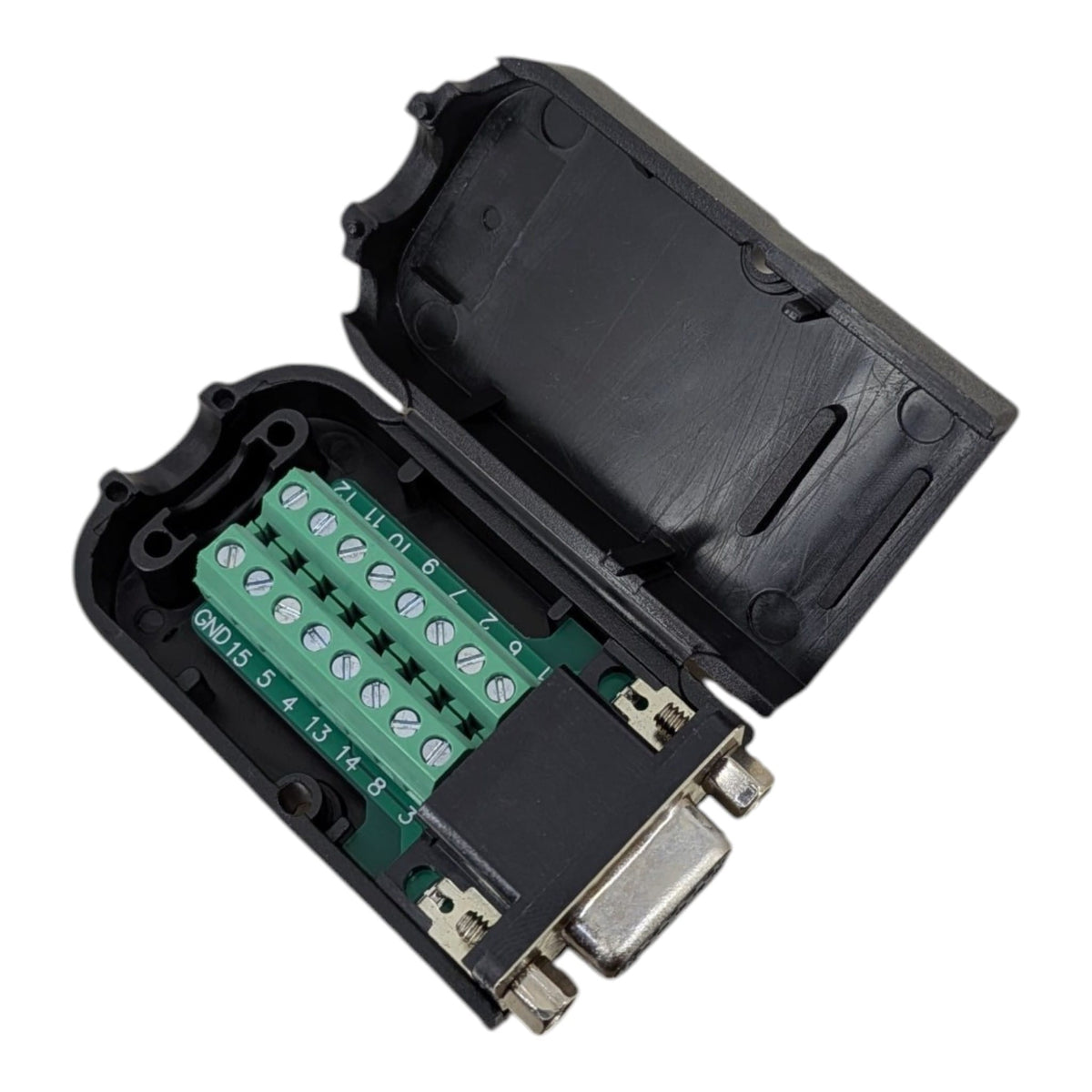

Solderless Screw Terminals: Features a 15-pin terminal block that allows for quick, tool-friendly wire connections without a soldering iron.
Clearly Numbered Pins: Every terminal is clearly labeled from 1 to 15, making it easy to follow standard VGA wiring diagrams and prevent mistakes.

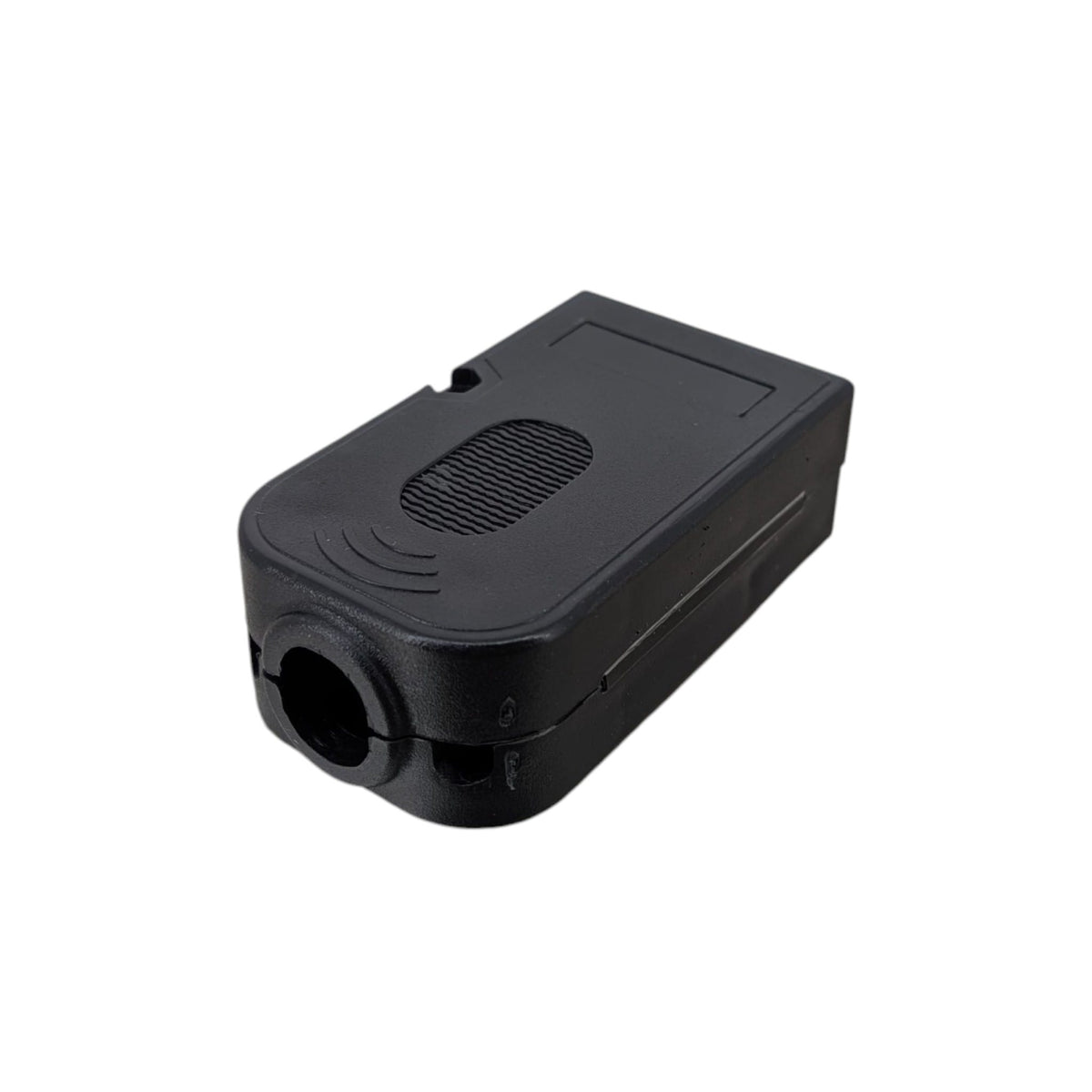

Durable Plastic Housing: The snap-together clamshell casing protects the internal wiring from dust, moisture, and physical damage.
7mm Strain Relief Sleeve: Includes a flexible rubber tail boot that accommodates cables up to 7mm thick, preventing wire fatigue and breakage.
Universal VGA Female Port: Standard 15-pin HD15 female interface connects seamlessly to any standard VGA monitor, projector, or PC output.

Full Product Description

Rapid Solderless VGA Cable Repair

This VGA breakout connector completely eliminates the need for tedious micro-soldering when repairing damaged monitor cables. Traditionally, fixing a broken VGA connector requires a steady hand to solder 15 tiny, fragile wires into a cramped metal cup. With this solderless adapter, you simply strip the wires, insert them into the clearly numbered screw terminal block, and tighten them with a small flathead screwdriver. This dramatically reduces installation time and ensures a secure, gas-tight connection that won't easily break under tension.

Custom AV Installations Made Easy

When running VGA cables through narrow conduits or walls for projectors and digital signage, pre-molded VGA heads are often too bulky to fit. This breakout connector solves that problem by allowing you to run bare wire through the conduit first, and then attach the VGA head afterward. The included 7mm rubber tail sleeve provides excellent strain relief, protecting the internal screw terminals from being pulled loose if the cable is accidentally yanked.

Pro Tip from Our Technicians

Always follow the standard 3+9 VGA wiring diagram when terminating this connector to prevent color distortion or "No Signal" errors. Our Sham Shui Po AV specialists remind you that pins 1 (Red), 2 (Green), and 3 (Blue) must be connected to the thick coaxial cores, while their respective shields must connect to pins 6, 7, and 8. Finally, ensure the main outer cable shield is twisted together and secured to the metal housing to prevent electromagnetic interference (EMI).

Technical Specifications

Product Type: VGA Breakout Connector / Solderless Adapter
Interface: VGA 15-Pin (HD15) Female
Termination Style: 15-Pin Screw Terminal Block
Dimensions: 68mm (L) x 35mm (W) x 20mm (H)
Maximum Cable Diameter: 7mm (via rubber tail sleeve)
Housing Material: High-Impact Plastic
Included Accessories: Clamshell housing, screw terminal block, 7mm tail sleeve, assembly screws

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Do I need a soldering iron to use this VGA adapter?No, you do not need a soldering iron; you only need a small flathead screwdriver to secure the stripped wires into the numbered terminal block.
Can I use this connector to fix a cable with a broken VGA head?Yes, simply cut off the broken VGA head, strip the wires, and screw them into the corresponding numbered terminals on this adapter to fully repair the cable.
What is the maximum thickness of the cable I can use with this adapter?The included rubber strain relief sleeve can accommodate VGA cables with an outer diameter of up to 7mm.
How do I know which wire goes into which numbered slot?You should follow the standard 3+9 VGA wiring diagram (e.g., Pin 1 is Red, Pin 2 is Green, Pin 3 is Blue, and Pins 13/14 are Horizontal/Vertical Sync).
Can I buy this solderless VGA connector today at your Hong Kong store?Yes, this solderless VGA female breakout connector is regularly stocked at our Sun Cheong Computer Co. Ltd. physical store in Sham Shui Po for immediate purchase and pickup.

Target Users / Applications

AV technicians running custom-length VGA cables through narrow wall conduits for ceiling-mounted projectors.
IT support staff needing to quickly repair broken VGA monitor cables in office environments without soldering equipment.
Digital signage installers creating custom video wiring harnesses for retail display screens.
