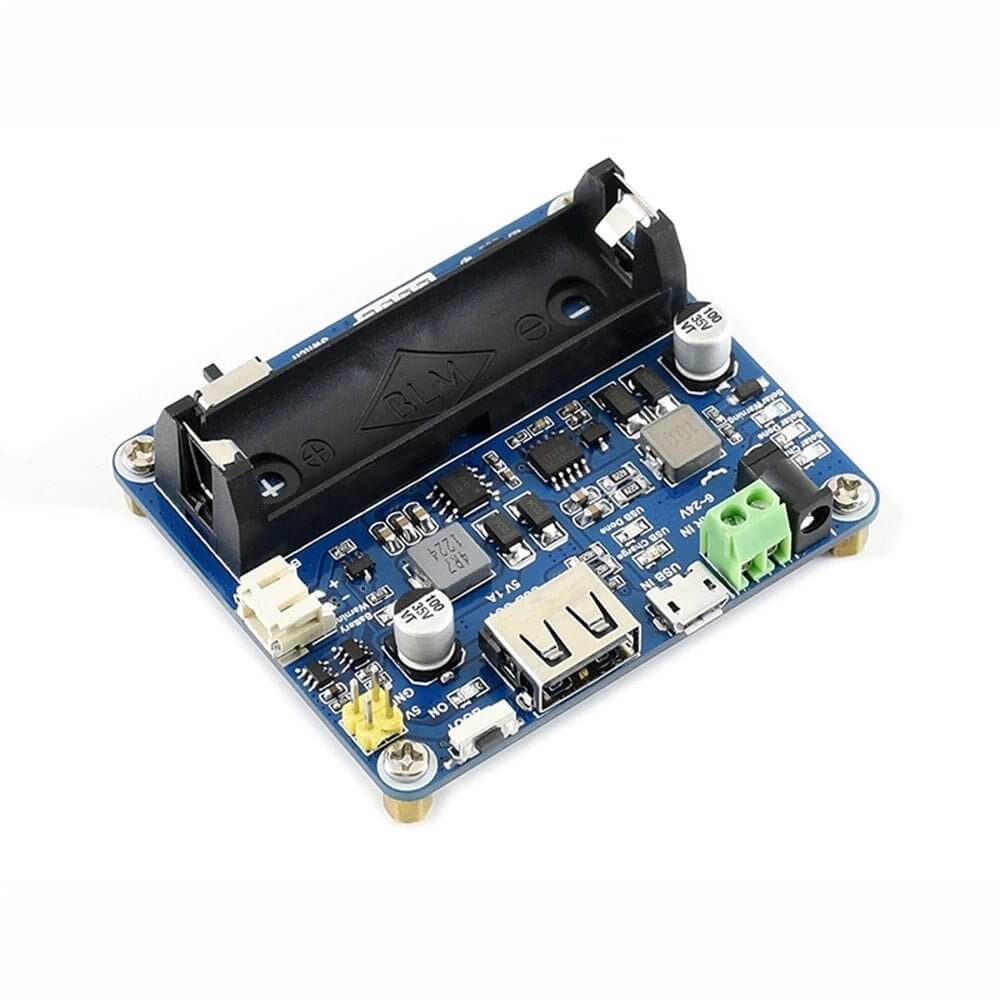

• Angled view of the 3.7V Li-ion MPPT solar power manager board with battery holder and USB-A output port.

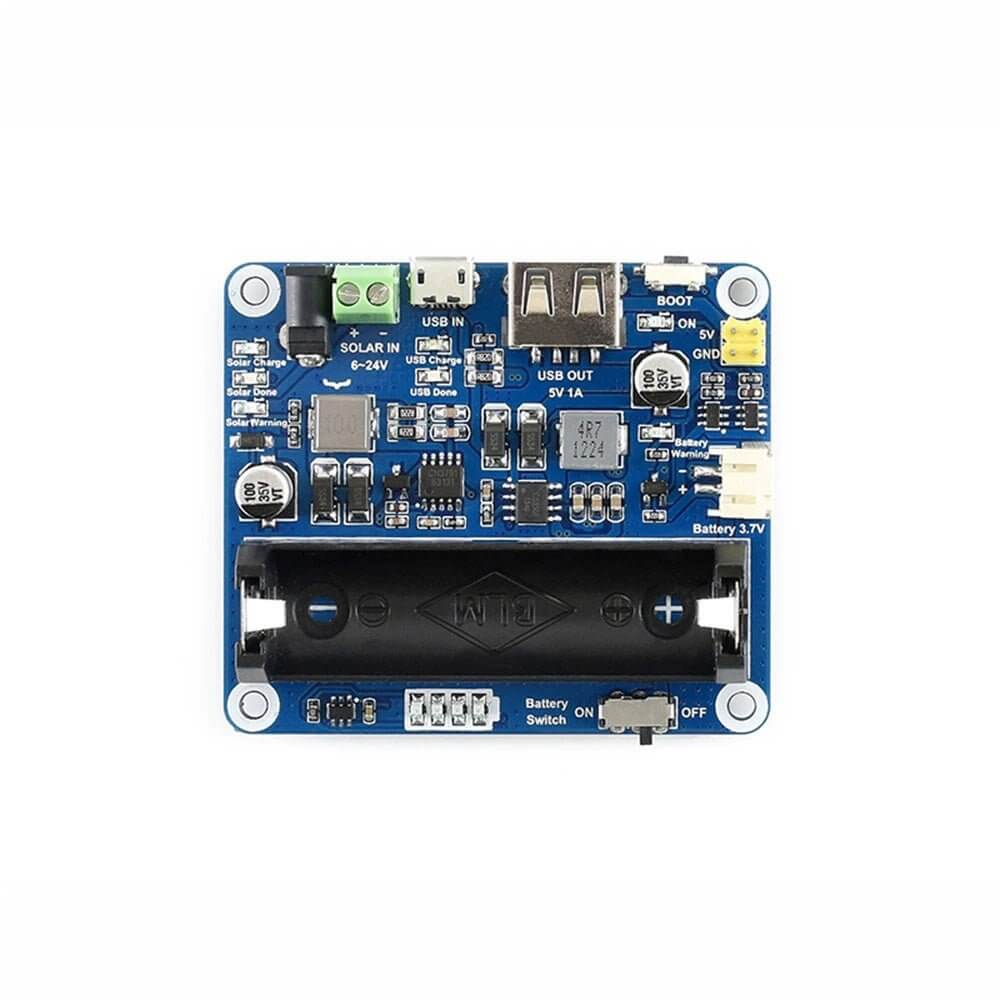

  • MPPT Solar Power Manager board, 3.7V Li-ion battery charger, USB-C/screw terminal input, USB output.

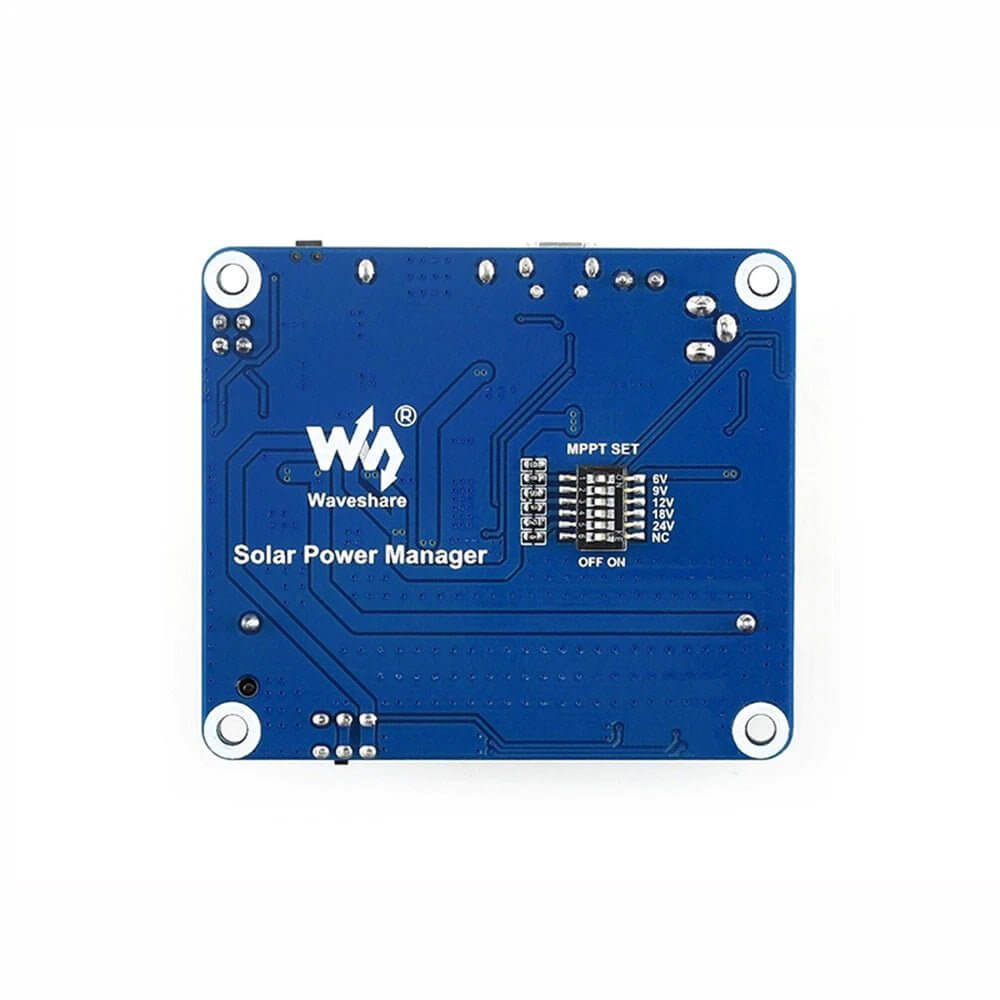

  • Back view of the MPPT solar charger board showing the MPPT SET DIP switch for 6V, 9V, 12V, 18V, 24V panels.

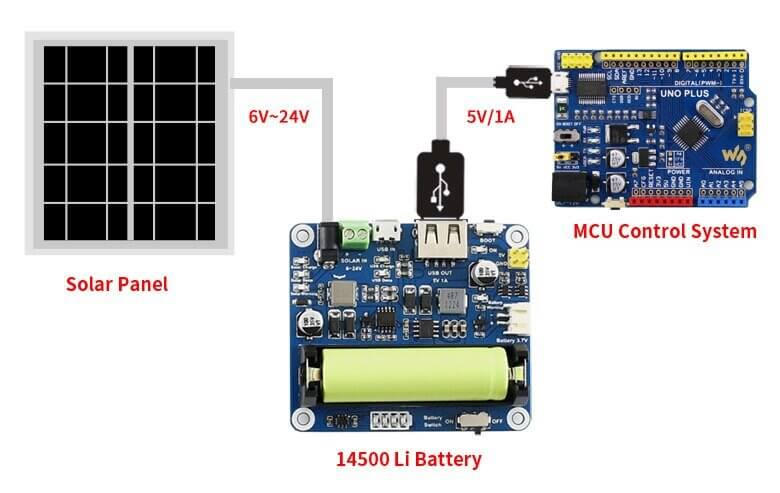

  • Connection diagram: 6V-24V solar panel connects to MPPT charger which powers a 14500 Li battery and an Arduino MCU.

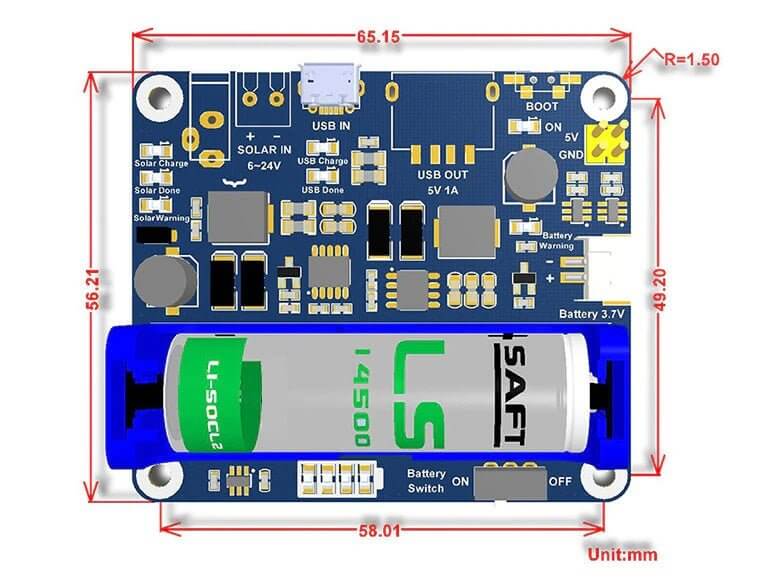

  • Dimensions (65.15 x 56.21 mm) of the MPPT solar charger board with 14500 Li-SOCL2 battery holder.
1 5
5 sales

MPPT Solar Power Management Module (6V-24V) - 3.7V Li-ion Charger

MPPT Solar Power Management Module (6V-24V) - 3.7V Li-ion Charger

HK$120.00
HK$120.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

🌟 Product Overview & Key Features

This MPPT Solar Power Management Module is the ideal solution for powering your solar, low-power IoT, and green energy projects. Designed for 6V to 24V solar panels, it efficiently charges a 3.7V rechargeable Lithium battery while providing a stable 5V/1A regulated output for your microcontrollers (like Arduino) and devices.

  • Maximum Power Point Tracking (MPPT): Features an advanced MPPT function to maximize the solar panel's conversion efficiency, ensuring optimal power capture regardless of light conditions.
  • Dual-Source Charging: Supports charging the 3.7V Li-ion battery via a wide range of 6V~24V Solar Panels (using DC-002 jack or screw terminals) or a 5V Micro USB connection.
  • Stable 5V/1A Output: Provides a reliable 5V/1A regulated output through both a standard USB-A port and 2.54mm pinheaders, making it easy to connect external devices.
  • Adjustable Efficiency: An onboard MPPT SET switch allows you to select the voltage level closest to your solar panel's input (6V/9V/12V/18V/24V) for the highest charging efficiency.
  • Comprehensive Protection: Equipped with multiple safety circuits, including Over Charge, Over Discharge, Reverse Protection, Over Temperature, and Over Current circuits, ensuring stable and safe operation.
  • Flexible Battery Interface: Includes both a 14500 battery holder and a PH2.0 connector for connecting various types of 3.7V rechargeable Li batteries.

⚠️ Safety Caution

DO NOT put any non-rechargeable battery, such as a dry cell, into the battery holder. Serious consequences, including explosion, may occur if you attempt to charge a non-rechargeable battery.

πŸ“¦ Package Contents

Qty Item
1 Solar Power Management Module
1 14500 Rechargeable Lithium Battery
