Solar Y Branch Connector (1 to 3) - IP67, DC1000V, 30A

Solar Y Branch Connector (1 to 3) - IP67, DC1000V, 30A

Regular price HK$33.00
Regular price Sale price HK$33.00
Sale Sold out

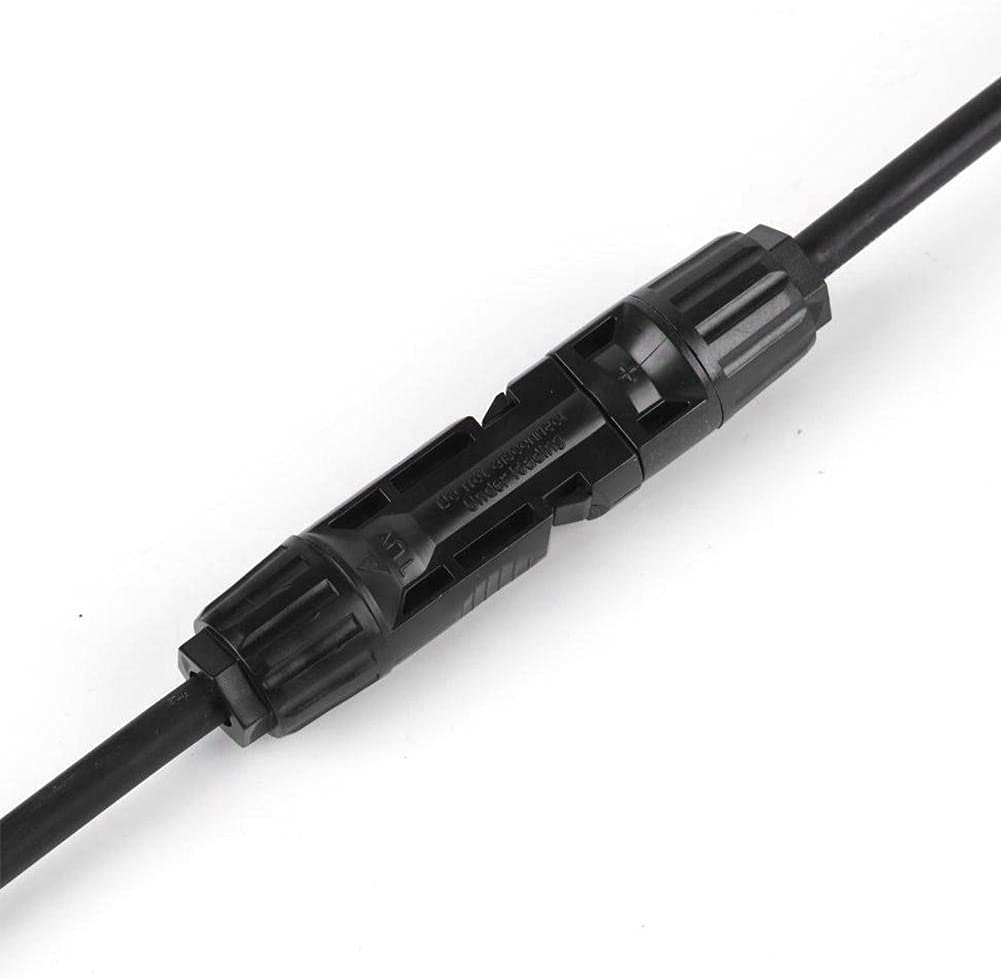

This high-quality Y Branch Solar Connector allows for easy and reliable parallel connection of up to three solar panels. Designed for photovoltaic systems, this adapter ensures secure docking with a "snap-in" high-security port featuring an automatic lock and easy opening mechanism.

Key Features:

  • Robust and Weatherproof: The double-seal design guarantees an IP67 rating, ensuring extended, reliable performance in outdoor environments.
  • Durable Materials: Constructed with PPO insulation for excellent aging, fire, and dust resistance. The core material is copper silver-plated for optimal conductivity.
  • High Performance:
    • Related Current: ≤30A
    • Operating Voltage: ≤DC1000V
    • Test Voltage: DC6000V
    • Contact Resistance: ≤1M

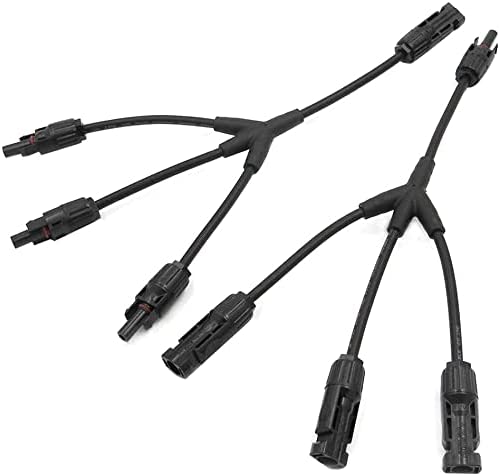

  • Easy Installation: Features a practical 1 to 3 parallel adapter design for efficient connection of wires to your solar panel inverter system.
  • Versatile Compatibility: Compatible with a range of wire specifications: 2.5mm² (AWG14), 4mm² (AWG12), and 6mm² (AWG10).
  • Wide Operating Temperature: Functions effectively in temperatures ranging from -40°C to +125°C.

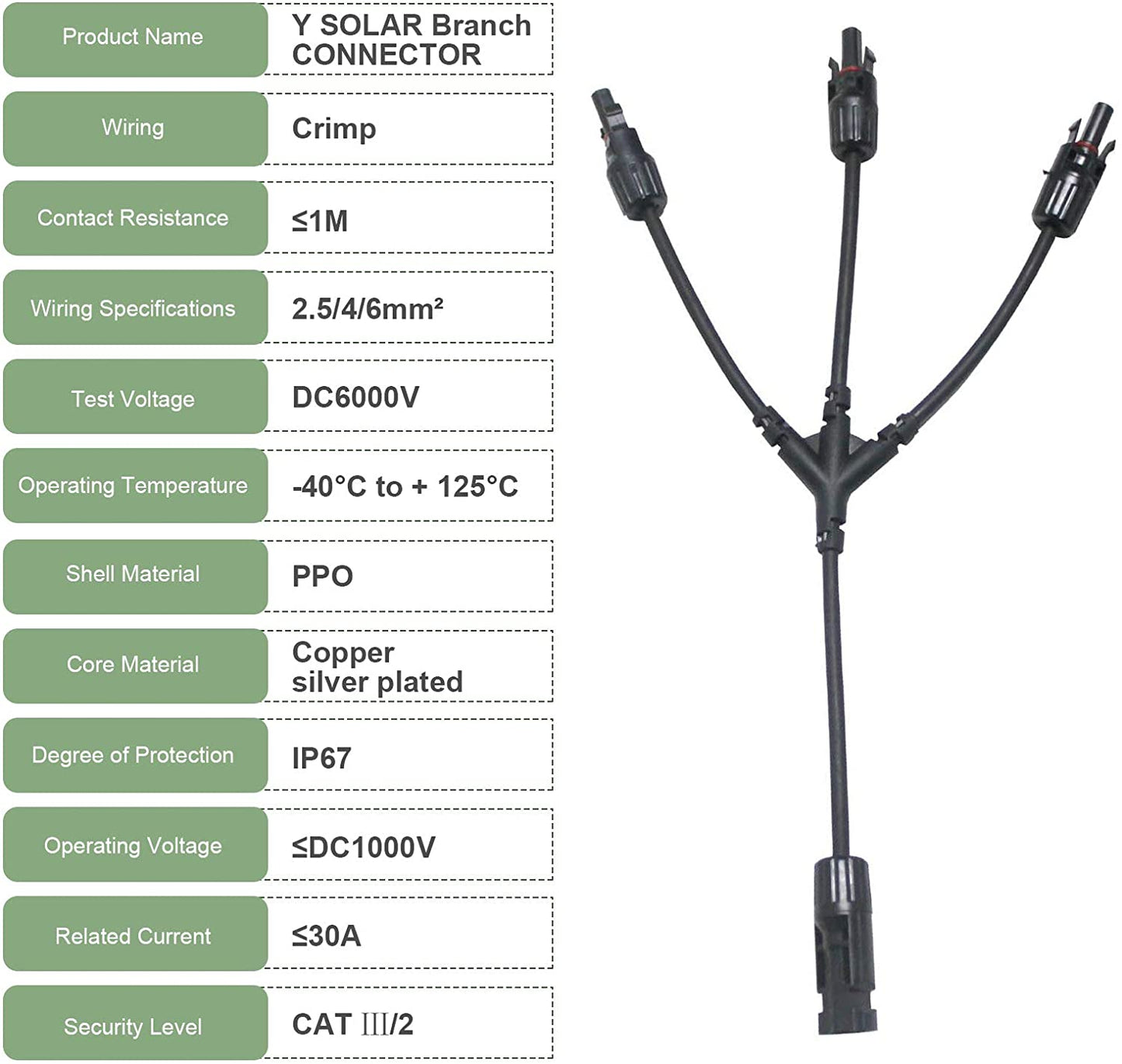

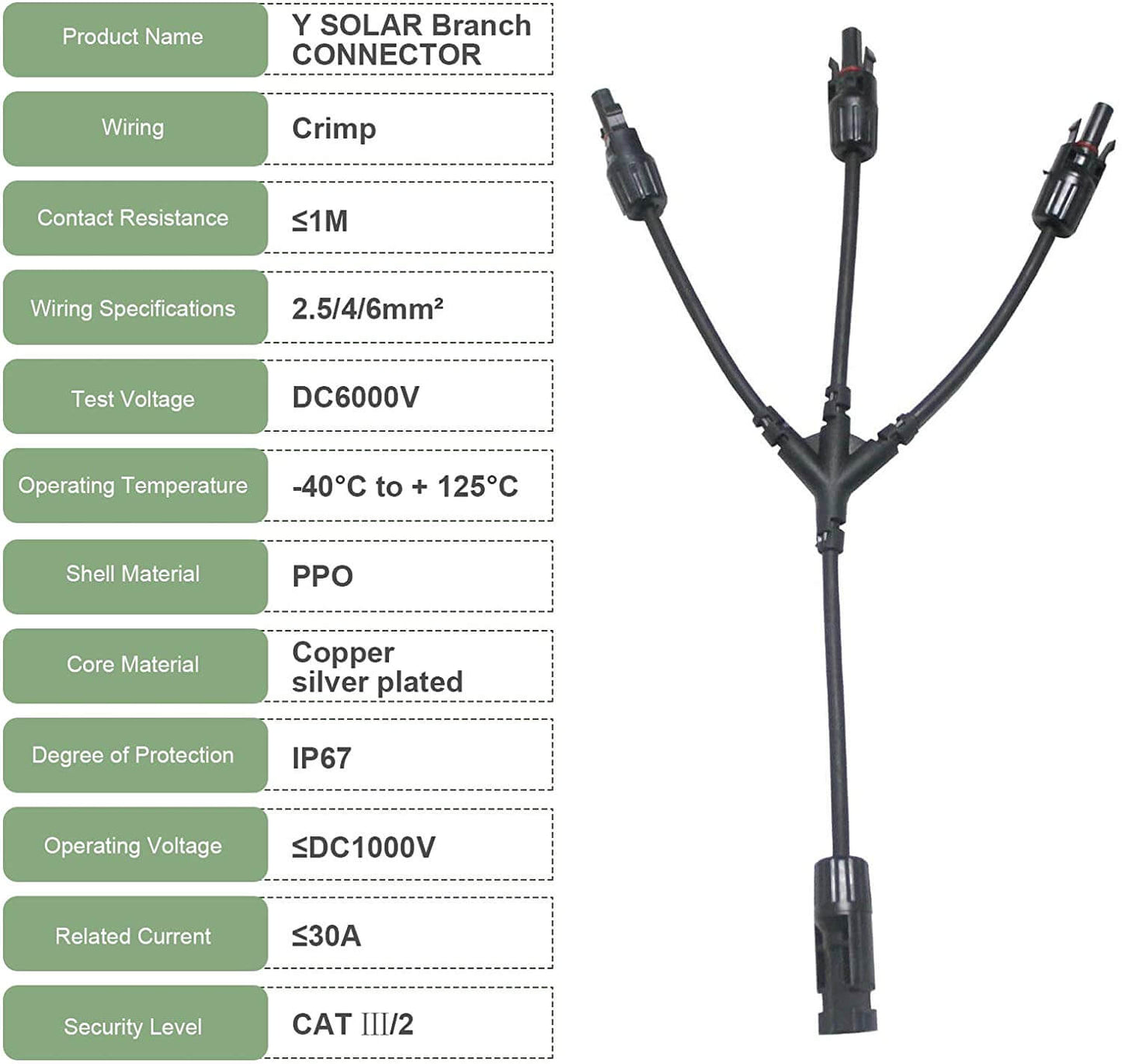

Technical Specifications:

Feature

Specification

Product Name

Y Solar Branch Connector

Wiring

Crimp

Wiring Specifications

2.5/4/6mm² (AWG14/AWG12/AWG10)

Operating Voltage

≤DC1000V

Related Current

≤30A

Test Voltage

DC6000V

Operating Temperature

-40°C to +125°C

Degree of Protection

IP67

Shell Material

PPO

Core Material

Copper silver plated

Contact Resistance

≤1M

Security Level

CAT I/II/2
