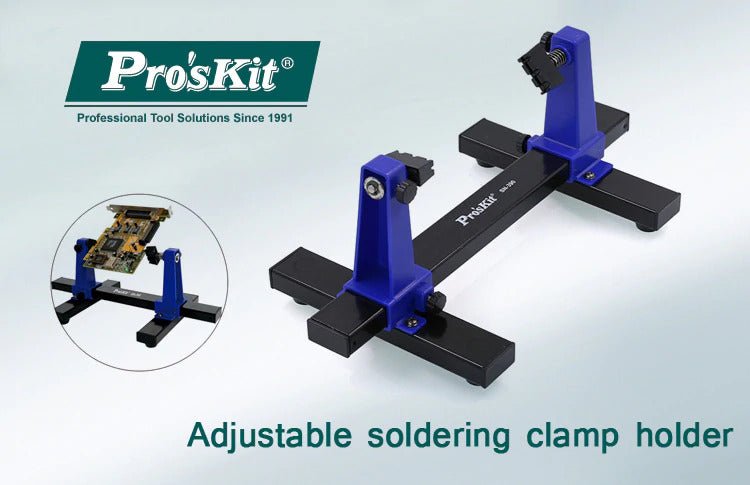

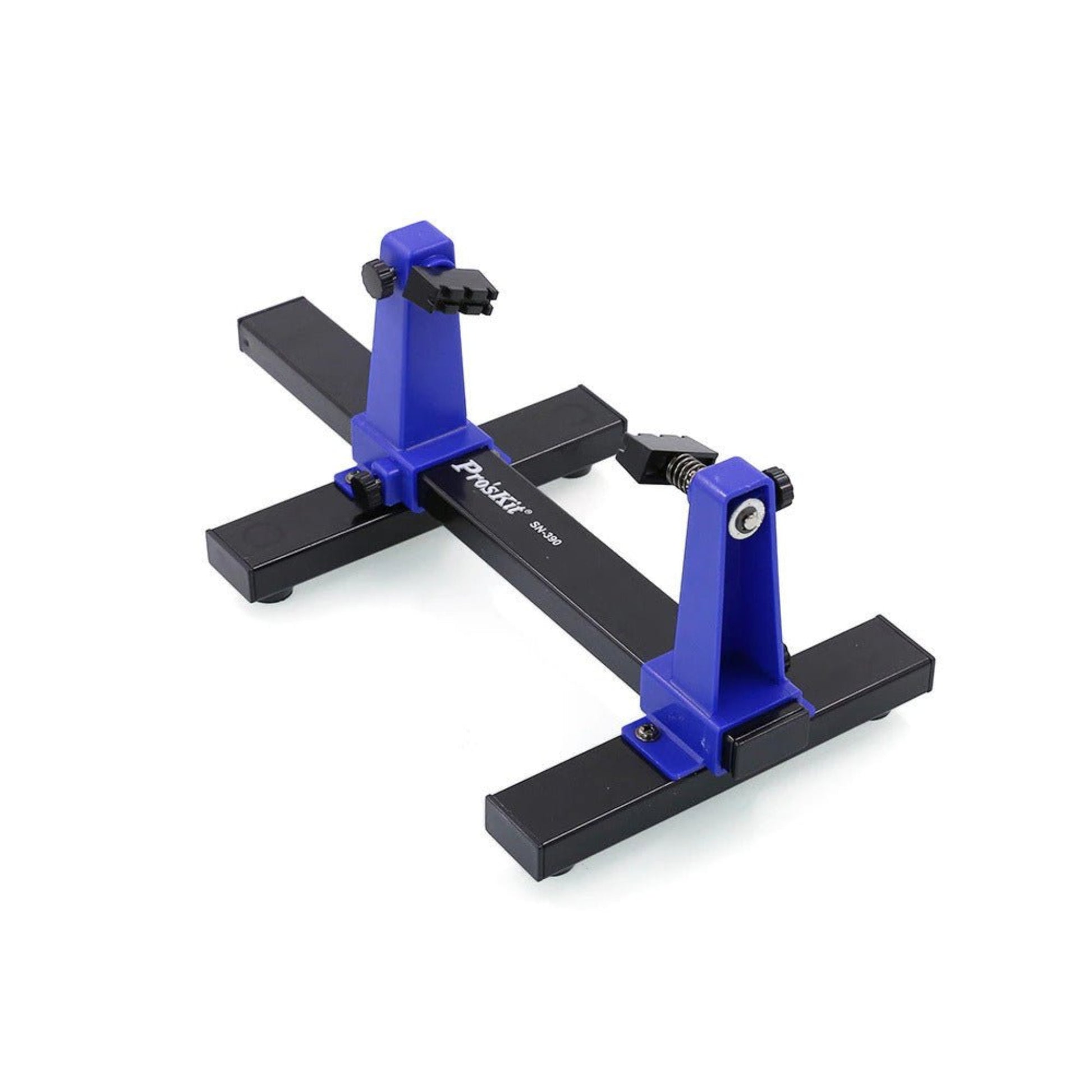

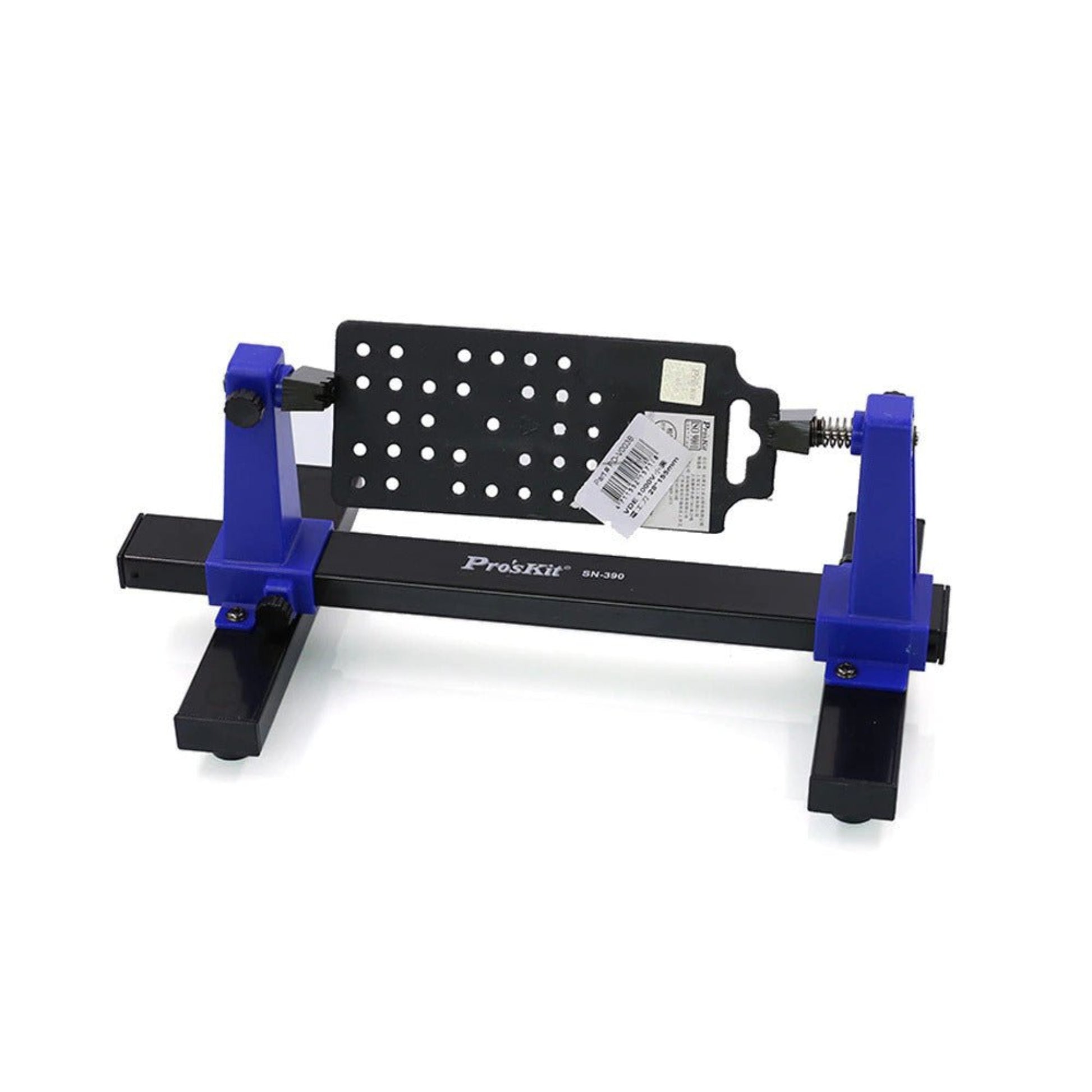

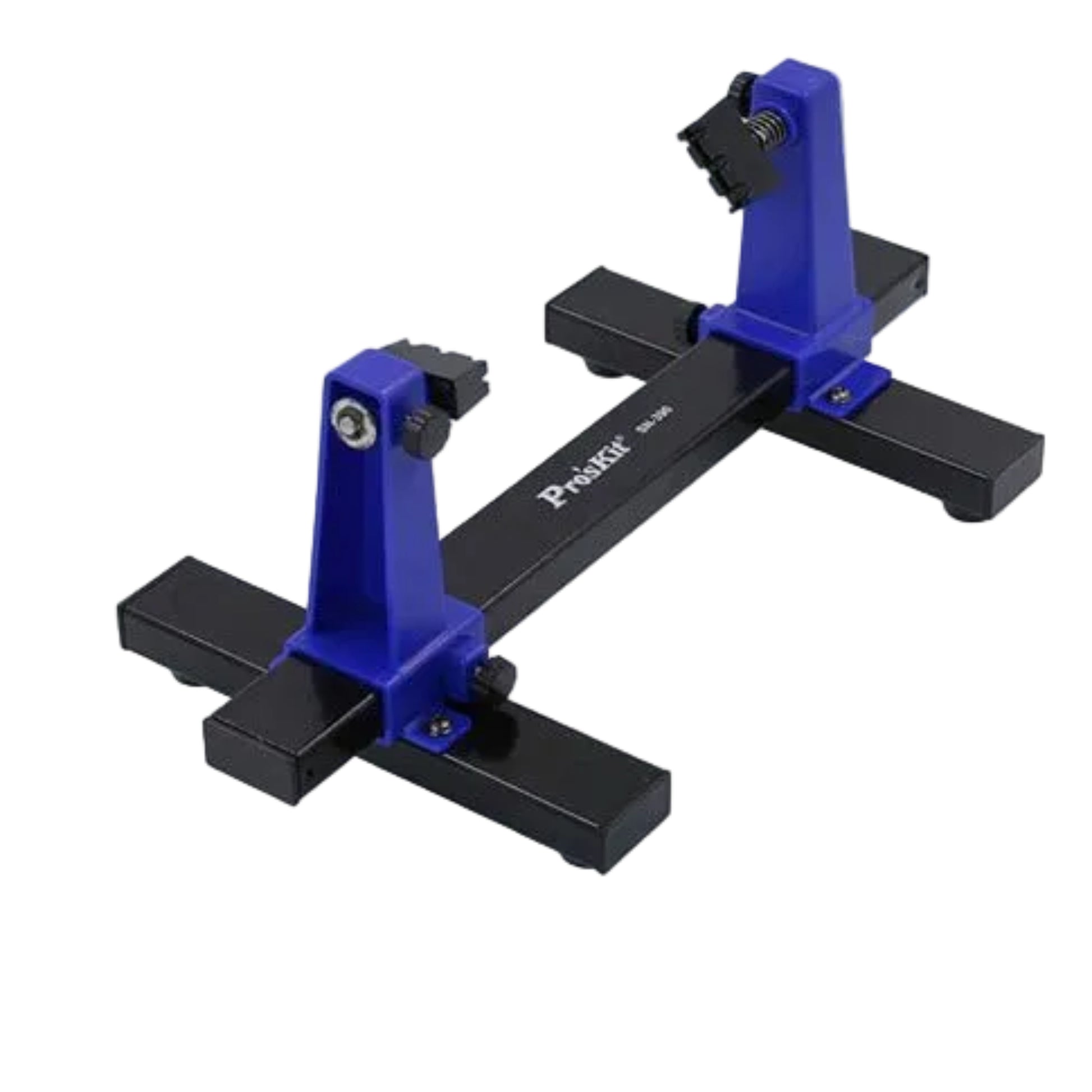

SN-390 Adjustable PCB Soldering Clamp Holder | 360° Rotation
SN-390 Adjustable PCB Soldering Clamp Holder | 360° Rotation
Couldn't load pickup availability
Short Product Description
Short Product Description
Struggling with slipping circuit boards during delicate soldering jobs? The SN-390 Adjustable PCB Soldering Clamp Holder acts as your reliable third hand. Built with a solid metal base and 360° rotating grips, it secures boards up to 200mm wide. Whether you are repairing motherboards or building a Raspberry Pi project, this lightweight desktop essential guarantees precision, stability, and faster workflow.
Key Features
Key Features
- 360-Degree Rotation: Flip the board instantly to solder on both sides without removing it from the clamp, saving you valuable time.
- Spring-Loaded ABS Clamps: Securely holds your delicate PCBs without scratching or damaging the circuitry.
- Heavy-Duty Metal Base: Provides a low center of gravity so the jig won't tip over during heavy desoldering work.
- Anti-Slip Rubber Feet: Absorbs micro-vibrations and prevents sliding on smooth workbenches, ensuring absolute precision.
- Universal Slot Sizes: Four built-in thickness slots (1.2mm to 3.0mm) mean you can lock in almost any standard Arduino, Raspberry Pi, or custom PCB.
Full Product Description
Full Product Description
The Ultimate "Third Hand" for Electronic Repairs
Soldering requires precision, and a moving circuit board is a recipe for mistakes, burned components, or damaged traces. The SN-390 Adjustable PCB Soldering Clamp Holder solves this problem instantly. Designed for engineers, DIY enthusiasts, and STEM educators, this rigid fixture holder keeps your workspace organized and your hands free.
Built for Stability and Precision

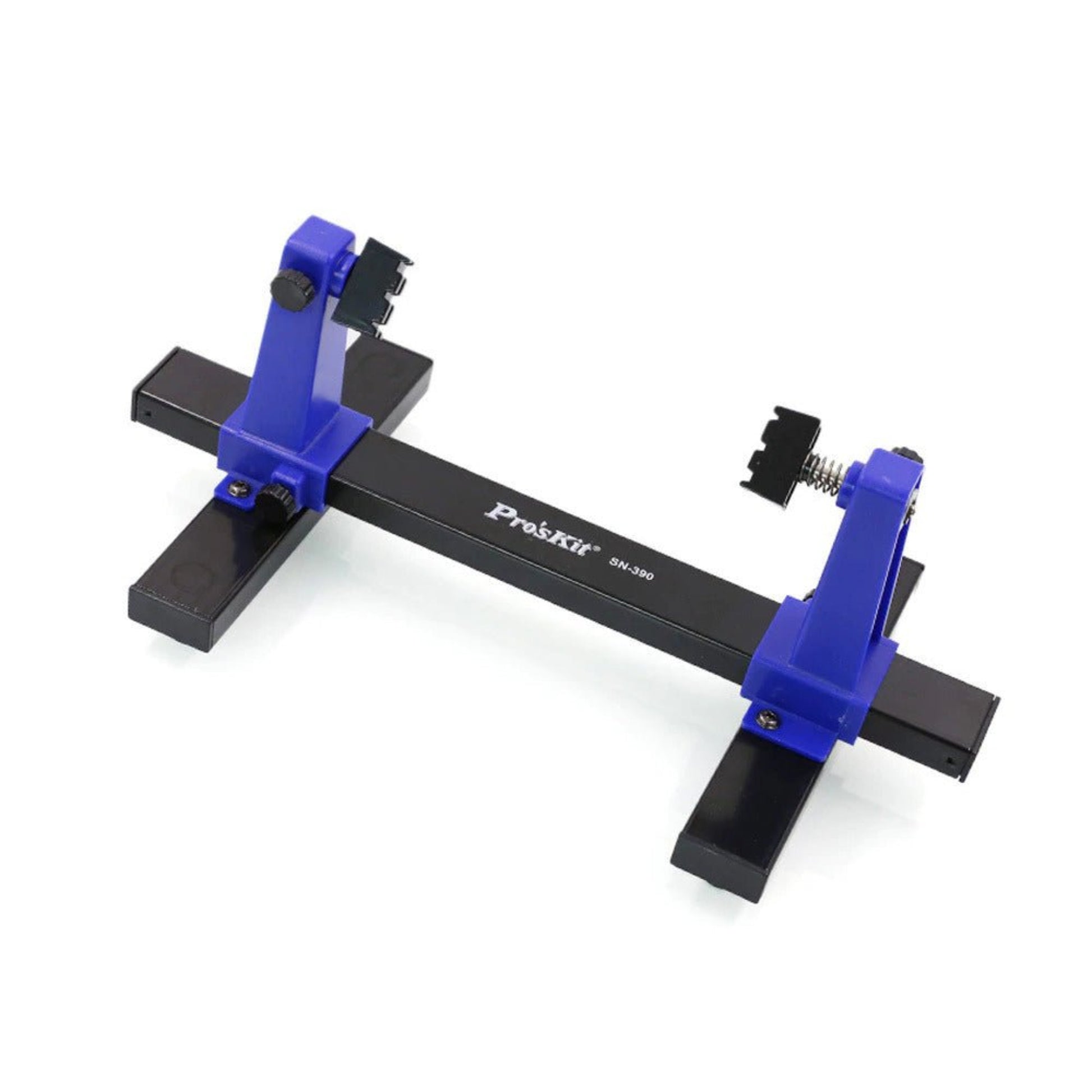

Weighing just 450g, the SN-390 strikes the perfect balance between portability and heavy-duty stability. The solid metal base is equipped with four anti-slip rubber feet, ensuring the rig stays exactly where you put it on your workbench. No more chasing your project across the desk while trying to apply solder.
Fully Adjustable for Any Project
Whether you are working on a tiny sensor module or a wider computer motherboard, this clamp holder adapts to your needs.
- Customizable Width: The retractable stand extends to securely hold printed circuit boards (PCBs) up to 200mm wide and 140mm high.
- Multi-Thickness Support: The spring-loaded clamps feature four distinct slots (1.2mm, 1.8mm, 2.0mm, and 3.0mm) to accommodate standard and custom board thicknesses.
360° Rotation for Flawless Soldering
Stop awkward wrist bending. The ABS clamping arms allow you to rotate your PCB a full 360 degrees. You can easily flip the board over to inspect cold solder joints, apply flux, or desolder components, then lock it back into place effortlessly.
Technical Specifications
Technical Specifications
- Model: SN-390
- Material: ABS (Clamps) + Solid Metal (Base)
- Max PCB Clamping Size: 200 x 140 mm (7.87 x 5.51 inches)
- Supported Thicknesses: 1.2mm, 1.8mm, 2.0mm, 3.0mm

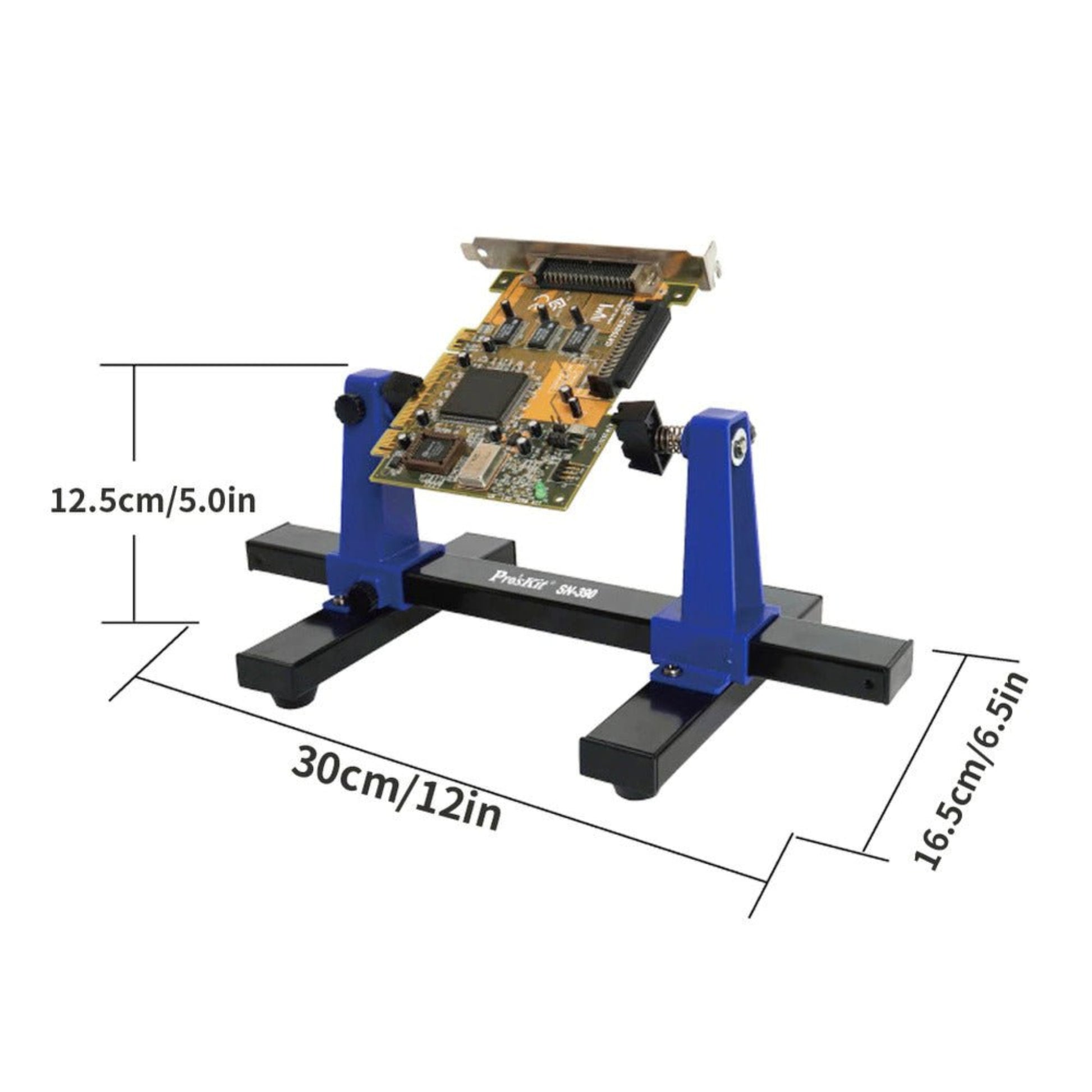

- Overall Dimensions: 30 x 16.5 x 12.5 cm (L x W x H)
- Rotation Angle: 360 Degrees
- Net Weight: 450g
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q. Will the heat from my soldering iron melt the clamps? The holding arms are made of high-heat-resistant ABS plastic. While direct contact with a soldering iron tip will melt them, standard soldering heat transferred through the PCB will not cause any damage.
Q. Can this hold a standard ATX computer motherboard?
The maximum clamping width is 200mm (20cm). It is perfect for smaller electronics, mobile device logic boards, and STEM microcontrollers, but a full-sized ATX motherboard will exceed the maximum width.
Q. Is the base heavy enough to stay put?
Yes. The solid metal base combined with four rubber friction feet provides excellent grip and stability, even when applying pressure with desoldering pumps or tweezers.
Target Users / Applications
Target Users / Applications
- DIY Electronics Enthusiasts & Makers: Perfect for Arduino and Raspberry Pi builds.
- Repair Technicians: Ideal for mobile phone, tablet, and PC component trade-in/repair shops.
- STEM Students & Educators: A safe, stable platform for learning how to solder.
- Enterprise R&D: Prototyping and testing small-batch circuitry.
