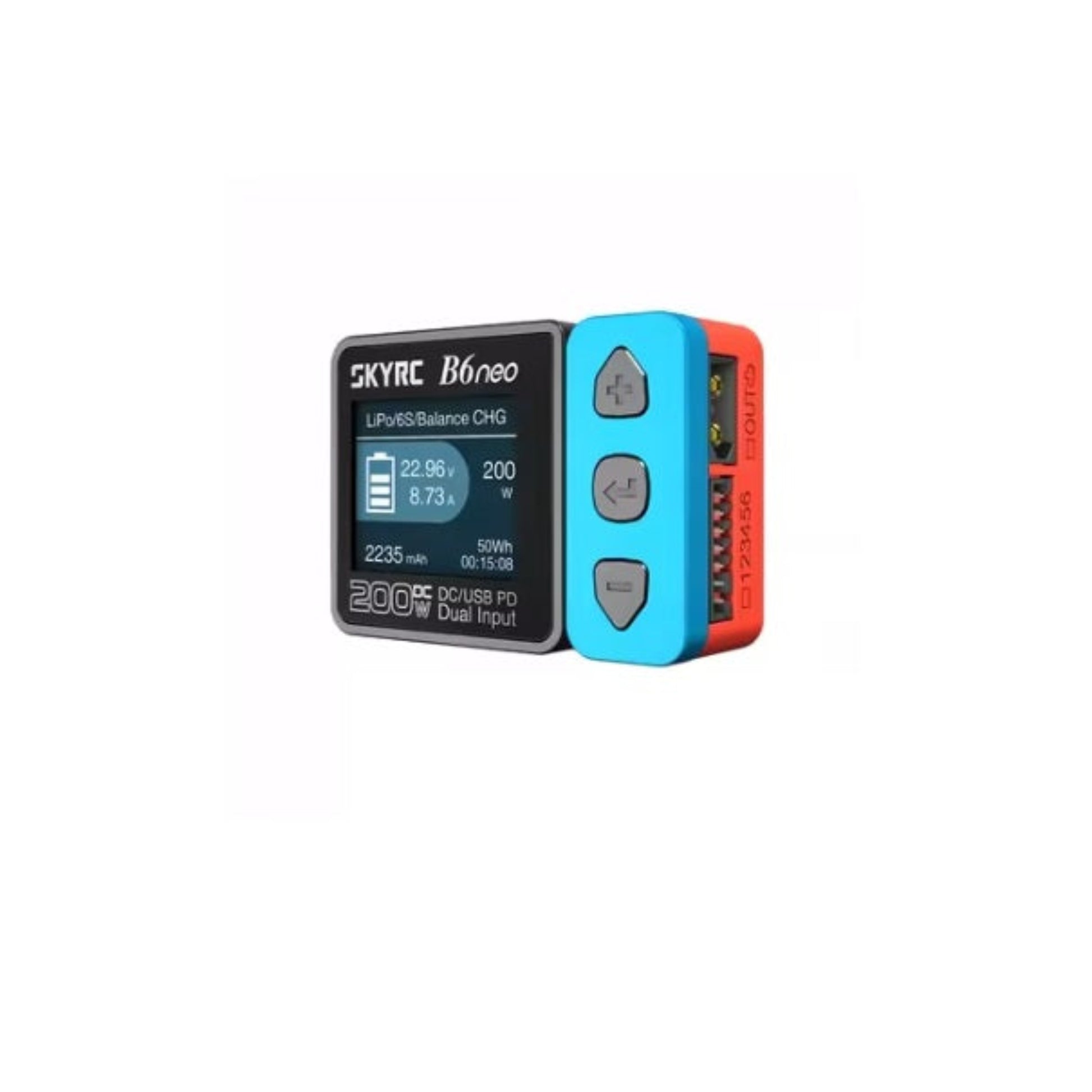

SkyRC B6 Neo Smart 6S LiPo Balance Charger | 200W DC / 80W PD

Be Legendary. Innovation Evolved, Smaller than a Credit Card.

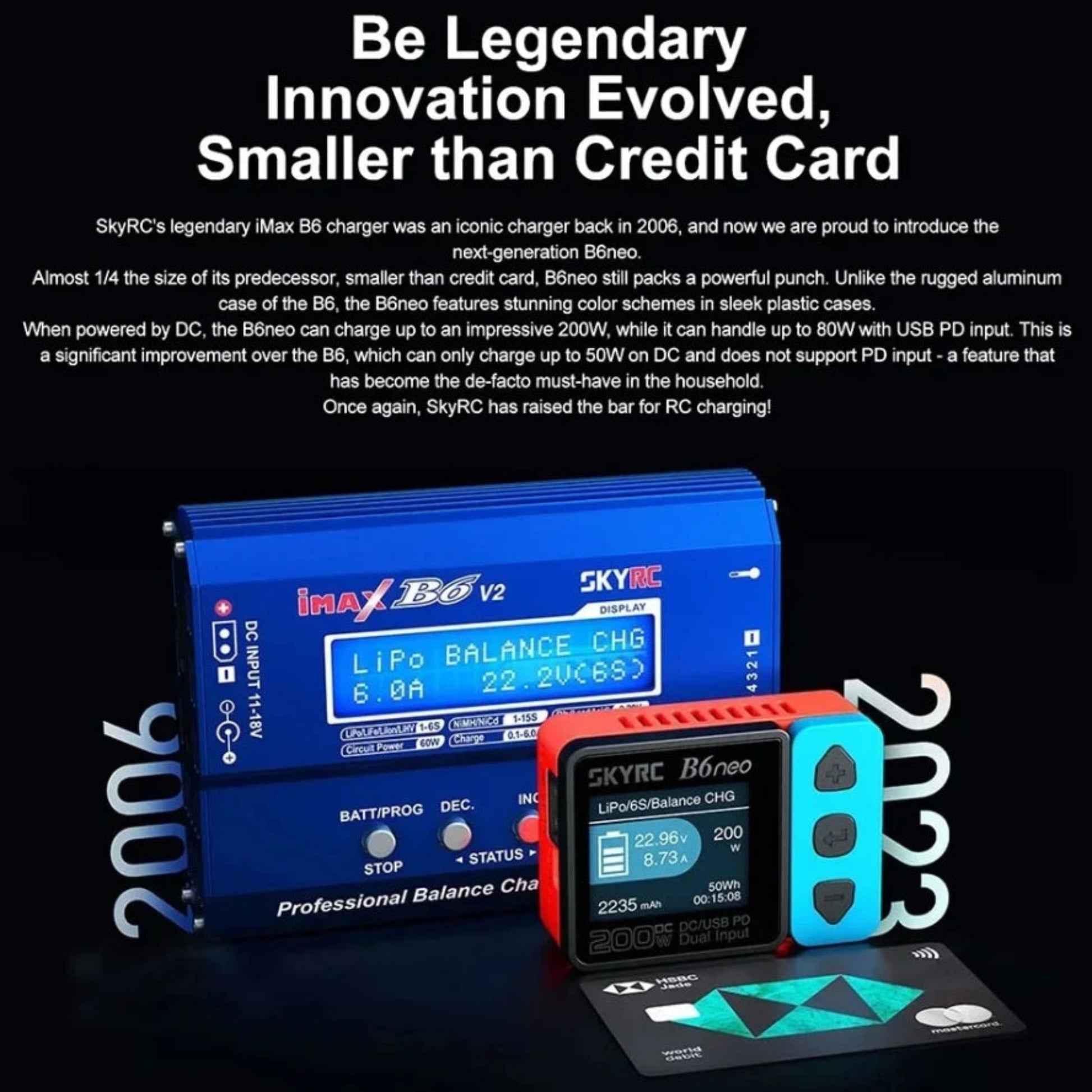

Step into the future of RC charging with the SkyRC B6 Neo. Building on the legacy of the iconic iMAX B6, the B6 Neo packs next-generation technology into a housing that's almost 1/4 the size of its predecessor and lighter than your smartphone. Sleek, powerful, and incredibly portable, it's the new standard for RC enthusiasts.

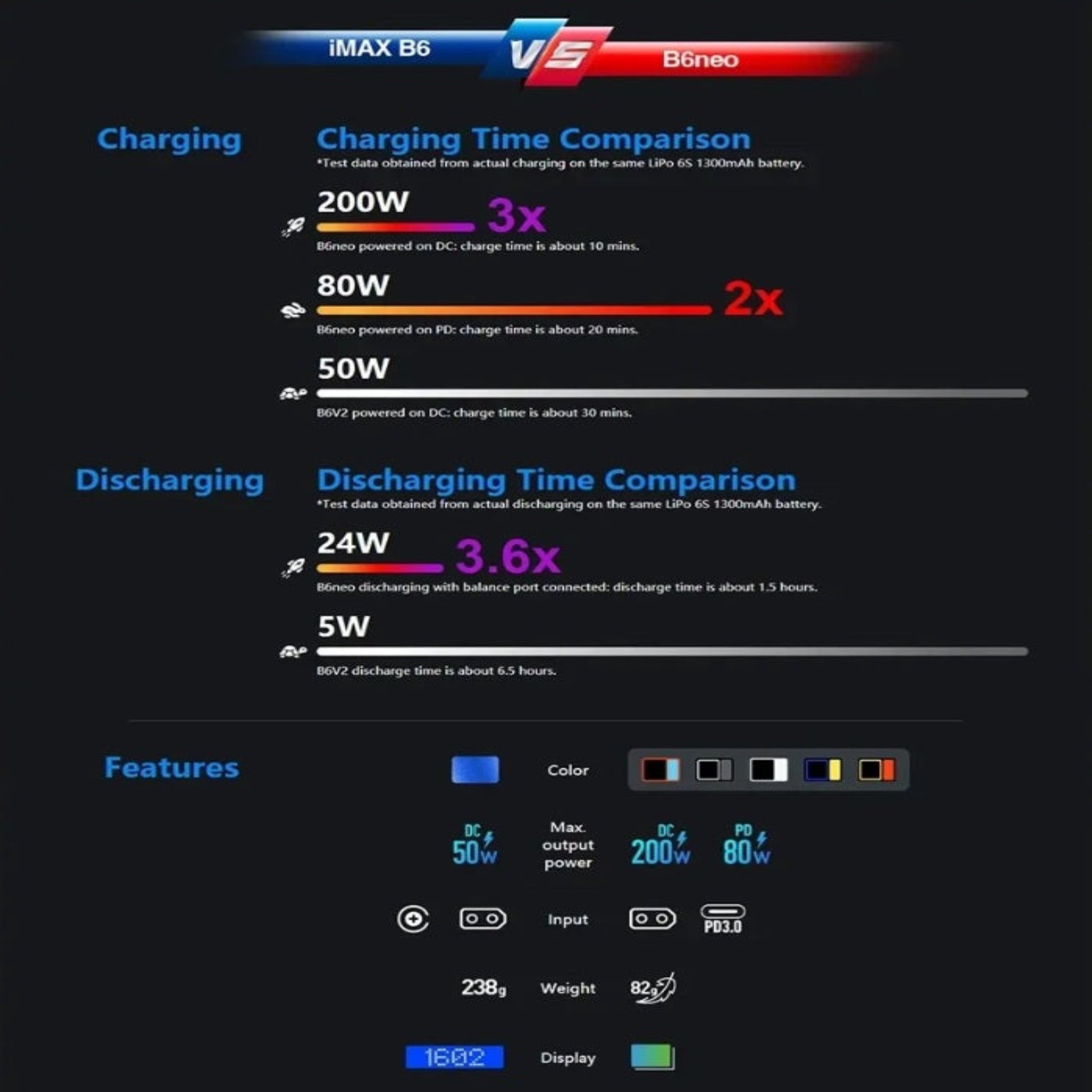

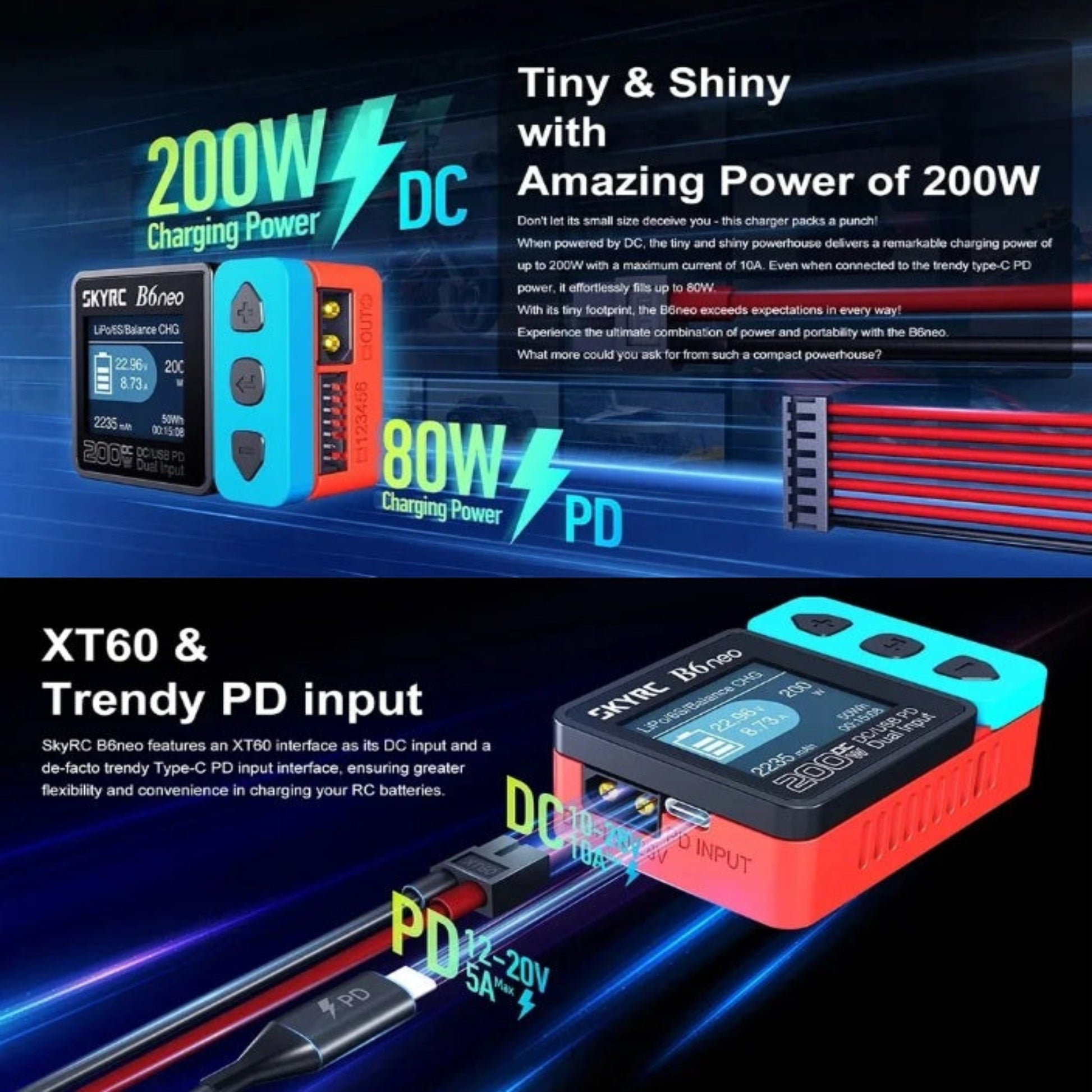

Tiny Footprint, Mighty Power Don't let its size fool you. When powered by a DC source, the B6 Neo unleashes a massive 200W of charging power, capable of handling up to 10A. Need to charge on the go? Connect a modern USB-C PD power source and get up to 80W of power. That's up to 3 times faster than the classic B6, turning long waits into short pit stops.

Dual Input for Ultimate Flexibility Featuring both a traditional XT60 DC input and a modern Type-C PD input, the B6 Neo gives you unparalleled convenience. Whether you're at your workbench with a dedicated power supply or in the field with a PD power bank, you're always ready to charge.

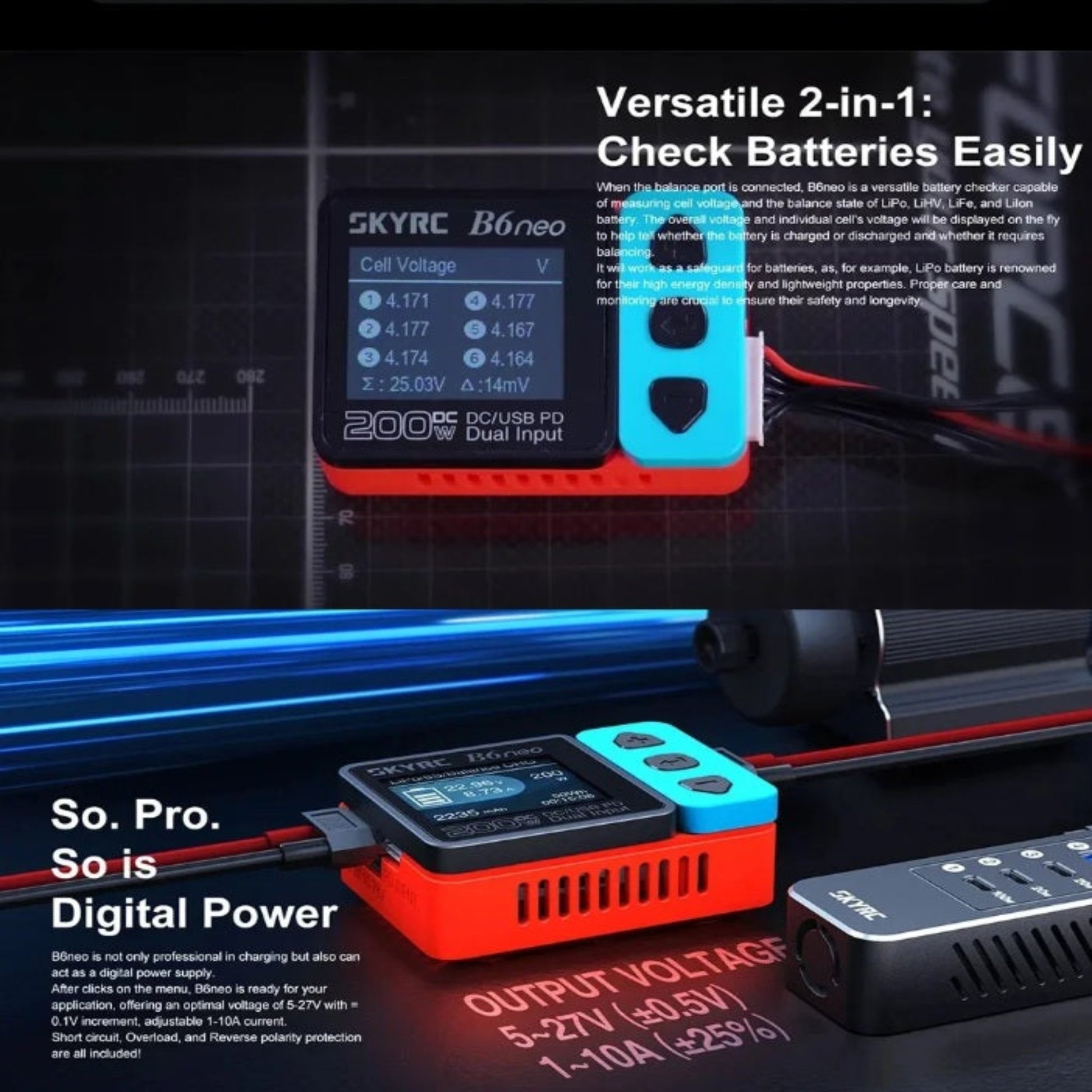

More Than Just a Charger The B6 Neo is a versatile 2-in-1 tool for every hobbyist.

• Battery Checker: Quickly check your pack's overall voltage, individual cell voltage, and balance state on the clear 1.77-inch color display.
• Digital Power Supply: In a pinch, the B6 Neo can act as a professional digital power supply, offering a stable output from 5-27V to power your other devices.

Assured Safety, Peace of Mind Your safety is paramount. The B6 Neo is engineered with a Multi-Safe Circuit, providing comprehensive protection against short circuits, over-temperature, capacity limits, time-outs, over-voltage, and more. The shell is even made from V0 flame-retardant material, so you can charge with absolute confidence.

Key Features:

• Ultra-Compact Design: Smaller than a credit card at only 705032mm and 82g.
• High-Power Charging: Up to 200W with DC input and 80W with USB-C PD input.
• Dual Input Convenience: Supports both XT60 DC and PD3.0/QC Type-C inputs.
• Wide Battery Compatibility: Charges LiPo, LiFe, Li-Ion, LiHV, NiMH, NiCd, and Pb batteries.
• Powerful Discharging: Up to 24W discharging capability.
• Bright Color Display: 1.77-inch color screen for easy navigation and clear data display.
• Multi-Function Tool: Works as a charger, discharger, battery checker, and digital power supply.
• Enhanced Safety: Built-in multi-protection circuits for safe operation.

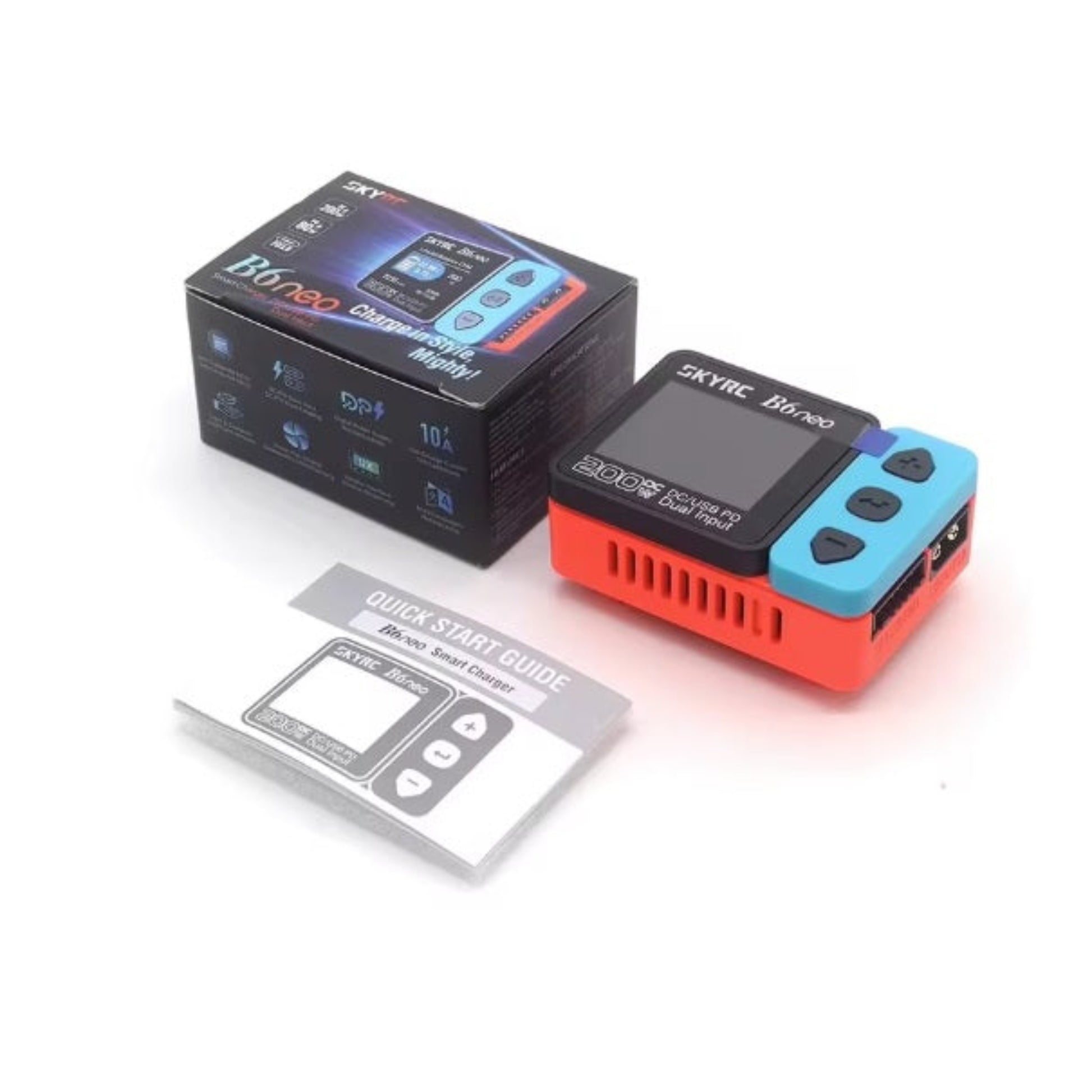

What's in the Box:

• 1 x SkyRC B6 Neo Smart Charger
• 1 x Quick Start Guide

Specifications:

• Model: SK-100198
• Shell Material: PC-ABS (V0 Flame-retardant)

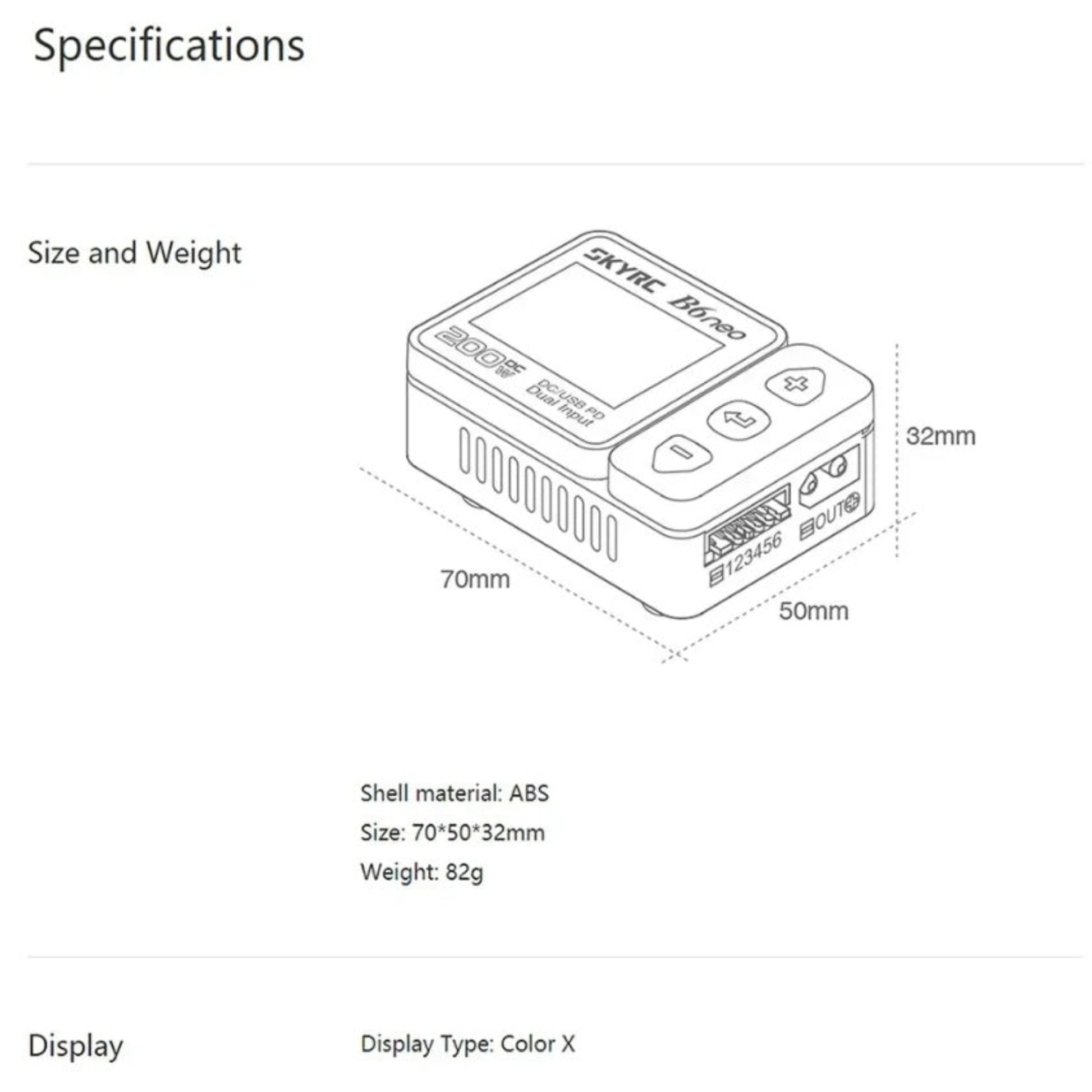

• Dimensions: 705032mm
• Weight: 82g

Power:

• DC Input Voltage: 10.0-28.0V
• PD3.0/QC Input Voltage: 12.0-20.0V
• Max Charge Power: 200W (DC) / 80W (PD)
• Max Discharge Power: 24W (Based on 6S battery)
• Charge Current: 0.1-20.0A
• Discharge Current: 0.1-2.0A
• Balance Current: Max. 500mA

Battery Support:

• LiPo/LiFe/LiIon/LiHV: 1-6 cells
• NiMH/NiCd: 1-15 cells
• Pb (Lead-Acid): 3S / 6S
