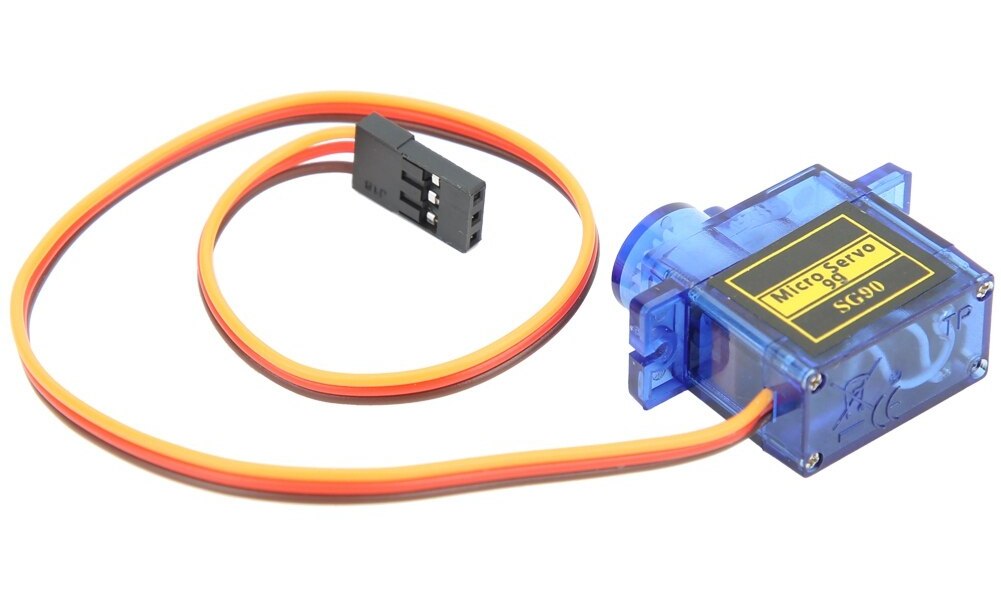

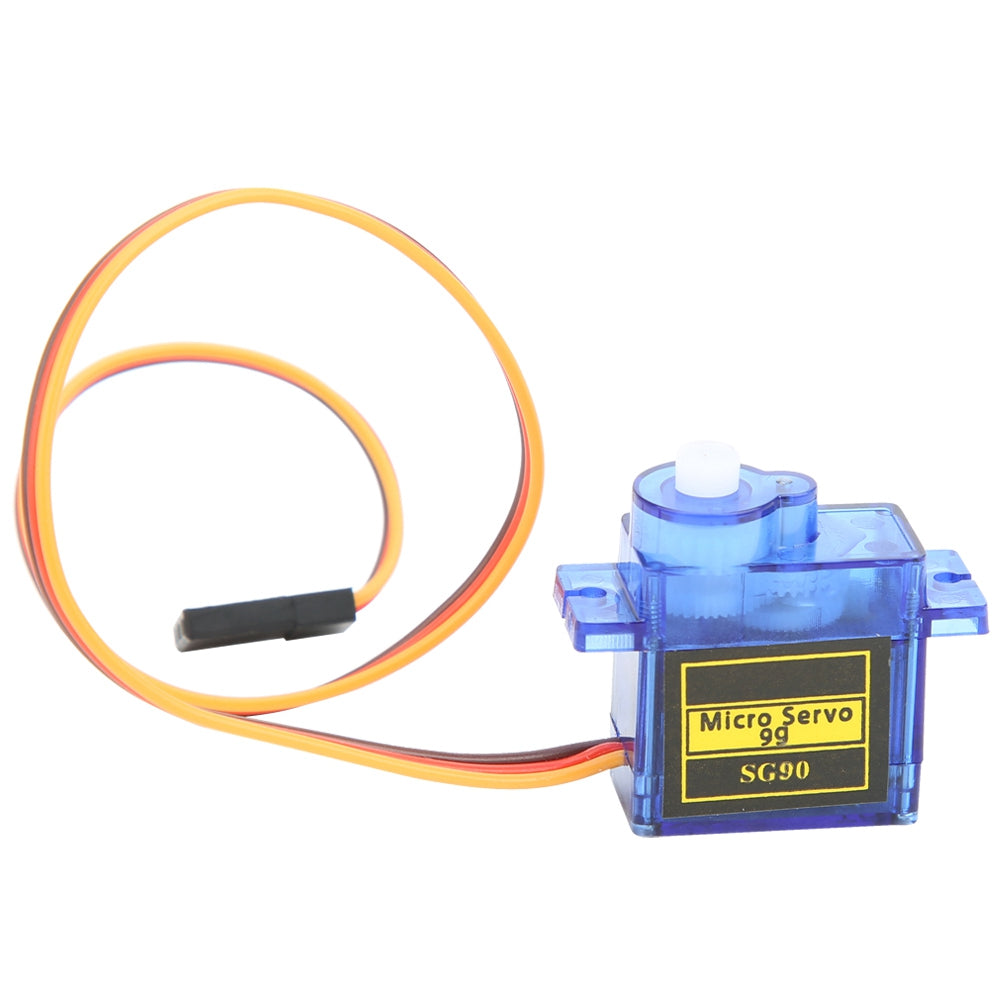

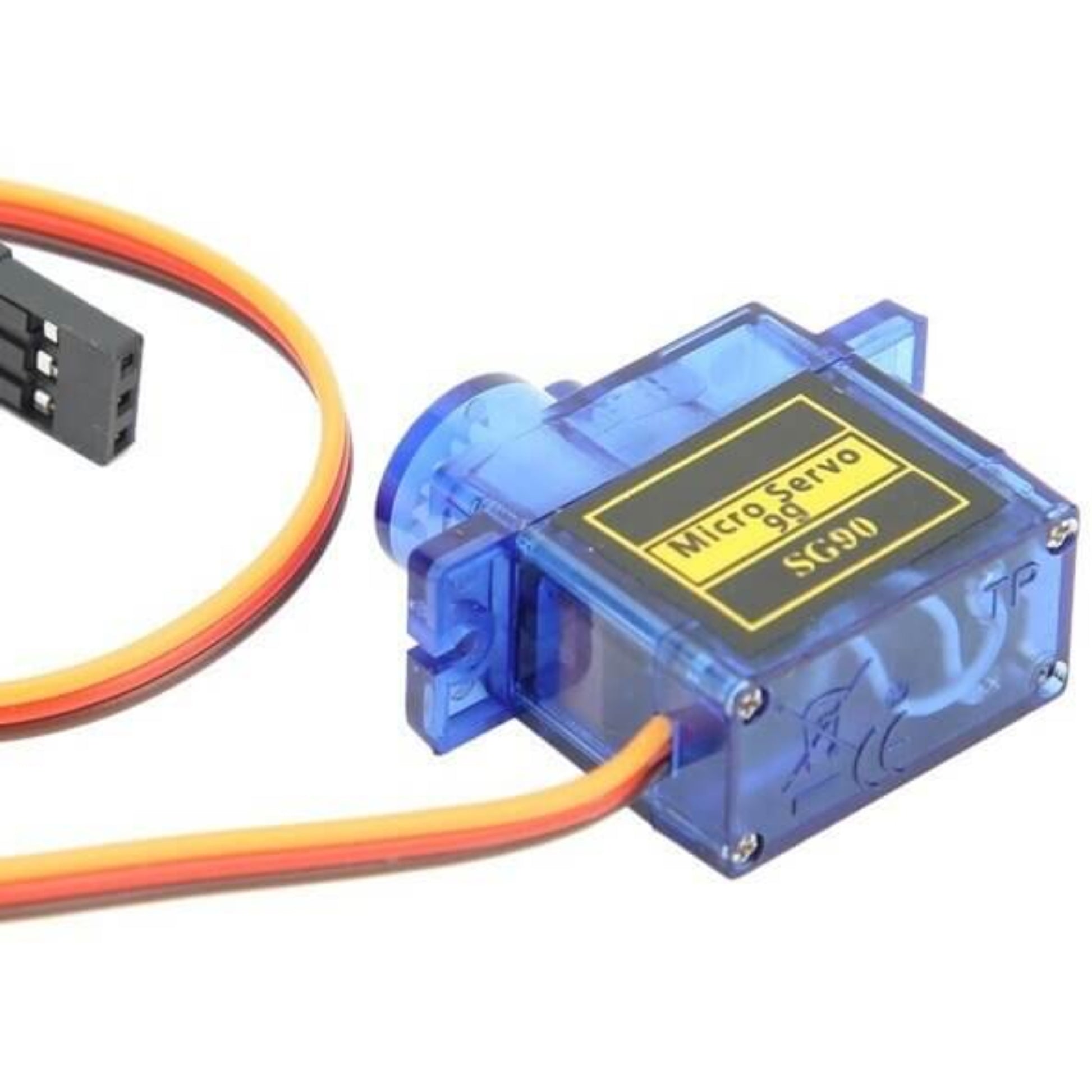

SG90 9G Micro Servo Motor (for 6CH RC Helicopters & Airplanes)
SG90 9G Micro Servo Motor (for 6CH RC Helicopters & Airplanes)
Regular price
HK$20.00
Regular price
Sale price
HK$20.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
This compact yet powerful SG90 9G Micro Servo Motor is the ideal choice for all your 6-channel remote control (RC) helicopter and airplane projects. It's a top pick for hobbyists and professionals alike, thanks to its precise control, fast response time, and exceptional reliability. Its lightweight design (only 9 grams) ensures it won't add unnecessary bulk to your models.
Selectable Rotation Mode: We offer two rotation modes for you to choose from:
- 180-Degree Standard Type: Ideal for applications requiring precise angle control, such as control surfaces, camera gimbals, etc.
- 360-Degree Continuous Rotation Type: Suitable for applications requiring continuous rotation, such as small robot wheels, winches, etc.
Key Features & Benefits:
- Lightweight & Efficient: Weighing only 9 grams, its compact size is specifically designed for RC models with limited space, ensuring no compromise on flight performance.
- Precise Control: With a product torque of 1.6 kg/cm (4.8V) and a no-load speed of 0.1 sec/60 degrees (4.8V), it provides fast and accurate motion response.
- Wide Compatibility: Operates within a voltage range of 4.8−6V and features a JR/FUTABA universal plug type, making it easily compatible with most RC receivers on the market.
- Durable Design: Constructed with a robust nylon gear mechanism, ensuring stable operation within a working temperature range of 0 to 55 degrees Celsius.
- Flexible Applications: Depending on the model you select, it offers either 180-degree angle control or 360-degree continuous rotation, suitable for helicopter swashplate control, airplane ailerons, elevators, rudders, or drive wheels for small robots, and various other applications.
- Standard PWM Control: Supports Pulse Width Modulation (PWM) operating mode with a dead band of 10us, ensuring sensitive response.
Technical Specifications:
- Product Torque: 1.6 kg/cm (4.8V)
- No-load Speed: 0.1 sec/60 degrees (4.8V)
- Working Voltage: 4.8−6V
- Operating Temperature: 0 to 55 degrees Celsius
- Dead Band: 10us
- Plug Type: JR.FUTABA Universal
- Rotation Mode: 180 degrees or 360 degrees (depending on option)
- Gear Medium: Nylon
- Operating Mode: PWM
Servo Wire Definition:
- Dark Grey Wire: GND (Ground)
- Red Wire: VCC 4.8−6V (Power Input)
- Orange/Yellow Wire: PWM Pulse Input (Signal Wire)

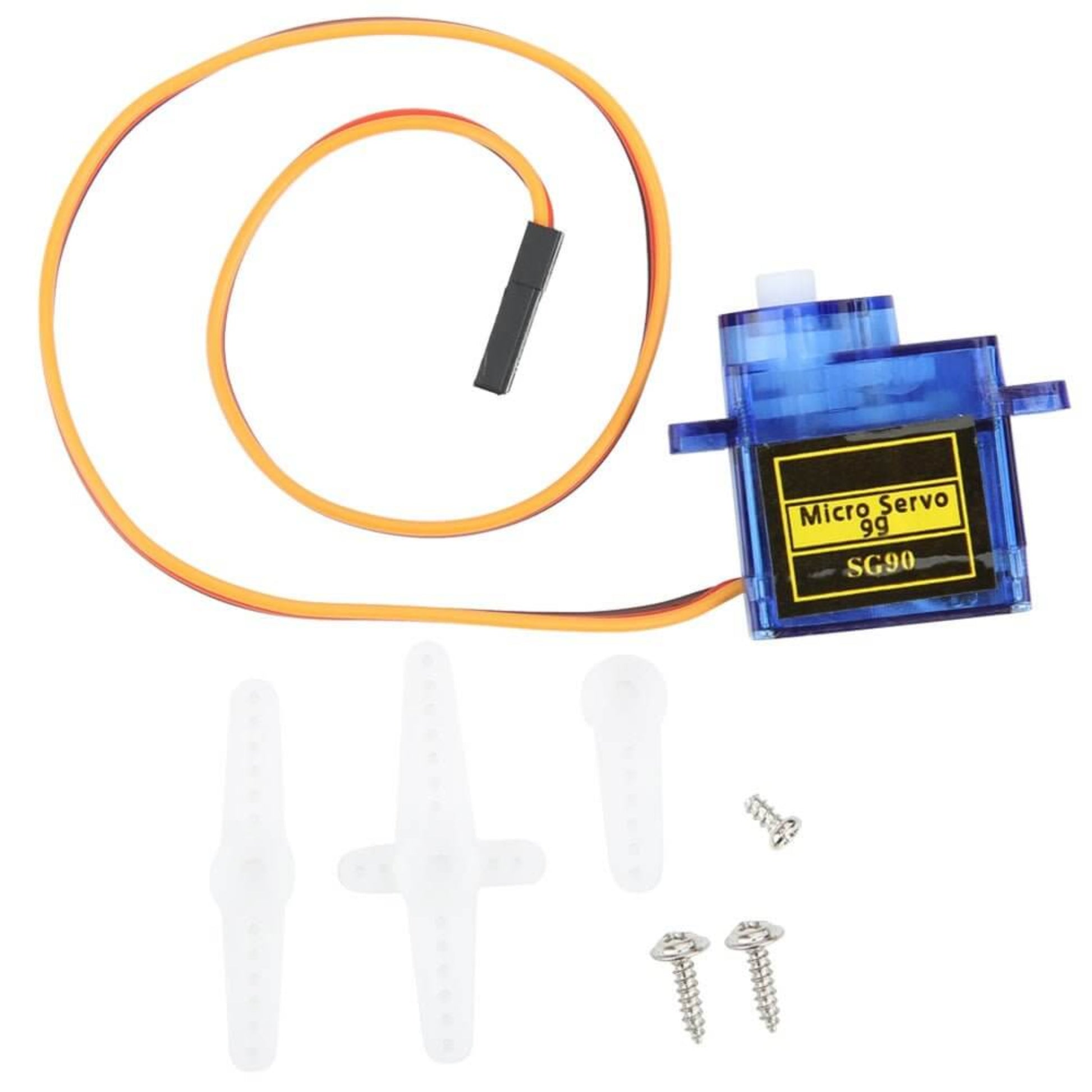

Package Contents:
- 9g Micro Servo x 1 (Please select desired rotation mode)
- Horn Set x 1 (includes various servo arms and mounting screws for easy assembly)
