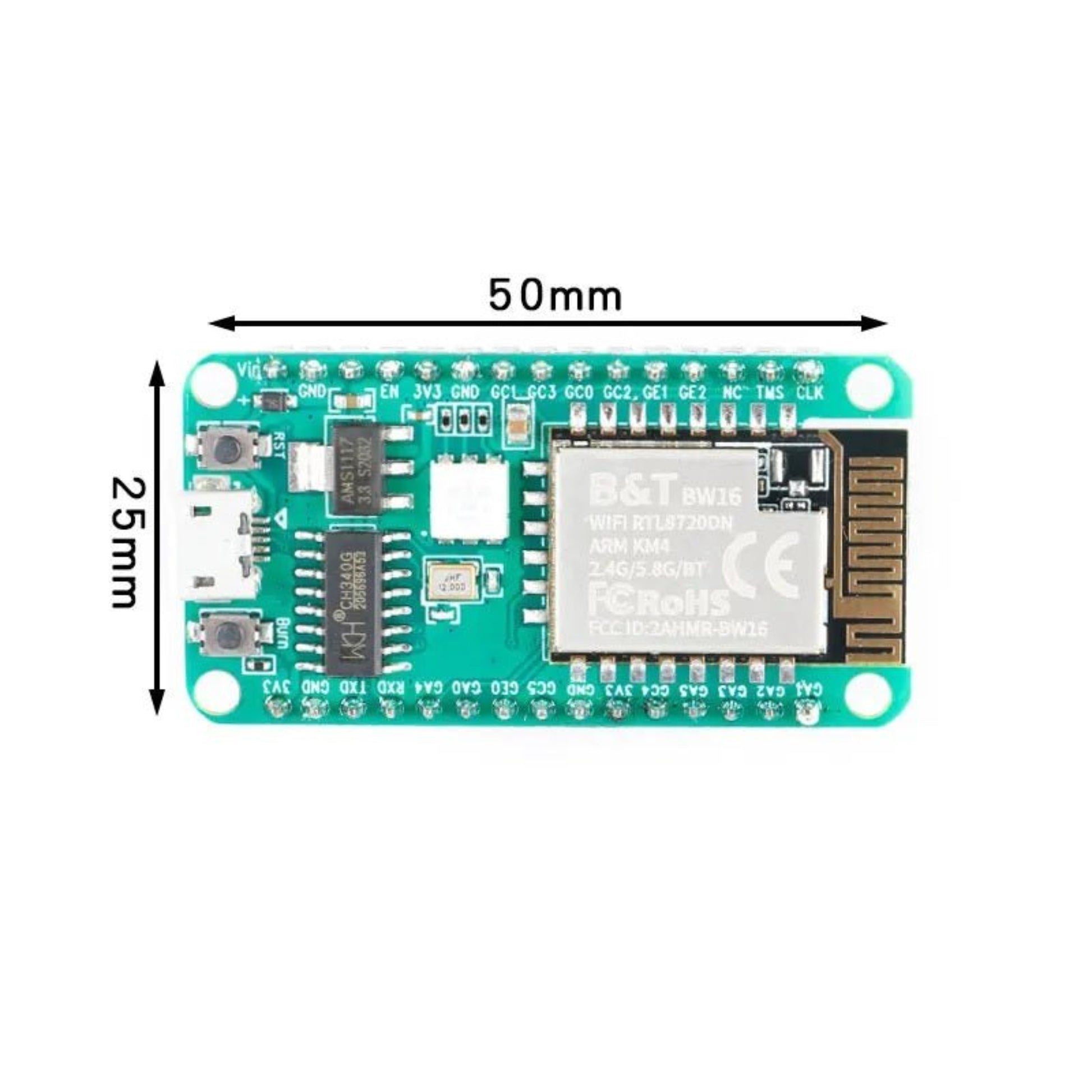

  • Load image into Gallery viewer, rtl8720dn development module hk

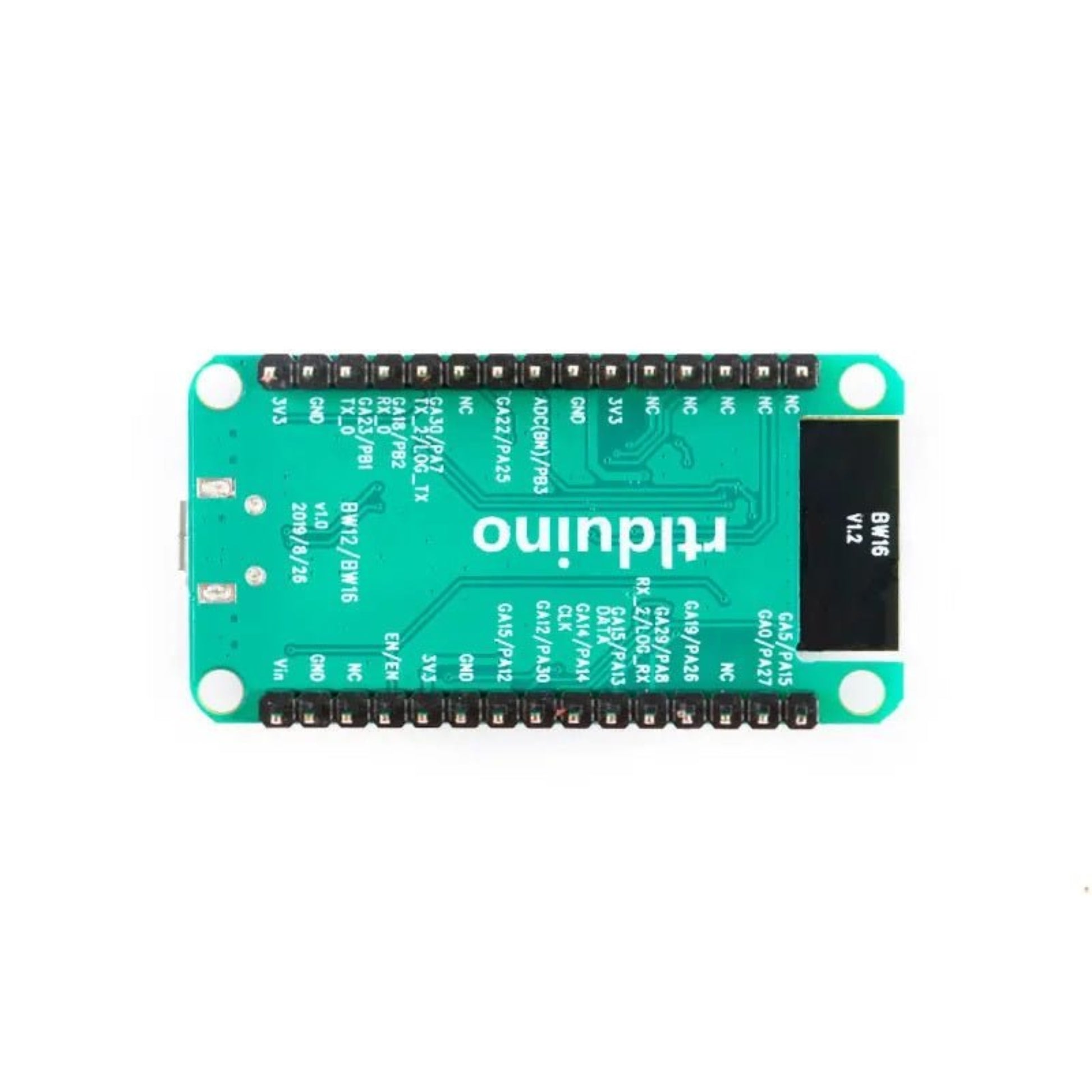

  • Load image into Gallery viewer, RTL8720DN Development Board BW16

RTL8720DN Development Board BW16

Regular price
Sale price
Regular price
Sold out
Unit price

BW16 BW16-Kit Module Board Chip RTL8720DN WiFi Bluetooth-compatible Development Board Wifi Wireless Module I2C UART Interface


BW16 is a dual-band Wi-Fi+Bluetooth-compatible SoC module developed based on RTL8720DN. BW16 supports dual-band (2.4GHz or 5GHz) WLAN and low-power Bluetooth-compatible 5.0; it integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11 a / b / g / n), MAC, Bluetooth-compatible baseband and RF baseband, and provides a set of configurable GPIO ports for the control of different peripheral devices. BW16 also integrates internal memory, supports simple application development, and can achieve complete Wi-Fi and BT 5.0 protocol functions.



Support 802.11a/b/g/n 1×1, 2.4GHz or 5GHz

Support HT20/HT40 mode

Support low-power beacon monitoring mode, low-power receiving mode, low-power suspend mode

Built-in AES/DES/SHA hardware engine

Support TrustZone-M, support safe boot

Support SWD debug port access protection and prohibition mode

Support BLE and BT5.0

Bluetooth-compatible supports high power mode (7dBm, sharing the same PA with Wi-Fi)

Wi-Fi and BT share the same antenna

Support STA/AP/STA+AP working mode

Simple Config (APP) that supports Android and IOS One-click network configuration

Support serial port local upgrade and remote firmware upgrade (FOTA)
