Resistive Thin Film Pressure Sensor (FSR) & Module Kit - 110mm (20g-10kg)

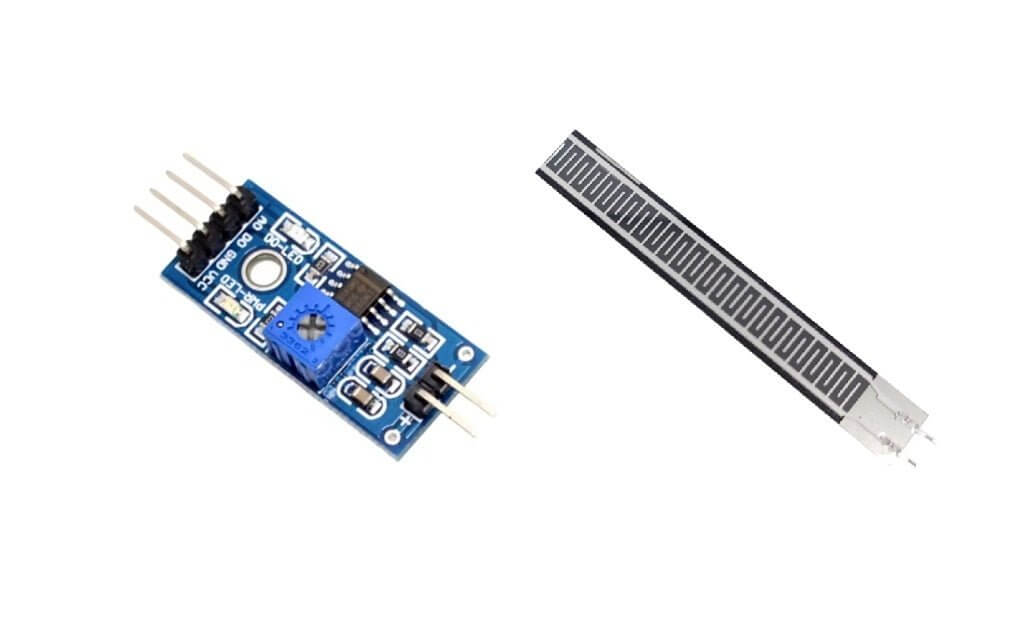

Get started with precise force detection using our complete Resistive Thin Film Pressure Sensor (FSR) & Module Kit! This kit includes a versatile 110mm FSR sensor capable of detecting pressures from 20 grams up to 10 kilograms, alongside its essential amplifier module. Perfect for a wide range of electronic projects, robotics, and smart applications, offering reliable and easy-to-read force measurement.

Key Features & Benefits:

• Complete Kit: Comes with both the 110mm FSR sensor and its dedicated amplifier module, providing everything you need for immediate integration.
• Wide Pressure Range: Accurately detects forces from a light touch (20g) to significant pressure (10kg). Ideal for diverse applications like smart seating, weight scales, or impact detection.

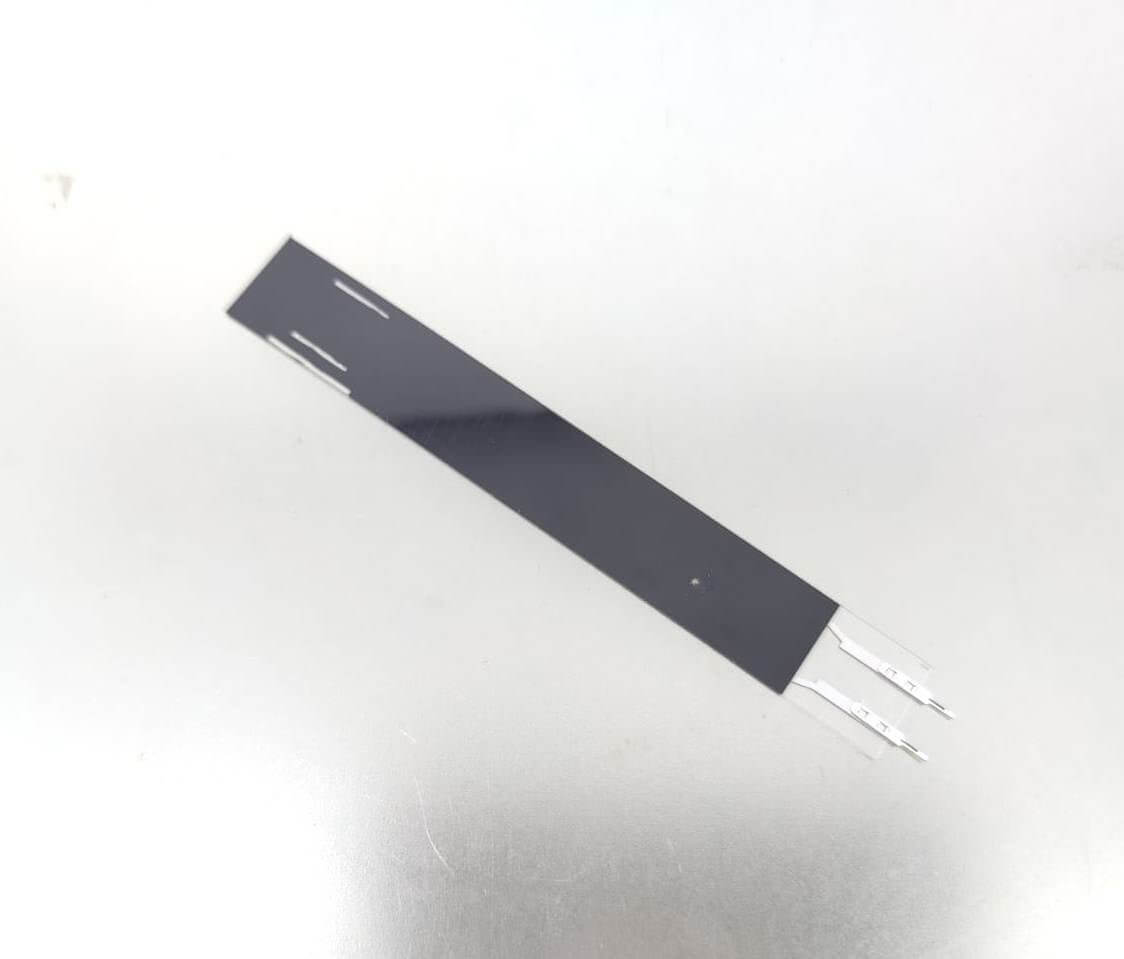

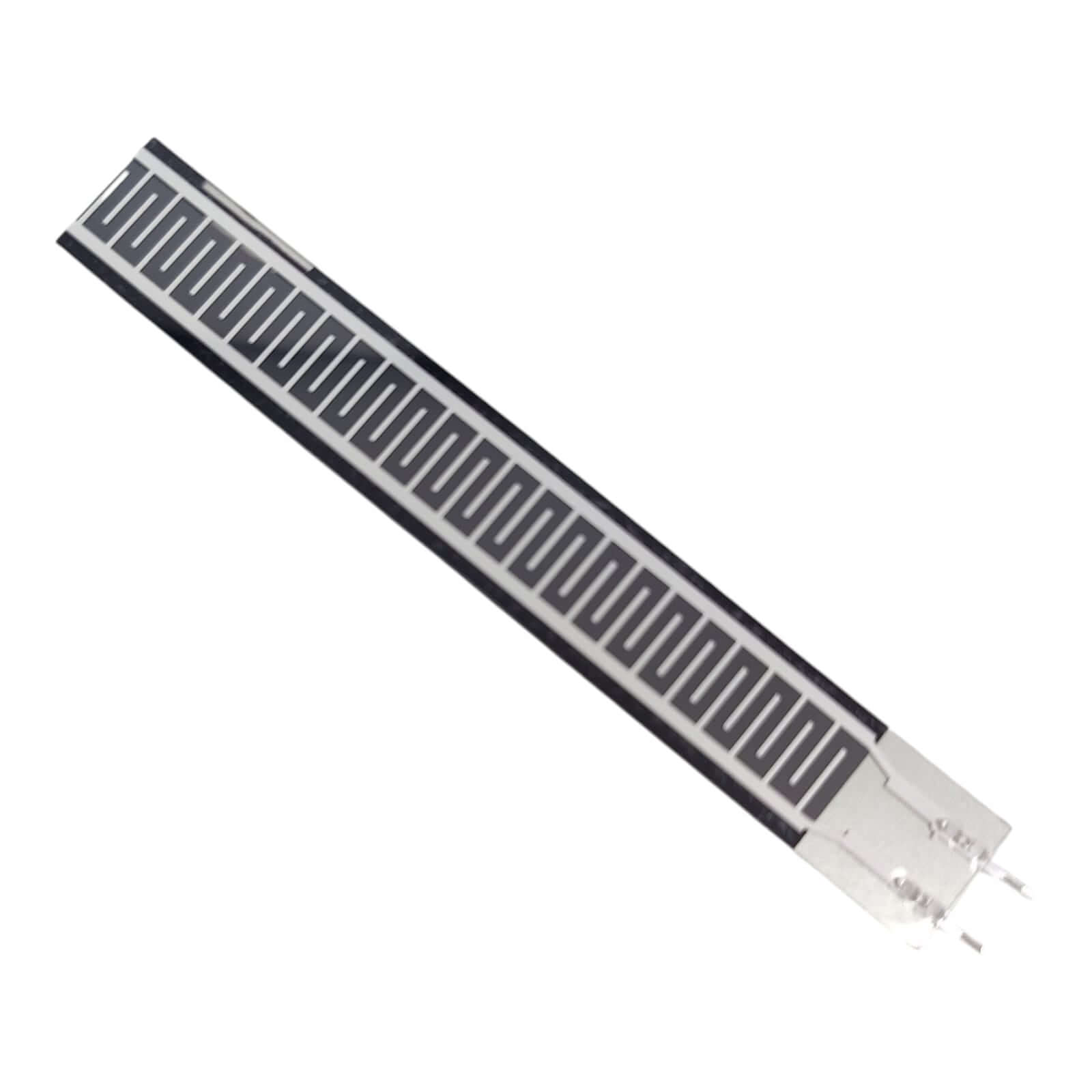

• Ultra-Thin & Flexible Sensor: At just 110mm long, the FSR's slim profile allows for easy integration into tight spaces or curved surfaces without sacrificing performance.
• Module for Easy Interfacing: The included amplifier module converts the sensor's variable resistance into a stable voltage output (0-3.3V), making it effortless to connect to microcontrollers like Arduino, Raspberry Pi, ESP32, and more.
• High Sensitivity & Repeatability: Provides consistent and reliable readings, crucial for accurate data collection in any project.
• Versatile Applications: Perfect for pressure-sensitive switches, smart seating, robotics (tactile sensing), interactive installations, and custom sensing solutions.
• Simple Setup: With just a few connections to your microcontroller, you'll be reading pressure data in no time.

How It Works / Common Uses:

The FSR sensor operates by changing its electrical resistance in response to applied force. When pressure is applied, its resistance decreases. The included amplifier module simplifies this by converting that resistance change into a stable analog voltage signal (0-3.3V), which can be easily read by your microcontroller's Analog-to-Digital Converter (ADC). This setup allows you to accurately quantify the applied force. This powerful kit is an indispensable component for:

• Creating custom pressure-activated switches or safety cut-offs.
• Building interactive floor mats, smart beds, or seat occupancy sensors.
• Adding tactile feedback and object detection to robotic grippers.
• Developing innovative smart home devices and responsive interfaces.
• Prototyping health and fitness trackers requiring weight or pressure monitoring.

Why Choose Our Kit? (Call to Action/Value Proposition):

Engineered for reliability and ease of use, our FSR sensor and module kit offers exceptional performance for hobbyists, educators, and professional developers alike. No more struggling with complex circuit designs – this kit provides a plug-and-play solution to integrate pressure sensing into your next project. Get started on your innovative creations today!

Technical Specifications

• Sensor Type: Force Sensing Resistor (FSR)
• Sensor Length: 110mm
• Detection Range: 20g to 10kg (approximately 0.04 lbs to 22 lbs)
• Sensor Output: Variable Resistance
• Module Output: Analog Voltage (0-3.3V)
• Module Supply Voltage: Typically 3.3V or 5.0V (compatible with most microcontrollers)
• Module Interface: A0 (Analog Out), D0 (Digital Out), GND, VCC pins
• Material: Thin film (flexible substrate for FSR)
• Module Dimensions: 32.4mm x 14.5mm

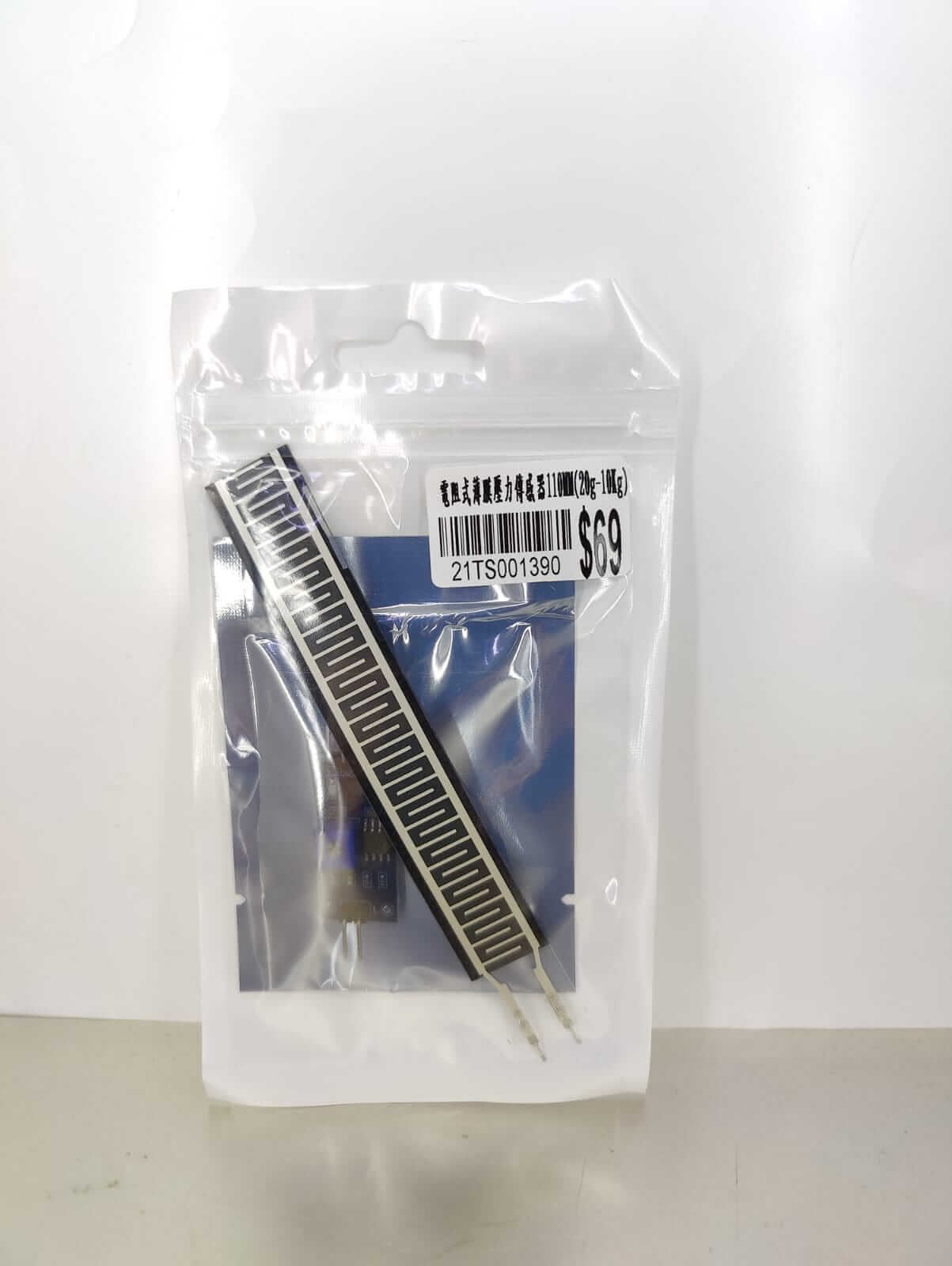

Package Included

• 1x Resistive Thin Film Pressure Sensor (FSR) - 110mm
• 1x FSR Adapter / Amplifier Module
