Raspberry Pi Pi Zero Lan USB Hub

Raspberry Pi 4 B ETH HUB HAT USB to RJ45 Enthernet Port 3 USB Port Extenstion Board for Raspberry Pi 3B Plus Zero W

Introduction:

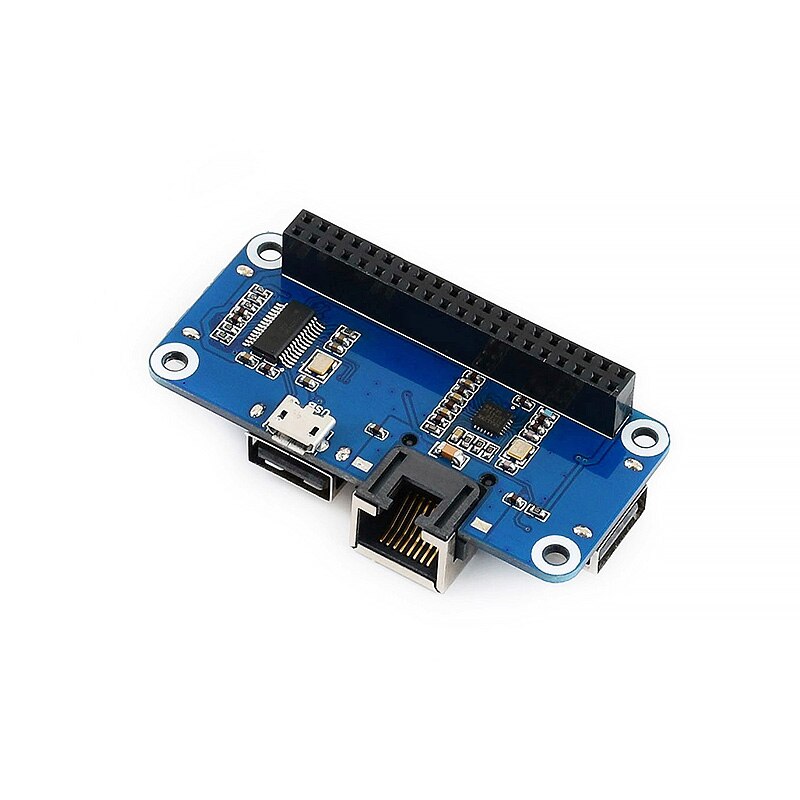

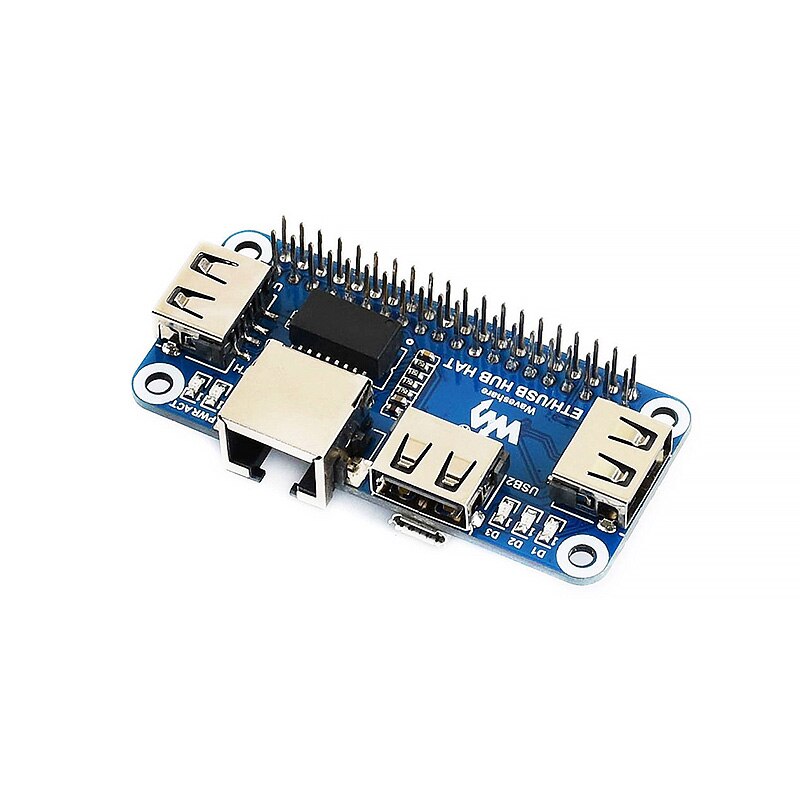

This is a Raspberry Pi expansion board with integrated Ethernet and USB concentrator functions. The ETH/USB HUB HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Features:

3x USB ports, compatible with USB2.0/1.1

1x RJ45 10/100M port, based on the RTL8152B Ethernet chip

Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

Specifications:

Operating voltage: 5V

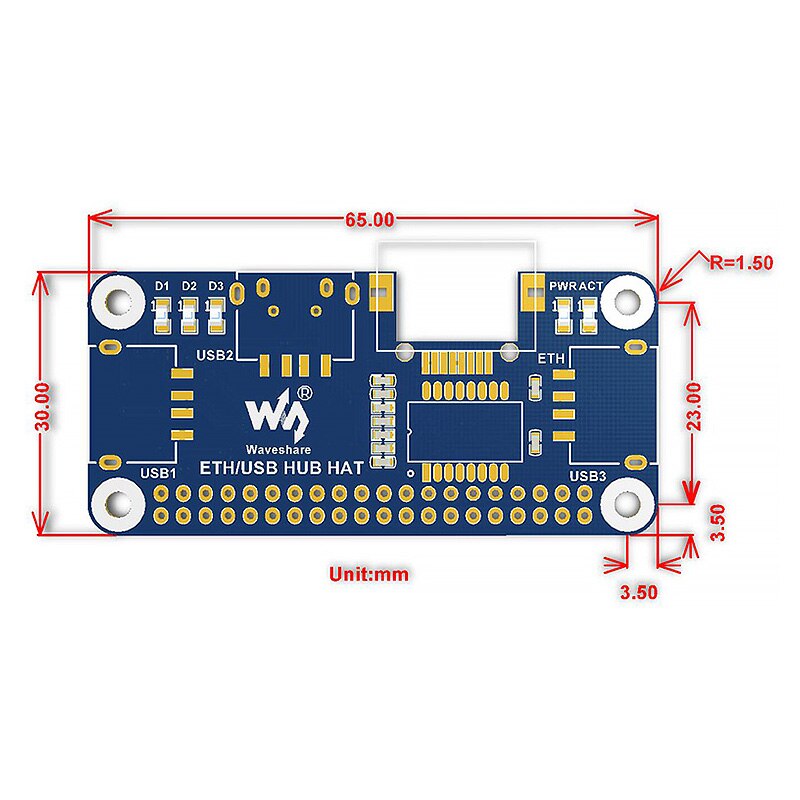

Dimension: 65mm × 30mm

Mounting hole size: 3.0mm

Weight: 0.088 kg approx

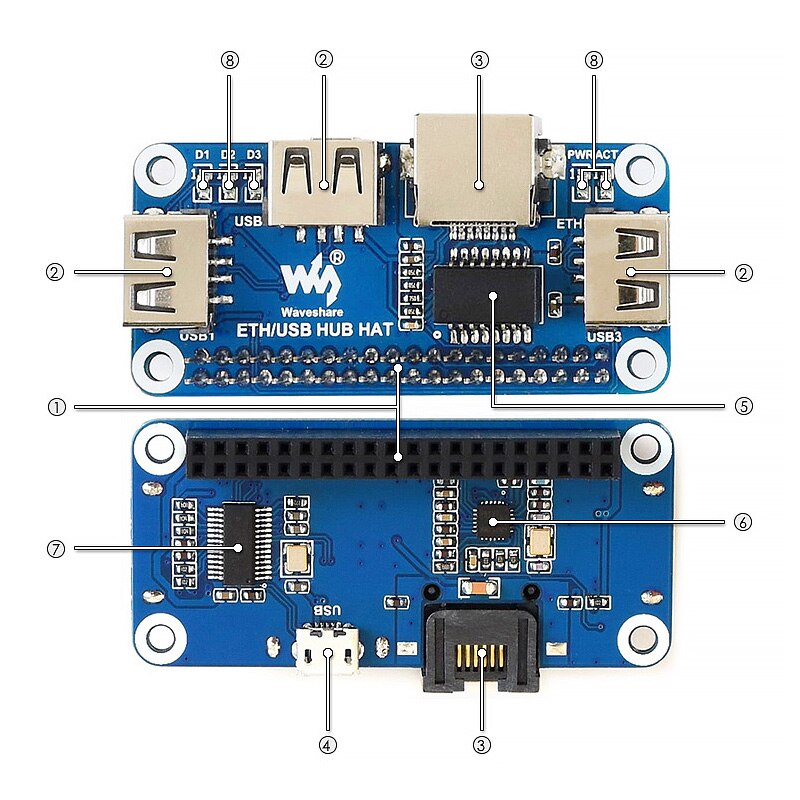

Ethernet / USB HUB HAT introduction：

1.Raspberry Pi GPIO interface:for connecting Raspberry Pi

2.USB extended ports: USB1~USB3

3.RJ45 port: 10/100M Ethernet interface

4.USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port

   Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector

   Raspberry Pi B+ / 2B / 3B / 3B+ : connected via Micro USB cable

5.TS8121A: Ethernet wave filter

6.RTL8152B: 10/100M Ethernet chip

7.FE1.1S: USB HUB chip

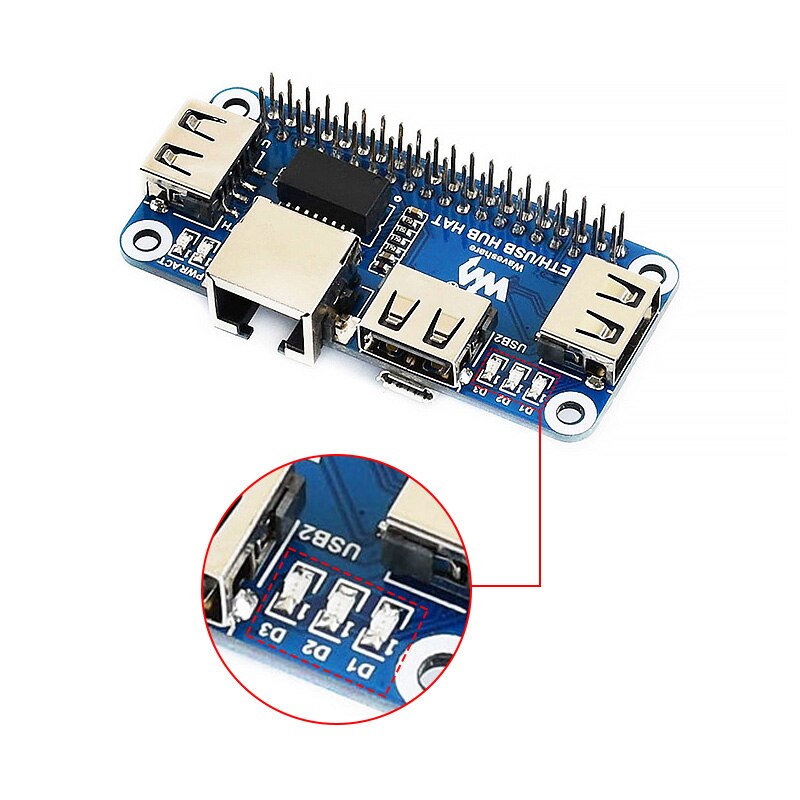

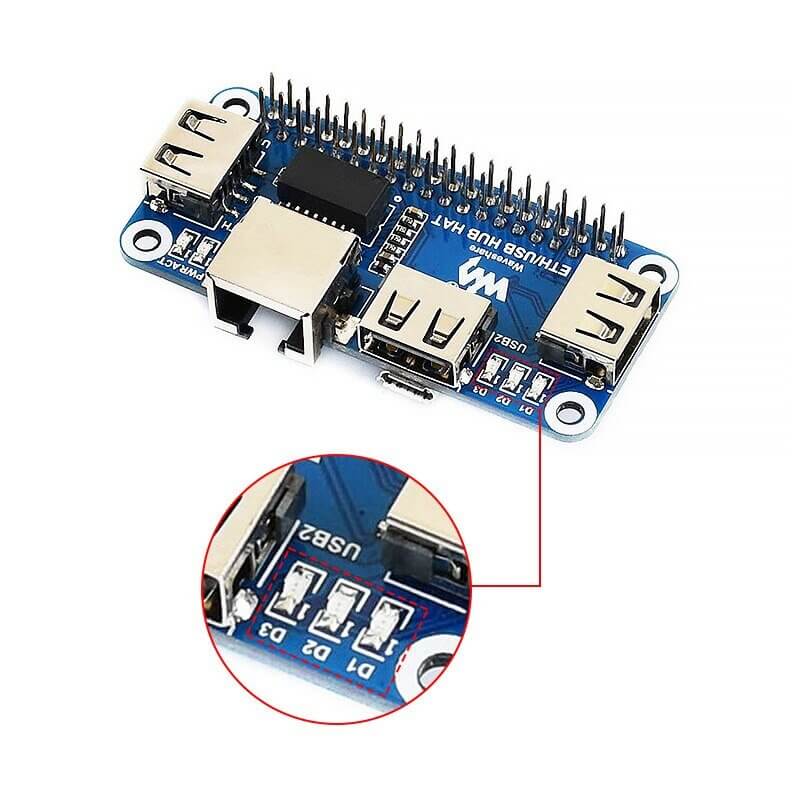

8.LED indicators:

   PWR: power indicator

   ACT: Ethernet indicator

   D1~D3: dedicated indicator for USB1~USB3 respectively

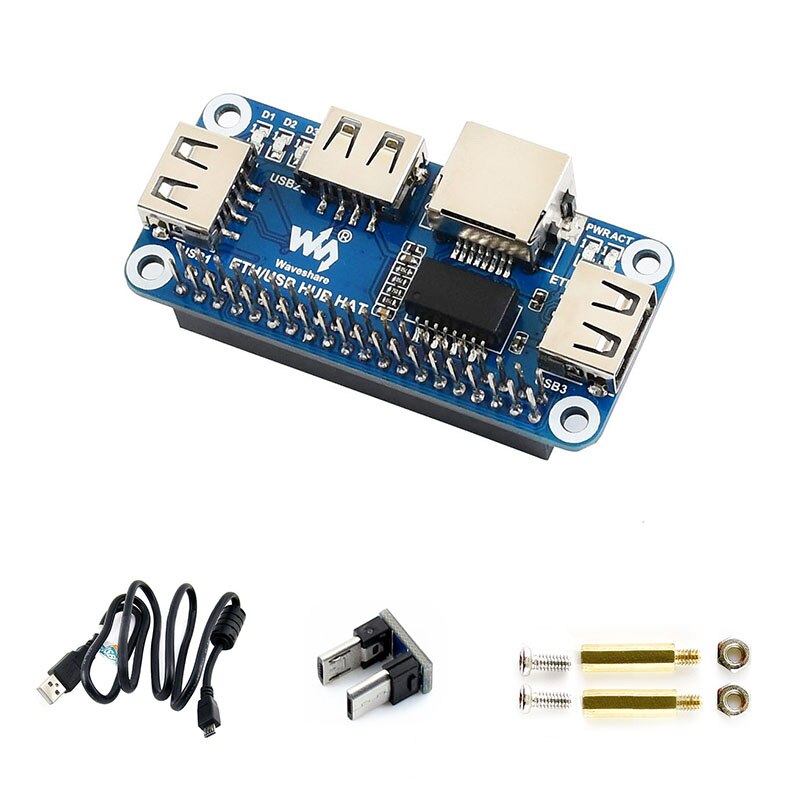

Packing List：

1 x ETH/USB HUB HAT

1 x Micro USB connector

1 x Micro USB cable

1 x RPi screws pack (2pcs)
