1200MP SC0874 Raspberry Pi Camera Module 3 Wide, IMX708, Raspberry Pi Computers
Note: if for Pi 5, please buy the Pi 5 Ribbon cable to use the camera module.
Product Overview

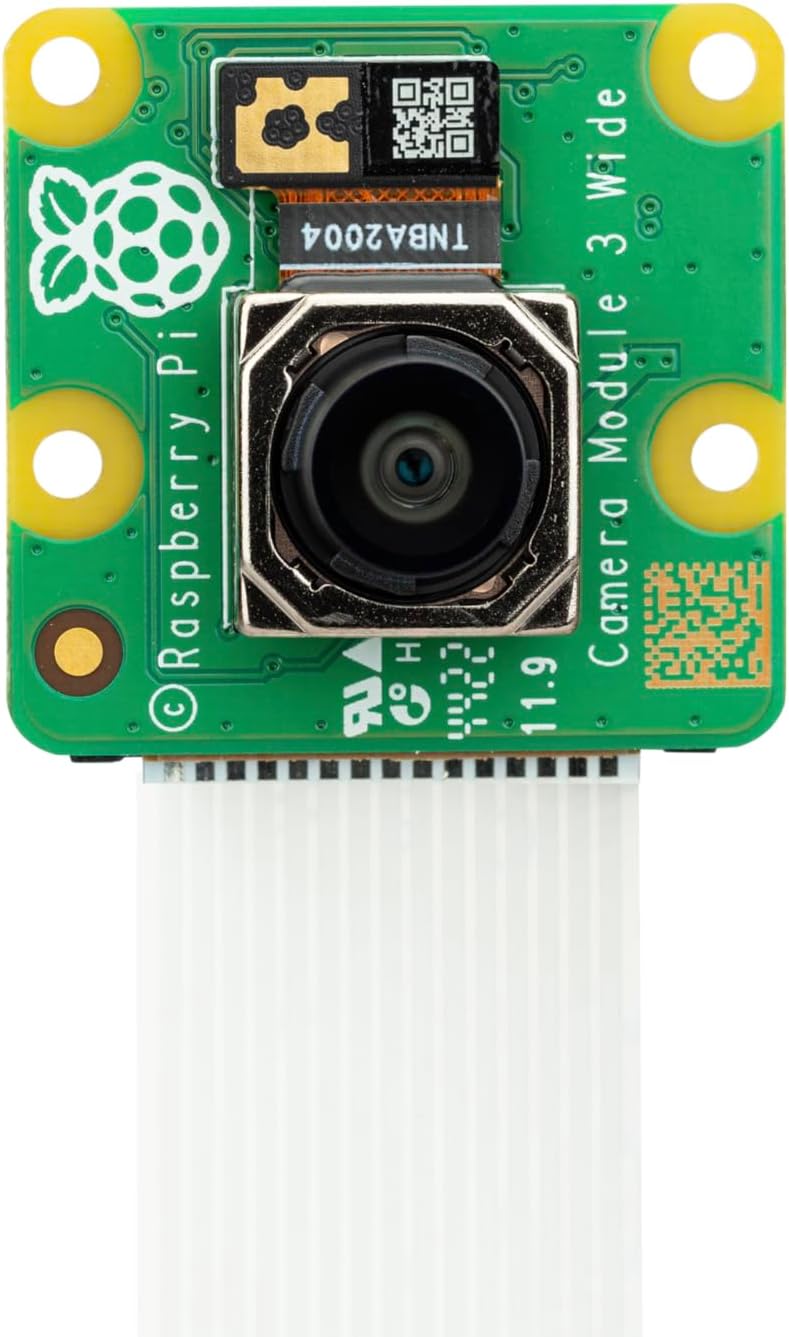

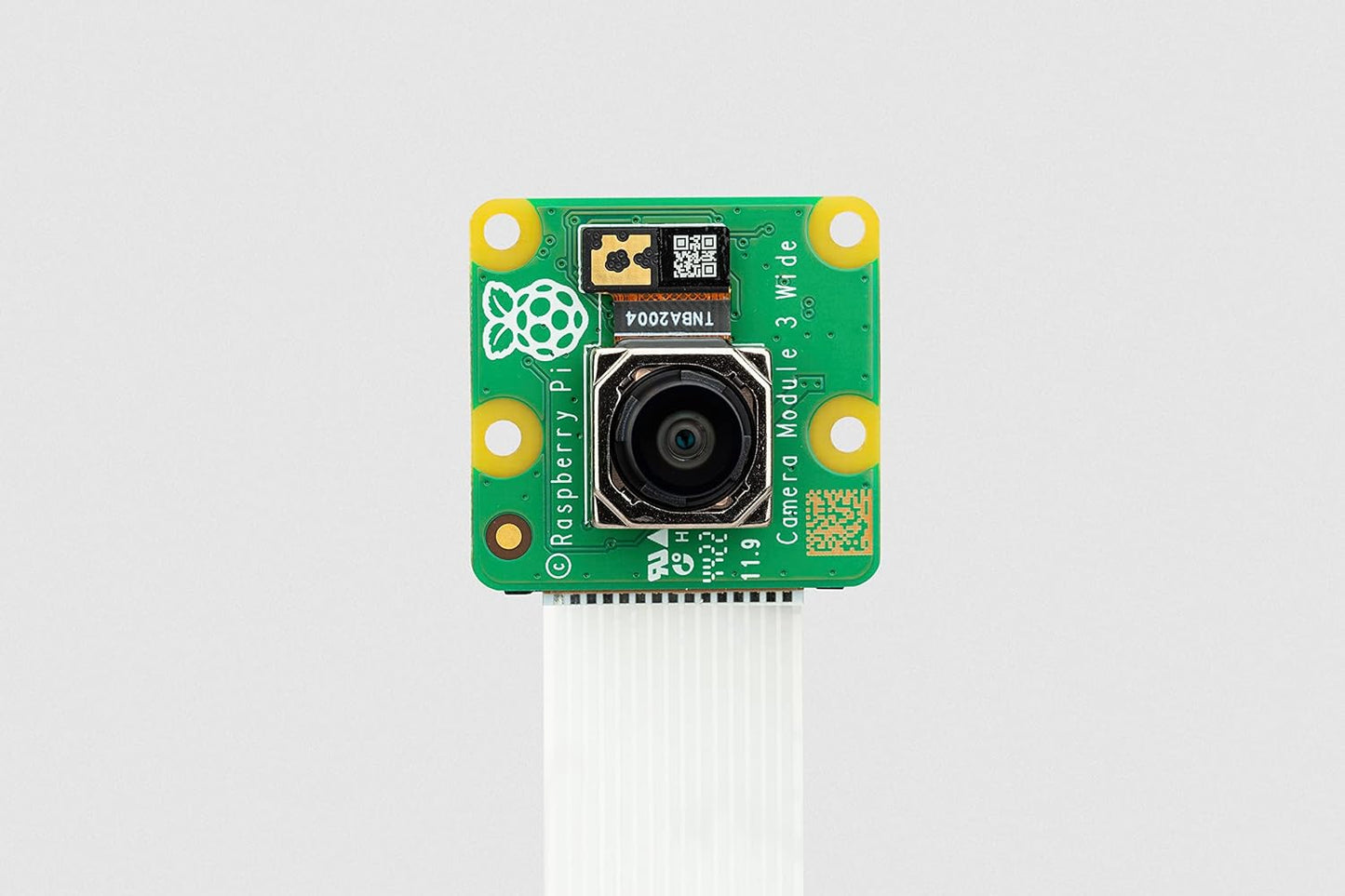

The latest version of the official Raspberry Pi camera module, the V3 camera provides a 12 Megapixel Sony image sensor with HDR support and rapid autofocus with libcamera compatability. The camera is designed for ease of use while still providing additional features for advanced users. This model is fitted with a wide angle lens (120°).
- Sony IMX708 back-illuminated CMOS 12 Megapixel sensor
- HDR mode (up to 3 Megapixel output)
- RAW10 output, capable of 4608x2592 pixel images
- Phase Detection Autofocus (PDAF) system
- Full support for libcamera library, including rapid autofocus feature
- 2 Wire serial communication with support for I2C fast mode and fast-mode plus
- Focal Range: 50mm - ∞
- Focal Length: 2.75mm
- Folar Ratio: F2.2
- FOV: 102° (Horizontal), 67° (Vertical), 120° (Diagonal)

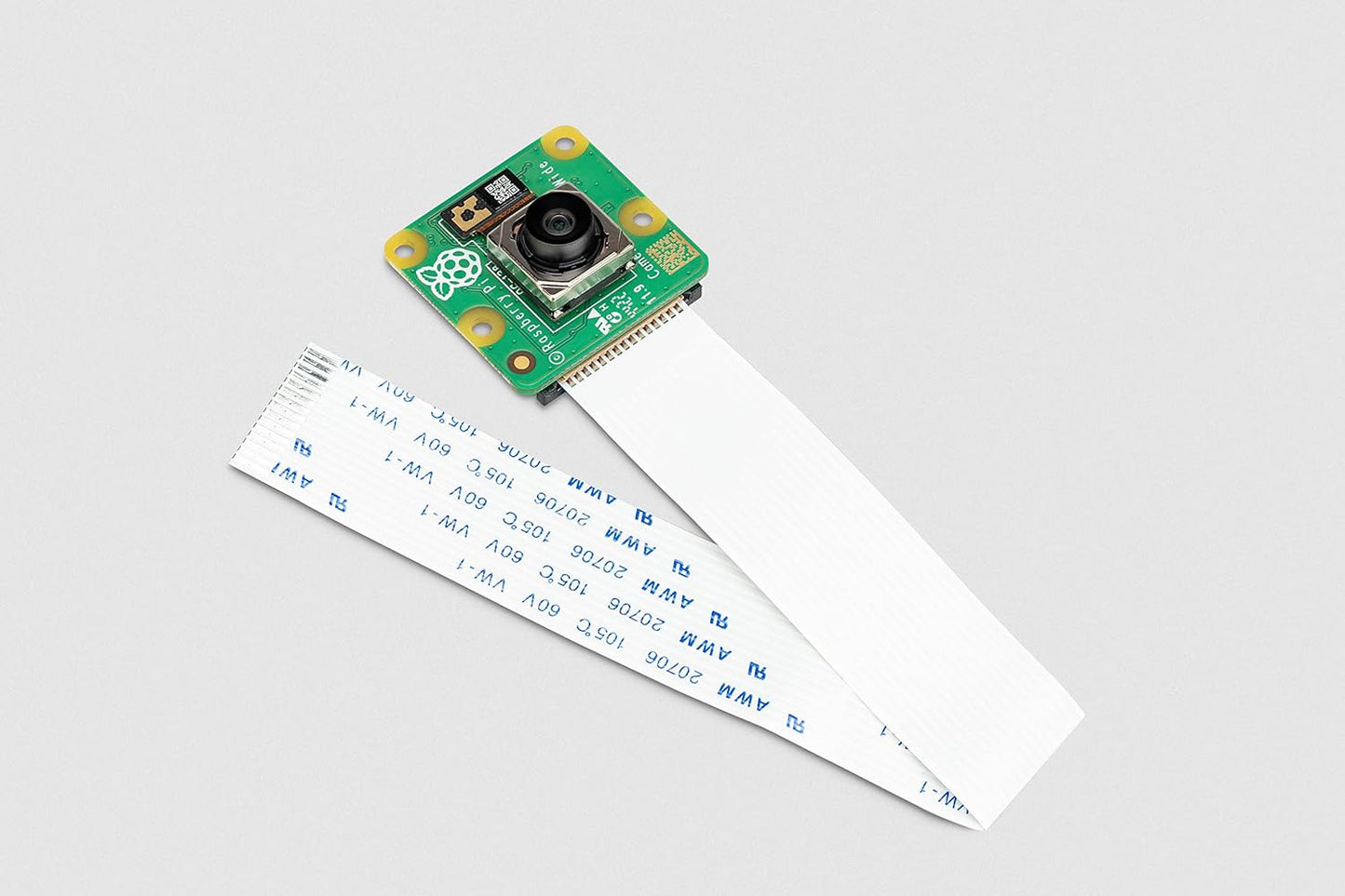

- 200mm Ribbon cable with 15x1mm FPC connector
- Compatible with all Raspberry Pi models with FPC camera connector
- Dimensions (HxWxD): 12.4x25x24mm
