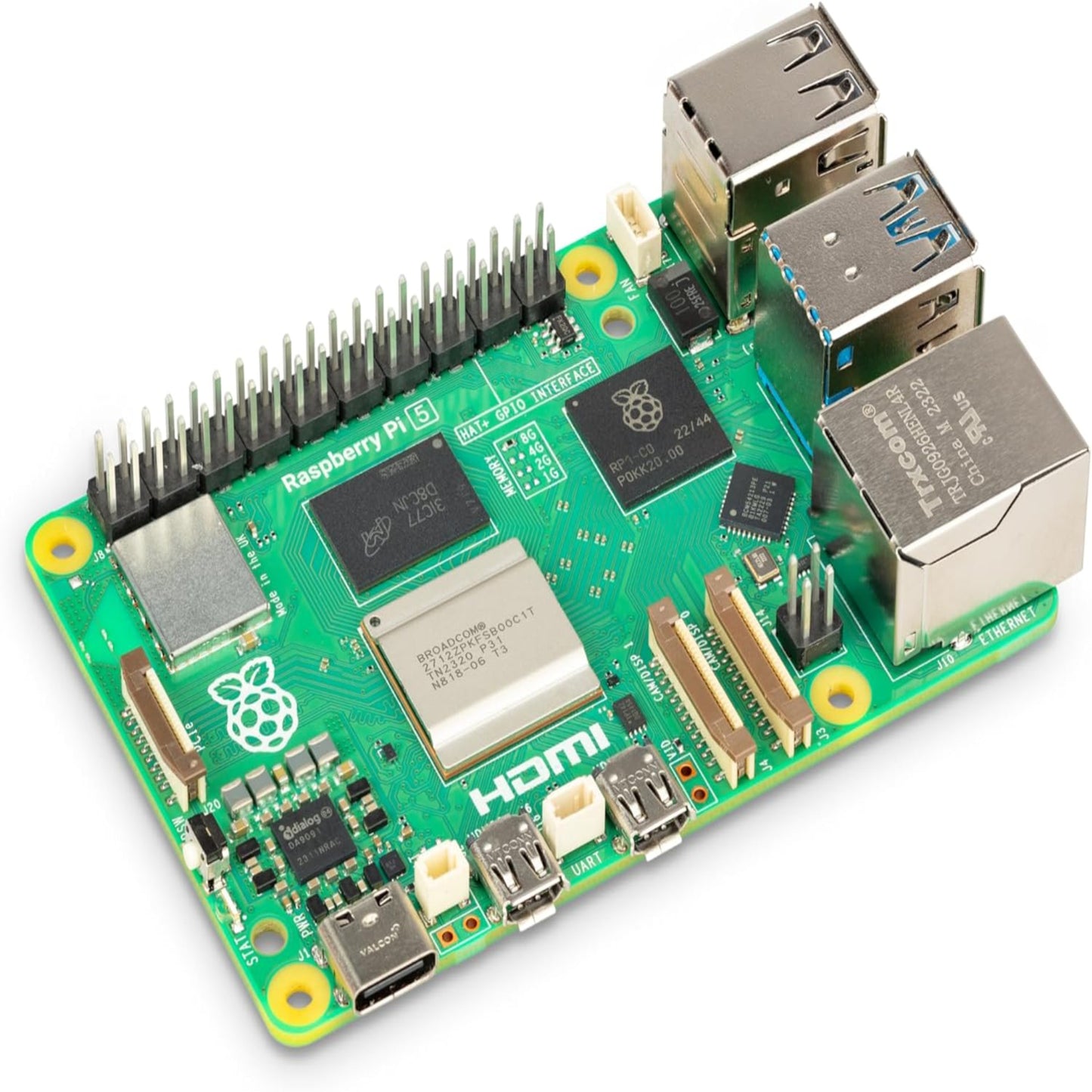

Raspberry Pi 5 Model B – 4GB / 8GB Single-Board Computer

Product Description
The Raspberry Pi 5 is the latest flagship single-board computer, powered by a 2.4 GHz Broadcom BCM2712 quad-core ARM Cortex-A76 CPU and VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2. Featuring improved heat dissipation, integrated power-management IC with real-time clock, and flexible camera/display interfaces, it’s the perfect platform for DIY projects, media centres, servers, desktop PCs, educational tools and IoT applications.

Key Features

• Blazing-Fast Processor & GPU
  – 2.4 GHz quad-core ARM Cortex-A76 CPU, VideoCore VII GPU (OpenGL ES 3.1 & Vulkan 1.2)
• Memory Options
  – LPDDR4X-4267 SDRAM: choose 4 GB or 8 GB SKU at launch
• Advanced Connectivity
  – Dual-band 802.11ac Wi-Fi (4 GHz & 5 GHz)
  – Bluetooth 5.0 & BLE
  – Gigabit Ethernet with PoE+ support (requires PoE+ HAT)
• High-Speed USB & PCIe
  – 2 × USB 3.0 (5 Gbps each) + 2 × USB 2.0
  – PCIe 2.0 x1 interface for NVMe SSDs or other peripherals
• Versatile MIPI Interfaces
  – 2 × four-lane MIPI CSI/DSI connectors (camera or display) via RP1 I/O controller
• On-board RTC & Power Management
  – Integrated RTC with external battery support
  – Power-management IC includes charging circuitry for button cell
  – On-board power button & PD-enabled 5 V/5 A DC input
• Expansions & GPIO
  – Standard 40-pin header for HATs and add-ons

• Specifications
• CPU: 2.4 GHz quad-core ARM Cortex-A76 (BCM2712)
• GPU: VideoCore VII (OpenGL ES 3.1, Vulkan 1.2)
• RAM: 4 GB / 8 GB LPDDR4X-4267
• Wireless: 802.11ac Wi-Fi (4 GHz & 5 GHz), Bluetooth 5.0/BLE
• Storage: Micro SD slot (SDR104 mode)
• USB: 2 × USB 3.0, 2 × USB 2.0
• Ethernet: Gigabit (PoE+ via HAT)
• Video/Camera: 2 × four-lane MIPI CSI/DSI
• PCIe: PCIe 2.0 x1
• Power: 5 V/5 A DC (PD enabled), on-board power button
• Headers: Standard 40-pin GPIO
• RTC: Yes (external battery supported)

Applications
DIY electronics, robotics, home automation, media centres, personal servers, desktop replacement, STEM education, IoT prototypes

What’s in the Box

• 1 × Raspberry Pi 5 Model B (4 GB or 8 GB)
