Raspberry Pi 4B/3B+ GPIO Sensor Board | 8‑Channel Power Expansion
Raspberry Pi 4B/3B+ GPIO Sensor Board | 8‑Channel Power Expansion
Regular price
HK$99.00
Regular price
Sale price
HK$99.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

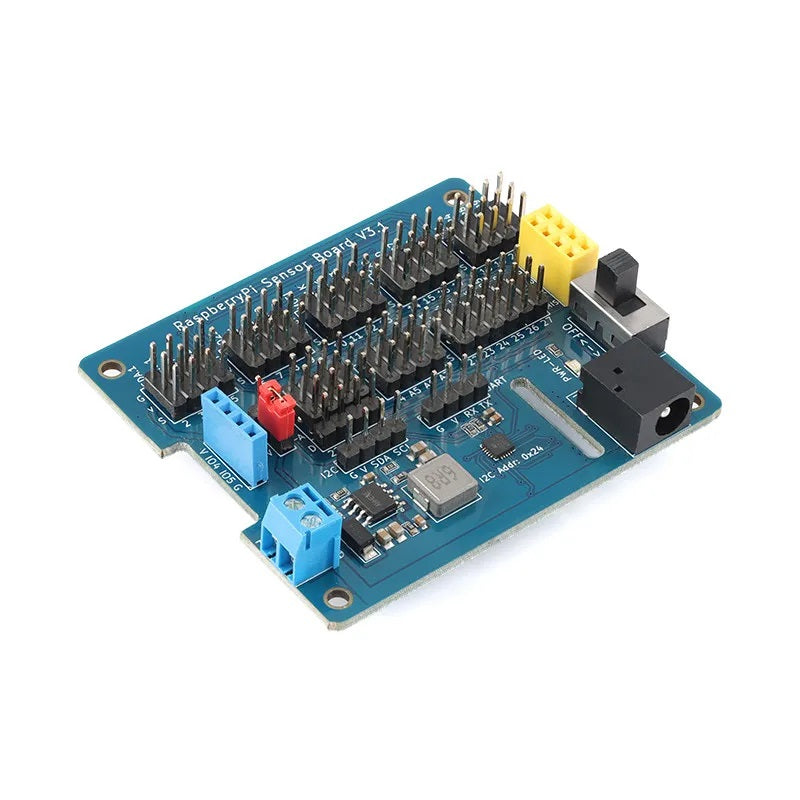

Unlock the full potential of your Raspberry Pi projects with this all‑in‑one GPIO sensor expansion board. Designed for Raspberry Pi 4B, 3B+, 3B, 2B, and Zero models, it combines reliable power management and 8‑channel ADC functionality to simplify complex wiring and sensor integration.
Key Features

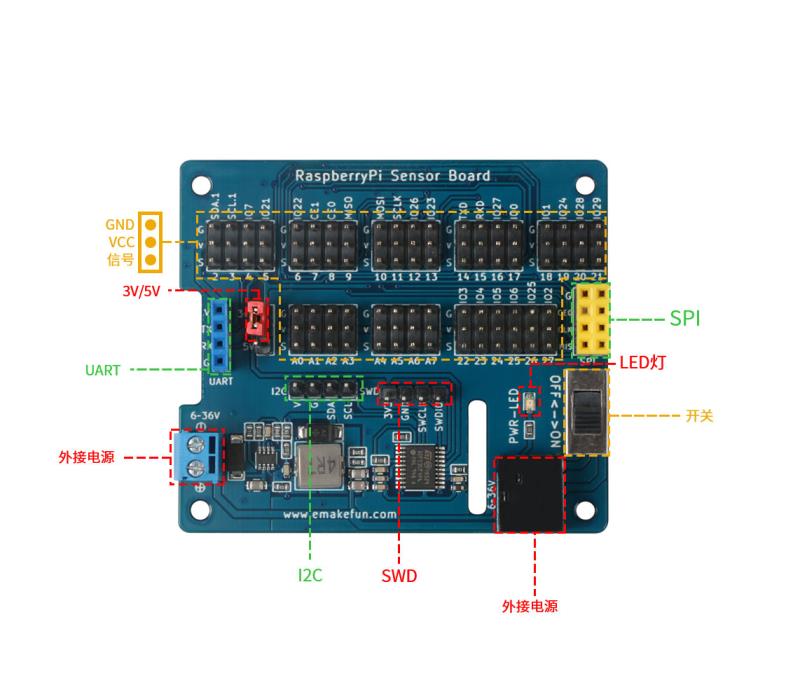

- 8‑Channel ADC Input: Built‑in 8‑bit MCU offers eight analog input channels (A0–A7), enabling the Raspberry Pi to read analog sensors like potentiometers and photoresistors.
- Wide Voltage Support: Onboard DC‑DC converter supports input from 5V–36V and outputs a steady 5V/3A power supply—enough for both Pi and peripherals.
- Broad Compatibility: Supports all 40‑pin GPIO Raspberry Pi versions, including 4B, 3B+, 3B, 2B, and Zero.
- Selectable Sensor Voltage: Easily toggle between 3.3V and 5V sensor operation using jumpers for flexible sensor compatibility.
- Dual Power Input Options: Choose between a standard 5.5x2.1mm DC jack or screw terminal for convenient wiring setups.
Technical Specifications
| Component / Function | Specification |
|---|---|
| Compatible Models | Raspberry Pi 4B / 3B+ / 3B / 2B / Zero |
| ADC Channels | 8 analog inputs (A0–A7) |
| ADC Communication | I2C (Default address: 0x24) |
| Onboard MCU | 8‑bit ADC microcontroller |
| Input Voltage Range | 5V – 36V (DC‑DC Input) |
| Output Voltage / Current | 5V / up to 3A |
| Sensor Voltage Options | 3.3V or 5V (jumper selectable) |
| Power Input | 5.5x2.1mm DC jack & screw terminal |
| Documentation | Click here for detailed guide |
Perfect for Raspberry Pi enthusiasts, makers, and engineers looking to streamline sensor connections and expand project capabilities with stable, wide‑range power support.
