Pro'sKit MT-2017N Analog Multimeter: Pro-Grade Multi-Tester

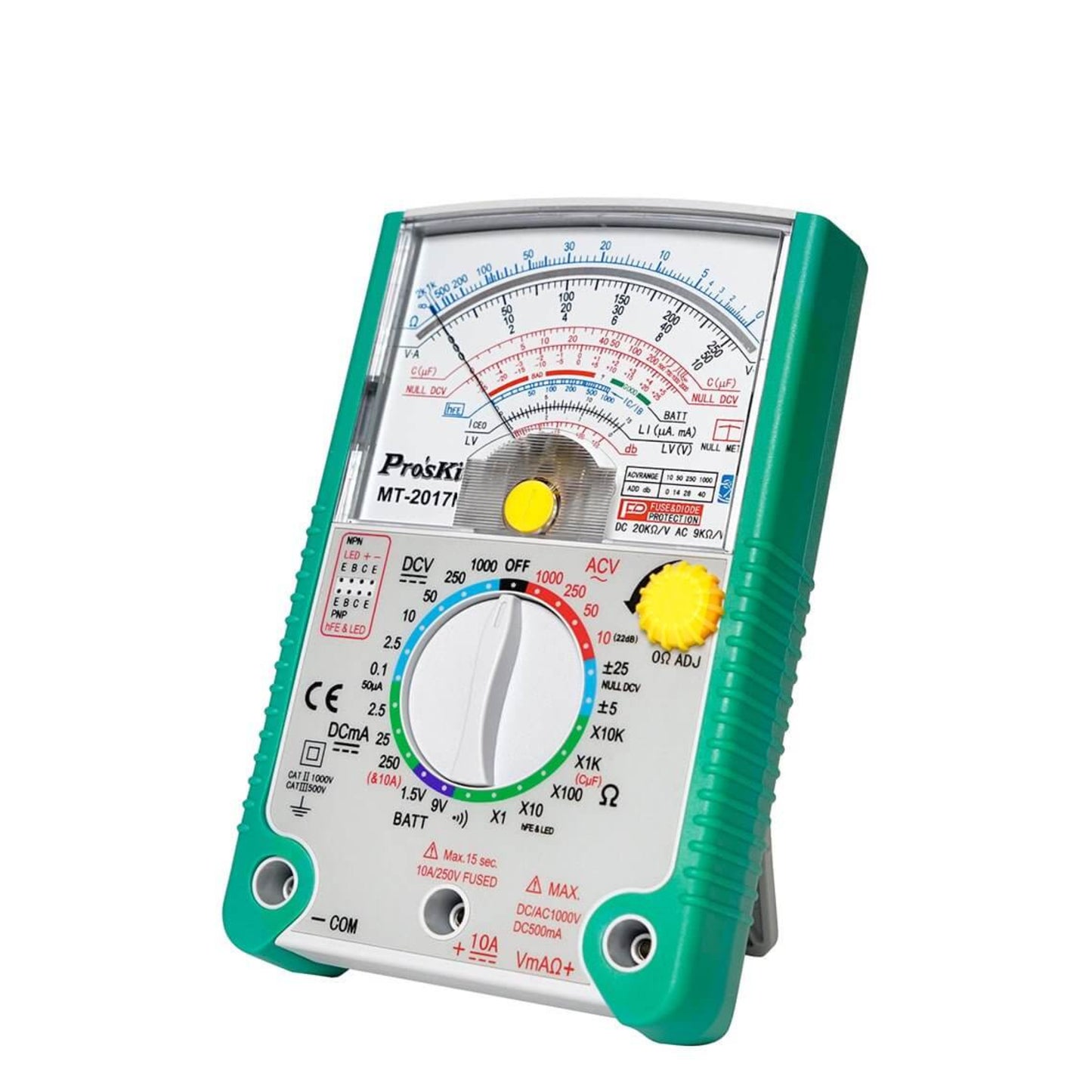

Pro'sKit MT-2017N Analog Multimeter

The Pro'sKit MT-2017N is a professional-grade analog multimeter designed for accurate and reliable electrical measurements. Featuring a robust, shock-resistant design and comprehensive protection circuits, this multi-tester is ideal for electricians, hobbyists, and technicians seeking a dependable tool for a wide range of applications. Its clear, high-definition dial ensures precise readings, making every task straightforward.

Key Features & Benefits:

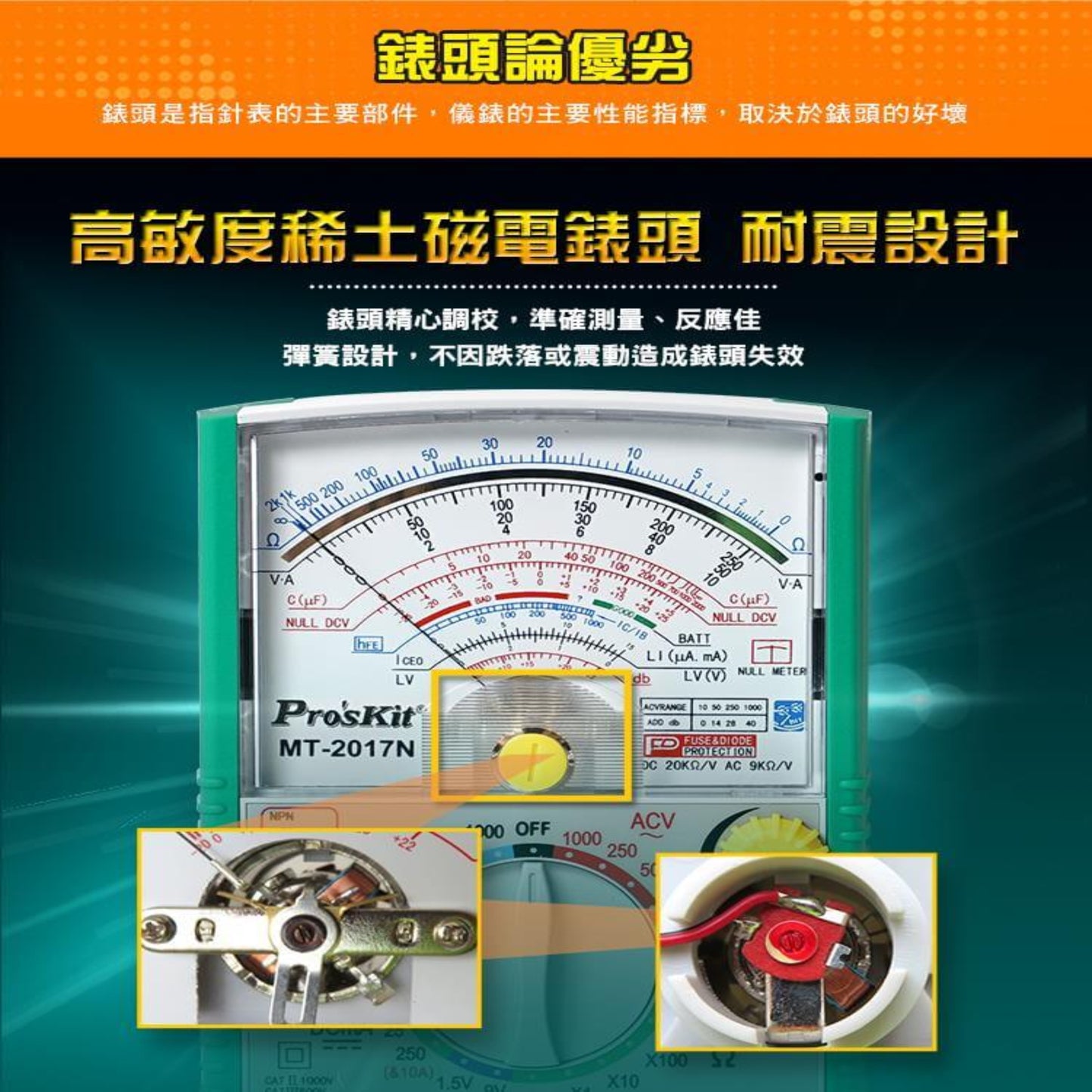

• High Sensitivity & Durable Meter Head:
  • Equipped with a high-sensitivity rare earth magnet meter head for precise measurements and fast response.
  • Spring-loaded design prevents failure due to drops or vibrations, ensuring long-term reliability.

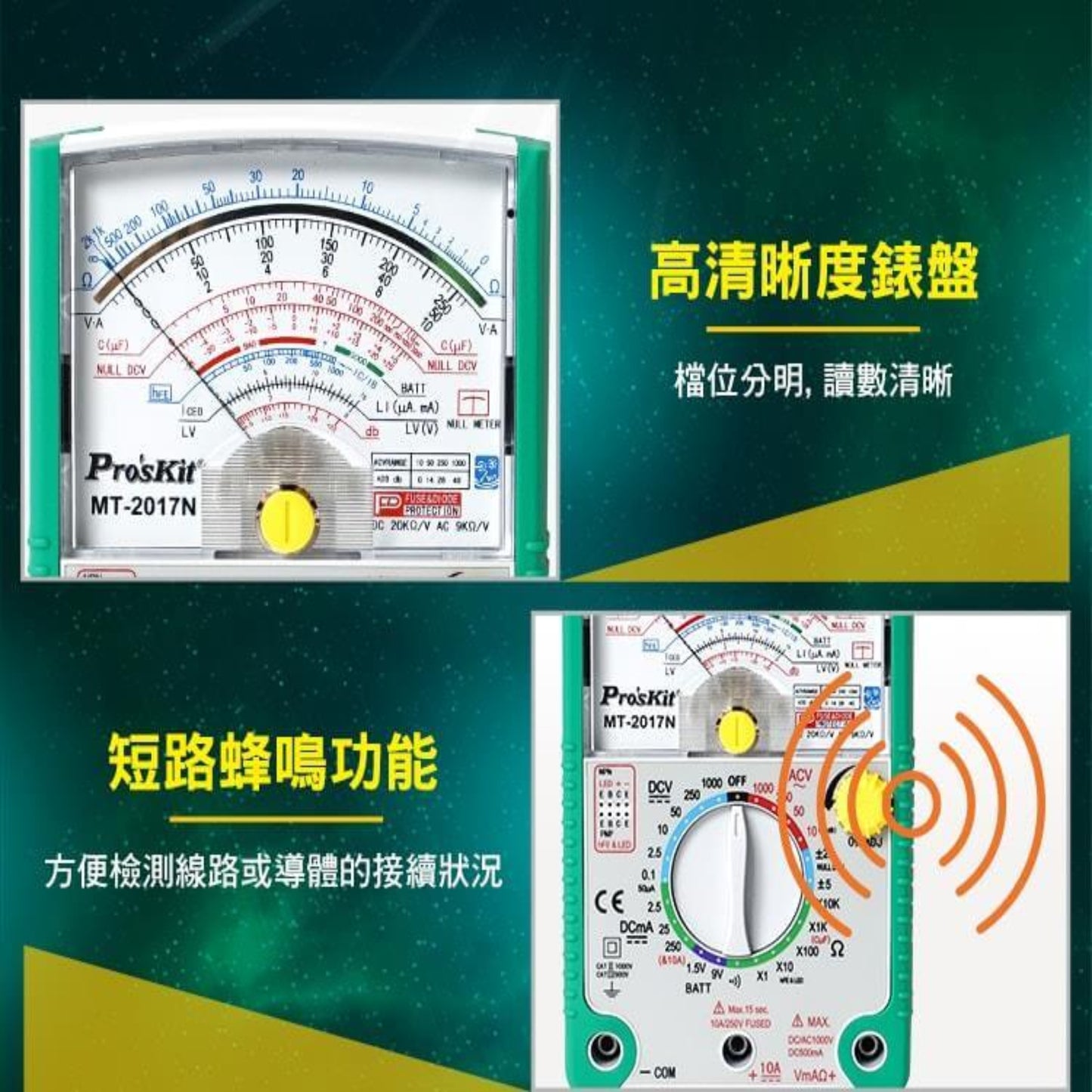

• Clear & Easy-to-Read Dial:
  • High-definition dial with distinct scales allows for effortless and accurate reading of measurements.

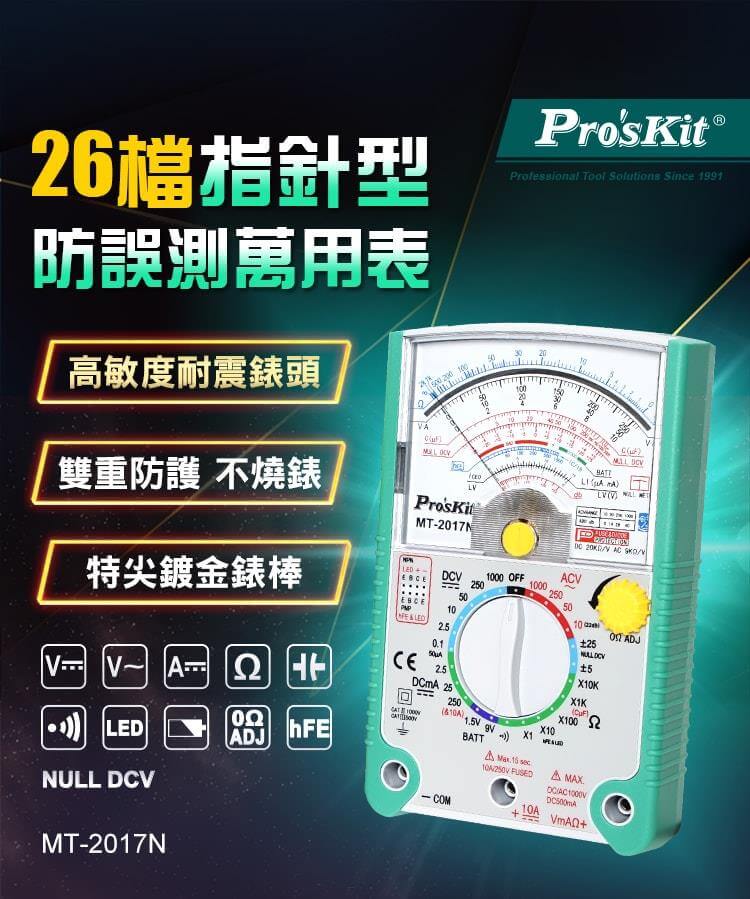

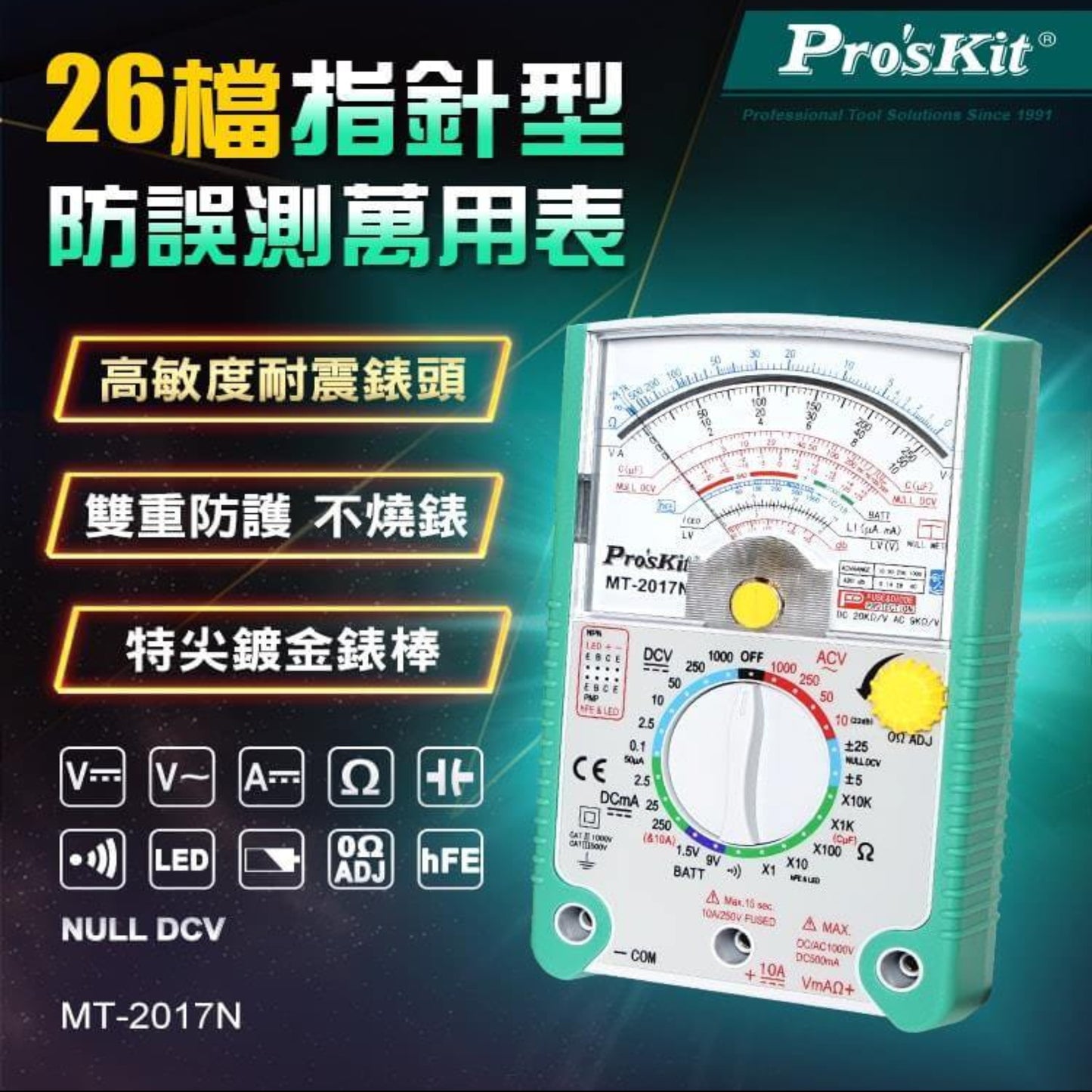

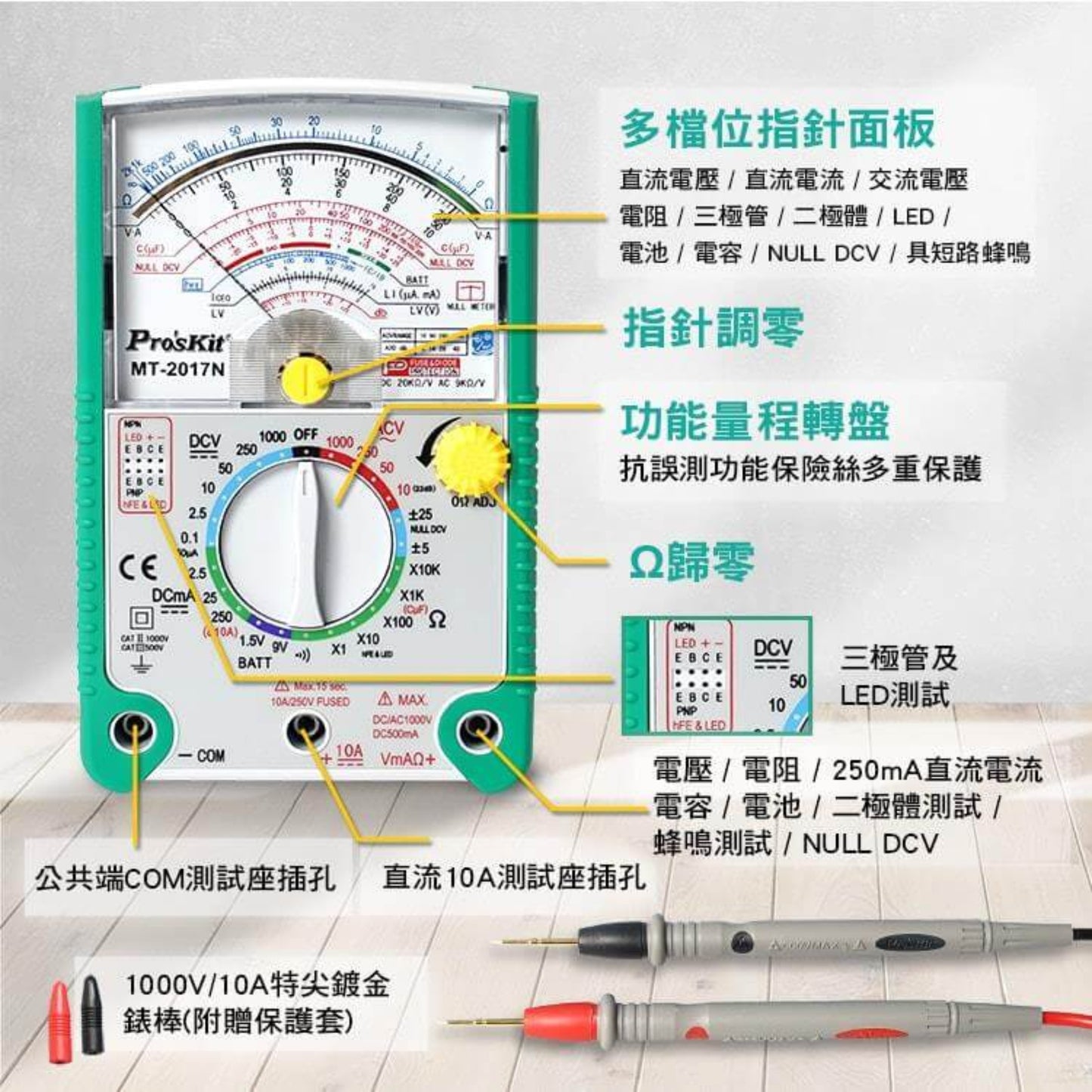

• Comprehensive Multi-Function Testing (26 Ranges):
  • Voltage: Measures DC Voltage (including center zero positive/negative DCV) and AC Voltage.
  • Current: DC Current measurement up to 10A.
  • Resistance: Multiple ranges for precise resistance readings ($\times 1,\times 10,\times 100,\times 1k,\times 10k\Omega$).
  • Capacitance: Tests capacitance up to 2,000 uF.
  • Continuity: Features a convenient short-circuit buzzer function for quick continuity checks of circuits and conductors.
  • Component Testing: Includes functions for transistors (hFE), diodes, and LEDs.
  • Battery Test: Checks 1.5V and 9V batteries.
  • NULL DCV Function: For specialized null voltage measurements.
• Advanced Safety & Protection:
  • Double Protection (Anti-Burn): Prevents damage from accidental misuse or overload.

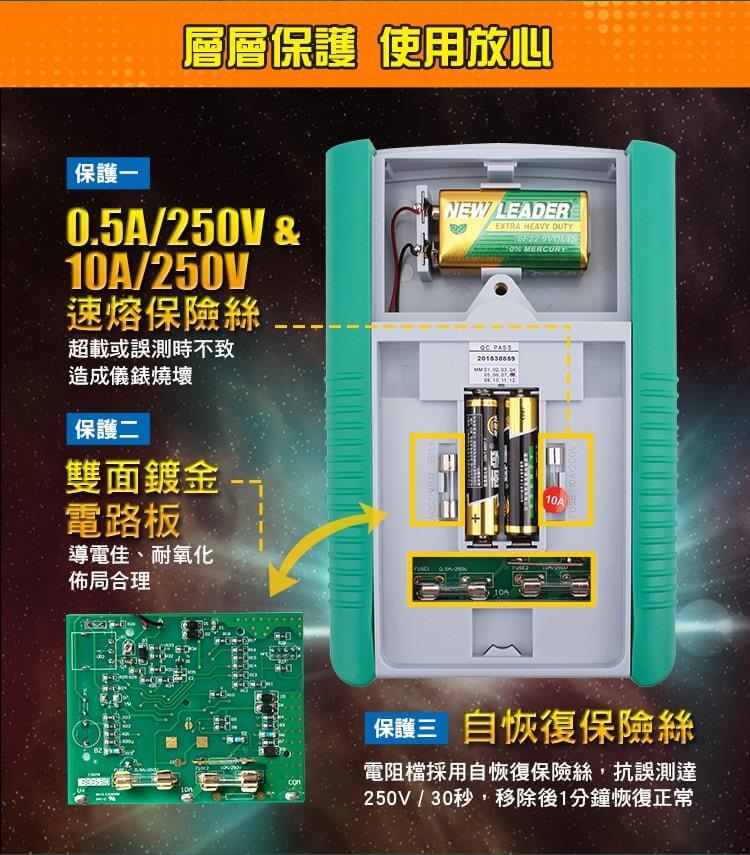

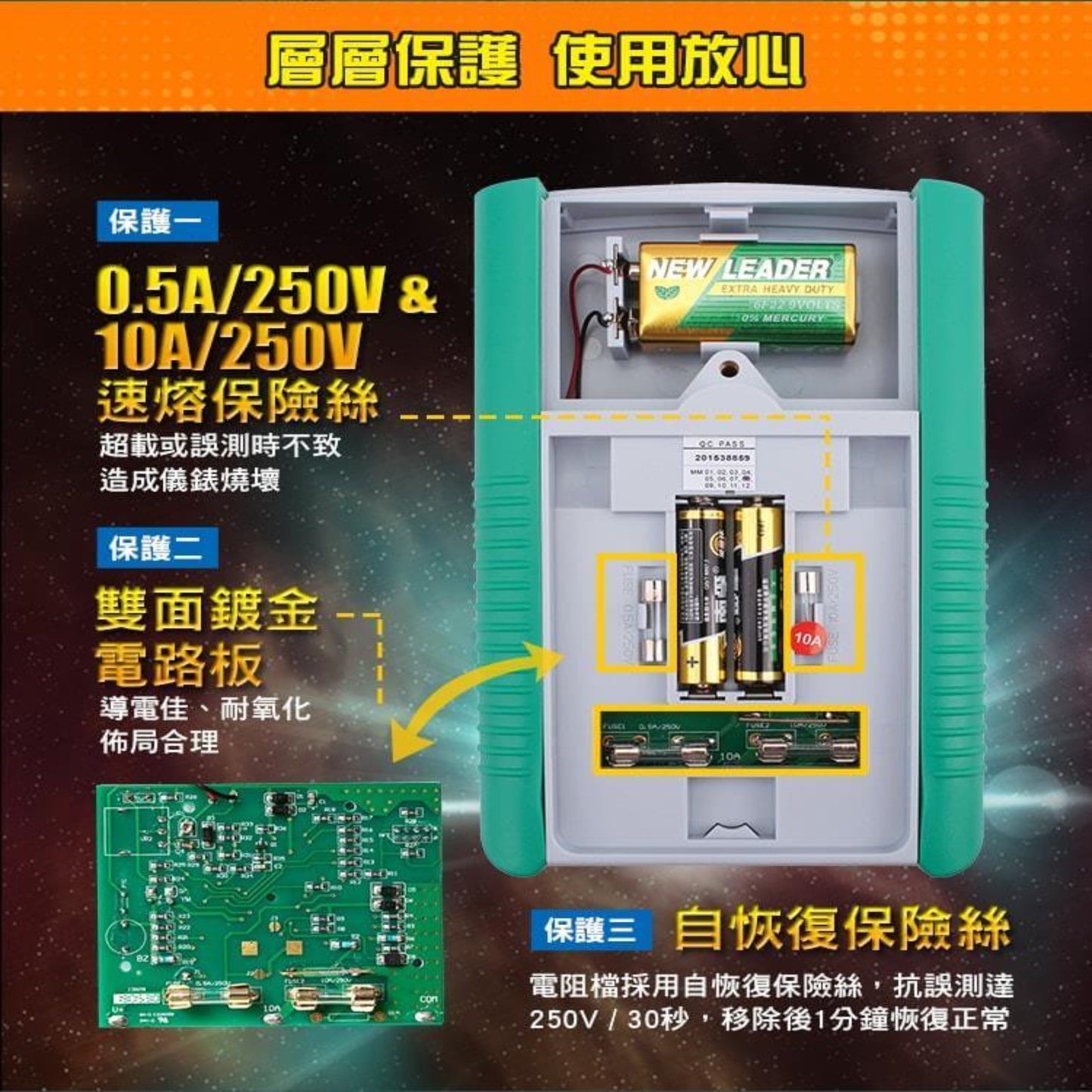

  • Rapid-Acting Fuses: Features 0.5A/250V and 10A/250V quick-blow fuses for immediate protection against overload or incorrect testing, preventing damage to the meter.
  • Self-Recovering Fuse for Resistance Ranges: The resistance range is equipped with a self-recovering fuse that automatically resets after an overload is removed, ensuring continuous operation.
  • Gold-Plated Double-Sided Circuit Board: Enhances conductivity, improves anti-oxidation properties, and provides a well-organized layout.
  • Spring-Loaded Jewel Bearings & Diode Bi-Directional Limiting Circuit: Ensures stable and accurate performance with robust protection.
  • CE Certified: Meets European safety standards for peace of mind.
• User-Friendly Design:

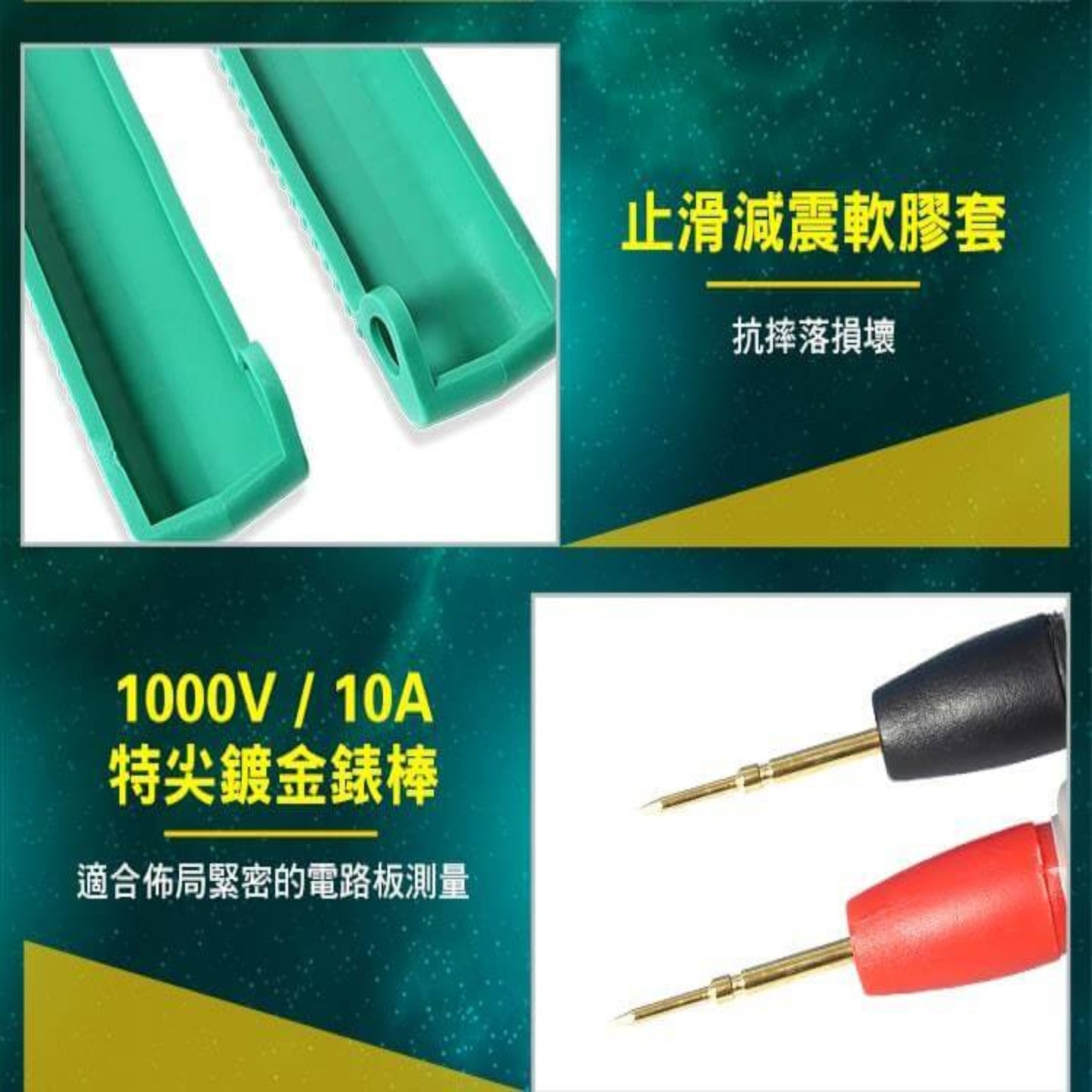

  • Anti-Slip & Shock-Absorbing Soft Rubber Case: Provides a secure grip and protects the meter from drops and impacts.

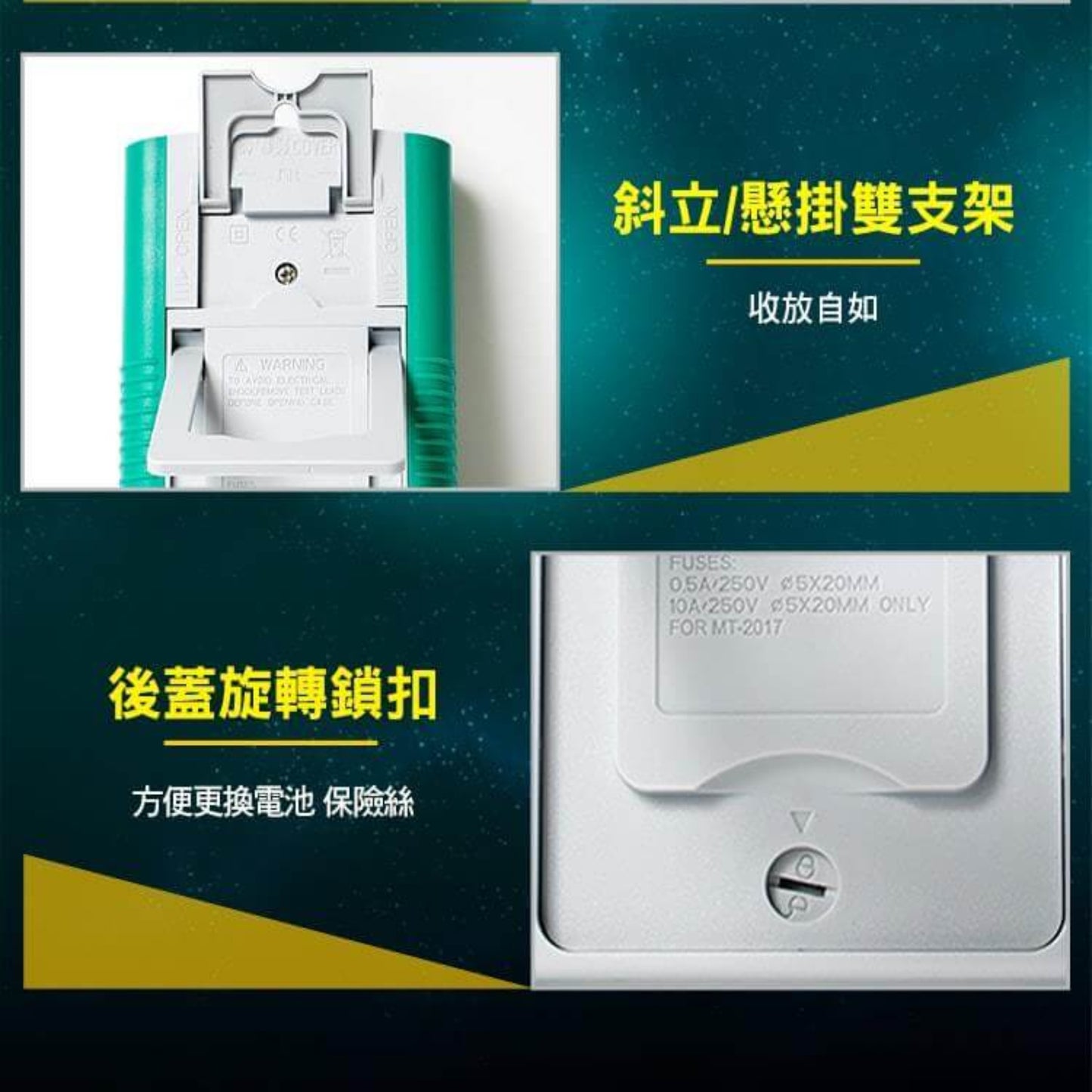

  • Versatile Kickstands:
    • Slanted Stand: Features two adjustable rear cover support frames for convenient angled viewing.
    • Hanging Hook: The upper stand can be rotated 180 degrees to extend beyond the rear cover, allowing for easy hanging.
  • Easy Battery & Fuse Replacement: A specially designed rotating lock on the lower part of the rear cover provides quick and easy access to the 1.5V battery compartment and fuses.
  • 1000V/10A Gold-Plated Test Leads: Includes specialized sharp, gold-plated test probes suitable for precise measurements in tight circuit board spaces, along with protective covers.
  • Zero Adjustment: Features both pointer zero adjustment and $\Omega$ zero adjustment for accurate readings.

Technical Specifications:

• Input Impedance: DC 20Kohm/V, AC 9Kohm/V
• DC Voltage Ranges:
  • 0.1/2.5/10/50/250V: $ \pm3.0% $FSD
  • 1000V: $ \pm4.0% $FSD
• Center Zero Positive/Negative DC Voltage: $ \pm5V, \pm25V \pm5.0% $FSD
• DC Current Ranges:
  • 50$ \mu $/2.5m/25m/250mA: $ \pm3.0% $FSD
  • 10A: $ \pm4.0% $FSD
• AC Voltage Ranges:
  • 10/50/250V: $ \pm4.0% $FSD
  • 1000V: $ \pm5.0% $FSD
• Resistance Ranges:
  • $\times 1(0.2\sim 2k\Omega )$
  • $\times 10(2\sim 20k\Omega )$
  • $\times 100(20\sim 200k\Omega )$
  • $\times 1k(200\sim 2M\Omega )$
  • $\times 10k\Omega (2k\sim 20M\Omega )$
  • Accuracy: $ \pm4.0% $ARC of scale length
• Battery Test: 1.5V/9V
• Capacitance: Max. 2,000 uF (measured at $\times 1k$ range)
• Standard Environment Conditions: 23°C$ \pm5 $°C, Humidity < 75% RH
• Operating Environment Range: 0°C ~ 40°C, Humidity < 90% RH
• Storage Conditions: -10°C ~ 50°C, Humidity < 80% RH

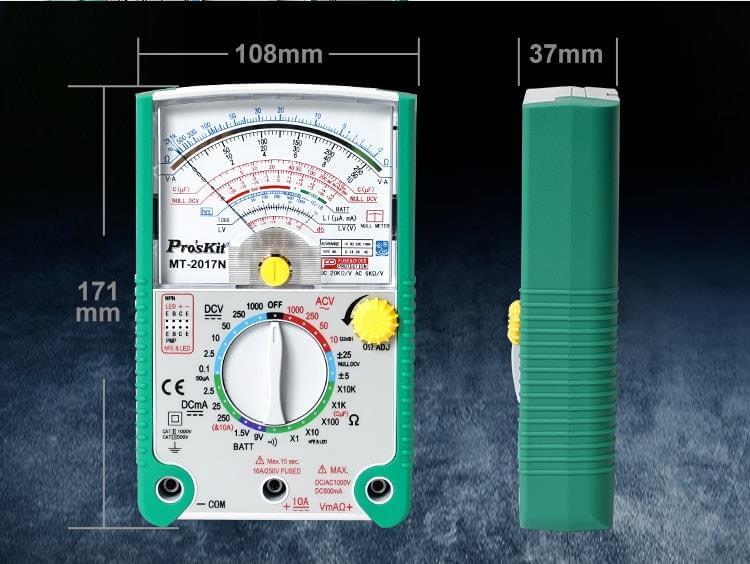

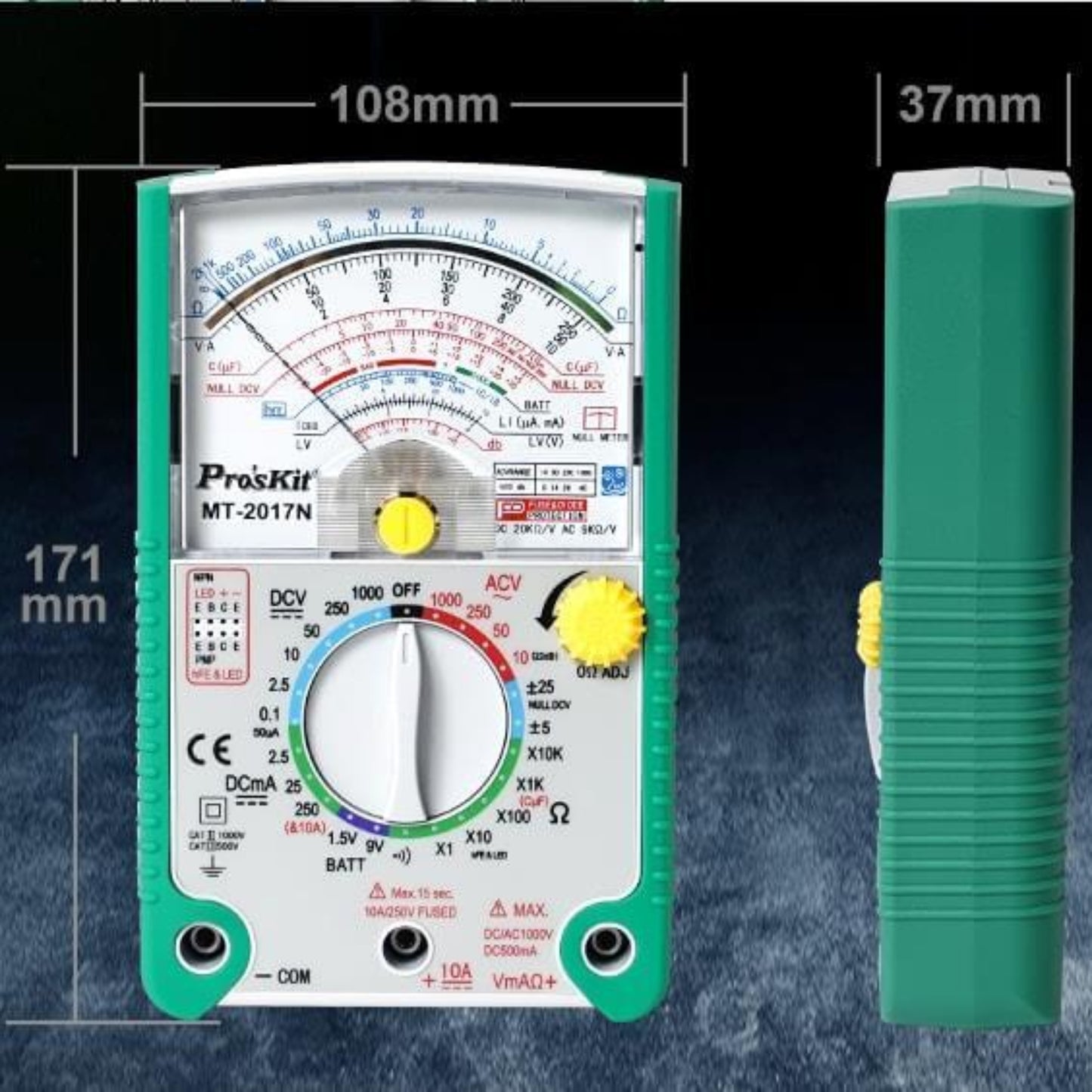

• Dimensions: 171mm (Length) x 108mm (Width) x 37mm (Height)

Package Includes:

• Pro'sKit MT-2017N Analog Multimeter x 1
• AAA Batteries x 2
• 9V Battery x 1
• Test Leads x 2
• User Manual x 1
