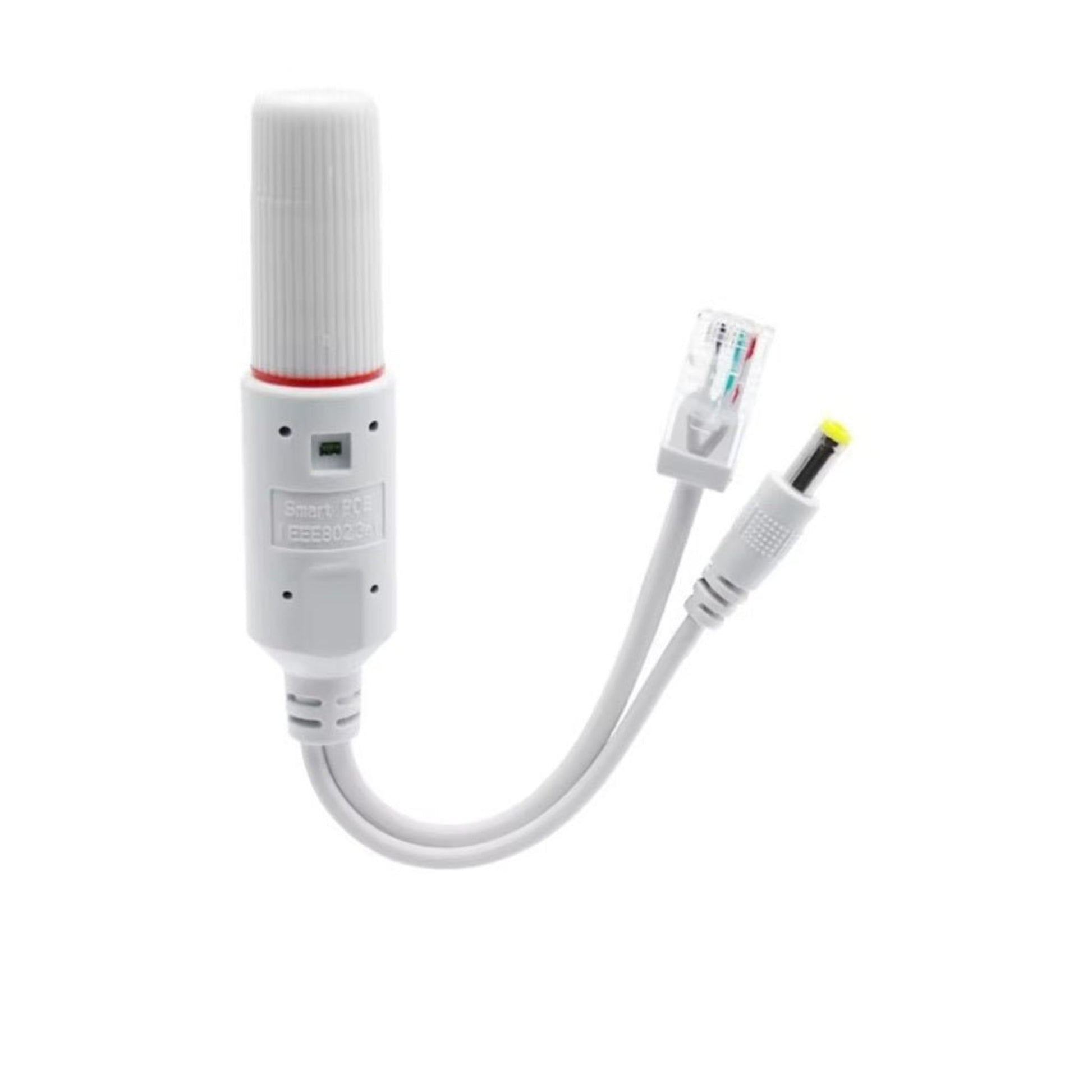

PoE Splitter Adapter 48V to 12V for IP Cameras, IEEE 802.3af

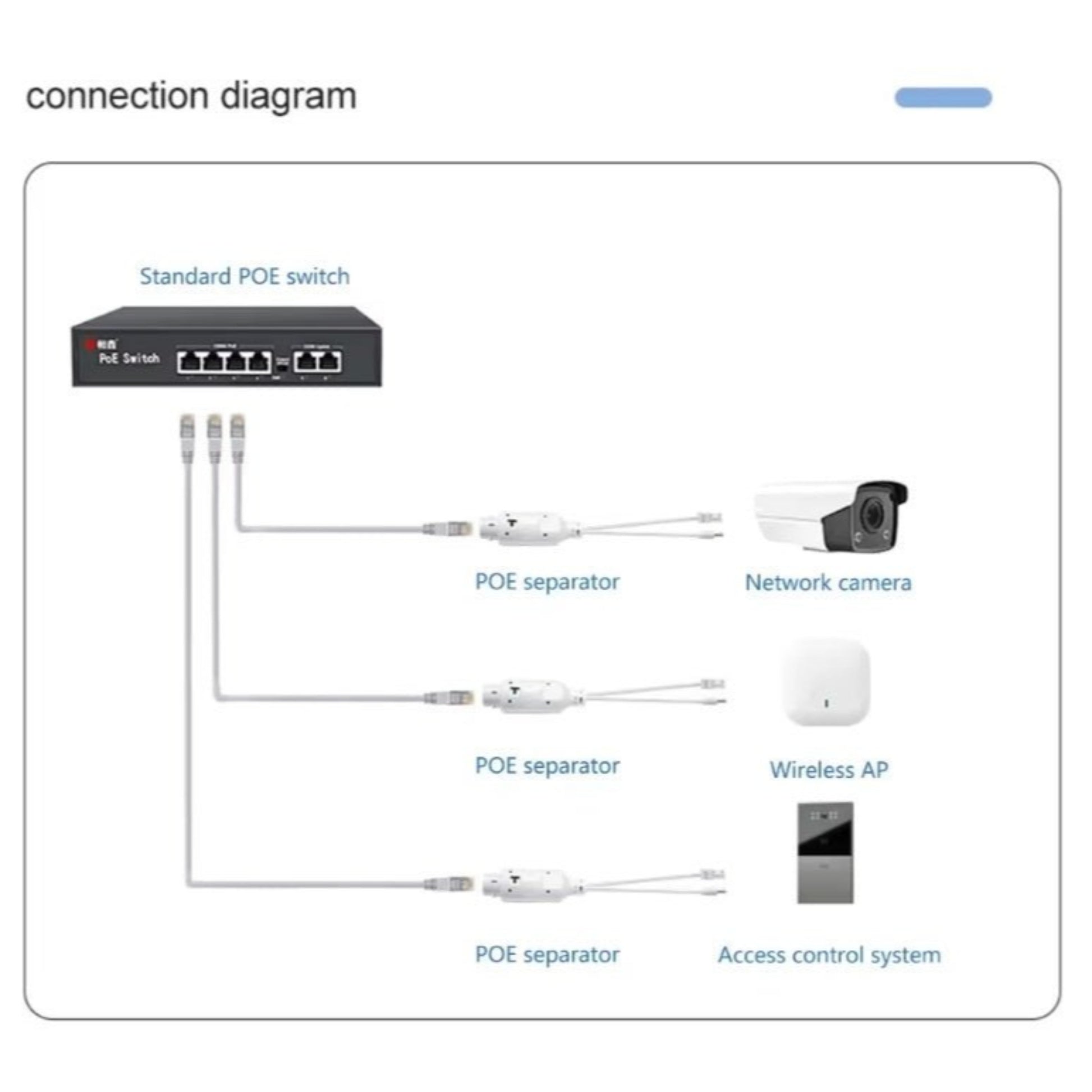

This PoE Splitter Adapter is designed to power non-PoE devices that require a 12V DC power source, such as IP cameras, VoIP phones, and wireless access points. It receives both power and data from a standard 48V PoE switch or PoE injector, and then splits them into 12V DC power and 10/100Mbps network data. This allows you to use a single Ethernet cable for both power and data transmission, significantly simplifying your wiring setup.

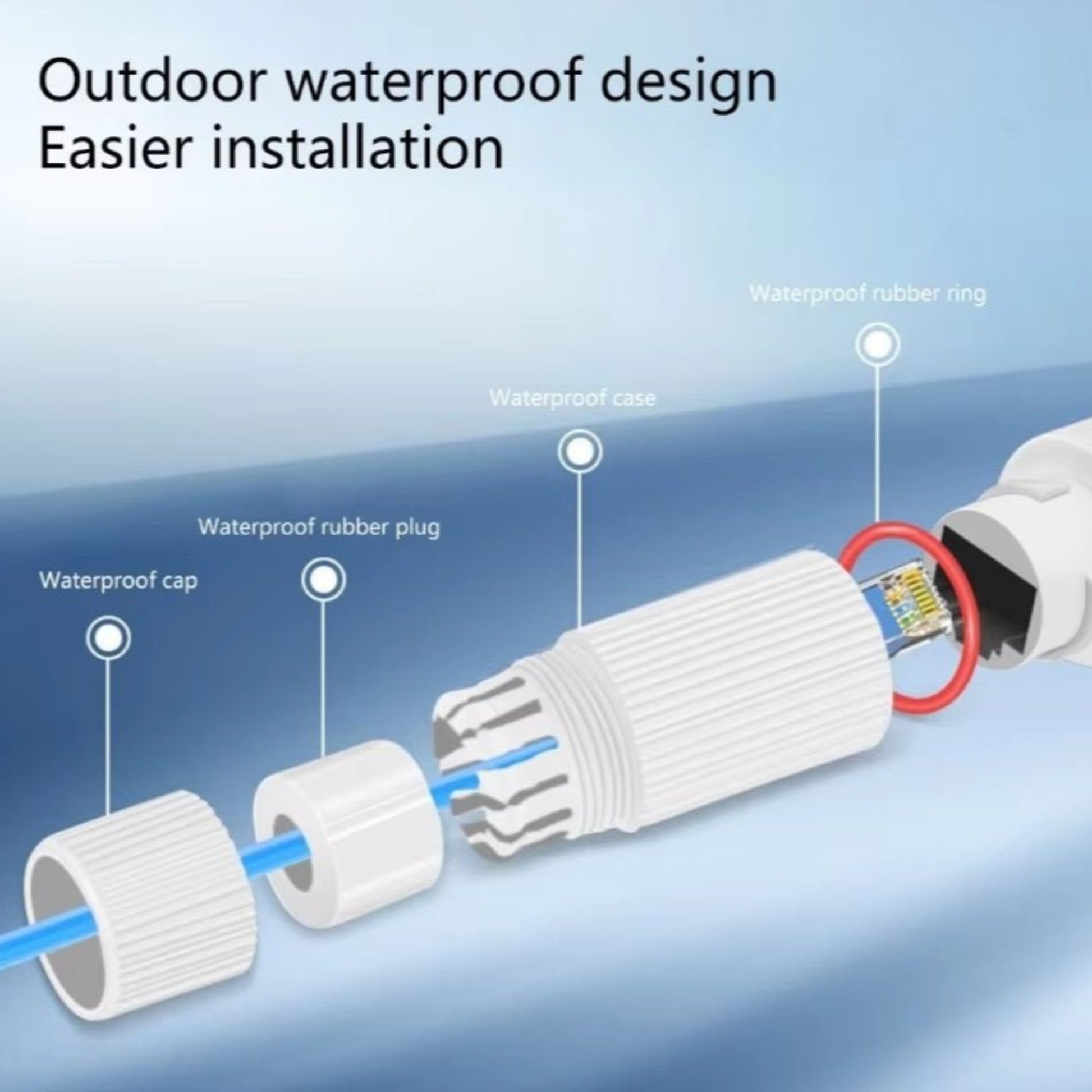

The main body of the product features a durable, injection-molded waterproof design, ensuring stable operation in harsh outdoor environments. Just make sure all connectors (the DC 5.5x2.1mm jack and the network port) are properly sealed to maintain its reliable waterproof performance.

Features

• Single-Cable Solution: Transmit both data and power over a single Cat5e/6 network cable, reducing wiring complexity and making installation easier.
• Wide Compatibility: Fully IEEE 802.3af compliant, it works with any standard PoE switch or injector.
• Stable 12V Output: The adapter reliably converts the 48V PoE input to a stable 12V DC output, with a maximum power of 12W, providing dependable power for your devices.

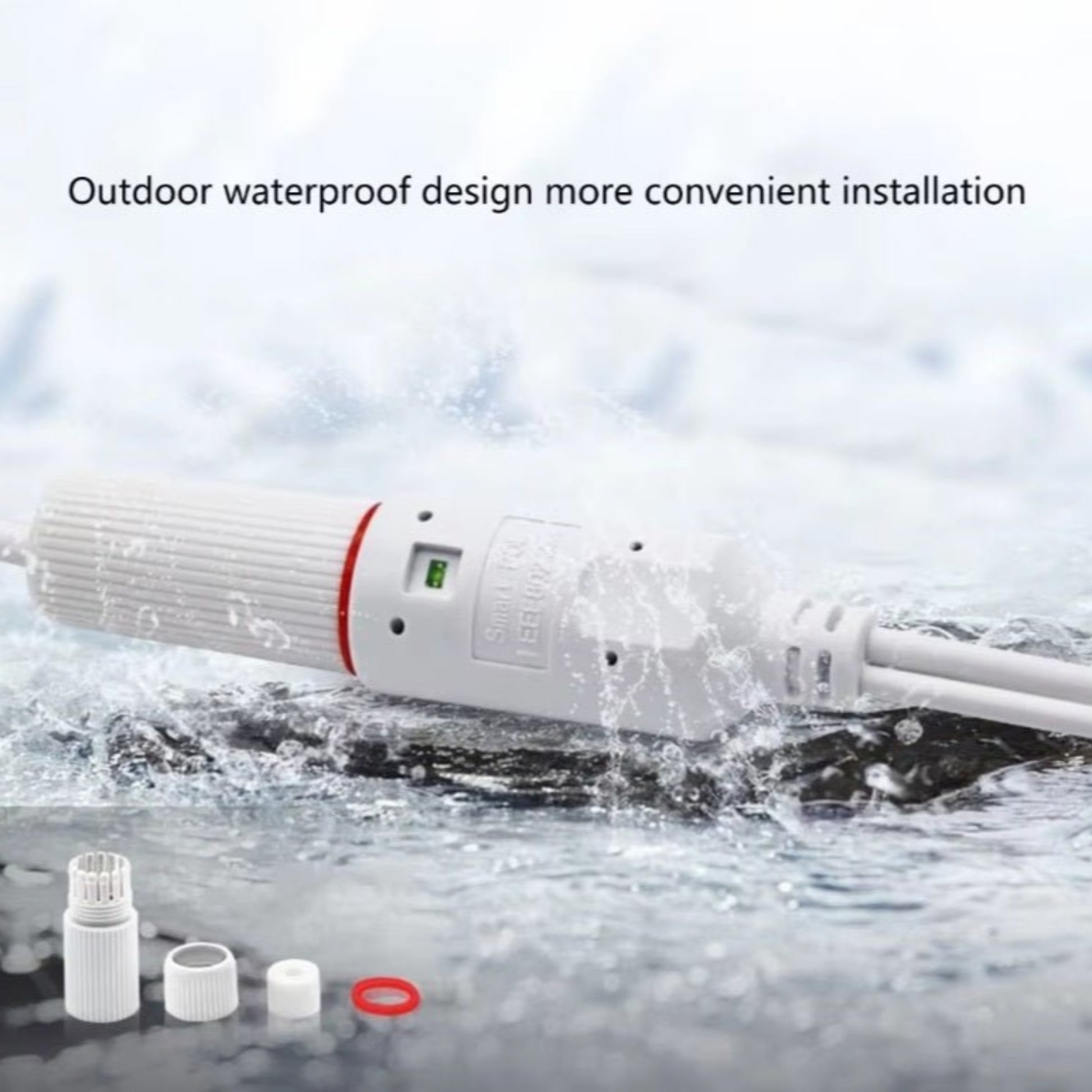

• Excellent Waterproofing: The durable PVC material and waterproof injection-molded design make it ideal for outdoor applications like surveillance and access control systems.
• Plug-and-Play: No additional configuration is needed. Simply plug it in to easily power your non-PoE devices.

Specifications

• Input Power: DC 38-57V
• Output Power: DC 12V1A, max 12W

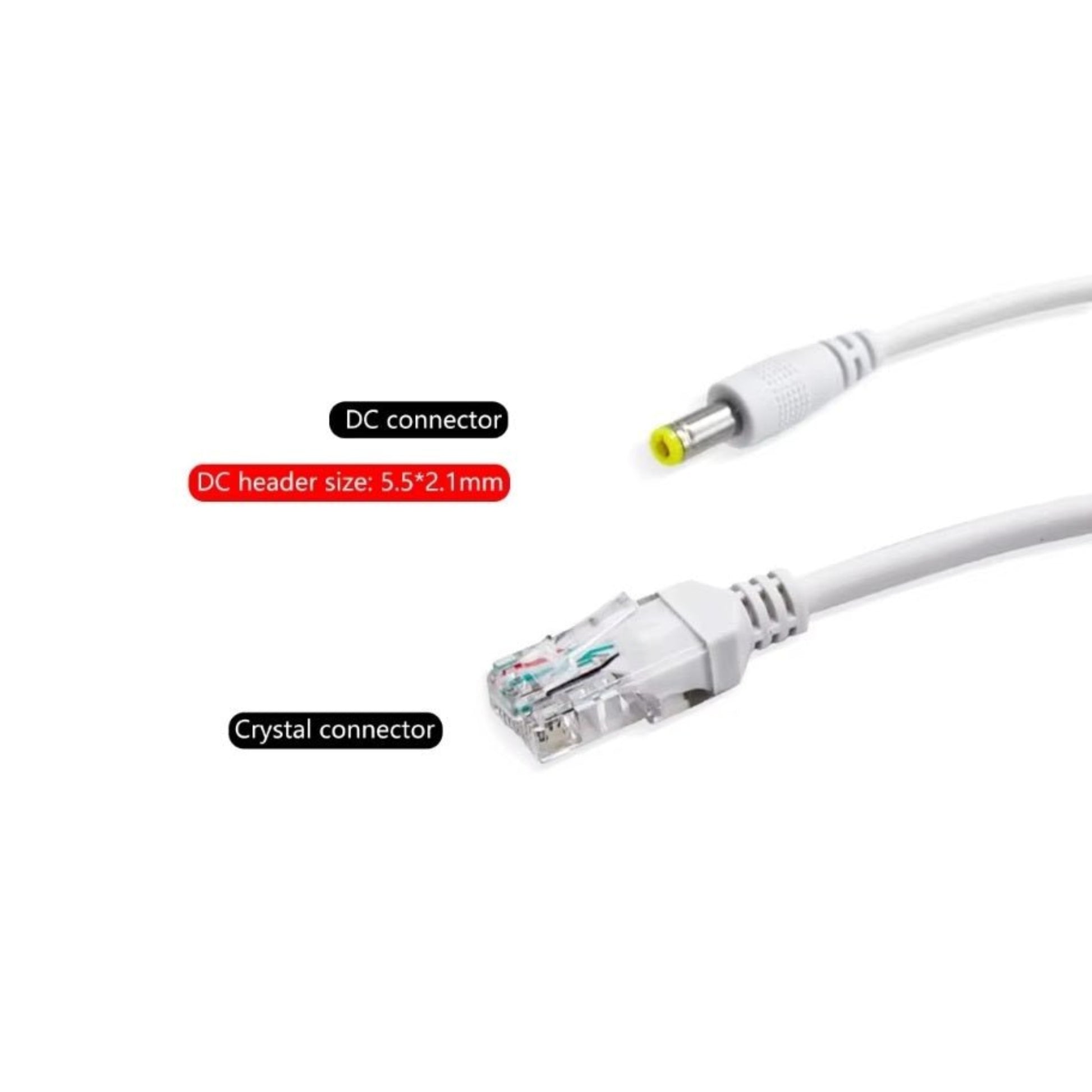

• DC Connector: 5.5x2.1mm
• Data Rate: 10/100Mbps

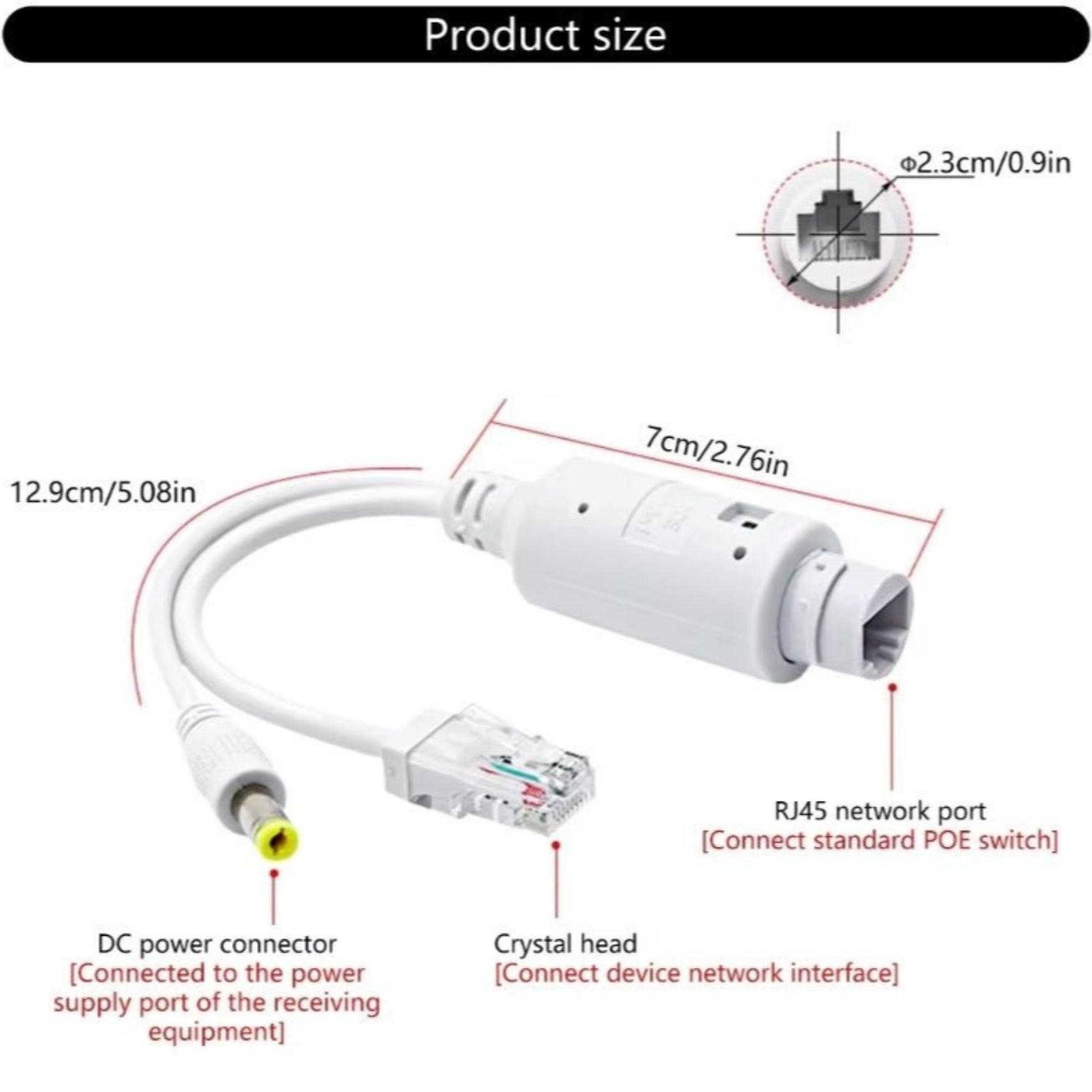

• Length: Approx. 12.9cm / 5.08in
• Material: PVC
