Official Raspberry Pi 5 Case with Active Cooling Fan | Red/White
Official Raspberry Pi 5 Case with Active Cooling Fan | Red/White
Couldn't load pickup availability
Short Product Description
Short Product Description
The Official Raspberry Pi 5 Case (SC1159) is a premium, four-part clip-together enclosure designed specifically for the Raspberry Pi 5 Model B. Featuring the iconic red and white color scheme, it includes an integrated temperature-controlled cooling fan and a dedicated CPU heatsink to prevent thermal throttling under heavy workloads. With a removable lid for easy GPIO access and stackable mounting features, this case offers both superior protection and optimal performance. Available in-stock at Sun Cheong Computer Co. Ltd. (新昌電腦有限公司).
Key Features
Key Features
- Official Raspberry Pi Accessory: Guaranteed perfect fit and finish for the Raspberry Pi 5 Model B.
- Integrated Active Cooling: Features a built-in PWM-controlled fan (up to 8000 RPM) to prevent thermal throttling.
- Included CPU Heatsink: Comes with a 12x17x4mm aluminum heatsink with a pre-applied thermal adhesive pad.
- Removable Top Lid: Easily unclip the lid to access the GPIO pins, PCIe slot, and MIPI ports without removing the entire case.
- Stackable Design: Integrated mounting features allow for neat stacking of multiple cases for cluster computing.
- Premium Materials: Constructed from durable ABS plastic (base, frame, lid) and transparent Polycarbonate (fan assembly).
Full Product Description
Full Product Description
Engineered for Optimal Thermal Management
The Raspberry Pi 5 generates significantly more heat than its predecessors, making active cooling essential for sustained performance. This official case integrates a high-efficiency, temperature-controlled cooling fan that connects directly to the dedicated 4-pin fan header on the Pi 5 motherboard. Combined with the included 12x17x4mm adhesive CPU heatsink, the system delivers a maximum airflow of 2.79 CFM at 8000 RPM, ensuring your board remains at a comfortable operating temperature even during intense processing tasks.
Modular Design for Makers and Developers

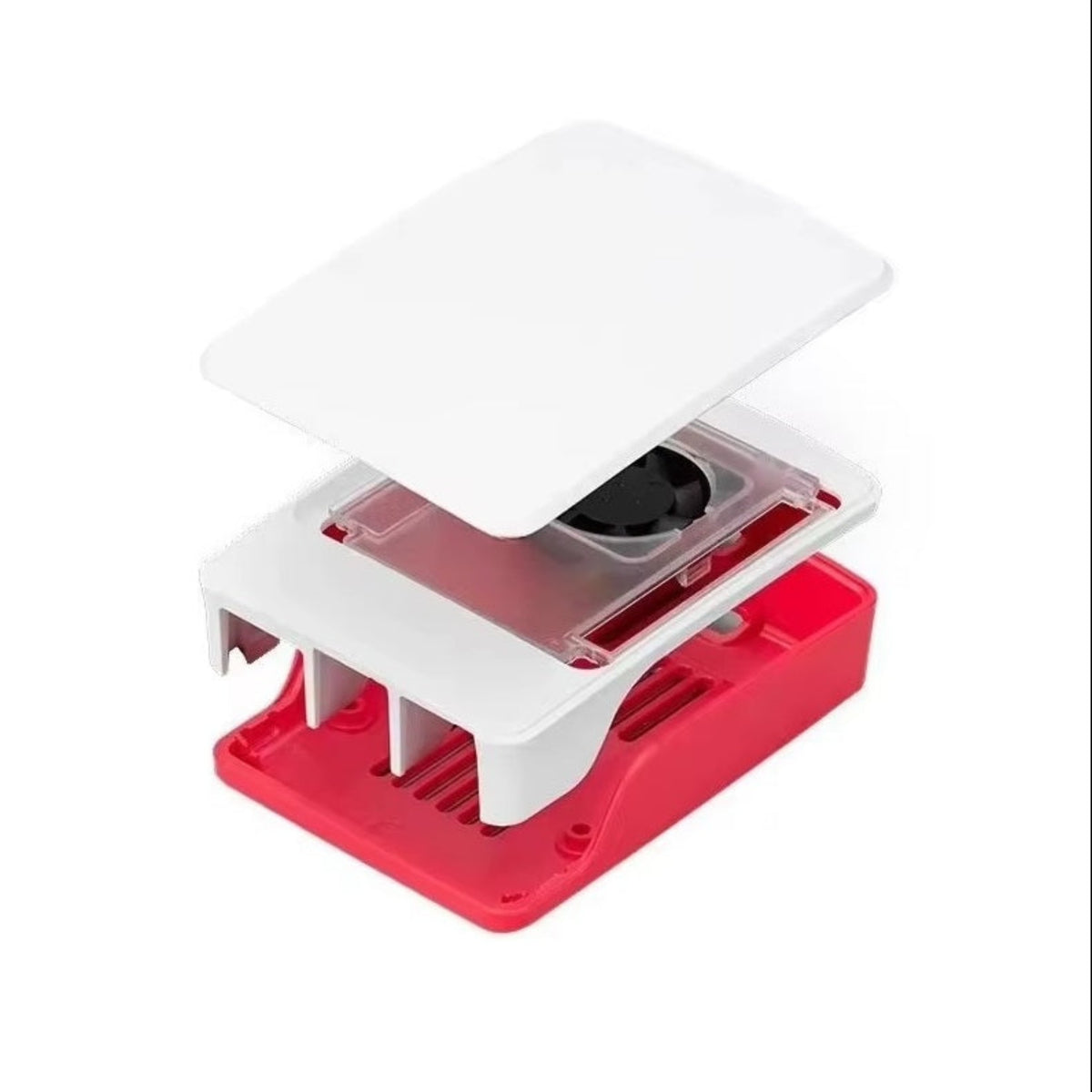

Designed with flexibility in mind, the four-part ABS and polycarbonate enclosure clips together seamlessly without the need for screws. The top lid is easily removable, exposing the transparent fan assembly and providing unobstructed access to the GPIO pins, camera/display ports, and PCIe interface. For advanced projects, the integrated mounting holes allow you to stack multiple cases or mount HATs directly on top using standard stand-offs and header extenders (sold separately).
Technician Tip
When assembling the case, always apply the included heatsink to the CPU before installing the Raspberry Pi 5 into the red base. Ensure the fan cable is routed neatly and plugged into the dedicated 'FAN' header on the board, not the GPIO pins. The fan is PWM-controlled, meaning it will remain silent during light tasks and automatically spin up only when the CPU temperature rises. If you need help setting up your new Raspberry Pi 5, visit our physical store at Sun Cheong Computer Co. Ltd. in Sham Shui Po for expert advice and compatible accessories.
Technical Specifications
Technical Specifications
- Model: SC1159
- Compatibility: Raspberry Pi 5 Model B
- Enclosure Material: ABS (Base, Frame, Lid) and Polycarbonate (Fan Assembly)
- Cooling System: Active PWM Fan + 12x17x4mm Aluminum Heatsink
- Fan Input Voltage: 5V DC (via 4-pin fan header on Pi 5)
- Maximum Fan Speed: 8000 RPM +/- 15%
- Maximum Airflow: 2.79 CFM
- External Dimensions: 98.5mm (W) x 70.3mm (D) x 33mm (H)
- Color: Red / White
- Included Accessories: 4x Silicone Feet, 1x Heatsink
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Will this case fit my older Raspberry Pi 4?
No, this case is specifically designed for the Raspberry Pi 5 Model B. The port layout (USB, Ethernet, HDMI) and the dedicated fan header location on the Pi 5 are completely different from the Pi 4, making this case incompatible with older models.
Does the fan run continuously at full speed?
No, the integrated fan is temperature-controlled via Pulse Width Modulation (PWM). The Raspberry Pi OS automatically adjusts the fan speed based on the CPU temperature, ensuring silent operation during light use and maximum cooling only when necessary.
Can I install a HAT (Hardware Attached on Top) with this case?
Yes, you can mount HATs on top of the case. However, you will need to remove the top lid and use suitable stand-offs and GPIO header extenders (which are not included with the case) to clear the fan assembly.
Do I need to buy thermal paste for the heatsink?
No, the included 12x17x4mm aluminum heatsink comes with a pre-applied self-adhesive thermal pad. You simply peel off the protective backing and press it firmly onto the raised section of the CPU.
Is this official Raspberry Pi 5 case available in Hong Kong?
Yes, we stock the official Raspberry Pi 5 Case (SC1159) at our Sham Shui Po physical store. You can order it online for delivery or visit us during business hours for immediate pickup.
Target Users / Applications
Target Users / Applications
- Raspberry Pi 5 Early Adopters: Upgrading to the newest board and requiring official, guaranteed-fit thermal protection.
- Media Center Enthusiasts: Running 4K video playback on the Pi 5 where silent, temperature-controlled PWM cooling is essential for living room setups.
- Cluster Builders: Utilizing the case's stackable design to build neat, multi-node Raspberry Pi 5 server clusters.
- STEM Educators: Providing students with a durable, easy-to-assemble case that allows quick access to GPIO pins for electronics projects.
