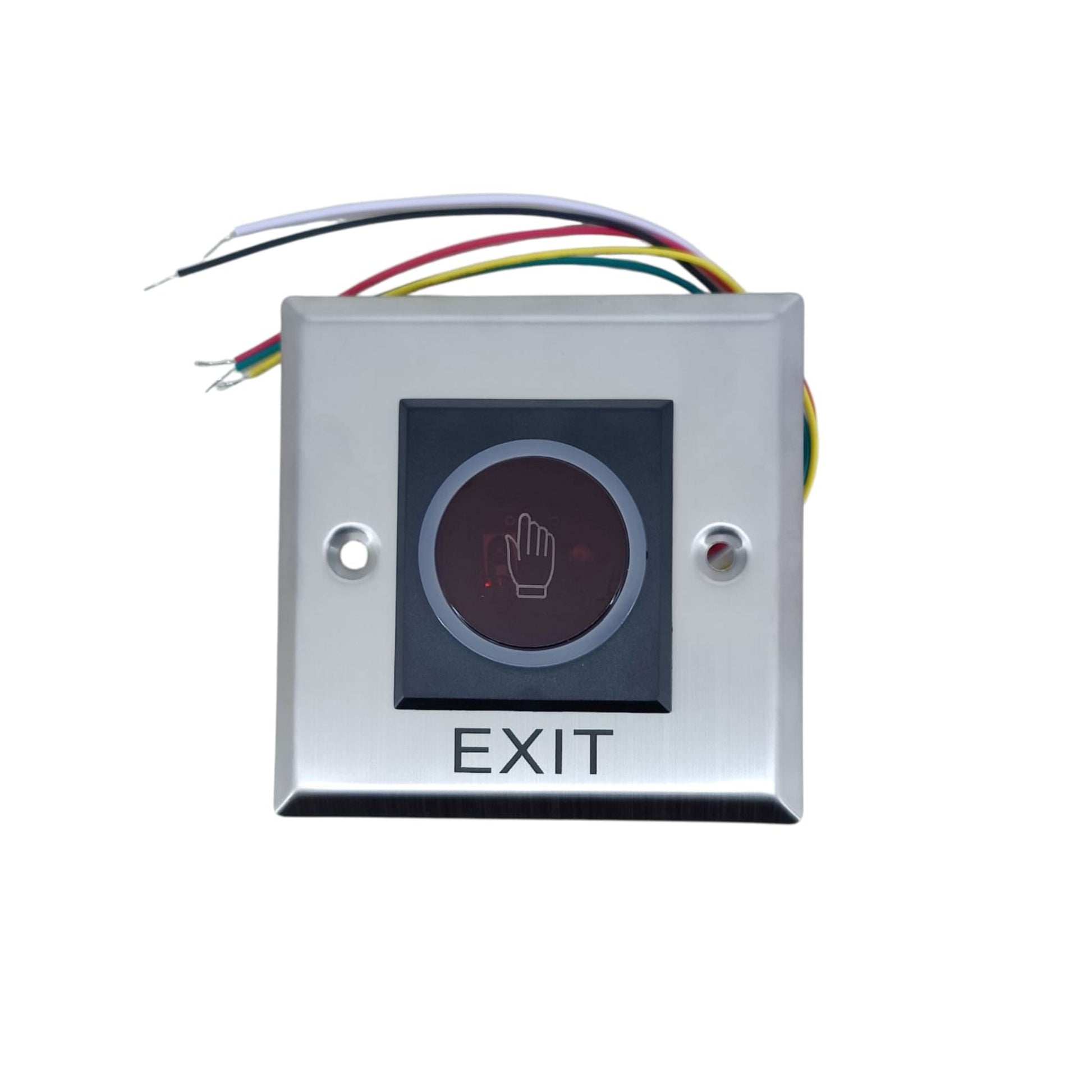

No-Touch Infrared Exit Button for Access Control Systems

No-Touch Infrared Exit Button (86 x 86mm)

Experience the ultimate in hygiene and convenience with our No-Touch Infrared Exit Button, perfectly sized for standard installations at 86 x 86 x 26mm. This sleek and reliable door release button is the ideal solution for modern access control systems, providing a hands-free way to exit public buildings, offices, hospitals, and residences. Its durable metal construction ensures long-term performance, while its elegant design complements any interior.

Why Choose a Touchless Exit Button?

• Enhanced Hygiene: In a world where cleanliness is a priority, our touchless button eliminates the need to physically press a switch, reducing the spread of germs.

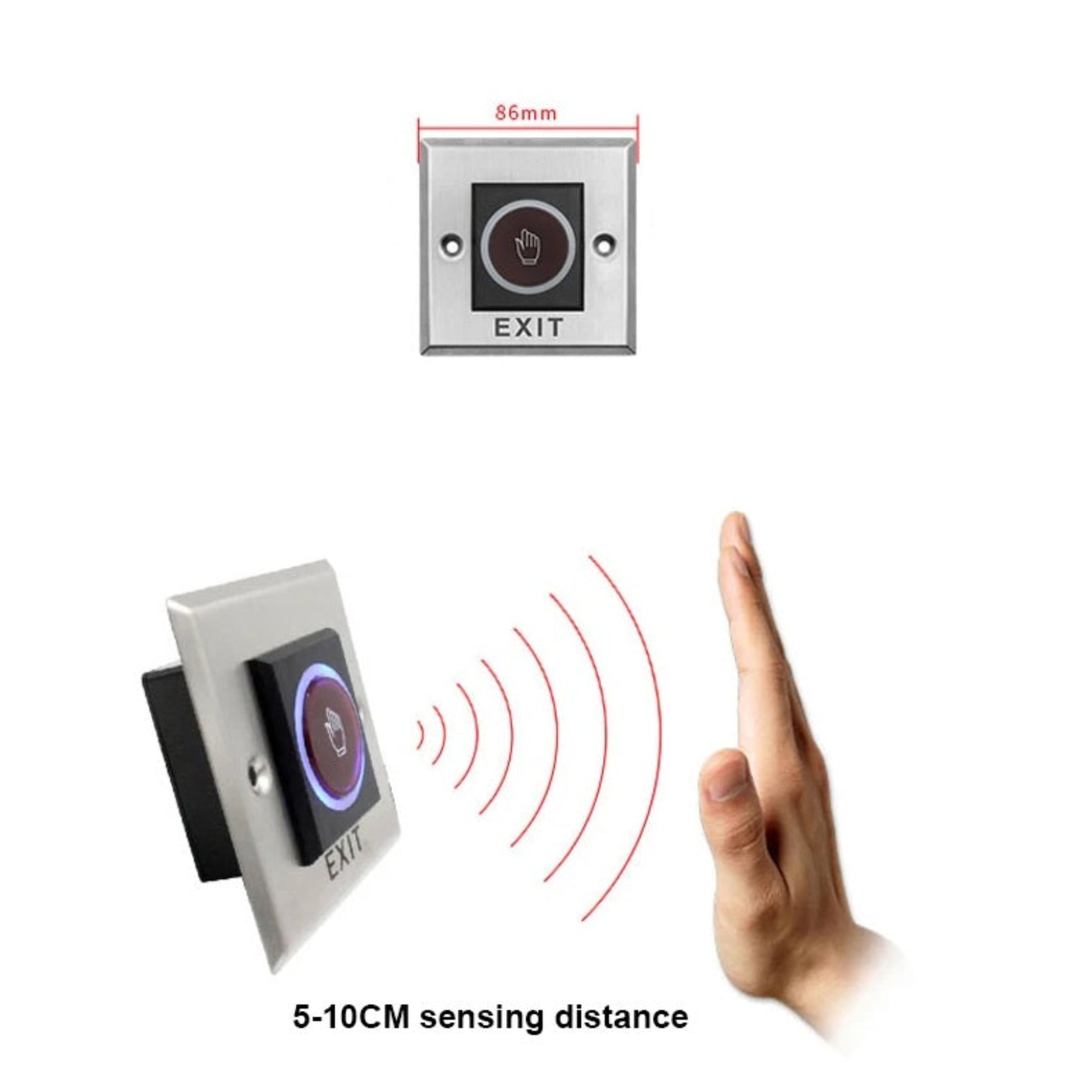

• Effortless Operation: Simply wave your hand within 10cm of the sensor to activate the door, providing a seamless and quick exit for everyone.
• Robust & Reliable: Engineered for durability, this button is tested to withstand over 1,000,000 cycles, ensuring it will last for years even in high-traffic environments.

Key Specifications

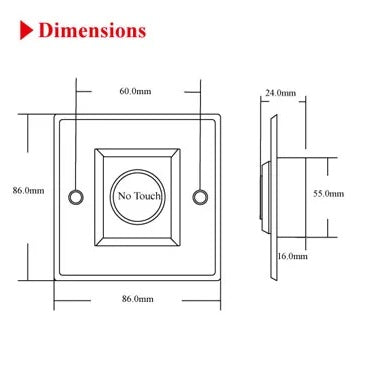

• Dimensions: 86 x 86 x 26mm (3.39 x 3.39 x 1.02 inches)
• Power Supply: 12VDC (Customizable 24V)
• Detection Range: 0.1-10cm
• Contact Rating: 12-24V, 3A

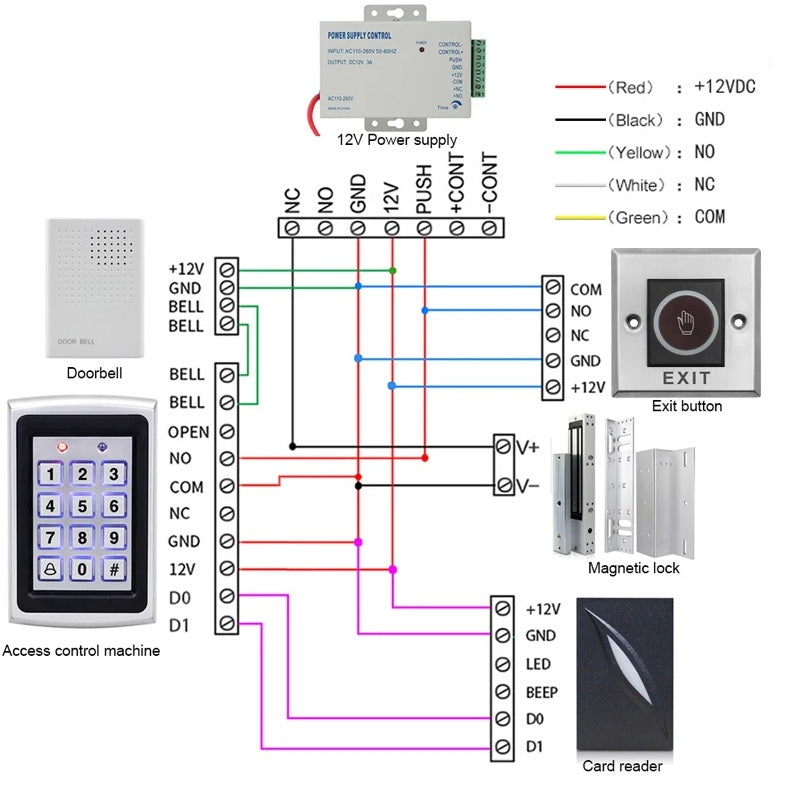

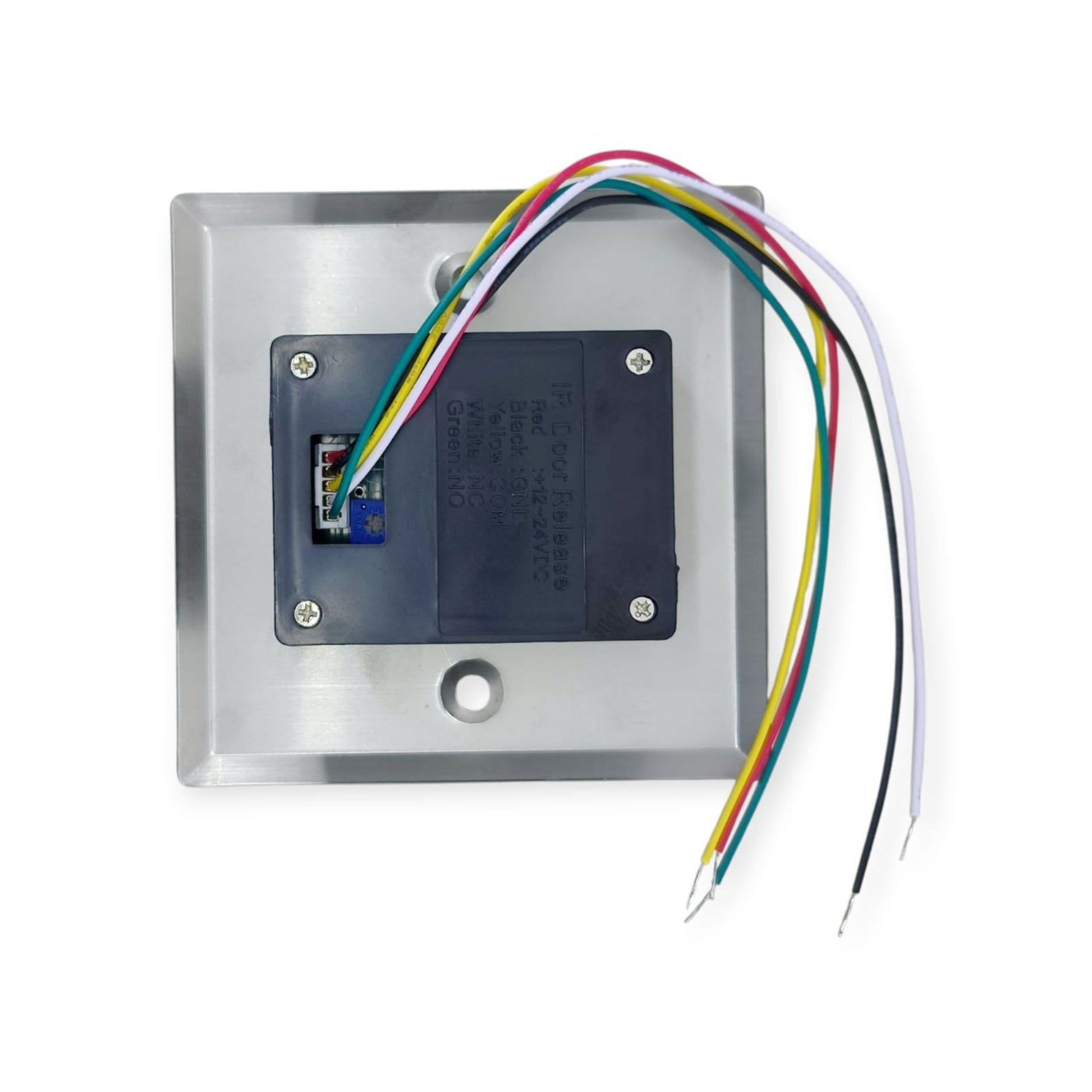

• Output Contacts: NO/NC/COM (Suitable for all lock types)

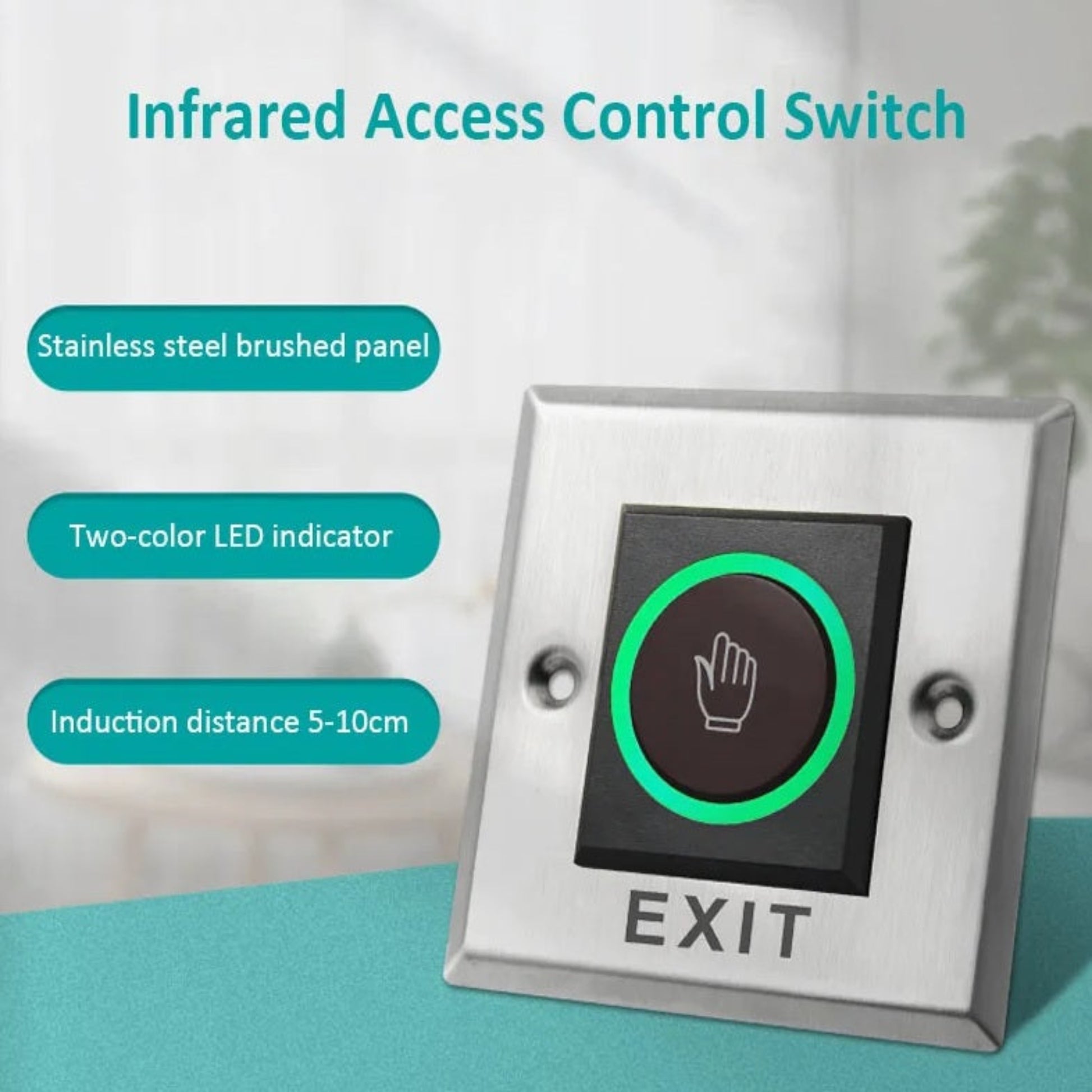

• LED Indicators:
  • Blue LED: Standby
  • Green LED: Activated (Door Release)
• Durability: 1,000,000 Cycle Tested

• Operating Temperature: -10°C to +55°C (14-131°F)
