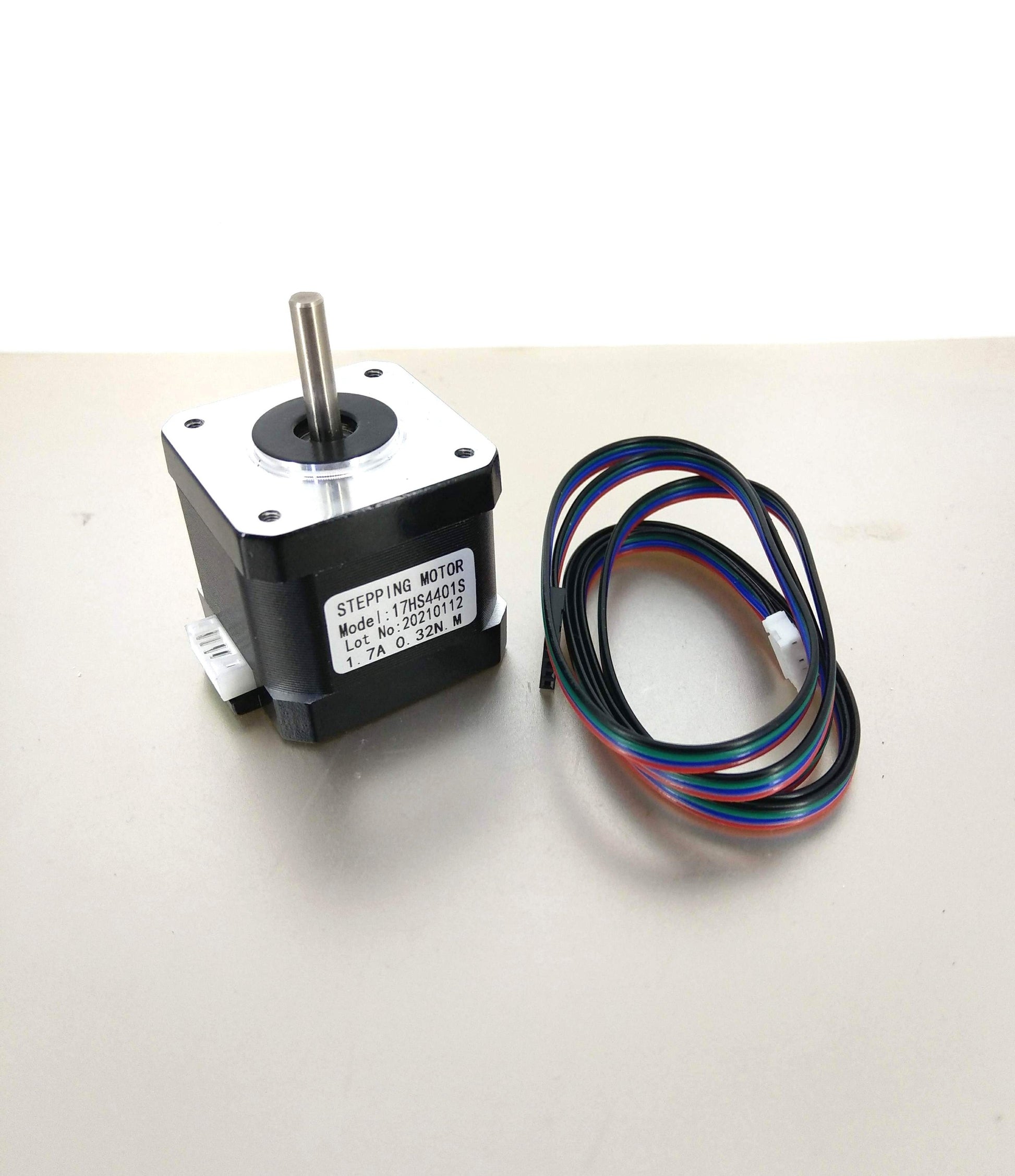

42 Stepper Motor Nema 17 4-Lead 42BYGH 1.7A (17HS4401S) with 4 Pin Dupont Cable Part For CNC XYZ 3D Printers Parts Accessories
Features:
1.Small size, convenient storage and placement.
2.The speed is even and does not lose steps.
3.It is a bipolar stepper motor.
4.Revolving speed is stable and the noise is low.
5.Made of high quality material for durablity.
Description:
1.Stable characteristics, high reliability.
2.Easy installation and replacement.
Specifications:
Material: Metal
Color: Black&Silver
Cable Length: 1m
Step Angle(W/O Gearbox): 1.8°
Holding Torque: 1.68Nm
Rated Current/Phase: 1.7A
Phase Resistance: 1.65ohms
Recommended Voltage: 12-36V
Inductance: 3.8mH±20%(1KHz)
Gearbox Type: Planetary
Gear Ratio(Exact Gear Ratio): 5 + 2/11
Efficiency: 90%
Backlash at No-load: <=1°
Max.Permissible Torque: 2Nm(283oz-in)
Moment Permissible Torque: 4Nm(566oz-in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N
Package Included:

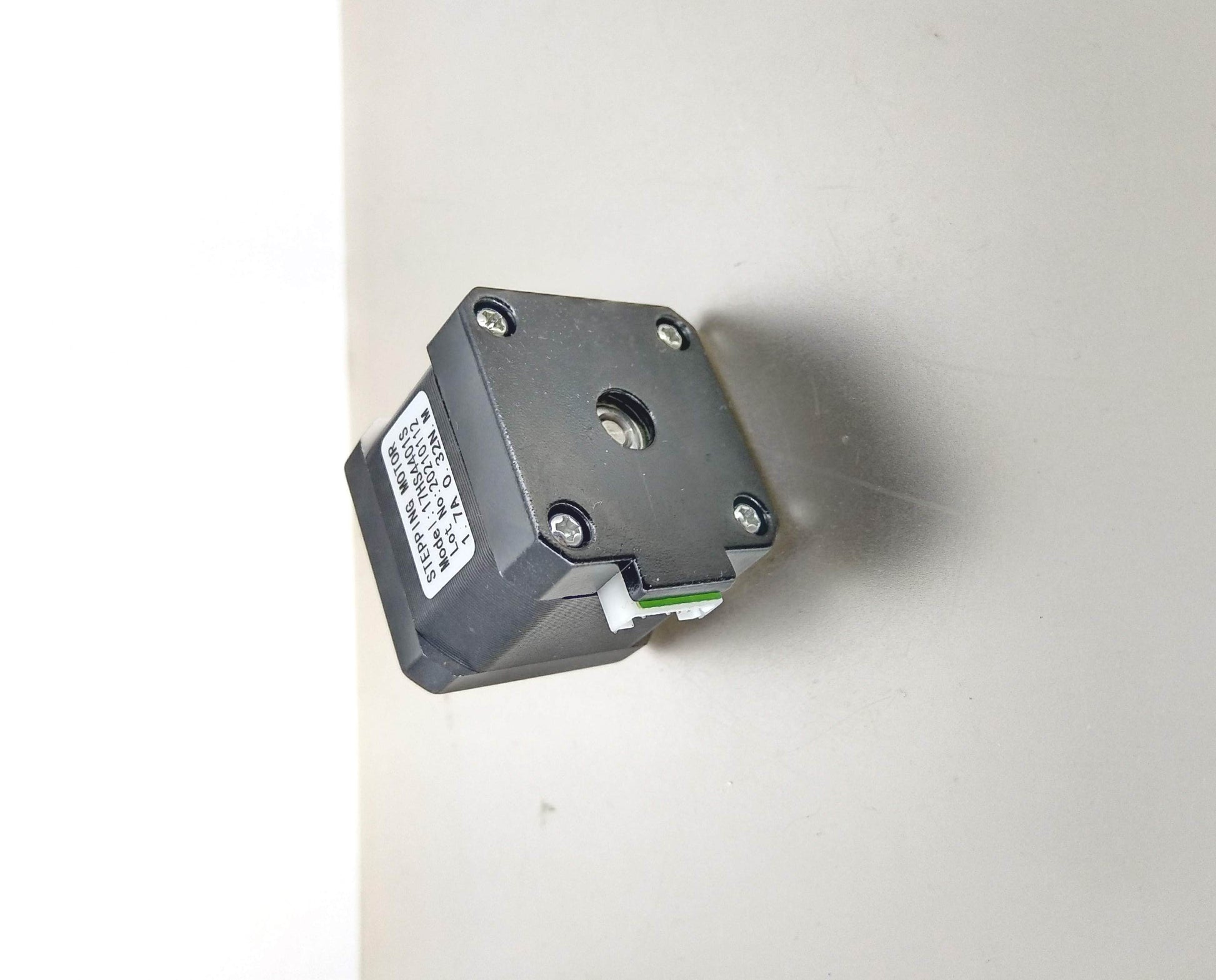

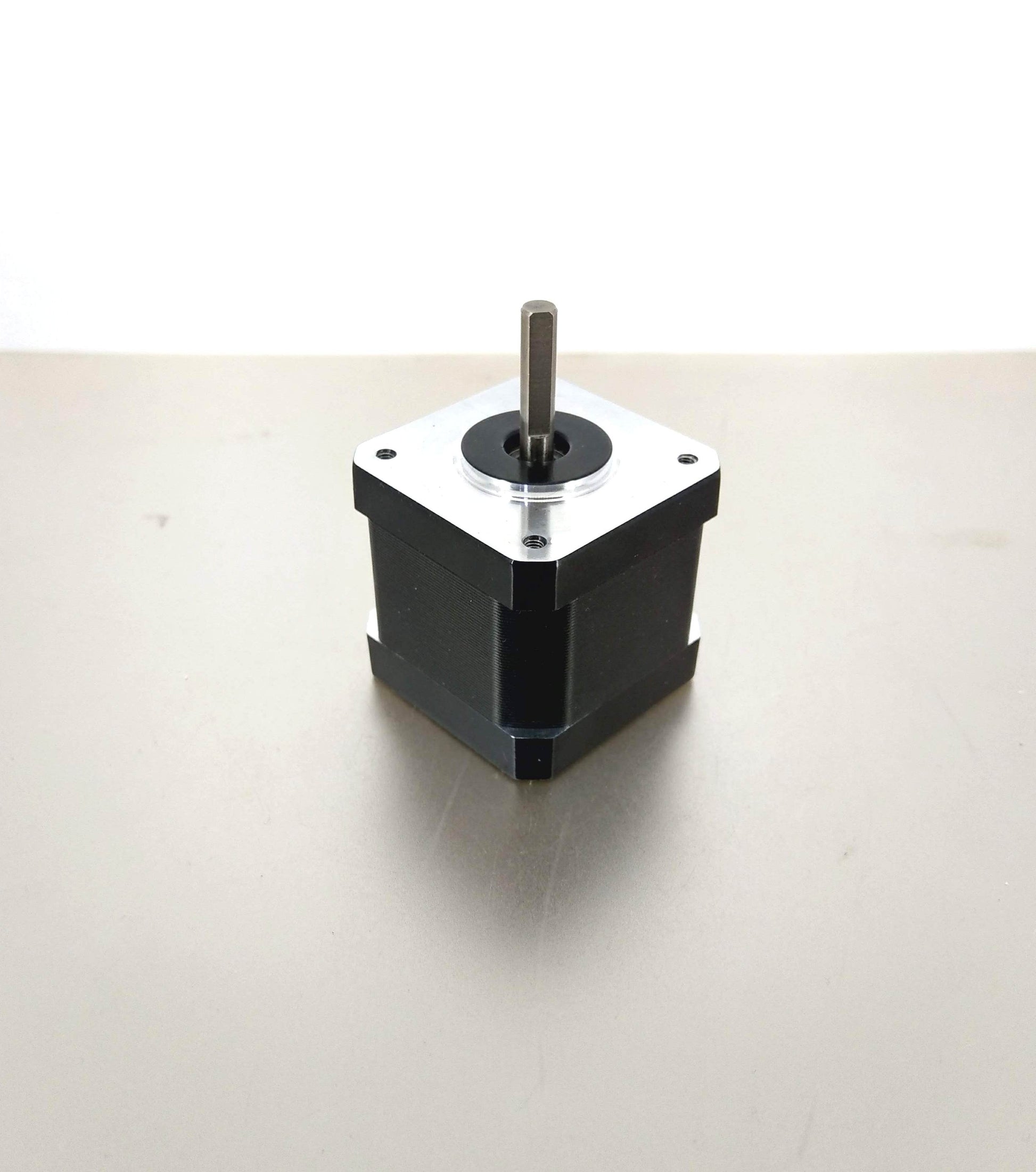

1 x Stepper Motor

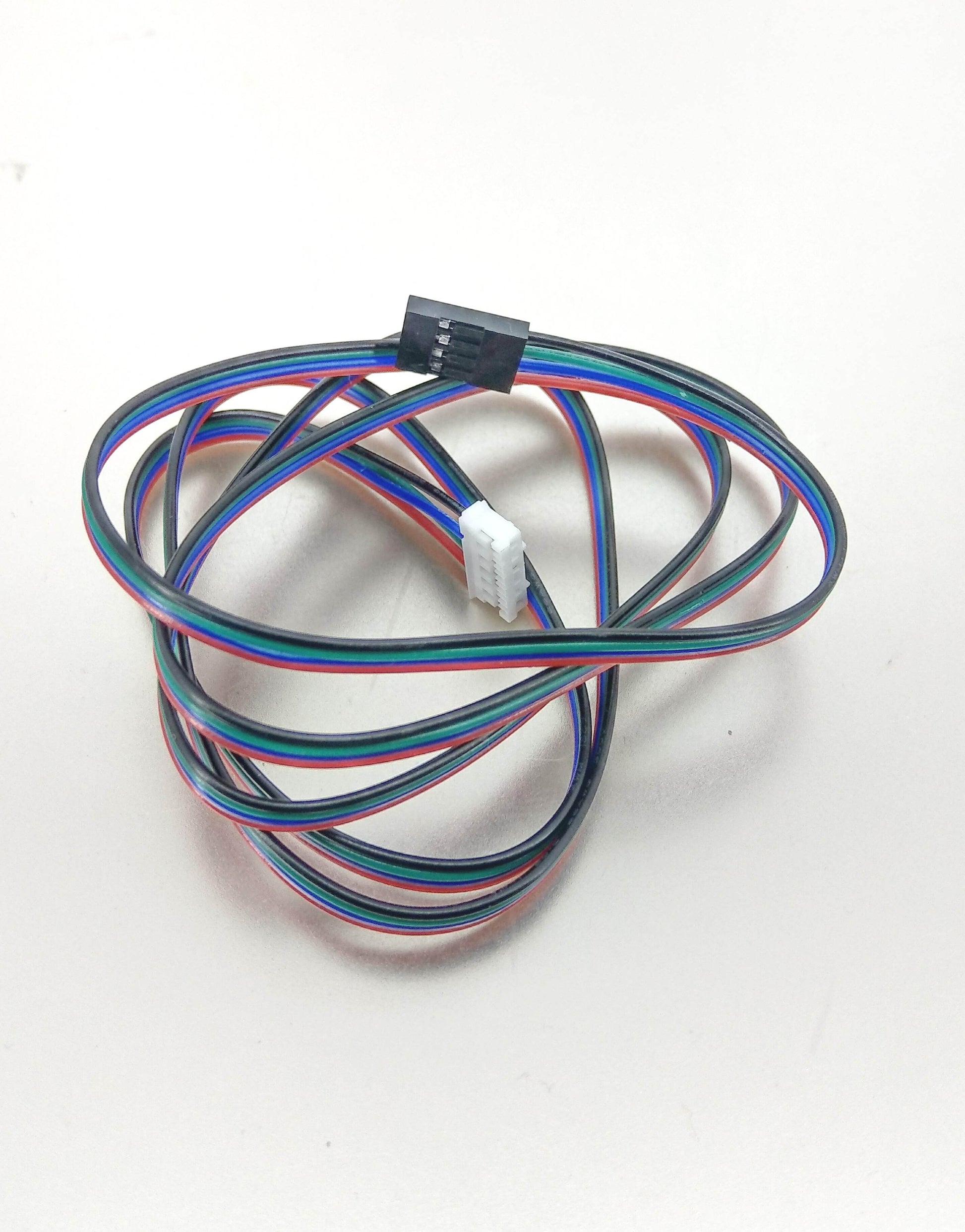

1 x dupont wire
