Wireless HDMI Extender 1080P 100M | MT-VIKI MT-EDW100

Product Description:

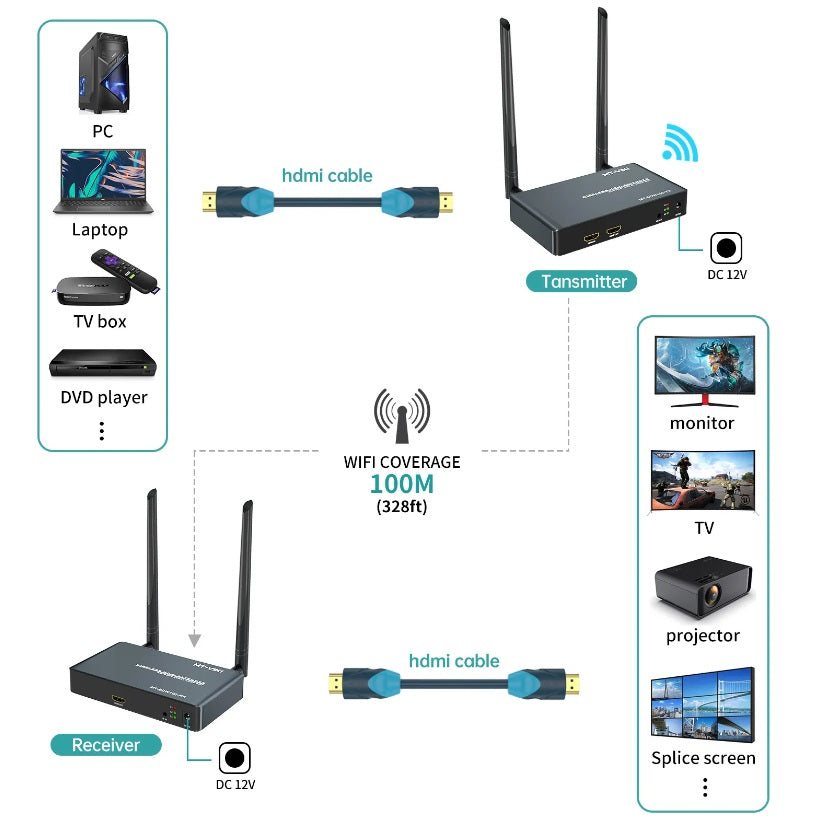

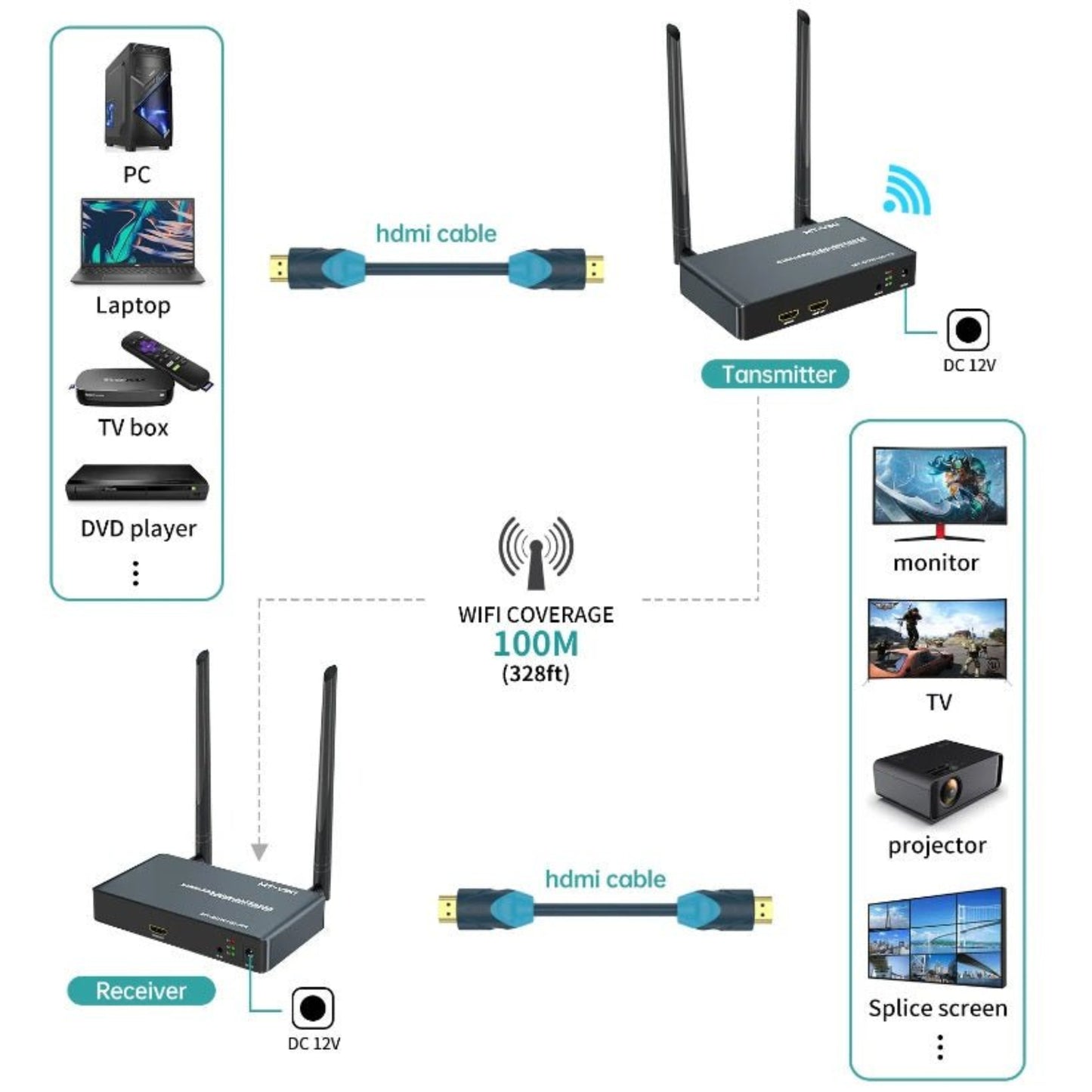

Upgrade your AV setup with the MT-VIKI MT-EDW100 Wireless HDMI Extender, designed to transmit Full HD 1080p video and audio signals wirelessly up to 100 meters (328 feet) in open space.

✅ Crystal Clear 1080P @60Hz – Stream video and audio in full HD with smooth and reliable transmission.
✅ Dual-Band 2.4G/5G Wi-Fi – Features intelligent switching between 2.4GHz and 5GHz for stable signal and low interference.
✅ 100M Long-Distance Transmission – External high-gain antennas support long-range, line-of-sight coverage.
✅ IR Remote Pass-Back – Control your source device remotely from the receiver side with 20–60 kHz IR signal support.
✅ Low Latency + Local Loop-Out – Enjoy seamless display on a local screen (zero delay) and a secondary display with only 0.1–0.3 sec delay.
✅ No Cable Hassle – Save time and money with easy plug-and-play setup—no wiring needed!

⚠️ Note: Walls and obstacles (brick, glass, etc.) may affect wireless performance. One transmitter works with one receiver only. Not suitable for gaming.

📦 Package Includes:

• 1 × HDMI Transmitter
• 1 × HDMI Receiver
• 4 × Dual-Frequency Antennas (2.4G/5G)
• 2 × Power Adapters (DC 12V)
• 2 × IR Extender Cables
• 1 × User Manual

📐 Specifications:

• Model: MT-EDW100
• Maximum Resolution: 1920×1200p @60Hz (1080p supported)
• Supported Video Formats:
  • 480i/480p @60Hz
  • 576i/576p @50Hz
  • 720p @50/60Hz
  • 1080i/1080p @50/60Hz
• Audio Formats Supported: DTS/HD, Dolby TrueHD, LPCM 7.1, Dolby-AC3, DSD
• Wireless Frequency: Dual-band 2.4GHz & 5GHz
• Transmission Distance: Up to 100 meters (328 ft) in open space
• IR Remote Support: 20–60 kHz IR passback
• Latency: 0.1–0.3 seconds (depends on environment)
• HDMI Interfaces:
  • Transmitter: 1× HDMI In
  • Receiver: 1× HDMI Out
• HDMI Loop-Out: Yes (zero delay)
• Max Data Rate: 5Gbps
• Bandwidth: 165MHz
• Impedance: 100Ω
• Power Supply: DC 12V
• Max Power Consumption: 9W
• Operating Temp: 0–50°C
• Storage Temp: -20–60°C
• Humidity: 10–90% RH, non-condensing
• Casing: Metal
• Dimensions: 144 × 74 × 30 mm
• Weight: 1000g
