Pro'sKit MT-7028 Network Cable Toner & Probe Kit

Unleash Ultimate Cable Testing Power with the Pro'sKit MT-7028 Network Toner & Probe Kit!

The Pro'sKit MT-7028 is an indispensable tool for anyone working with network, telecommunication, or audio/video cabling. This comprehensive kit empowers you to quickly and accurately locate, verify, and troubleshoot a wide range of cable issues, ensuring seamless connectivity and saving you valuable time on the job. Whether you're a professional installer, IT technician, or a DIY enthusiast, the MT-7028 provides reliable performance in any environment.

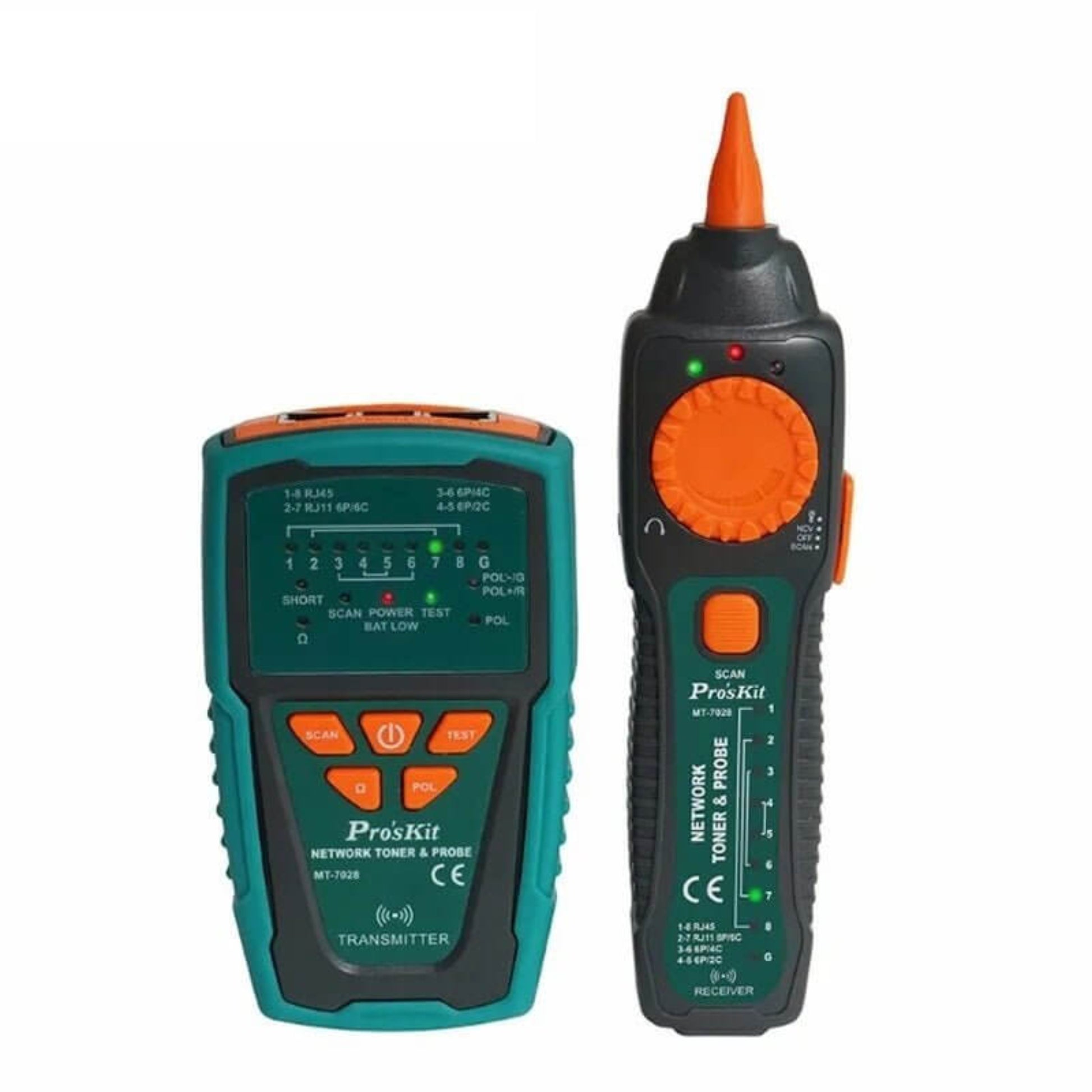

What's Included in Your Kit:

• Pro'sKit MT-7028 Transmitter: The heart of your testing capabilities.
• Pro'sKit MT-7028 Receiver: For precise cable tracing and signal detection.
• 2 x RJ45 Cable Patch Cords: For testing network cables.
• 2 x RJ11 Cable Patch Cords: For testing telephone lines.
• Alligator Clips Patch Cord: For testing coaxial and other solid/stranded wires.
• Earphone: For clear audio tone detection in noisy environments.
• Protective Pouch Bag: Keep your kit organized and safe.
• 1 x 9V Battery: Get started right out of the box!

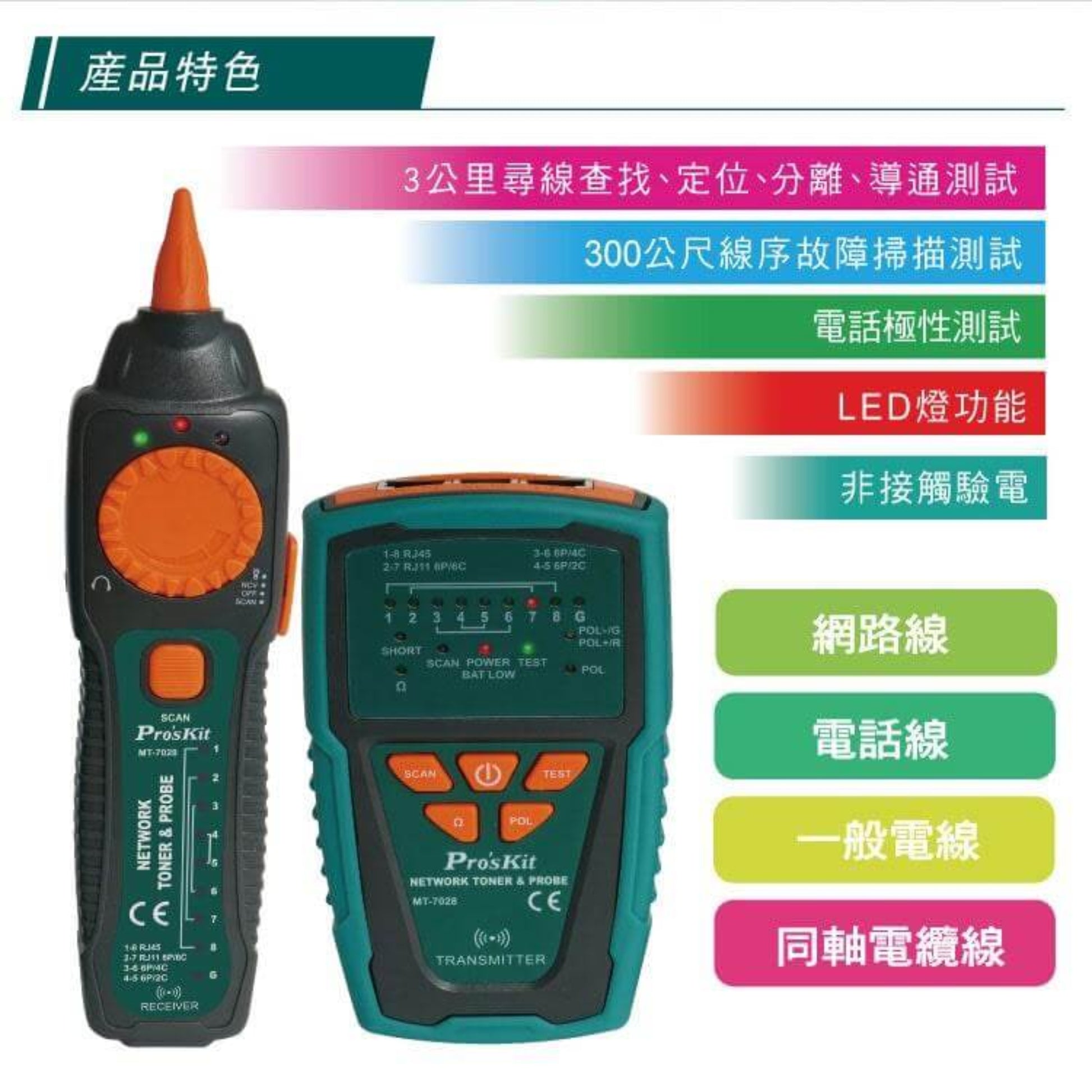

Key Features & Benefits:

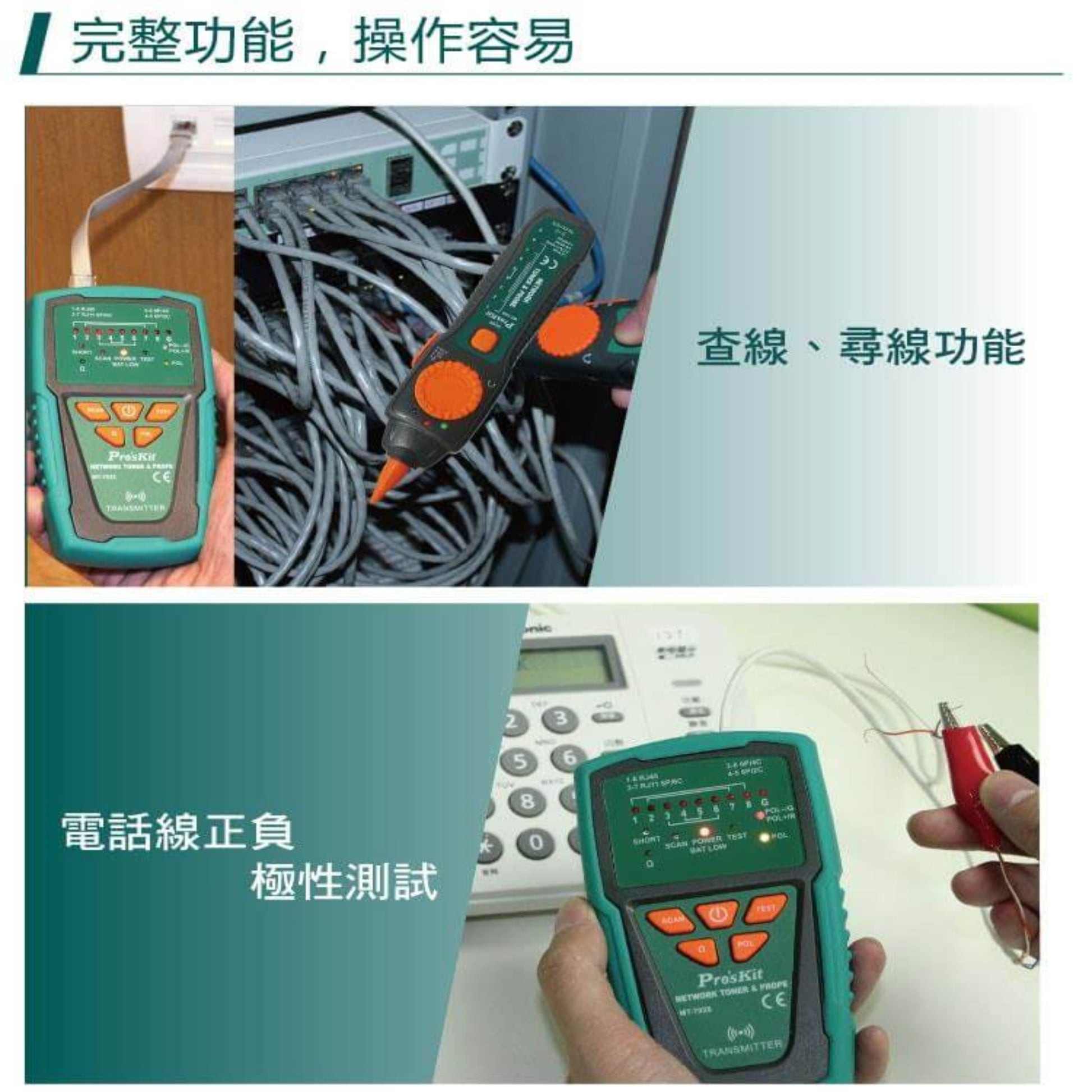

• Effortless Wire Tracing (Up to 3KM):
  • Easily locate and identify cables even when connected to live telecommunication equipment and routers. The powerful tone generator and sensitive probe pinpoint cables quickly, saving you the hassle of manual tracing.
• Comprehensive Cable Mapping & Status Indication (Up to 300M):
  • Perform pin-to-pin cable mapping with a clear LED display.
  • Identify crucial wiring issues such as continuity, shorts, opens, and crossover faults on RJ45 LAN cables (Cat 5, 5e, 6, 7 UTP/STP) and RJ11/12 telephone cables (Cat 3).
  • Choose between fast or slow scan functions for efficient troubleshooting.

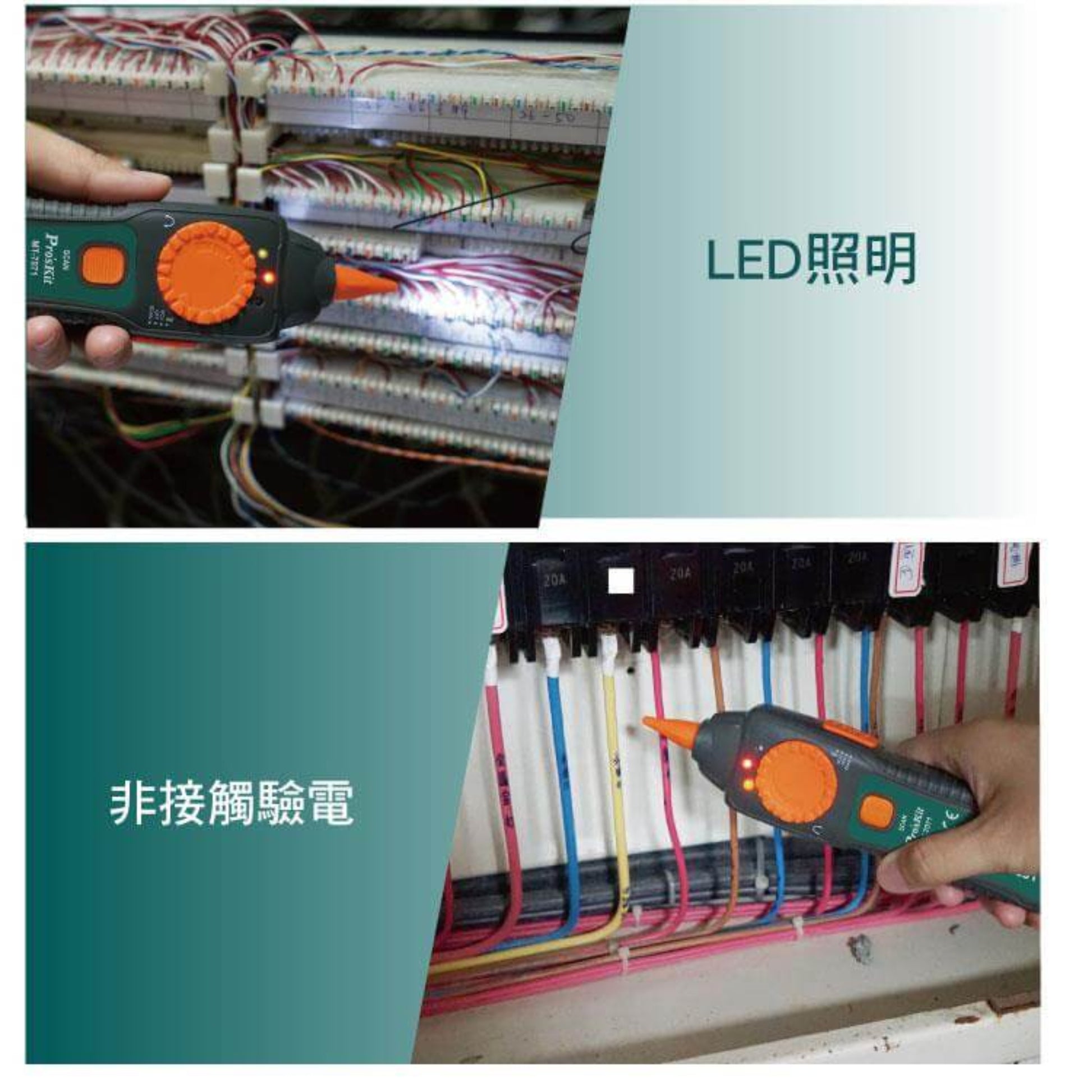

• Non-Contact Voltage (NCV) Detection:
  • Safely detect AC voltage from 90V to 1000V without direct contact. This vital safety feature helps ensure power is off before you begin work, protecting you and your equipment.
• Instant Phone Line Polarity Indication:
  • Quickly determine the polarity of telephone lines, simplifying installation and maintenance tasks.
• Smart Energy Saving:
  • The unit automatically powers off after 1 hour of inactivity, preserving battery life and ensuring your tool is ready when you need it.

Versatile Applications:

The MT-7028 is an ideal solution for:

• Telecommunication installations and maintenance
• Network infrastructure deployment and troubleshooting
• Datacom system management
• Audio/Video cabling setup
• Cable TV installations
• General solid/stranded wire testing in various environments.

Technical Specifications:

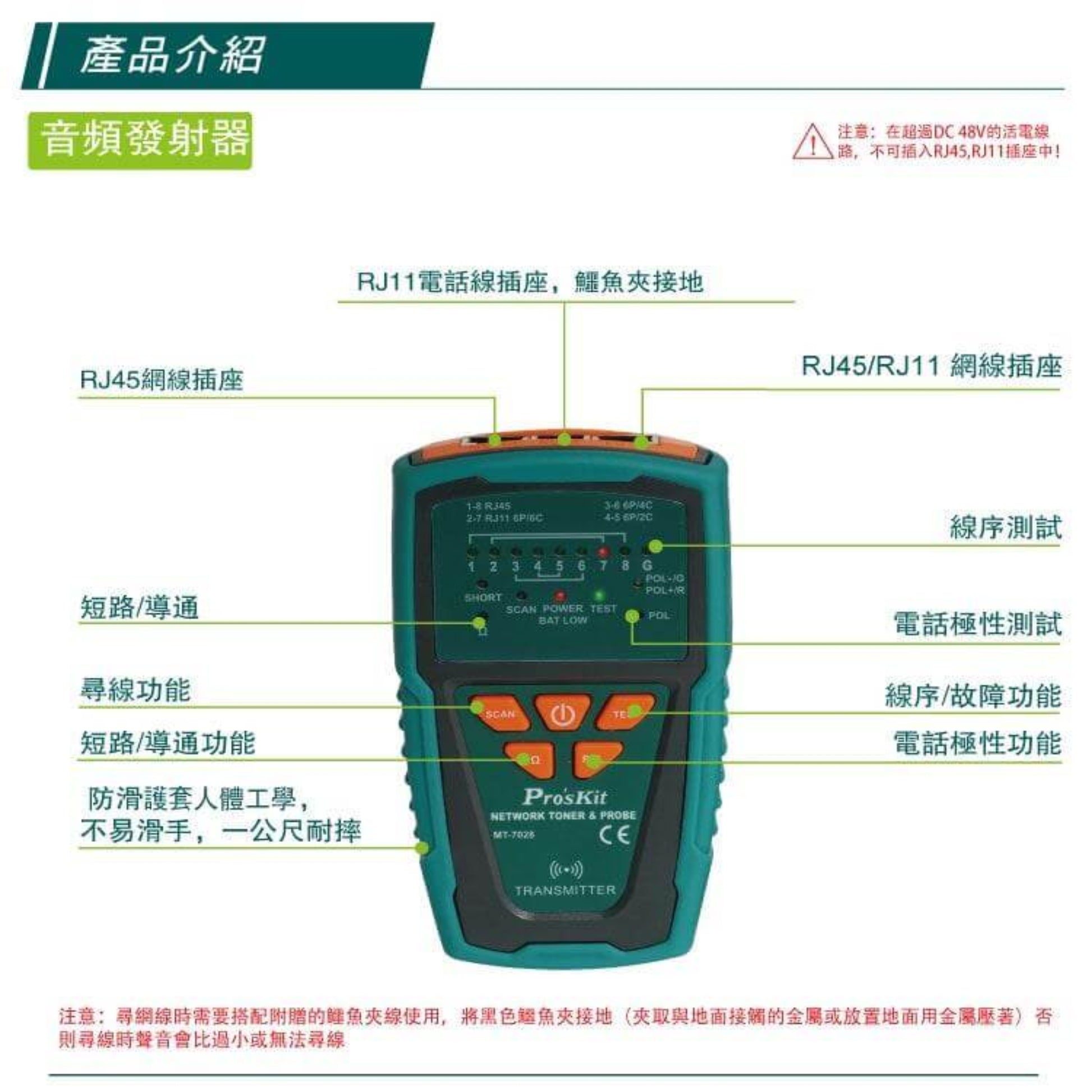

MT-7028 Transmitter:

• Tone Frequency: 1kHz
• Max. Transmission Distance (Audio): ≧3km
• Max. Cable Map Distance: 300m
• Tone Mode: Hi/Low two-note tone
• Compatible Connectors: RJ45 (8 pin) / RJ11 (6 pin) for both cable mapping and tone generation.
• Cable Types Tested: RJ45 LAN cables (Cat 5, 5e, 6, 7 UTP/STP), RJ11/12 Telephone cables (Cat 3, 6P/2C/4C/6C)
• Continuity Test: Indicated by 1 LED (≦300Ω); supports coaxial and solid/stranded wire via alligator clips.
• Cable Map & Shielded Indication: 8 LEDs for mapping, 1 LED for shield; Fast/Slow dual speed.
• Phone Line Polarity Indication: 1 Dual-color LED
• Other Functions: Live telecommunication equipment test, router test, Voltage protection (AC 60V or DC 48V), Auto power off, Low battery display.

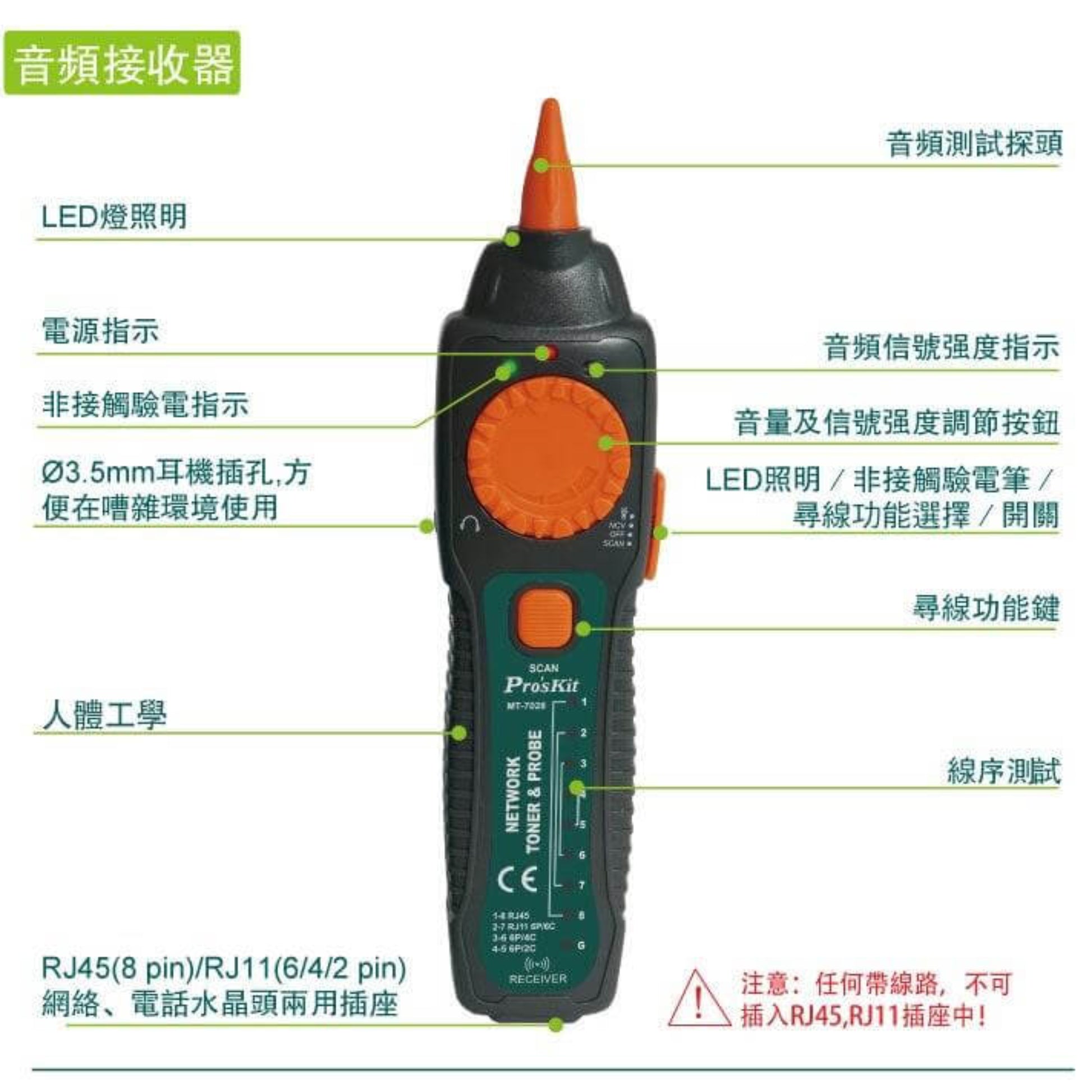

MT-7028 Receiver:

• Frequency: 1kHz
• Compatible Connectors: RJ45 (8 pin) / RJ11 (6 pin)
• Signal Status Indication: 1 LED & Buzzer, built-in earphone jack.
