Mini Micro SD Card SPI Module for Arduino (4.5–5.5V)
Mini Micro SD Card SPI Module for Arduino (4.5–5.5V)
🔥 19 sold•✓ In stock
Regular price
HK$10.00
Regular price
Sale price
HK$10.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.

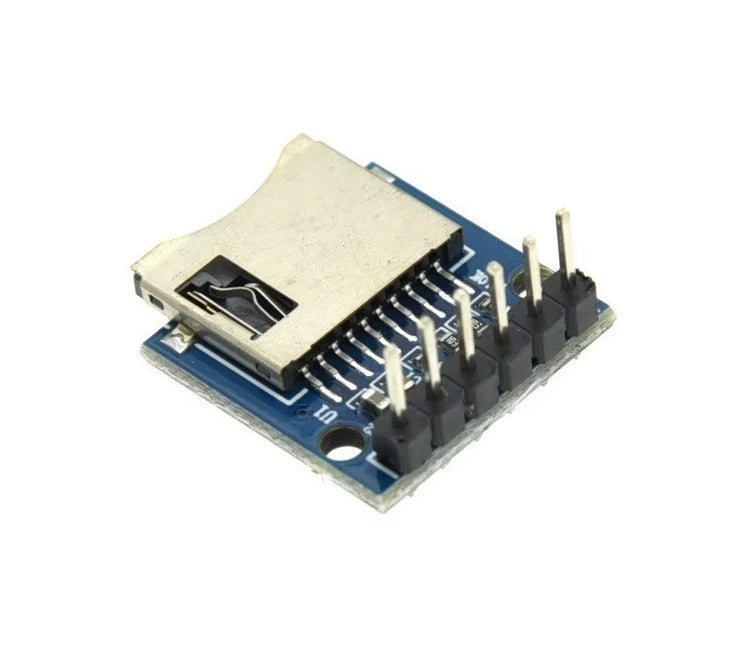

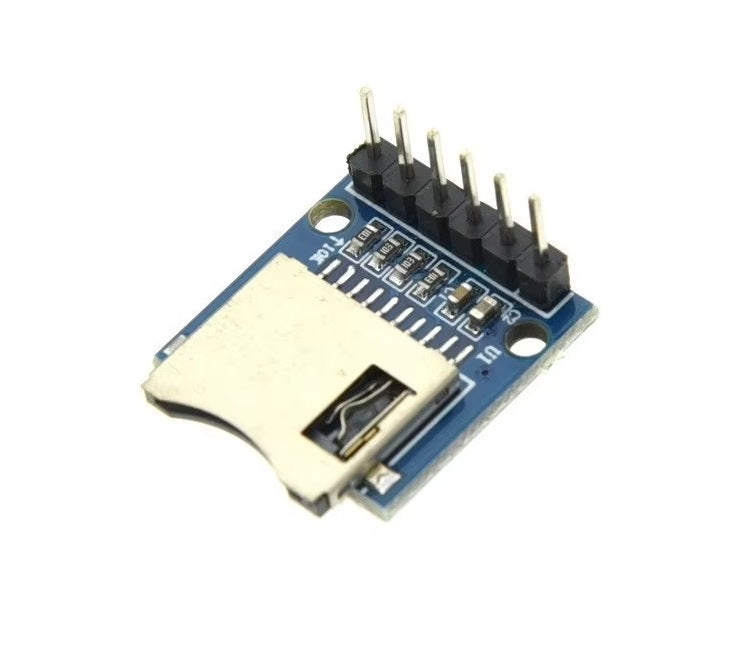

This compact SPI-interface expansion board enables easy addition of Micro SD/TF card storage to any 4.5–5.5 V Arduino project. A spring-loaded (“push-pop”) mini SD card slot and clearly silk-screened SPI pins mean plug-and-play integration without soldering or jumper wiring. Ideal for data logging, audio playback, IoT logging and portable file storage.
Key Features
- Wide Voltage Range: Operates from 4.5 V to 5.5 V, fully compatible with most Arduino boards.
- Spring-Loaded Slot: Onboard “pop-up” mini SD/TF card connector for quick card insertion and removal.
- Pre-Mapped SPI Pins: MOSI, MISO, SCK, CS, VCC and GND pins are already labelled and grouped for straightforward wiring.

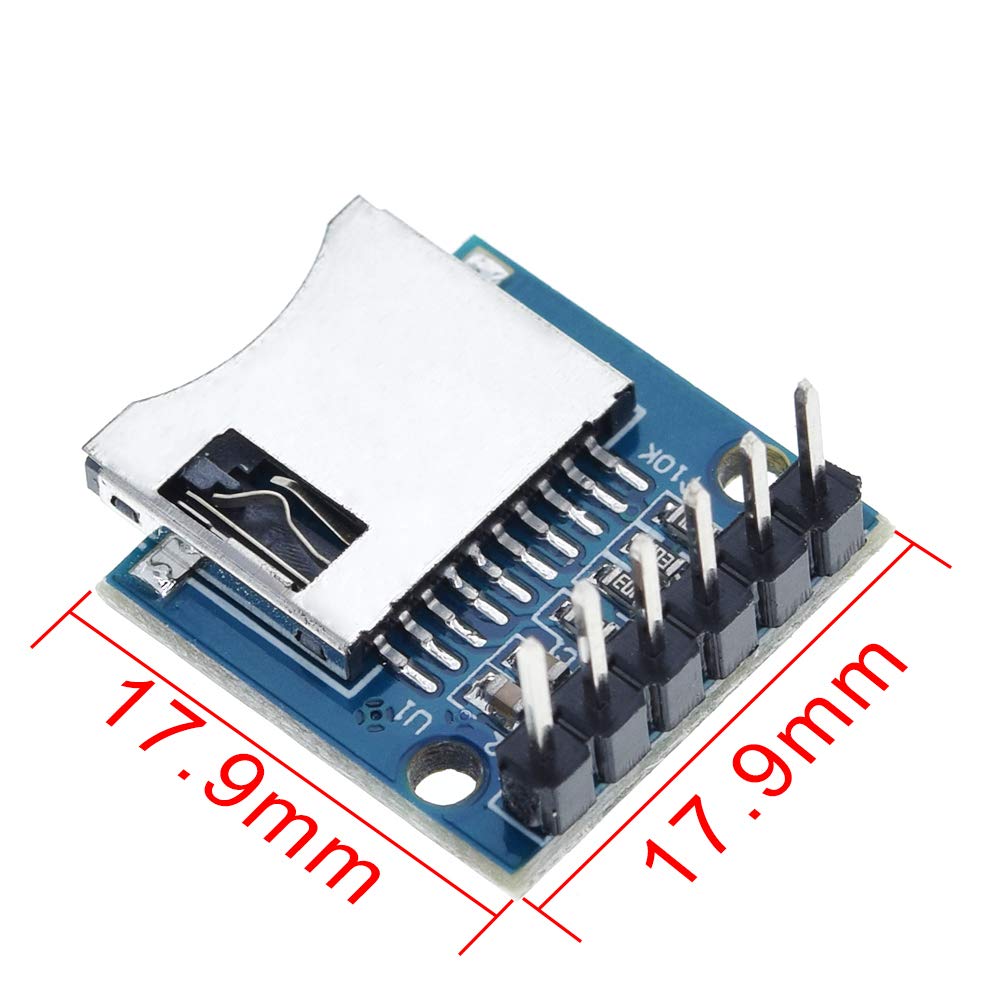

- Compact Design: Just 17.9 × 17.9 mm footprint saves space on crowded prototyping boards.
- ROM-Grade Reliability: Gold-plated spring contacts ensure stable connection and long life.
Specifications
- Interface: SPI
- Supported Cards: Micro SD/TF
- Operating Voltage: 4.5 – 5.5 V DC
- Board Dimensions: 17.9 mm × 17.9 mm
- Pin Pitch: 2.54 mm
- Mounting Hole Diameter: 3.2 mm
